Key Specifications
Choose one or multiple features to search for items that have the same specifications.Ports & interfaces | |
Floppy disk drive connector | |
Motherboard power connector | 20+4 pin ATX |
Number of SATA power connectors | 9 |
Peripheral (Molex) power connectors (4-pin) | 4 |
ATX power connector (20+4 pin) | |
CPU power connector (4+4 pin) | |
PCI Express power connectors (6+2 pin) | 4 |
Cabling type | Modular |
Motherboard power cable length | 50 cm |
SATA power cable length | 150,500 mm |
CPU power cable length | 60 cm |
Peripheral (Molex) power cable length | 150,500 mm |
PCI Express power cable length | 50 cm |
Weight & dimensions | |
Weight | 1.62 kg |
Height | 86 mm |
Width | 150 mm |
Depth | 165 mm |
Energy management | |
Input current | 12 - 6 A |
Nominal power | 750 W |
Efficiency | 89% |
Power protection features | Over current,Over power,Over voltage,Overheating,Short circuit |
Voltage tolerance | 10% |
Power Factor Correction (PFC) type | Active |
Combined power (+3.3V) | 150 W |
Combined power (+12V) | 750 W |
Combined power (+5V) | 150 W |
Combined power (-12V) | 3.6 W |
Combined power (+5Vsb) | 12.5 W |
Max output current (+3.3V) | 25 A |
Max output current (+12V) | 62.5 A |
Max output current (+5V) | 25 A |
Max output current (-12V) | 0.3 A |
Max output current (+5Vsb) | 2.5 A |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Total power | 750 W |
Power Good signal delay range | 100 - 500 ms |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 °C |
Packaging data | |
Package weight | 2.78 kg |
Certificates | |
Certification | cTUVus, TUV, CB, RCM, CE, EAC, FCC |
80 PLUS certification | 80 PLUS Bronze |
Cooling | |
Number of fans | 1 fan(s) |
Fan diameter | 13.5 cm |
Design | |
Product colour | Black |
Performance | |
Purpose | PC |
ATX version | 2.4 |
Power supply unit (PSU) form factor | ATX |
EAN | 0761345115438 |
The latest generation of High Current Gamer Bronze power supplies delivers unparalleled stability and 80 PLUS® Bronze-certified efficiency, with 100% Japanese capacitors and fully-modular cable management and a quiet 135 mm Double Ball Bearing fan completes the package.
The CircuitShield™ suite of industrial -grade protections ensures that the power delivered to your system is safe and reliable in any environment.
High-performance Japanese capacitors ensure the tightest DC stability and regulation, for reliability that you and your system can count on.
Antec Quality 5 year parts and labor warranty, and you get unlimited access to Antec's incomparable technical support and customer service.

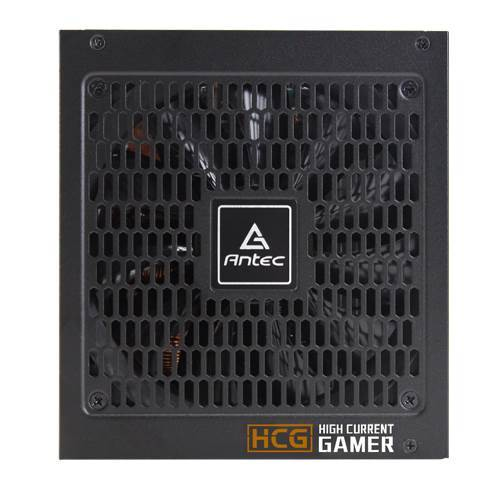

The 135 mm Double Ball Bearing (DBB) Fan is ideal for quiet computing and is designed for longer life, guaranteeing hours of operation.
- Guaranteed 750W Continuous Power from Antec

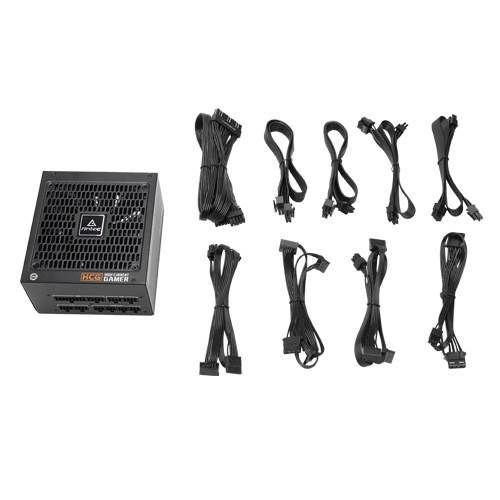

- 100% Modular-Improves airflow and reduces clutter
- DC-DC-Based on a DC-DC topology
- 80 PLUS® Bronze certified-Up to 89% efficient, to reduce your electricity bill
- 135mm DBB Fan-Whisper-quiet high-quality double ball bearing fan with long lifetime
- 99%+12V - Output for maximum CPU &s; GPU support
- 28(18+10) pin MBU socket - For possible future MBU connectors
- ATX12V 2.4-Engineered according to the newest PSU guideline and compatible with the latest CPU generation
