Fractal Design Meshify C Solid Panel Midi-Tower Case, Black
Key Specifications
Choose one or multiple features to search for items that have the same specifications.| Ports & interfaces | |
| Audio input | Yes |
| Audio output | Yes |
| USB 2.0 ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | ![]() |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 2 |
| Combo headphone/mic port | ![]() |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Weight & dimensions | |
| Weight | 6.16 kg |
| Height | 440 mm |
| Width | 212 mm |
| Depth | 395 mm |
| Storage | |
| Card reader integrated | ![]() |
| Number of HDDs supported | 5 |
| Supported HDD sizes | 2.5,3.5" |
| Number of storage drives supported | 5 |
| HDD/SSD combo cage | ![]() |
| SSD form factor | 2.5" |
| Packaging data | |
| Package weight | 7.52 kg |
| Package depth | 542 mm |
| Package height | 493 mm |
| Package width | 298 mm |
| LED controller | ![]() |
| Packaging content | |
| Manual | ![]() |
| Cooling | |
| Cooling | ![]() |
| Front fans installed | 1x 120 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Rear fans diameters supported | 120 mm |
| Top fans diameters supported | 120,140 mm |
| Bottom fans diameters supported | 120 mm |
| Number of side fans supported (max) | 0 |
| Number of rear fans supported (max) | 1 |
| Number of top fans supported (max) | 2 |
| Number of bottom fans supported (max) | 1 |
| Rear fans installed | 1x 120 mm |
| Liquid cooling capability | ![]() |
| Maximum airflow | 36 cfm |
| Rear radiator sizes supported | 120 mm |
| Front radiator sizes supported | 120,140,240,280,360 mm |
| Rear radiator installed | ![]() |
| Front radiator installed | ![]() |
| Top radiator installed | ![]() |
| Top radiator sizes supported | 120,140 mm |
| Fan speed control | ![]() |
| Bottom radiator sizes supported | 120 mm |
| Other features | |
| Power LED | ![]() |
| Volume | 36.5 L |
| On/off switch | ![]() |
| Screws included | ![]() |
| Design | |
| Type | PC |
| Rack mounting | ![]() |
| Form factor | Midi Tower |
| Material | Steel |
| Cable lock slot | ![]() |
| Product colour | Black |
| Illumination | ![]() |
| Cable management | ![]() |
| Reset button | ![]() |
| Supported motherboard form factors | ATX, ITX, micro ATX |
| Cooling type | Air |
| Anti-dust filter | ![]() |
| Number of 5.25" bays | 0 |
| Number of 3.5" bays | 2 |
| Suitable for | PC |
| Transport wheels | ![]() |
| Side window | ![]() |
| Number of internal 3.5" bays | 2 |
| Maximum CPU cooler height | 17 cm |
| Maximum graphics card length | 31.5 cm |
| Number of expansion slots | 7 |
| Maximum PSU length | 17.5 cm |
| Number of 2.5" bays | 3 |
| Number of external 5.25" bays | 0 |
| On/off button | ![]() |
| Tempered glass panel(s) | ![]() |
| RGB control button | ![]() |
| Power supply | |
| Number of power supply units | 1 |
| Power supply location | Bottom |
| Power supply included | ![]() |
| Supported power supply form factors | ATX |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| EAN | 7340172700081 |
| Warranty | 1 year |
The Fractal Design Meshify C is a mid-tower ATX case designed with a focus on high-airflow cooling performance. Its defining feature is the angular mesh front panel, which allows for direct and unobstructed air intake to the system's core components. This model is equipped with a solid steel side panel, offering a clean, uniform aesthetic and potentially reducing operational noise compared to windowed alternatives. The case maintains a compact footprint while providing a flexible interior for a variety of hardware configurations, suiting builds that prioritize thermal efficiency.

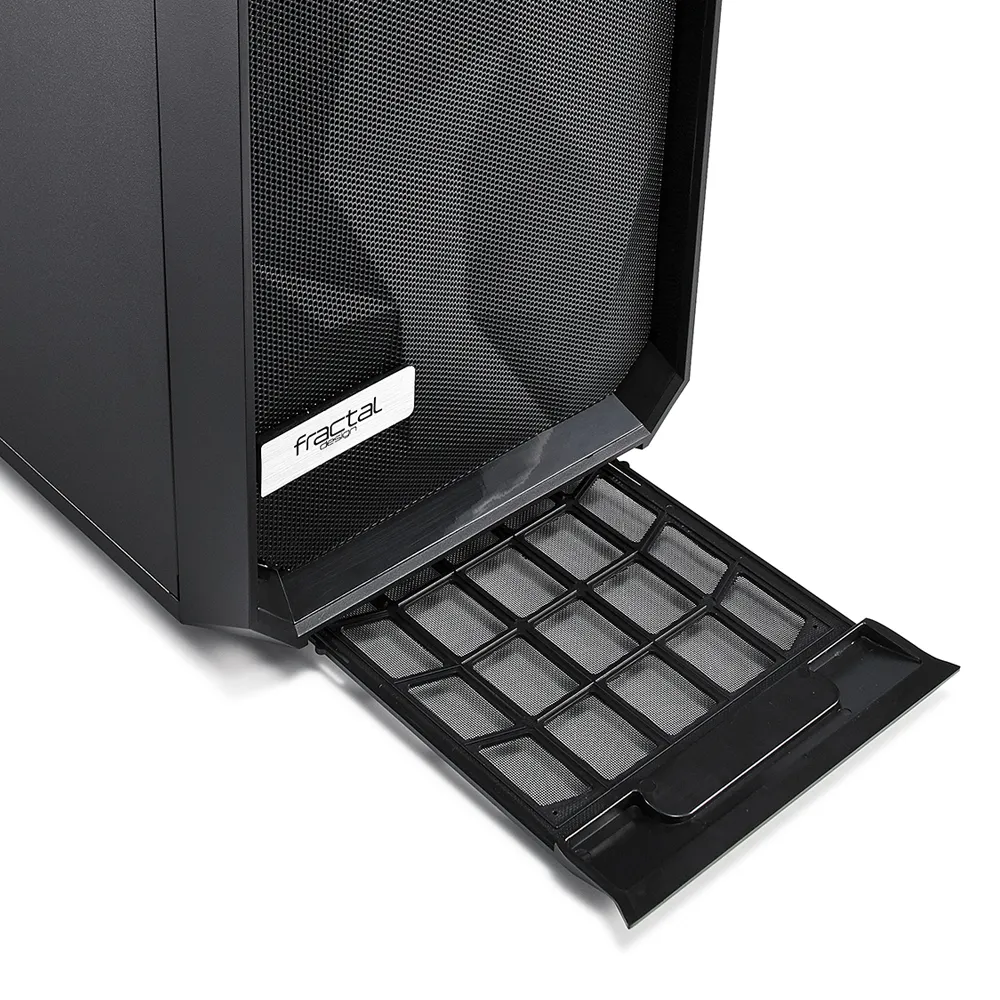

The internal layout supports ATX, Micro-ATX, and ITX motherboards, with seven expansion slots for graphics cards and other peripherals. For cooling, the chassis provides mounting locations for up to seven fans and includes two pre-installed 120 mm fans to establish initial airflow. Liquid cooling is also supported, with space for radiators up to 360 mm in the front and 140 mm in the top positions. To simplify maintenance, dust filters are integrated into the front, top, and bottom panels, helping to protect components from particle buildup.
Key Features:- Supports ATX, Micro-ATX, and ITX motherboards
- Constructed from steel with a solid, non-windowed side panel
- Features two 3.5-inch and three 2.5-inch drive bays
- Provides seven rear expansion slots for components
- Accommodates CPU coolers up to 170 mm in height
- Fits standard ATX power supplies up to 175 mm long
- Front I/O includes two USB 3.2 Gen 1 ports and audio jacks
- Measures 212 mm (W) x 440 mm (H) x 395 mm (D)
