Fractal Design Define S2 - Black TGL

FRACTAL DESIGN
FD-CA-DEF-S2-BK-TGL
Express delivery

160,90 € Show VAT 0% Show VAT 24%
Online store: 27 pcs available Estimated delivery time: 1-4 days
Specifications
Description
Availability / Delivery
Price development
Ports & interfaces
Audio inputY
Audio outputY
USB 2.0 ports quantity2
USB 3.0 (3.1 Gen 1) Type-A ports quantity2
USB 3.1 (3.1 Gen 2) Type-C ports quantity1
Weight & dimensions
Weight11.6 kg
Height465 mm
Width233 mm
Depth543 mm
Storage
Supported HDD sizes2.5,3.5"
HDD/SSD combo cagecheckmark
Packaging data
Package weight13.4 kg
Package depth535 mm
Package height650 mm
Package width325 mm
Manualcheckmark
Ergonomics
LED indicatorsPower
Reset buttoncheckmark
Cooling
Front fans installed2x 140 mm
Maximum front fans3
Front fans diameters supported120,140 mm
Rear fans diameters supported120,140 mm
Top fans diameters supported120,140 mm
Bottom fans diameters supported120,140 mm
Maximum rear fans1
Maximum top fans3
Maximum bottom fans2
Rear fans installed1x 140 mm
Rear radiator fan sizes supported120 mm
Front radiator fan sizes supported120,240,360 mm
Top radiator fan sizes supported120,240,360 mm
Design
TypePC
Rack mountingcross
Form factorMidi-Tower
MaterialGlass,Metal
Product colourBlack
Supported motherboard form factorsATX,EATX,ITX,Micro ATX
Anti-dust filtercheckmark
Number of 3.5" bays3
Suitable forGaming
Side windowcheckmark
Maximum CPU cooler height18.5 cm
Maximum graphics card length44 cm
Number of expansion slots9
Maximum PSU length30 cm
Number of 2.5" bays2
Power supply
Power supply locationBottom
Power supply includedcross
Supported power supply form factorsATX
EAN7340172701040
Warranty2 years
Source: Icecat.biz

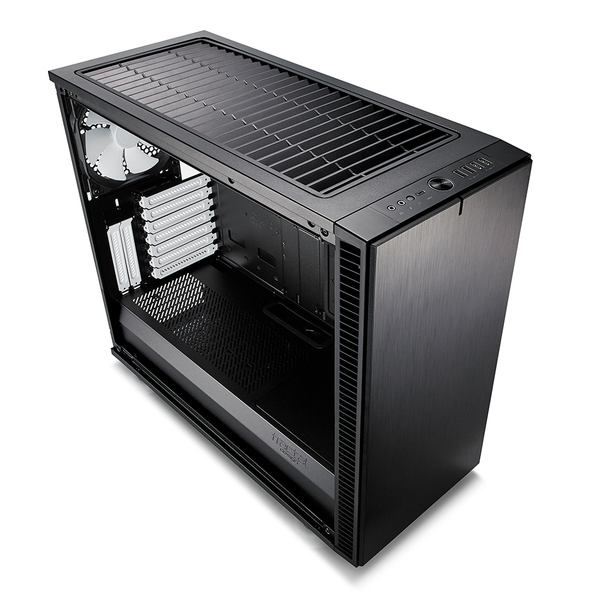

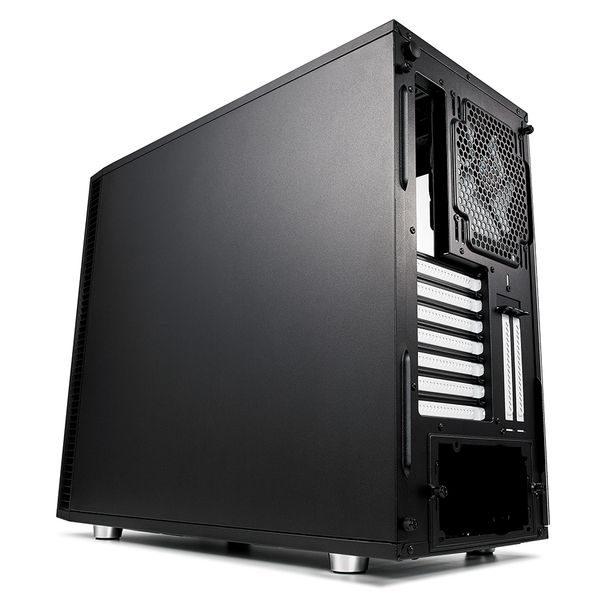

Define S2 Black – TG

The Define S2 is the latest leap forward in open-layout case design—an ingenious refinement of the zero-obstruction formula that cemented the series as the de facto standard for the silent high-performance build.

The S2 achieves increased airflow and water cooling capacity with nine total fan positions and 15% larger intake area vs. the previous generation. Radiators up to 420 mm install directly through the top by way of an innovative removable bracket with built-in fill port for easy access, and there’s room for radiators up to 360 mm in the front and 280 mm in the base. Pumps and reservoirs are supported right out of the box with integrated mounting locations and adjustable brackets.

Full USB 3.1 Gen 2 Type-C comes standard along with three Dynamic X2 fans, full length ventilated PSU shroud with alternate SSD mounts, and support for vertical GPU installation via the Flex VRC-25 riser, available separately.

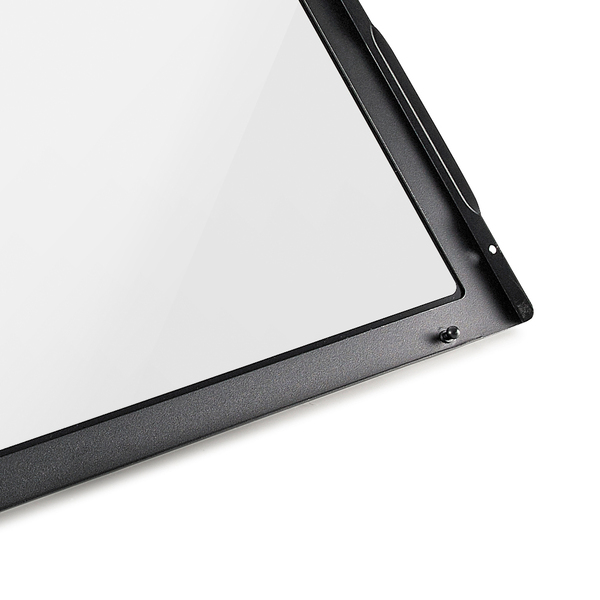

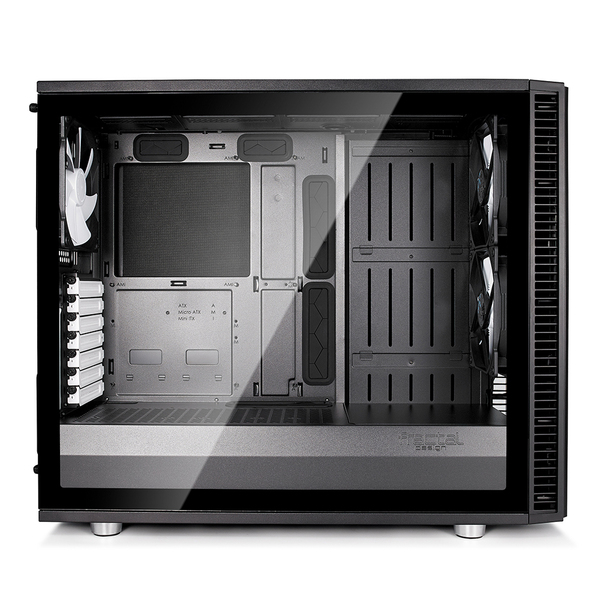

Bolt-free tempered glass offers an exceptionally clear interior view thanks to an elegant push-to-lock latching mechanism, and Third generation ModuVent™ technology complements a generous application of industrial sound dampening to ensure your hardware is seen but not heard.

Whether your aim is silence, efficiency or sheer water-cooled extravagance, the Define S2 hits the mark.

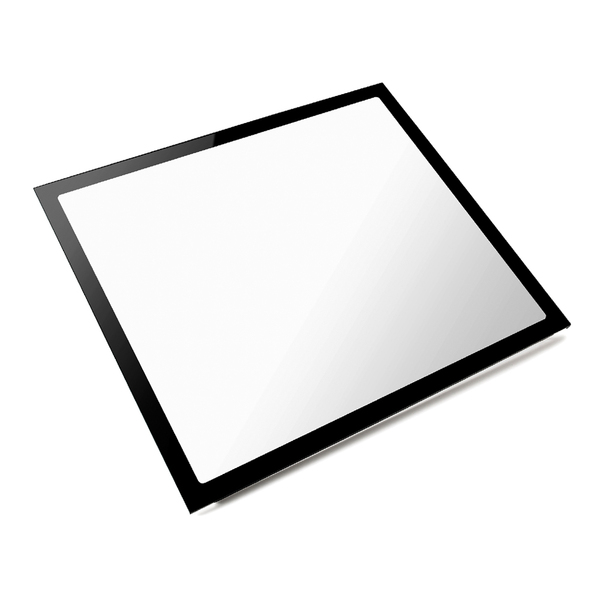

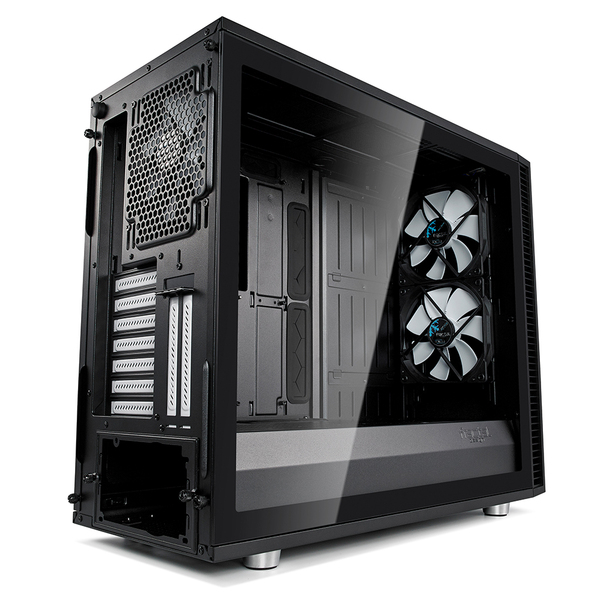

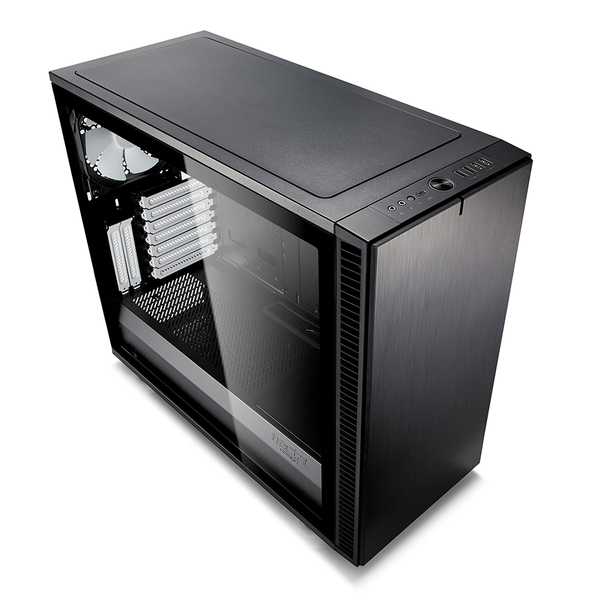

- Seamless, scratch-resistant tempered glass side panel
- Optimized for silence with high-density industrial dampening on side, top and front panels

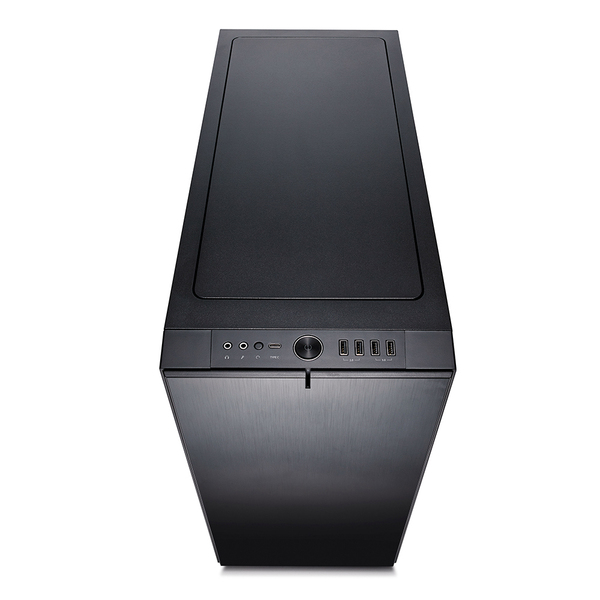

- Full USB 3.1 Gen 2 Type-C with support for fast charging and up to 10Gbps transfer speeds
- Nine fan positions with intuitive layout and clear airflow paths for massive cooling capacity
- Extensive water cooling support with room for radiators up to 420 mm in the top, 360 mm in the front, and 280 mm in the base

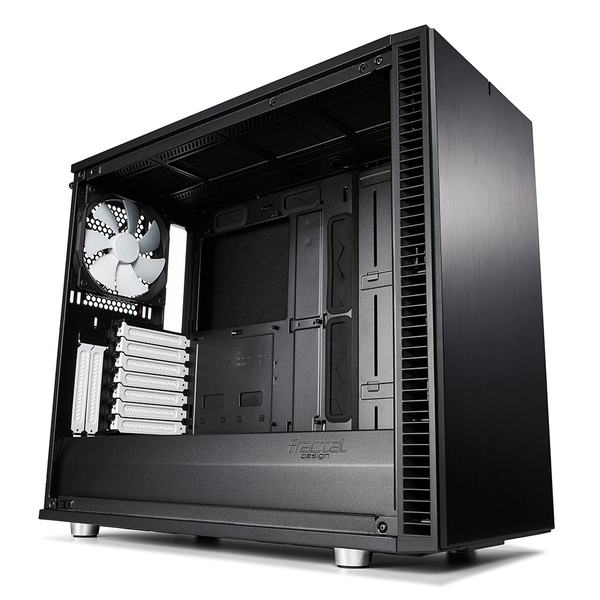

- Full-length power supply shroud hides excess cables for a clean interior and features a removable panel for installation of larger front radiators

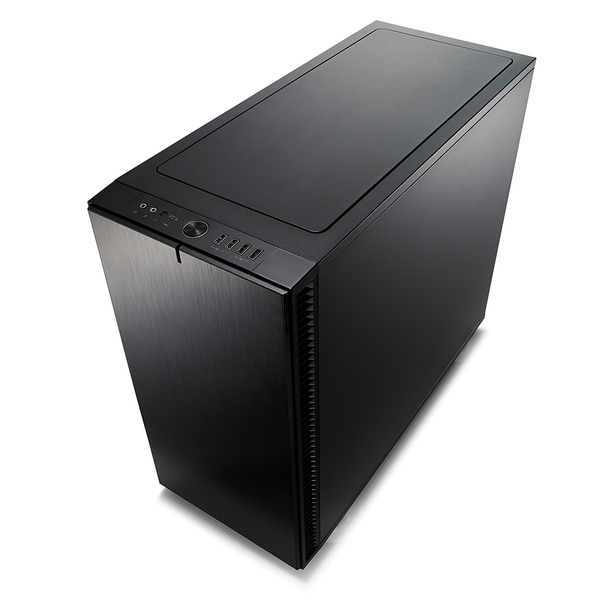

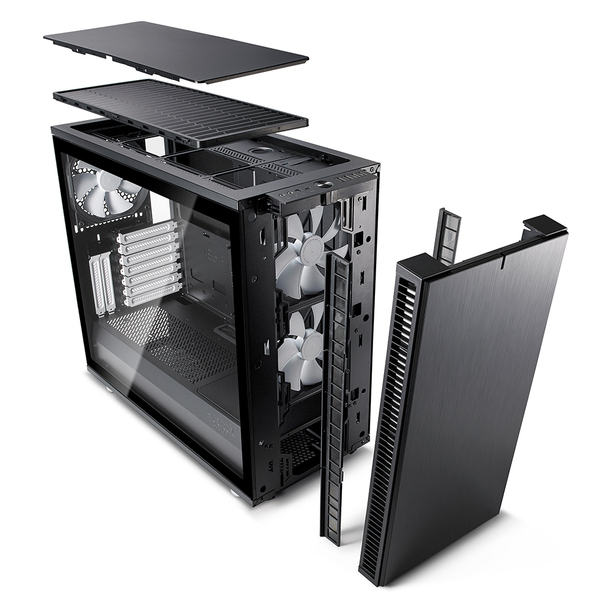

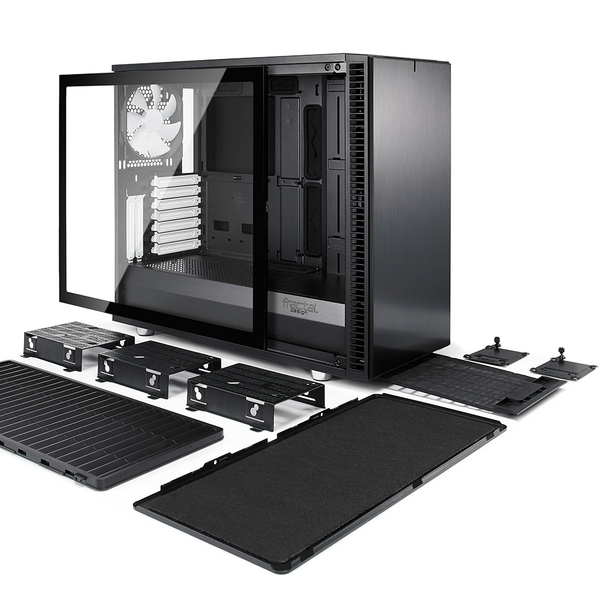

- Third generation ModuVent™ technology gives users a choice between a soundproof steel cover or filtered multi-fan ventilation setup in the top panel
- Easy-to-clean high airflow nylon filters on the front, top, and base with full PSU coverage and front access for convenience
- Nexus+ Smart Hub offers superior control of six additional case fans and three PWM devices via your motherboard

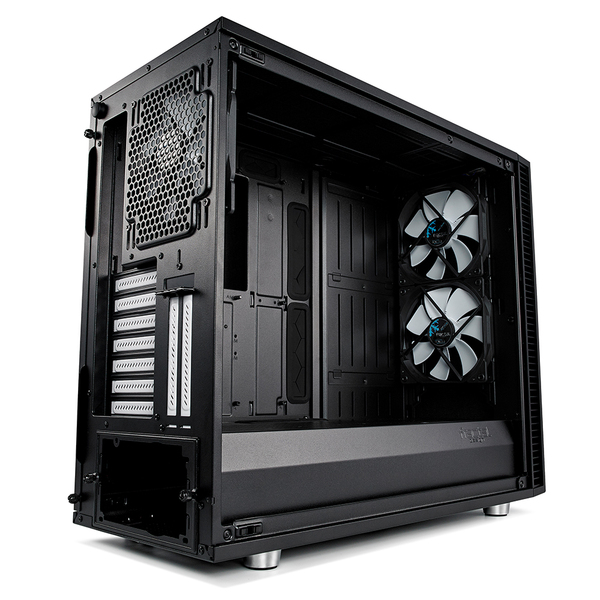

- Three Fractal Design Dynamic X2 GP-14 140 mm fans come pre-installed with dual intakes and rear exhaust for optimal airflow right out of the box

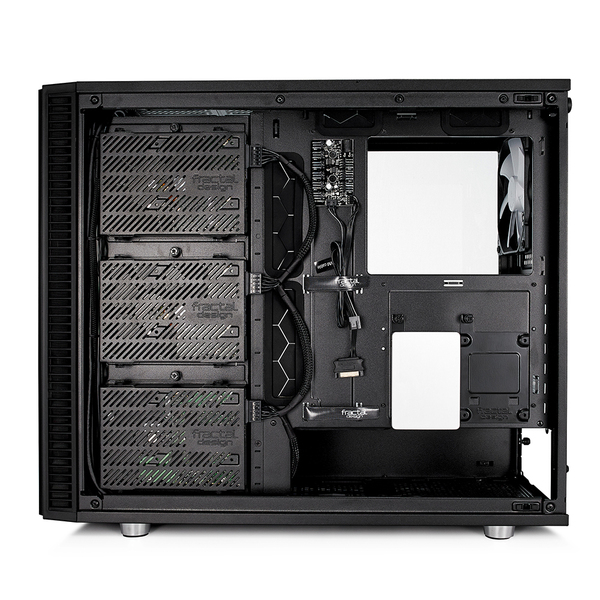

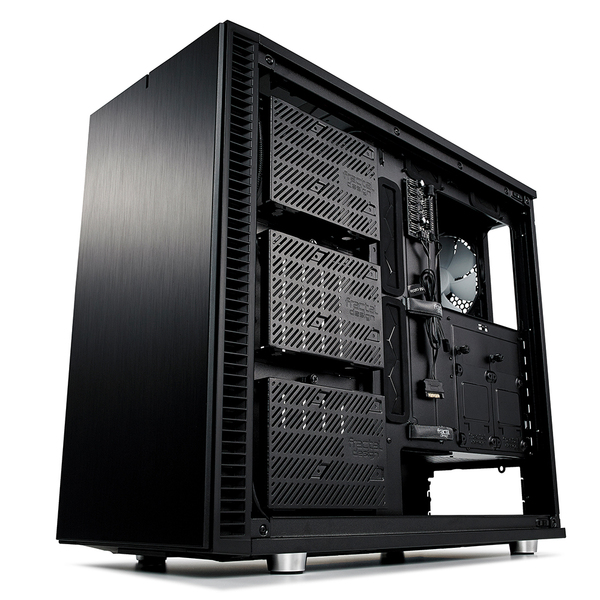

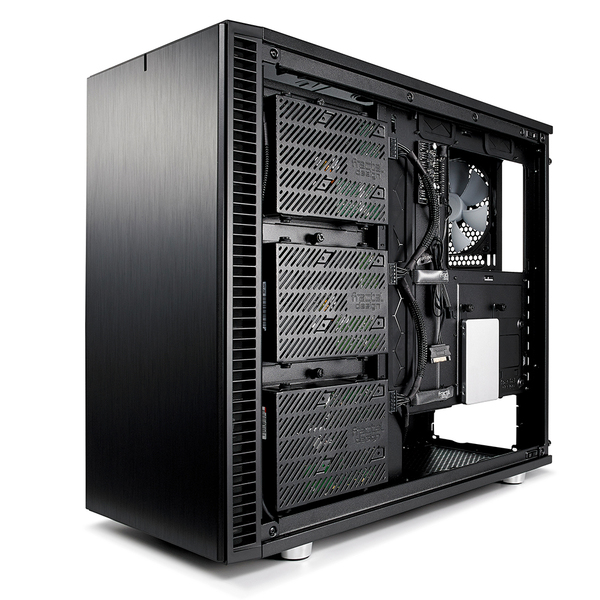

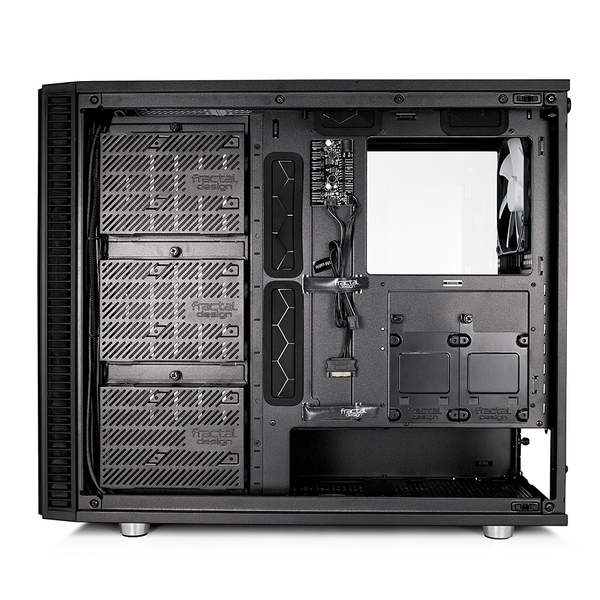

- Concealed drive mounts for up to three 3.5" HDDs leave ample forward space for reservoirs and advanced water cooling setups
- Customizable 2.5” storage solution with two brackets and a choice of four locations to hide drives beneath the motherboard tray or display them prominently on top of the PSU shroud
- Sleek anodized aluminum front panel with sound absorbent inlay
