No price development information for this product.
This product is end of life or currently not available.
Key Specifications
Choose one or multiple features to search for items that have the same specifications.Processor | |
Processor frequency | 1620 MHz |
Graphics processor | GeForce RTX 2070 |
Maximum resolution | 7680 x 4320 pixels |
Maximum digital resolution | 7680 x 4320 @ 60Hz |
Maximum displays per videocard | 4 |
CUDA | |
CUDA cores | 2304 |
Graphics processor family | NVIDIA |
FireStream | |
Memory | |
Graphics card memory type | GDDR6 |
Memory bus | 256 bit |
Memory clock speed | 14000 MHz |
Memory bandwidth (max) | 448 GB/s |
Discrete graphics card memory | 8 GB |
System requirements | |
Windows operating systems supported | |

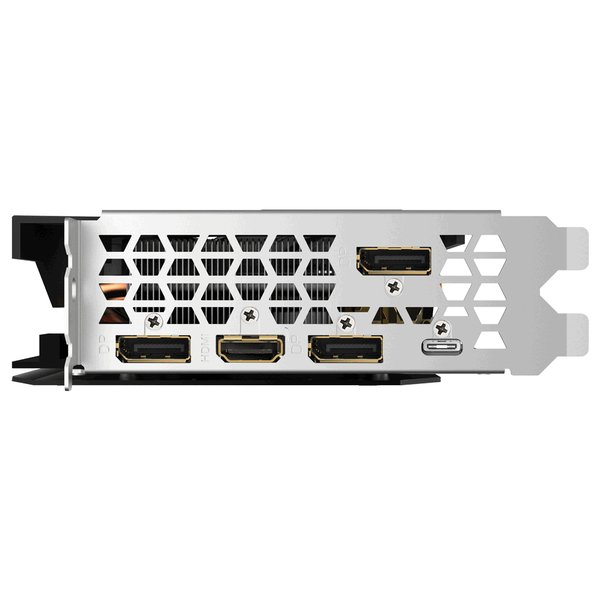

Ports & interfaces | |
Interface type | PCI-E 3.0 x 16 |
HDMI ports quantity | 1 |
HDMI version | 2.0b |
DisplayPorts quantity | 3 |
DisplayPort version | 1.4 |
USB Type-C connector | |
Weight & dimensions | |
Height | 42.1 mm |
Width | 121.45 mm |
Depth | 169.99 mm |
Energy management | |
Minimum system power supply | 550 W |
Supplementary power connectors | 1x 6-pin, 1x 8-pin |
Packaging data | |
Package type | Box |
Drivers included | |
User guide | |
Design | |
Form factor | ATX |
Number of slots | 2 |
Product colour | Black |
Number of fans | 1 fan(s) |
Cooling type | Active |
Performance | |
TV tuner integrated | |
Full HD | |
DirectX version | 12.0 |
OpenGL version | 4.5 |
Dual Link DVI | |
HDCP | |
PhysX | |
NVIDIA 3D Vision | |
NVIDIA G-SYNC | |
Virtual Reality (VR) ready | |
NVIDIA Ansel | |
EAN | 889523016152 |
Warranty | 1 year |
GIGABYTE CUSTOM-DESIGNED COOLING SYSTEM

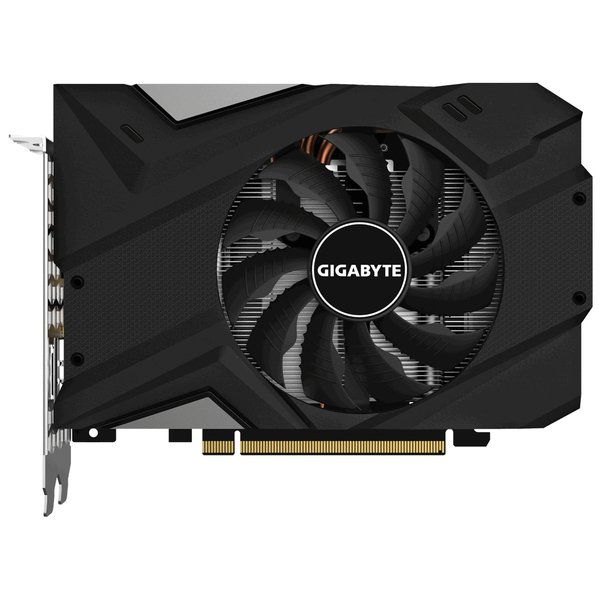

GIGABYTE Custom-designed cooling system features a 90mm unique blade fan, 4 copper composite heat-pipes with direct touch GPU and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.
TINY SIZE WITH MIGHTY PERFORMANCE. AT ONCE.

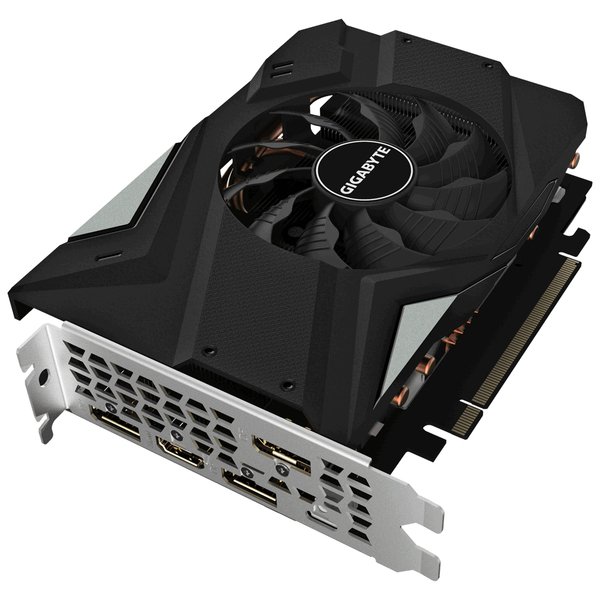

For users who prefer small chassis and expect strong performance, GIGABYTE delivers with the new 170mm length GeForce RTX™ 2070 MINI ITX graphics card. Not only does the MINI ITX embed powerful GeForce RTX™ 2070 graphics processing to provide gamers with the best experience in each gaming masterpiece, but it’s also easily installed in smaller sized chassis. You never have to worry about the card you purchased not fitting into the chassis.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
HEAT PIPES DIRECT TOUCH
HEAT PIPES DIRECT TOUCH The shape of the pure copper heat pipes maximize the direct contact area with the GPU, enhancing heat transfer. The heat pipes also cover the VRAM through a large metal plate contact to ensure proper cooling.
COMPOSITE HEAT-PIPES
The composite heat-pipes combine thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increase cooling capacity.
EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the 6+2 power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
AORUS ENGINE
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.
