Product unavailable
This product is end of life or currently not available.
This product is end of life or currently not available.
Specifications
Description
Store availability
Delivery
Price development
Ports & interfaces | |
AC outlets quantity | 6 AC outlet(s) |
Number of output IEC jumpers | 2 |
Power plug | C14 coupler |
AC outlet types | C13 coupler |
USB port | |
Weight & dimensions | |
Weight | 12 kg |
Package weight | 12.9 kg |
Height | 215 mm |
Width | 130 mm |
Depth | 336 mm |
Package depth | 440 mm |
Package height | 295 mm |
Package width | 245 mm |
Operational conditions | |
Operating altitude | 0 - 3000 m |
Operating relative humidity (H-H) | 0 - 95% |
Storage temperature (T-T) | -15 - 40 °C |
Operating temperature (T-T) | 0 - 40 °C |
Storage relative humidity (H-H) | 0 - 95% |
Non-operating altitude | 0 - 9000 m |
Packaging data | |
Bundled software | PowerChute Personal Edition |
Manual | |
Battery | |
Battery technology | Sealed Lead Acid (VRLA) |
Number of batteries supported | 2 |
Battery recharge time | 8 h |

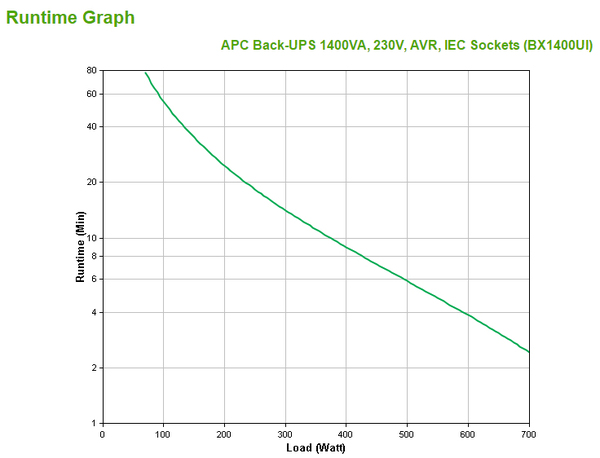

Typical backup time at half load | 11.2 min |
Typical backup time at full load | 2.4 min |
Battery voltage | 12 V |
Battery capacity | 165 VAh |
Automatic battery test | |
Battery life (max) | 5 year(s) |
Other features | |
Nominal output voltage | 230 V |
Nominal input voltage | 230 V |
Type of input protection required | 3-pole circuit breaker |
Design | |
Certification | A-tick, C-tick, CE, IEC 62040-1-1, Telepermit |
Form factor | Tower |
Cable length | 1.22 m |
LED indicators | Battery replacement |
Product colour | Black |
Display type | LED |
Features | |
Audible alarm(s) | |
Output power capacity | 1.4 kVA |
Surge energy rating | 273 J |
Noise level | 45 dB |
Input frequency | 50/60 Hz |
Maximum current | 6 A |
Efficiency | 97.4% |
Output power | 700 W |
Surge protection | |
Surge protection features | Fax, Modem |
Input operation voltage (max) | 280 V |
Input operation voltage (min) | 150 V |
Input power factor | 0.5 |
Waveform | Sine |
Output frequency regulation | 50/60 Hz |
Automatic Voltage Regulation (AVR) | |
Auto-restart | |
UPS topology | Line-Interactive |
Hold time (min) | 8 ms |
Hold time (max) | 10 ms |
Audible alarm modes | Overload alarm |
EAN | 731304315957 |
Warranty | 1 year |
Source: Icecat.biz |
USB connection
Use your PC to access additional power protection and management features for your UPS via a USB Port.
Telephone dataline surge protection
Provides protection of connected equipment from power surges traveling on telephone lines.
Automatic Voltage Regulation (AVR)
Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.
Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
