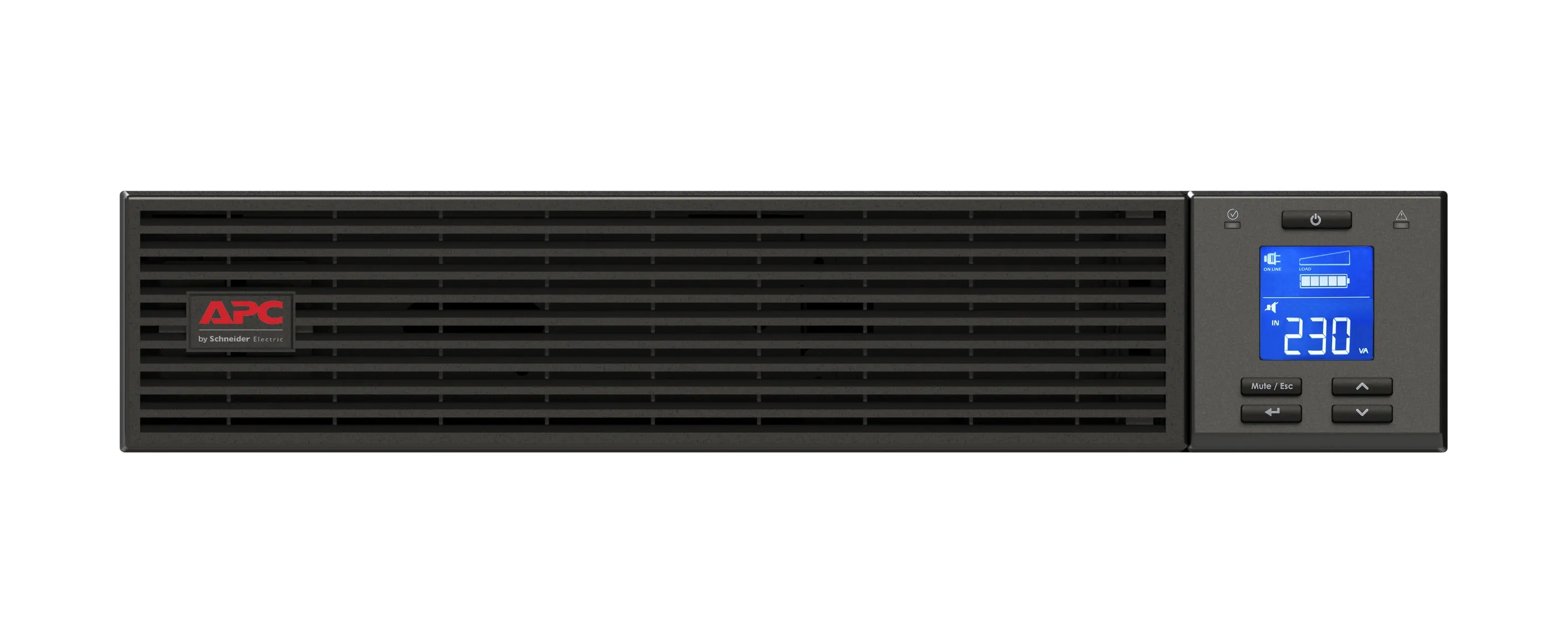

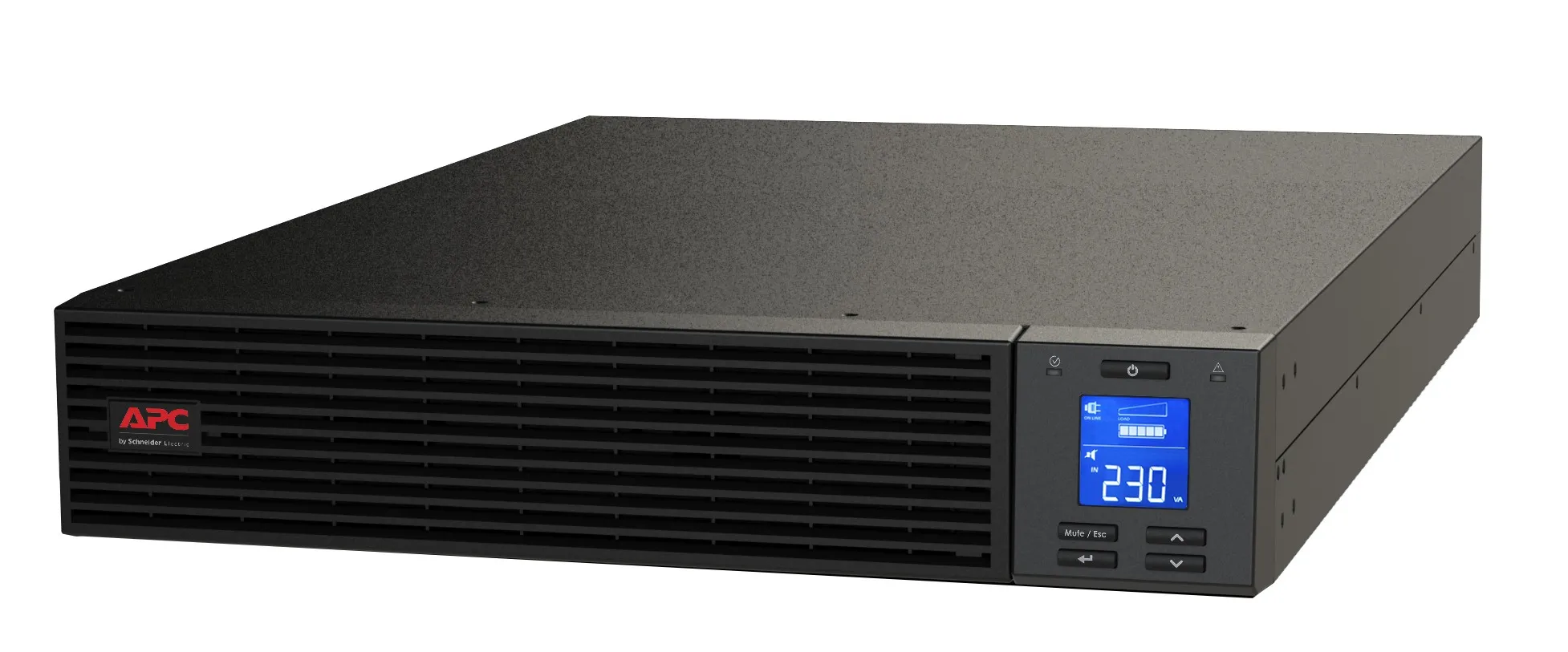

APC EASY UPS SRV RM 2000VA 230V

Manufacturer: APC
ID: SRV2KRI
135190€ Show VAT 0% Show VAT 24%
Estimated delivery: 07.08 - 09.08
On order with ETA after 05.08.2024
Select your store
On order with ETA after 05.08.2024 Open today: 10:00 - 18:00 About this store
On order with ETA after 05.08.2024 Open today: 09:00 - 17:00 About this store
On order with ETA after 05.08.2024 Open today: 10:00 - 18:00 About this store
On order with ETA after 05.08.2024 Open today: 10:00 - 17:00 About this store
On order with ETA after 05.08.2024 Open today: 10:00 - 18:00 About this store
On order with ETA after 05.08.2024 Open today: 10:00 - 17:00 About this store
On order with ETA after 05.08.2024 Open today: 10:00 - 18:00 About this store
Multitronic warehouse store
Multitronic | JNT Pietarsaari
Multitronic Seinäjoki
Multitronic | iTronic Jyväskylä
Multitronic | iTronic Lappeenranta
Multitronic Mariehamn
iTronic Vaasa
Specifications
Description
Store availability
Delivery
Price development
Technical details
Sustainability certificatesRoHS

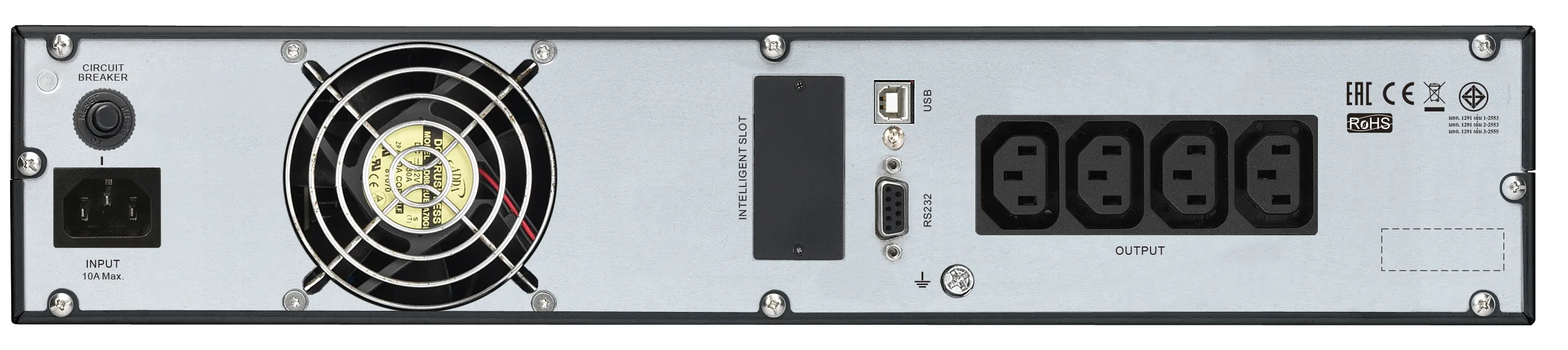

Ports & interfaces
Serial ports quantity1
AC outlets quantity4 AC outlet(s)
AC outlet typesC13 coupler
Serial interfacecheckmark
USB portcheckmark
SmartSlotcheckmark
USB port typeUSB Type-B
Weight & dimensions
Weight18.2 kg
Package weight20.7 kg
Height86 mm
Width437 mm
Depth462 mm
Package depth599 mm
Package height142 mm
Package width551 mm
Operational conditions
Operating altitude0 - 3000 m
Operating relative humidity (H-H)0 - 95%
Storage temperature (T-T)-20 - 50 °C
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)0 - 95%
Packaging data
Cables includedUSB cable
Manualcheckmark
Software CDcheckmark
Battery
Battery technologySealed Lead Acid (VRLA)
Battery recharge time4 h
Automatic battery testcheckmark
Other features
Nominal output voltage230 V
Nominal input voltage230 V
Design
CertificationCE, IEC 62040-1-1, IEC 62040-1-2
REACH
Form factorRackmount
LED indicatorscheckmark
Product colourBlack
Rack capacity2U
Display typeLCD
Features
Audible alarm(s)checkmark
Emergency Power Off (EPO)cross
Output power capacity2 kVA
Surge energy rating600 J
Noise level50 dB
Input frequency40/70 Hz
Efficiency88%
Output power1600 W
Maintenance-freecheckmark
Output voltage Total Harmonic Distortion (THD)3%
Crest factor3:1
Input operation voltage (max)280 V
Input operation voltage (min)160 V
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Output frequency50/60 Hz
ECO modecheckmark
Socket circuit breakercheckmark
Number of input phases1
Number of output phases1
Input power factor0.95
Output power factor0.8
WaveformSine
Output voltage regulation1%
Auto-restartcheckmark
UPS topologyDouble-conversion (Online)
Audible alarm modesAlarm when on battery, Fault, Low battery alarm, Overload alarm
Logistics data
Harmonized System (HS) code85078000
EAN731304341697
Warranty1 year
Source: Icecat.biz

Automatic internal bypass

Supplies utility power to the connected loads in the event of a UPS power overload or fault.

Automatic restart of loads after UPS shutdown

Automatically starts up the connected equipment upon the return of utility power.

ECO Mode

Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.

Input power factor correction

Minimizes installation costs by enabling the use of smaller generators and cabling.

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

LCD display

Alpha-Numeric Display which displays system parameters and alarms.

Serial connectivity

Provides management of the UPS via a serial port.

USB connectivity

Provides management of the UPS via a USB port (not available on all models).

Features

Management Software

Allows you to easily monitor your utility power and manage your UPS.

ECO Mode

Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.

Input power factor correction

Minimizes installation costs by enabling the use of smaller generators and cabling.

High efficiency

High efficiency rates that remain stable even at lower operating power levels.

SmartSlot

Customize UPS capabilities with management cards.

Intuitive LCD interface

Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

Double conversion on-line topology

Guarantees a consistently high level of power quality. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.

Generator compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.

Wide input voltage range

Designed for harsh electrical environments to save battery life.

Serviceability

Disconnected battery notification

Warns when a battery is not available to provide backup power.

Audible alarms

Provides notification of changing utility power and UPS power conditions.

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Predicitive failure notification

Provides early-warning fault analysis ensuring proactive component replacement.

Manageability

Serial connectivity

Provides management of the UPS via a serial port.

SmartSlot

Customize UPS capabilities with management cards.

LCD graphics display

Text and mimic diagrams that display modes of operation, system parameters and alarms.

Network manageable

Provides remote power management of the UPS over the network.

LED Indicators

Provide easy-to-read status of the unit and utility power conditions.

Availability

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.
