Ports & interfaces | |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Basic switching RJ-45 Ethernet ports quantity | 8 |
Power connector | DC-in jack |
Weight & dimensions | |
Height | 24 mm |
Width | 142 mm |
Depth | 90 mm |
Energy management | |
Output voltage | 9 V |
Output current | 0.6 A |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Power consumption (max) | 5.5 W |
Power supply included | |
Operational conditions | |
Operating relative humidity (H-H) | 10 - 90% |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 0 - 45 °C |
Storage relative humidity (H-H) | 5 - 90% |
Networking | |
Networking standards | IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
10G support | |
Data transmission | |
MAC address table | 4000 entries |
Switching capacity | 16 Gbit/s |
Management features | |
Switch type | Unmanaged |
Design | |
Rack mounting | |
Product colour | Black |
Power over Ethernet (PoE) | |
Power over Ethernet (PoE) | |
EAN | 6932849431179 |
Source: Icecat.biz |

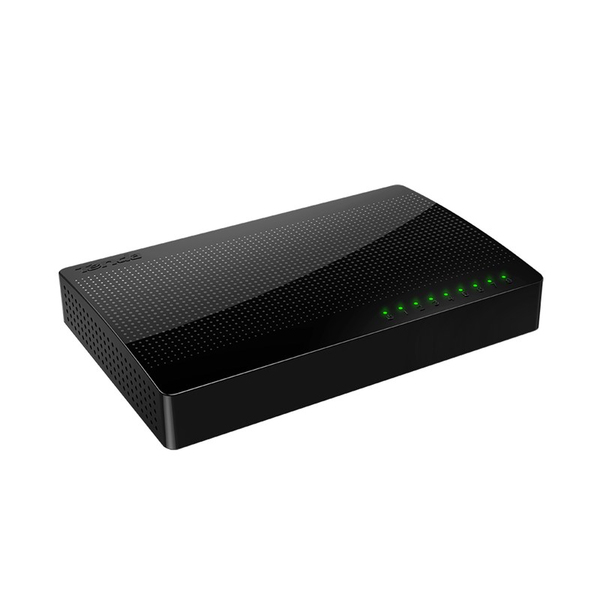

SG108 is a 8-Port Gigabit Desktop SOHO switch. It provides 8 10/100/1000Mbps auto-negotiation ports, which you can use to establish a LAN network, or extend the uplink network. Compared with a 100M switch, it enhances transmission speed up to 10 times, eliminating the bottleneck of cascading bandwidth. It supports desktop installation and wall-mounting. Without configuration, it can be played once plugged.
With the stable connectivity and easy-to-use features, it is perfectly fit for the networking of school dormitories, small offices, home offices and Video Surveillance.
- 8x 10/100/1000Mbps auto-negotiation ports
- Auto MDI/MDIX simplifies networking and maintenance
- Full wire speed forwarding ensures a smooth network experience
- Flow control for full duplex and backpressure for half duplex avoids frame dropping as port blocked
- Adopts store-and-forward mechanism and provides 4K MAC address table
- 9K Jumbo frame improves the forwarding speed of large data
- Adopts green and environmental ABS material, improving heat resistance and heat dissipation
- Allows IP camera accessing and provides a running and clear image
- Desktop and wall mounting simplify installation
