Specifications
Description
Store availability
Delivery
Price development
| Display | |
| Built-in display |  |
| Ports & interfaces | |
| Serial ports quantity | 1 |
| USB connector type | USB Type-A, USB Type-B |
| Headphone outputs | 6 |
| DC-in jack |  |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| Number of computers controlled | 4 |
| HDMI ports quantity | 5 |
| Audio connections | |
| HDMI version | 2.0 |
| USB hub | |
| Console ports | 3.5mm headphone, HDMI, USB A |
| Console USB ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 4 |
| Weight & dimensions | |
| Weight | 2.24 kg |
| Height | 55.5 mm |
| Width | 88 mm |
| Depth | 270 mm |
| Energy management | |
| Power consumption (typical) | 2.535 W |
| Power source | DC |
| Input voltage | 5 V |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Packaging data | |
| Package weight | 2.54 kg |
| Package depth | 325 mm |
| Package height | 210 mm |
| Package width | 98 mm |
| Design | |
| LED indicators | |
| Product colour | Black |
| Housing material | Metal, Plastic |
| Push button | |
| Performance | |
| Maximum resolution | 4096 x 2160 pixels |
| Scan interval | 1,99 s |
| Firmware upgradeable | |
| HDCP | |
| HD type | 4K Ultra HD |
| Video bandwidth | 60 Hz |
| Logistics data | |
| Master (outer) case height | 232 mm |
| Master (outer) case width | 342 mm |
| Master (outer) case gross weight | 13.2 kg |
| Master (outer) case length | 512 mm |
| Products per master (outer) case | 5 pc(s) |
| Master (outer) case net weight | 11.2 kg |
| Harmonized System (HS) code | 85176200 |
| EAN | 4719264649424 |
| Warranty | 2 years |
| Source: Icecat.biz | |

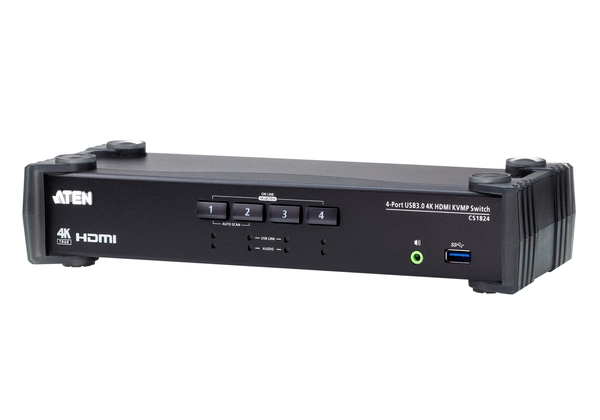

The ATEN CS1824 KVMP™ Switch offers effortless management of four HDMI interface computers from a single USB keyboard, mouse and HDMI monitor. Supporting the most superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), the CS1824 optimizes user experience of multitasking.
1x CS1824 4-Port USB 3.0 4K HDMI KVMP™ Switch
4x LIN6-19V1-V18G HDMI 2.0 Cables
4x LIN6-11C1-E12G USB 3.0 Cables
4x LIN5-0205-21CG Audio Cables
1x LIN2-418K-E12G Power Cord
1x 0AD8-8005-40MG Power Adapter
1x User Instructions
