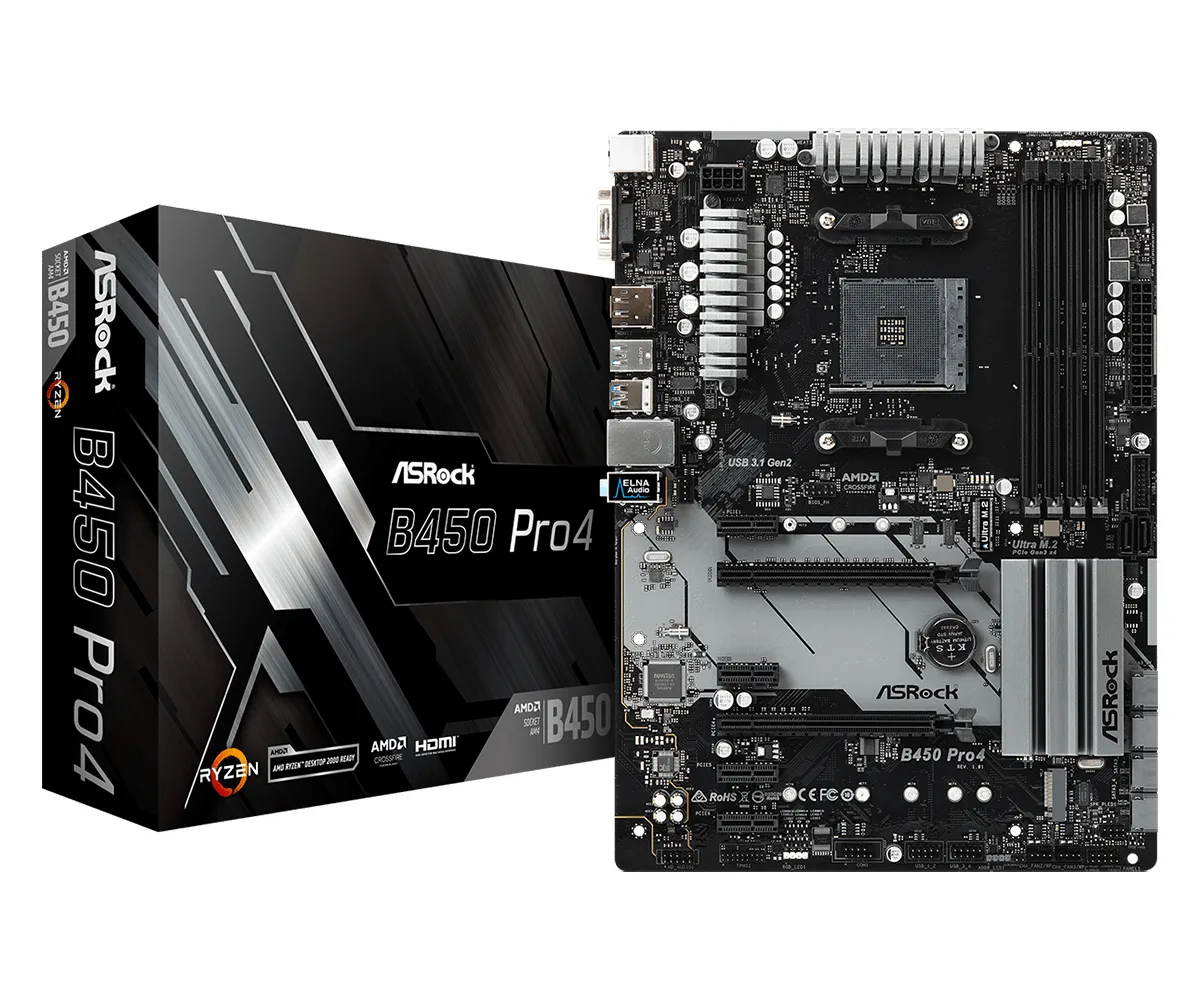

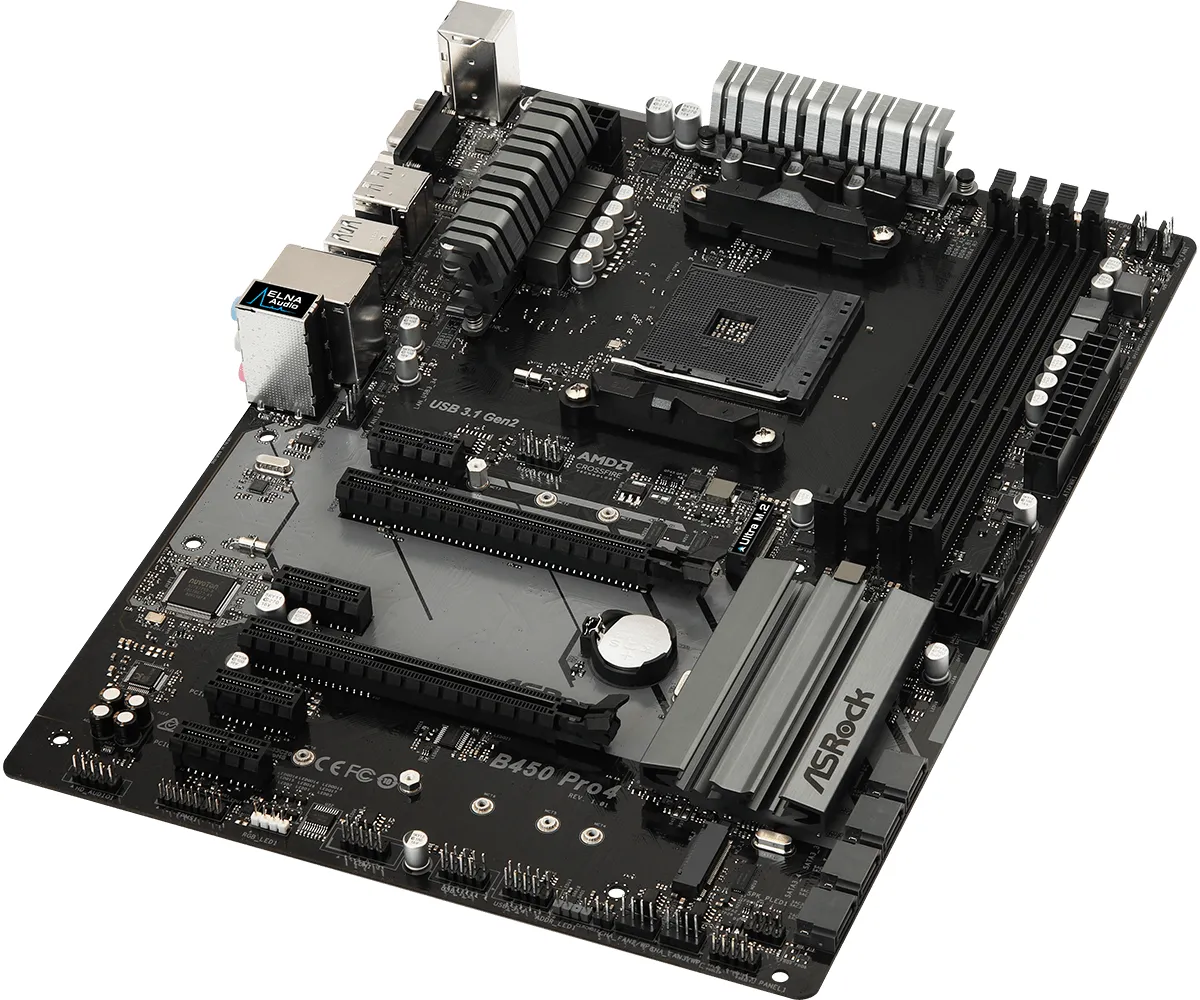

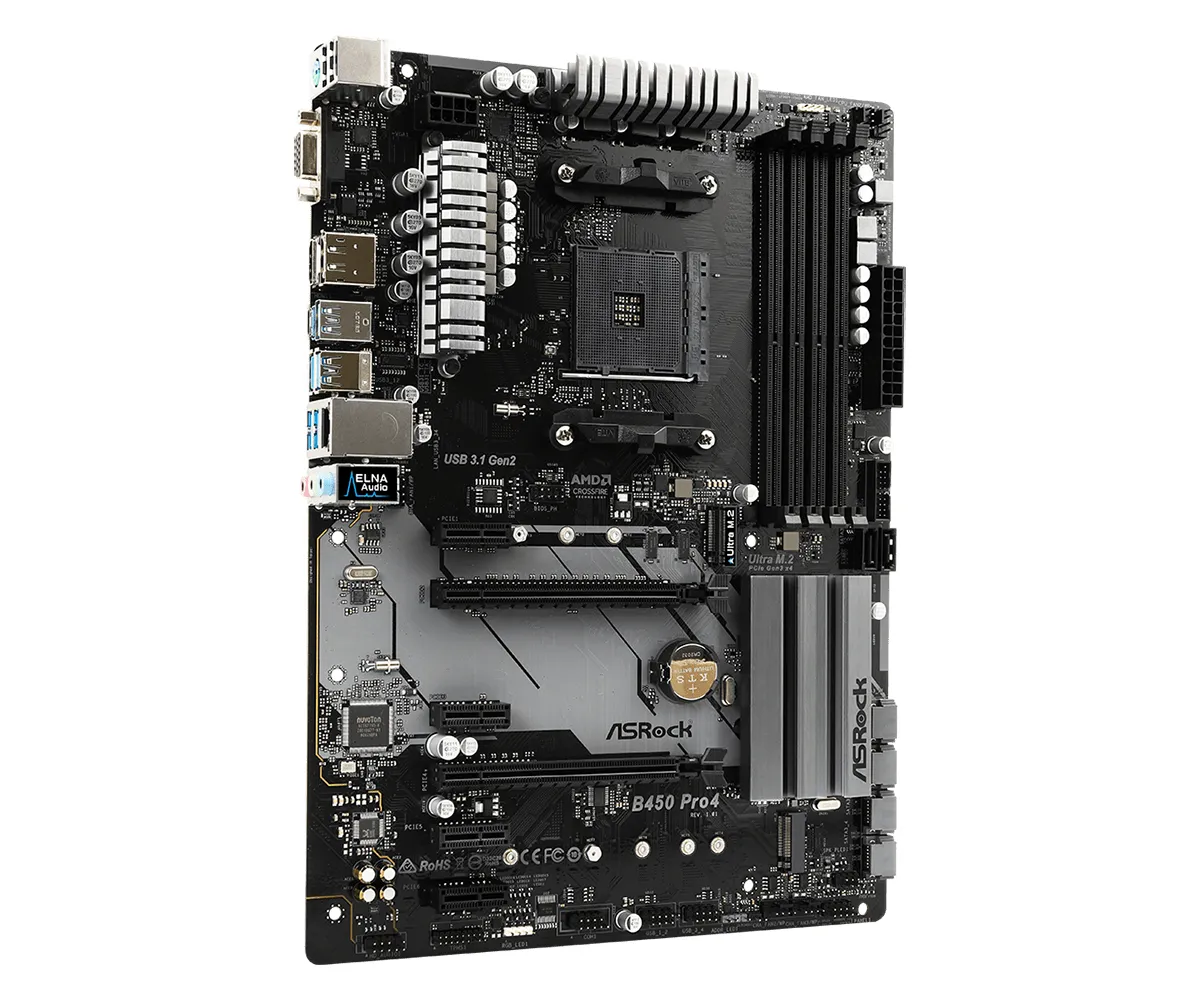

ASRock B450 Pro4 AM4 ATX Motherboard

The ASRock B450 Pro4 is an ATX motherboard built on the AMD B450 chipset, providing a functional platform for PC systems. It utilizes the AM4 socket, ensuring compatibility with AMD Ryzen 3000 and 5000 series processors, as well as select Athlon CPUs. The board's memory architecture consists of four DIMM slots supporting up to 128 GB of dual-channel DDR4 RAM with speeds reaching 3200 MHz. This setup provides sufficient capacity and bandwidth for multitasking and demanding applications, with support for both ECC and non-ECC modules depending on the CPU.

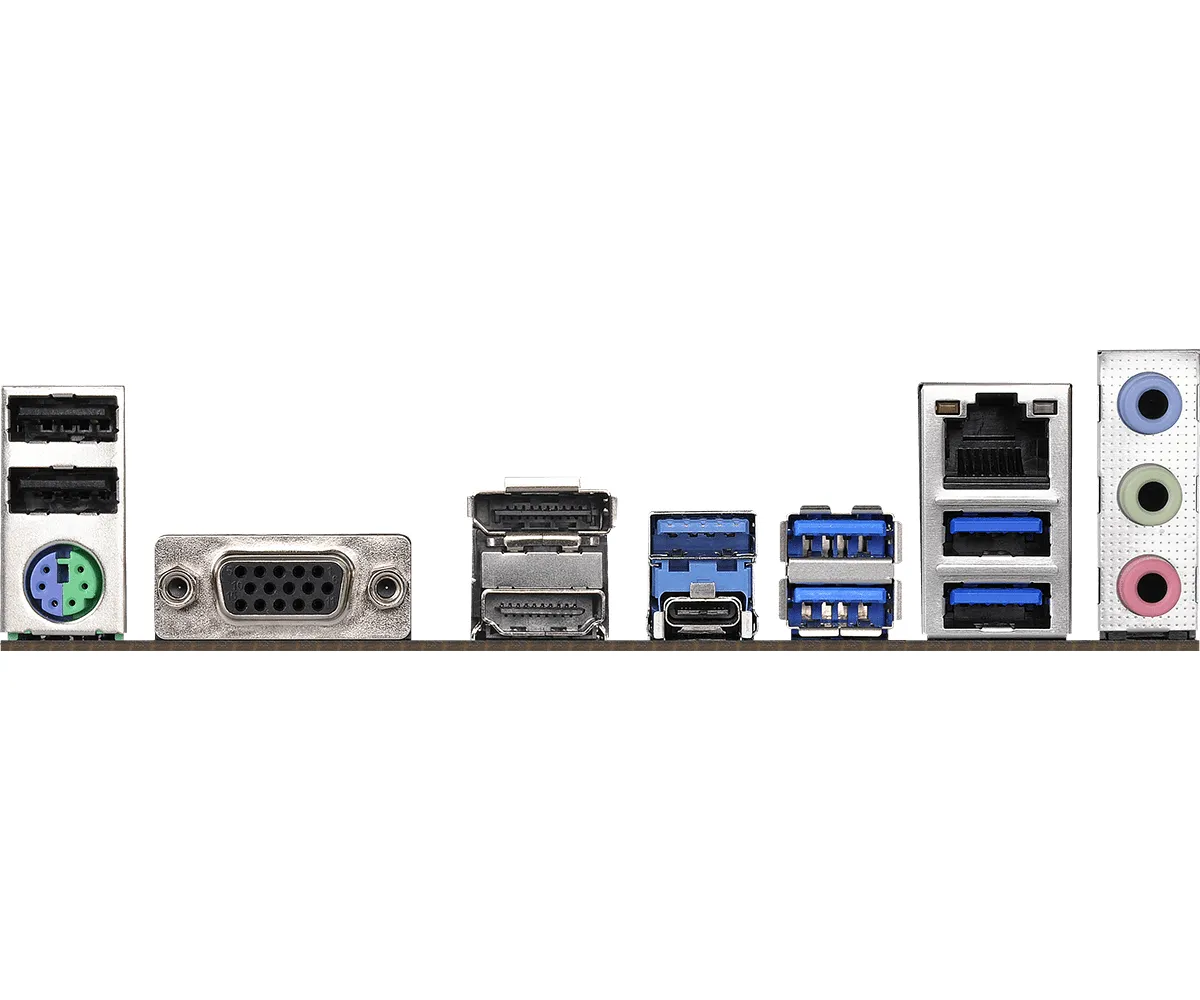

Storage options are comprehensive, featuring six SATA III ports and two M.2 slots for high-speed solid-state drives. Integrated RAID 0, 1, and 10 support allows for flexible storage configurations focused on performance or data security. For system expansion, the motherboard includes two PCIe 3.0 x16 slots and four PCIe 3.0 x1 slots for graphics cards and other peripherals. The rear I/O panel offers a practical mix of connectivity, including USB 3.2 Gen 2 Type-A and Type-C ports, HDMI, DisplayPort, and a Gigabit Ethernet port.

• Compatible with AMD Ryzen 3000/5000 series processors via AM4 socket
• Built on the AMD Promontory B450 chipset
• Accommodates up to 128 GB of DDR4 memory across four DIMM slots
• Features two M.2 slots and six SATA III ports for storage
• Offers two PCIe 3.0 x16 and four PCIe 3.0 x1 expansion slots
• Integrated Gigabit Ethernet port for wired networking
• Provides rear panel USB 3.2 Gen 2 Type-A and Type-C connectivity
• Utilizes the Realtek ALC892 audio chipset
• Designed with a standard ATX form factor
• Uses standard 24-pin ATX and 8-pin EPS power connectors
• Includes onboard headers for RGB lighting and multiple system fans
