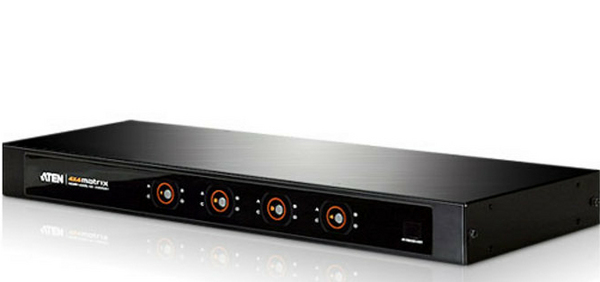

ATEN kytkin/jakaja(matrix), 4 sisään>4 ulos, 19-pin n, kaukosäädin
This product is end of life or currently not available.
Key Specifications
Choose one or multiple features to search for items that have the same specifications.Technical details | |
Rack mounting | |
Material | Metal |
LED indicators | |
Product colour | Black |
Maximum operating distance | 20 m |
Full HD | |
Video port type | HDMI |
HDMI ports quantity | 8 |
Supported graphics resolutions | 1600 x 1200 (UXGA),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA) |
Supported video modes | 1080i,1080p,480p,720p |
HDMI version | 1.3b |
HDCP | |
Maximum refresh rate | 60 Hz |
Ports & interfaces | |
DC-in jack | |
RS-232 ports | 1 |
HDMI in | 4 |
Number of HDMI outputs | 4 |
Weight & dimensions | |
Dimensions (WxDxH) | 154 x 432 x 44 mm |
Weight | 1.86 kg |
Energy management | |
Power consumption (typical) | 9 W |
Power requirements | 5.3 VDC |
Certificates | |
RoHS compliance | |
Packaging content | |
AC adapter included | |
Remote control included | |
EAN | 4710423776739 |
Source: Icecat.biz |
Features
- Connects any of four HDMI sources to any of four HDMI displays
- Toggle between HDMI sources and displays using remote control or front panel pushbuttons
- Cascade via other VM0404Hs to provide up to 64 HDMI sources/displas for digital signage systems
- Superior video quality – HDTV resolutions of 480p, 720p,1080i, 1080p (1920x1080); VGA, SVGA, SXGA, UXGA (1600x1200), and WUXGA (1920 x 1200)
- HDCP 1.1 compatible
- Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
- HDMI (3D, Deep Color)
- Supports Dolby True HD and DTS HD Master Audio
- Up to 60 Hz refresh rate
- Long-distance transmission – up to 20 m (24 AWG)
- Built-in bi-directional RS-232 serial remote port for high-end system control
- Power On Detection – if one HDMI source is powered off, the VM0404H will automatically switch to the next powered-on source
- DDC compatible
- Signaling rates up to 2.25 Gbits in support of 1080p display
- All-metal casing
- Easy and affordable way to add four HDMI inputs to your multiscreen home theater system
- Rack Mountable
Package Contents
- 1x VM0404H 4x4 HDMI Matrix Switch
- 1x IR Remote Control Unit
- 1x 0AD6-1605-24EG Power Adapter
- 1x Rack Mount Kit
- 1x User Instructions
