Fractal Design Meshify 2 Midi-Tower Case with light tinted window, Gray
Key Specifications
Choose one or multiple features to search for items that have the same specifications.| Ports & interfaces | |
| Audio input | Yes |
| Audio output | Yes |
| Headphone outputs | 1 |
| Microphone in | ![]() |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 2 |
| Combo headphone/mic port | ![]() |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Type-C ports quantity | 1 |
| Weight & dimensions | |
| Weight | 10.5 kg |
| Height | 474 mm |
| Width | 240 mm |
| Depth | 542 mm |
| Storage | |
| Card reader integrated | ![]() |
| Number of HDDs supported | 18 |
| Number of storage drives supported | 15 |
| Supported storage drive types | HDD, SSD |
| Supported storage drive interfaces | SATA |
| HDD/SSD combo cage | ![]() |
| SSD form factor | 2.5" |
| Packaging data | |
| Package weight | 13.2 kg |
| Package depth | 634 mm |
| Package height | 324 mm |
| Package width | 542 mm |
| LED controller | ![]() |
| Cooling | |
| Cooling | ![]() |
| Front fans installed | 2x 140 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Rear fans diameters supported | 120,140 mm |
| Top fans diameters supported | 120,140 mm |
| Bottom fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Number of top fans supported (max) | 3 |
| Number of bottom fans supported (max) | 2 |
| Rear fans installed | 1x 140 mm |
| Liquid cooling capability | ![]() |
| Rear radiator sizes supported | 120 mm |
| Front radiator sizes supported | 280,360 mm |
| Rear radiator installed | ![]() |
| Front radiator installed | ![]() |
| Top radiator installed | ![]() |
| Top radiator sizes supported | 360,420 mm |
| Fan speed control | ![]() |
| Bottom radiator sizes supported | 280 mm |
| Other features | |
| Power LED | ![]() |
| Volume | 58.95 L |
| On/off switch | ![]() |
| Screws included | ![]() |
| Design | |
| Type | PC |
| Rack mounting | ![]() |
| Form factor | Tower |
| Material | Steel |
| Cable lock slot | ![]() |
| Product colour | Grey |
| Illumination | ![]() |
| Cable management | ![]() |
| Reset button | ![]() |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
| Anti-dust filter | ![]() |
| Number of 3.5" bays | 6 |
| Suitable for | Gaming |
| Transport wheels | ![]() |
| Side window | ![]() |
| Number of internal 3.5" bays | 11 |
| Maximum CPU cooler height | 18.5 cm |
| Maximum graphics card length | 31.5 cm |
| Number of expansion slots | 9 |
| Maximum PSU length | 25 cm |
| Number of storage drives supported | 23 |
| Number of 2.5" bays | 2 |
| On/off button | ![]() |
| Tempered glass panel(s) | ![]() |
| RGB control button | ![]() |
| Power supply | |
| Number of power supply units | 1 |
| Power supply location | Bottom |
| Power supply included | ![]() |
| Supported power supply form factors | ATX |
| Features | |
| Product type | PC Case |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| EAN | 7340172702450 |
| Warranty | 1 year |

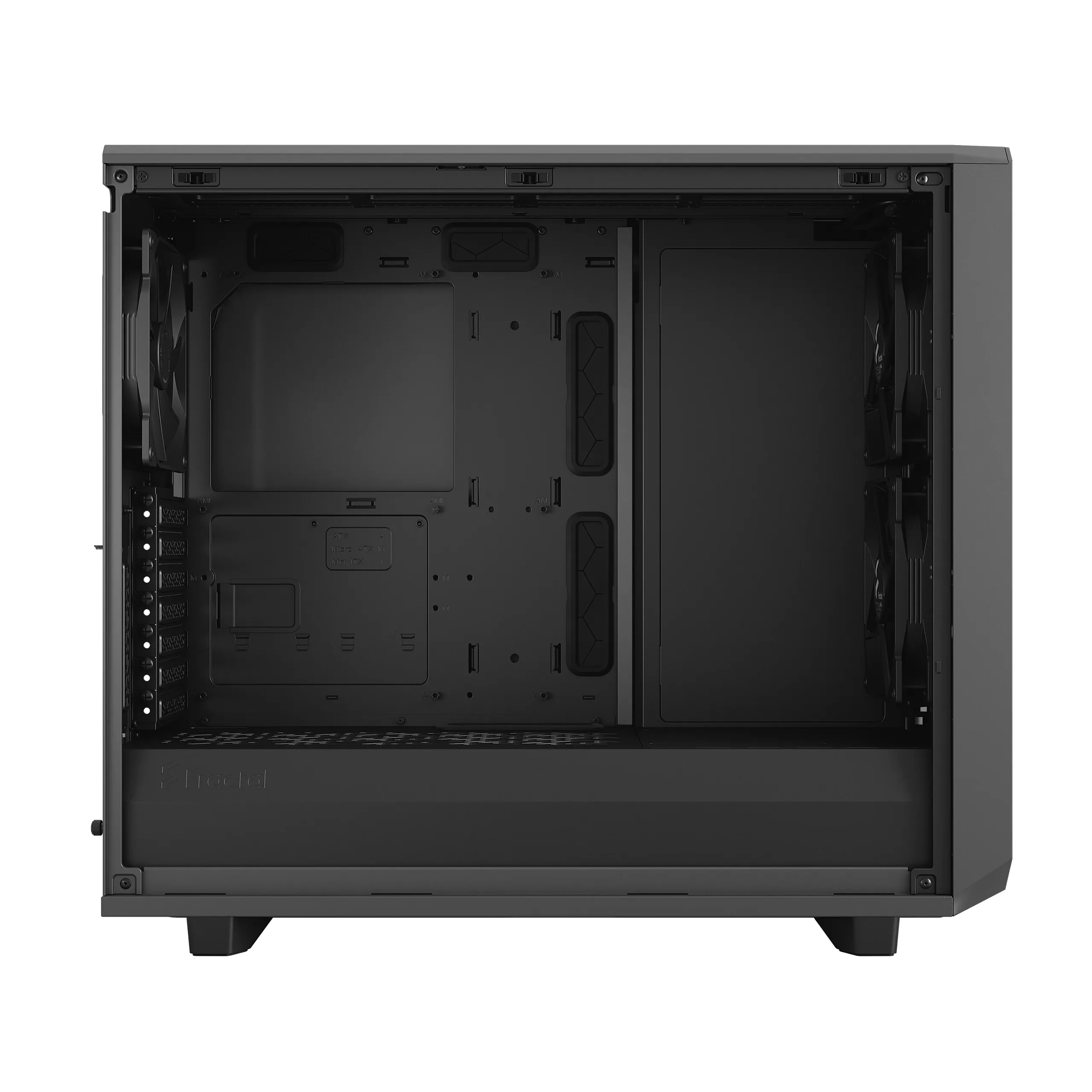

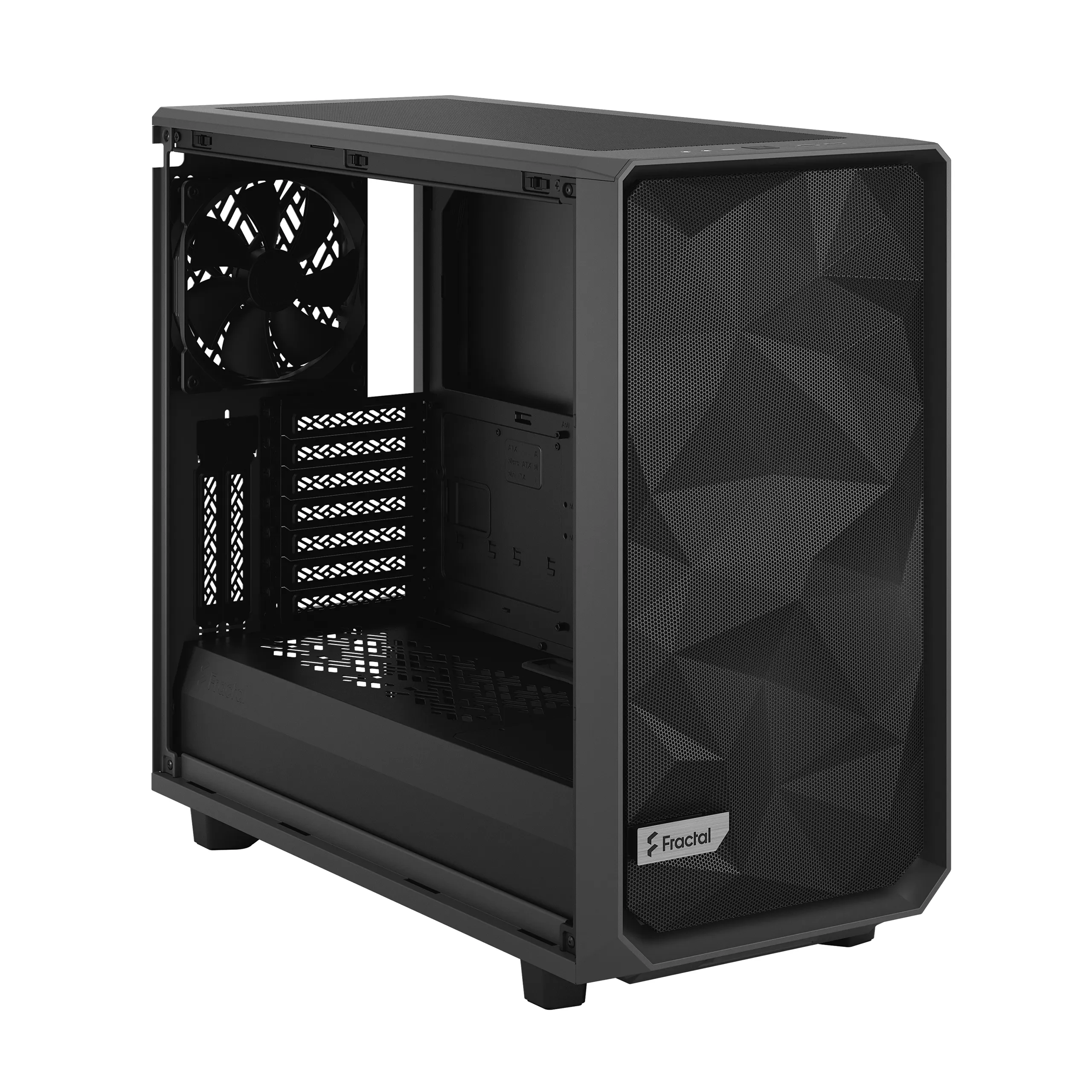

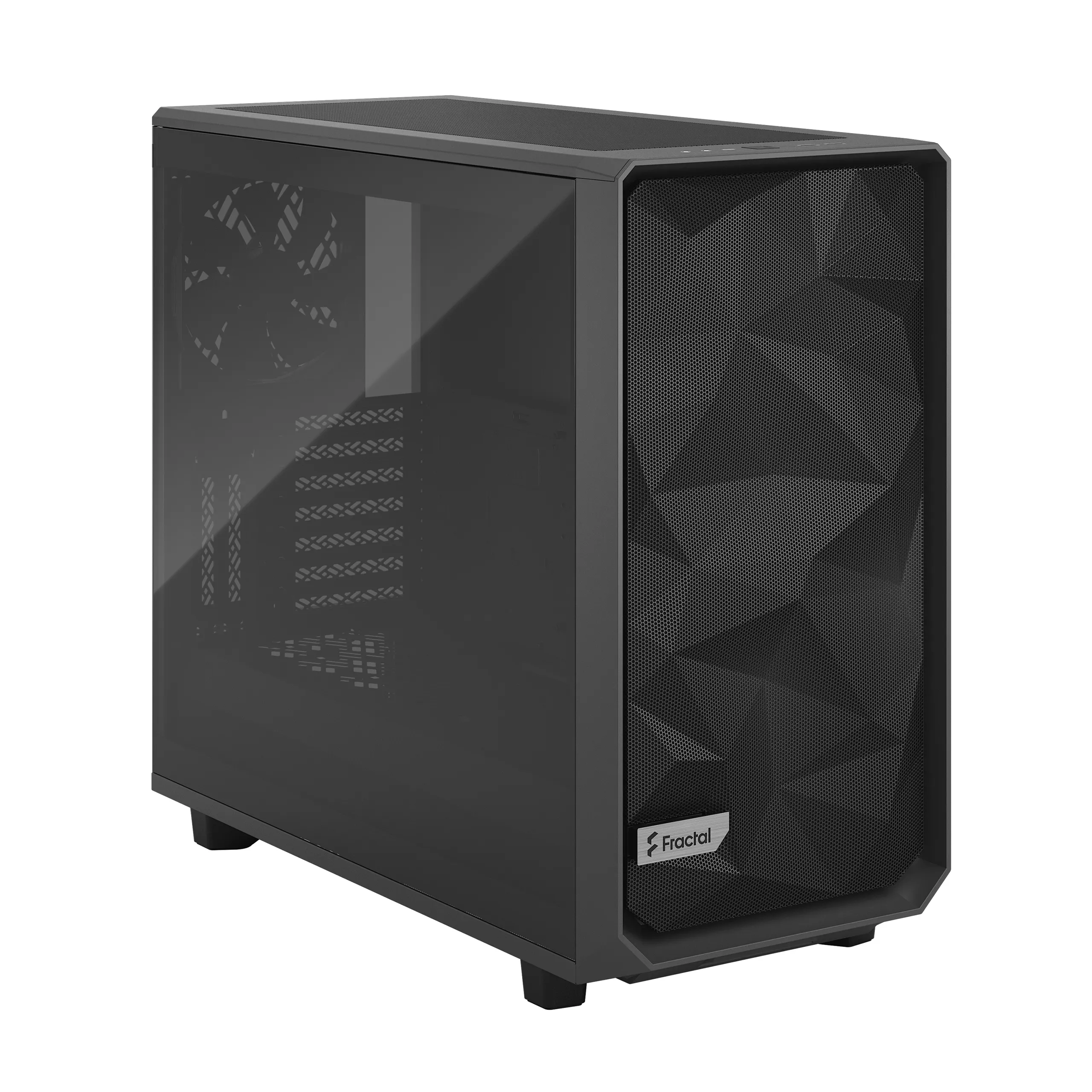

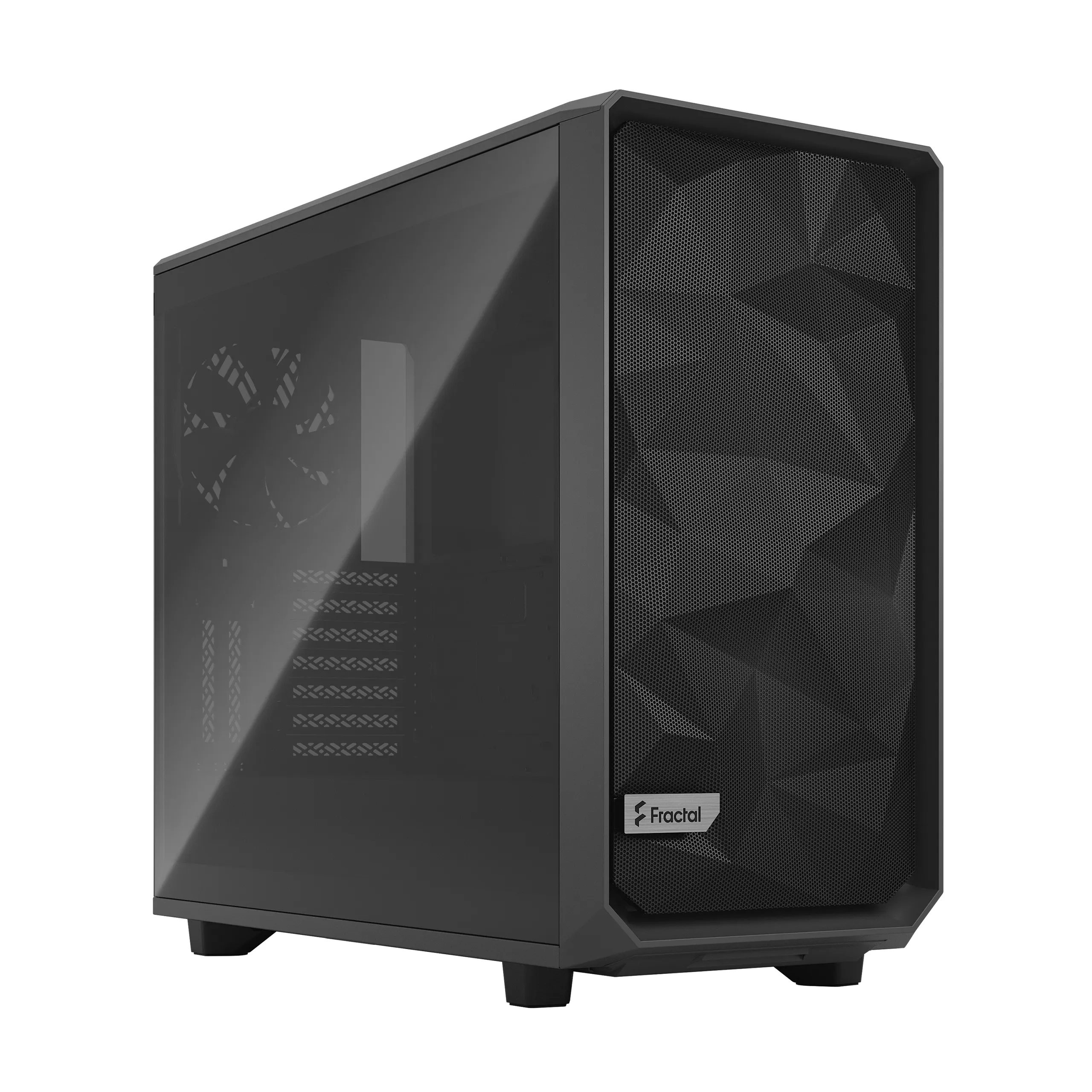

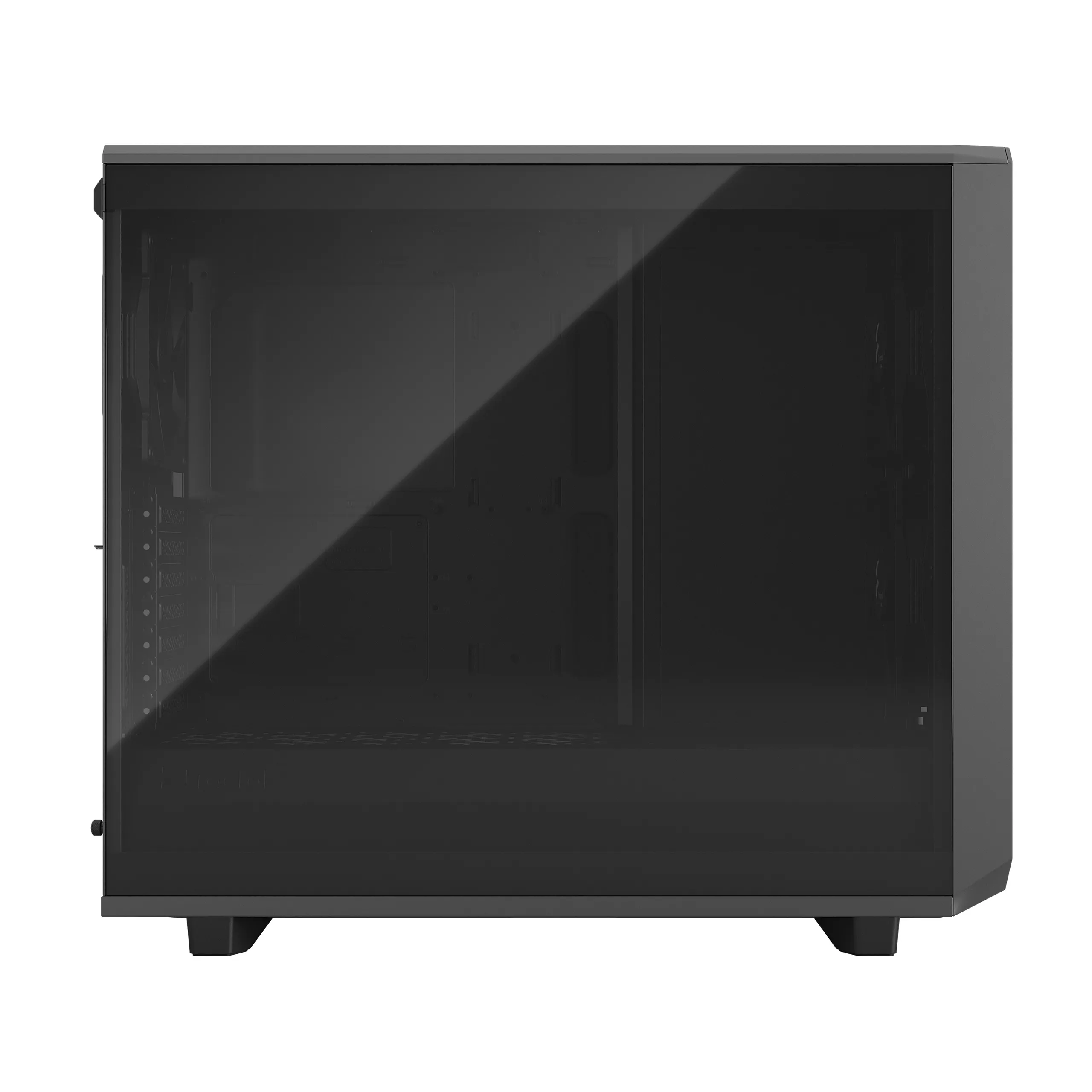

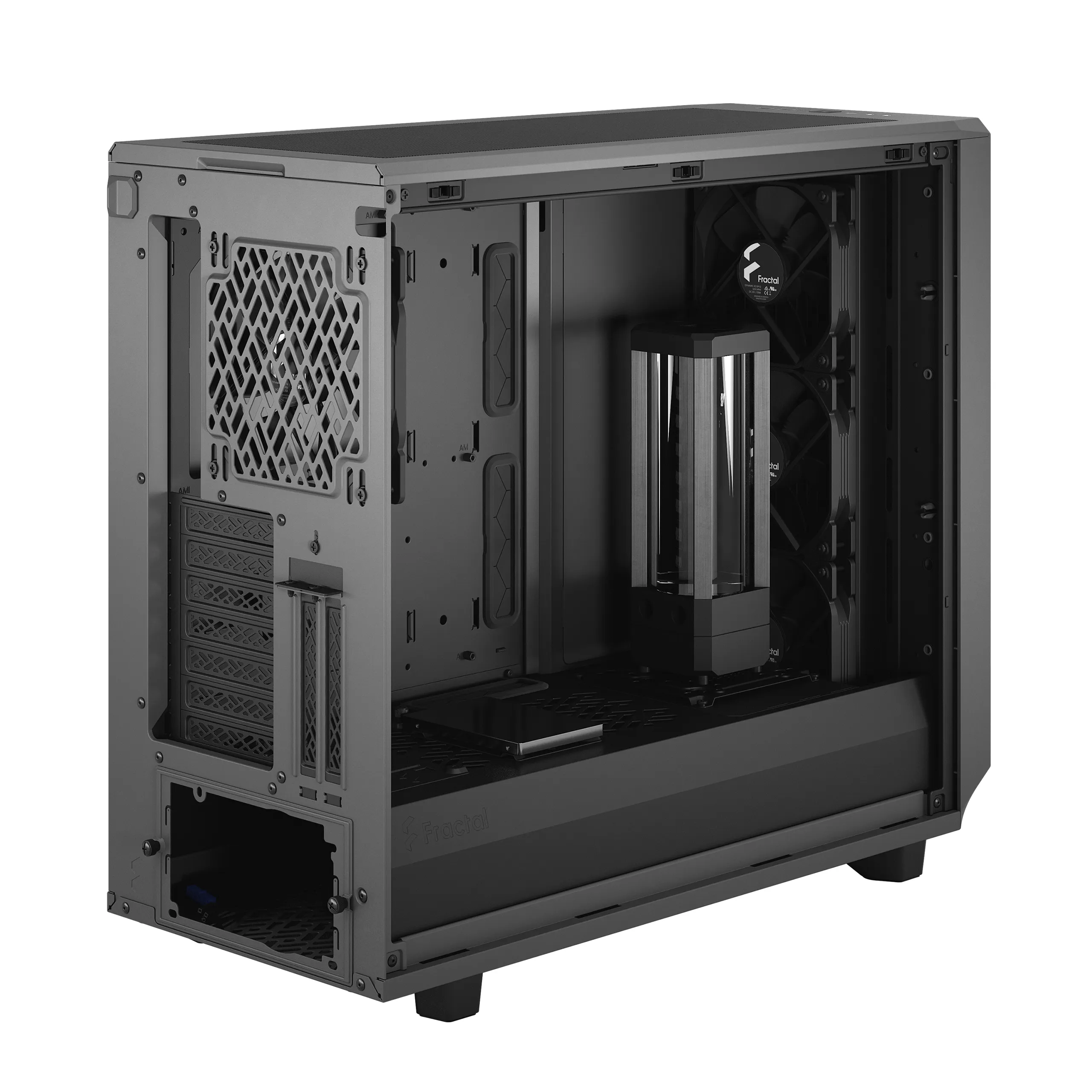

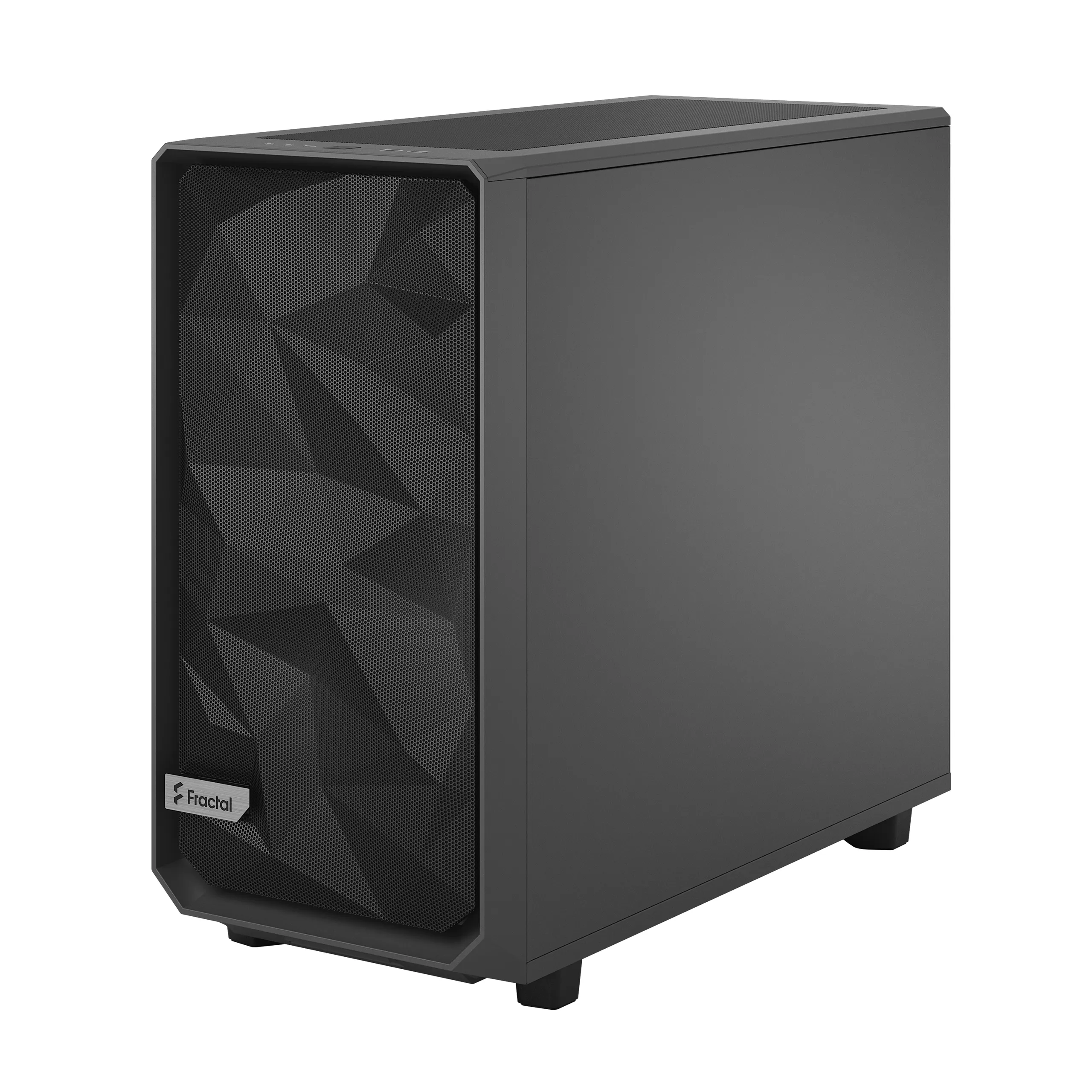

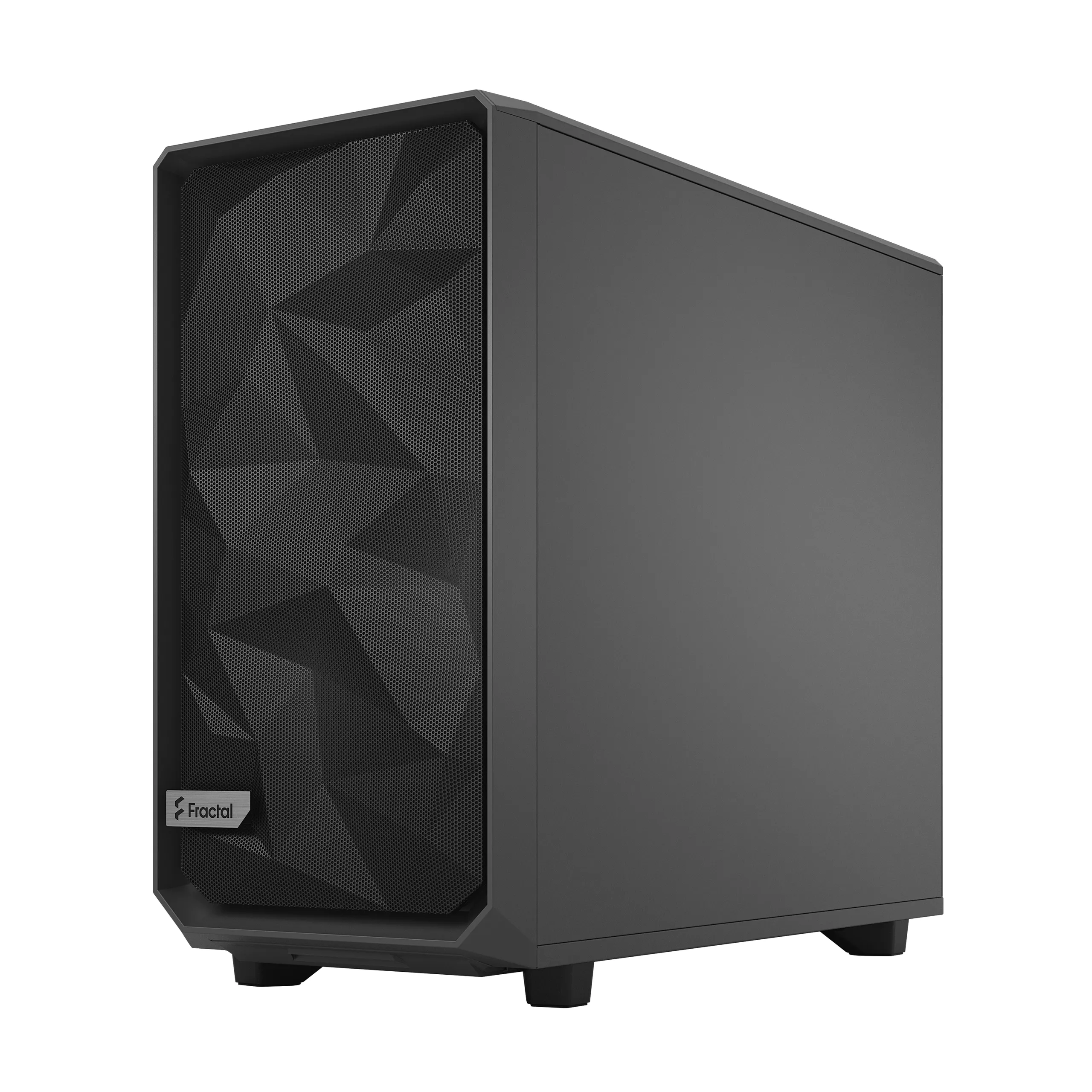

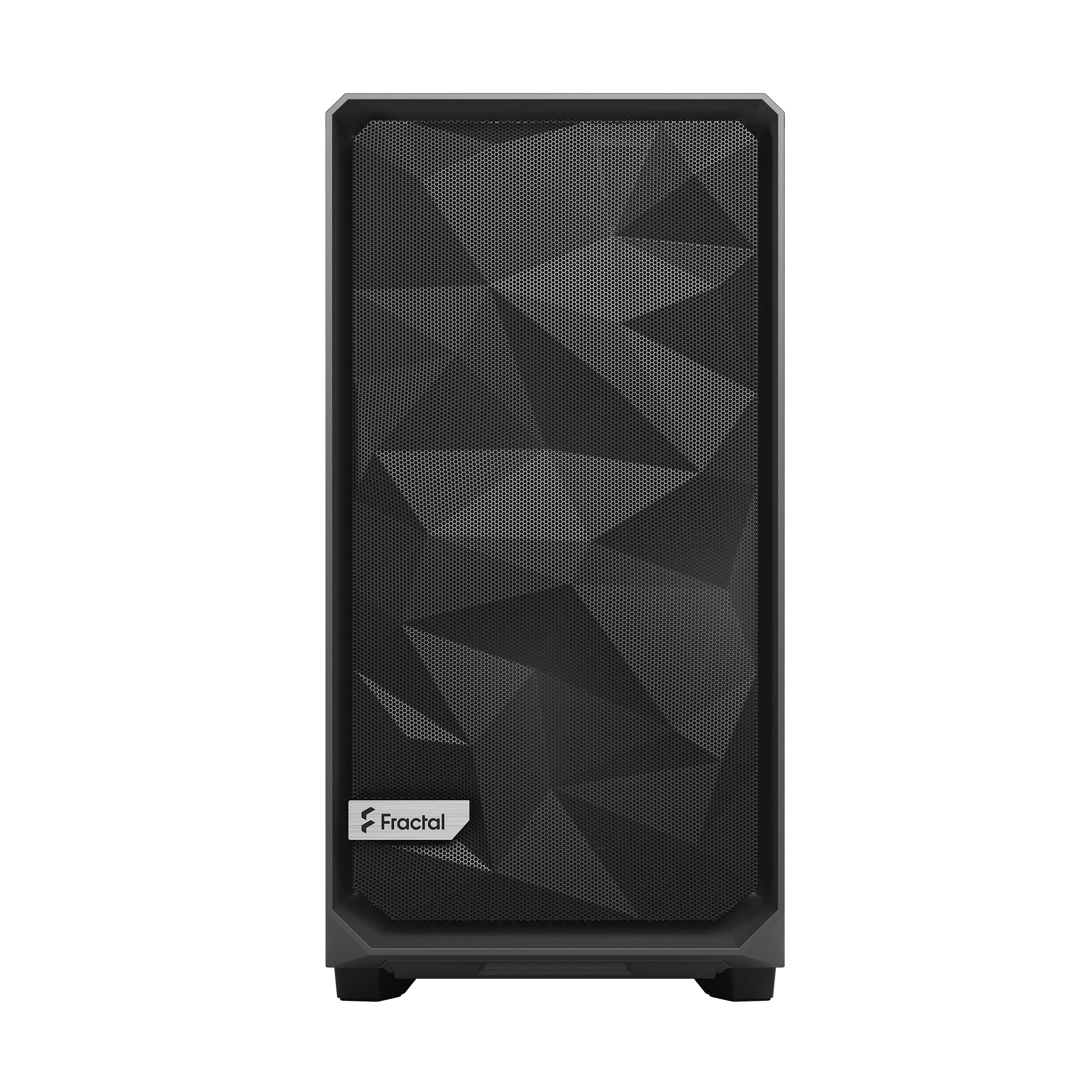

The Fractal Design Meshify 2 is a mid-tower enclosure engineered for high-airflow performance, featuring an angular mesh front panel for filtered air intake. Its spacious and adaptable interior supports a wide range of hardware, including motherboards up to the E-ATX form factor. This design provides ample room for large components and complex cooling setups. A light tint tempered glass side panel is included to display internal components.

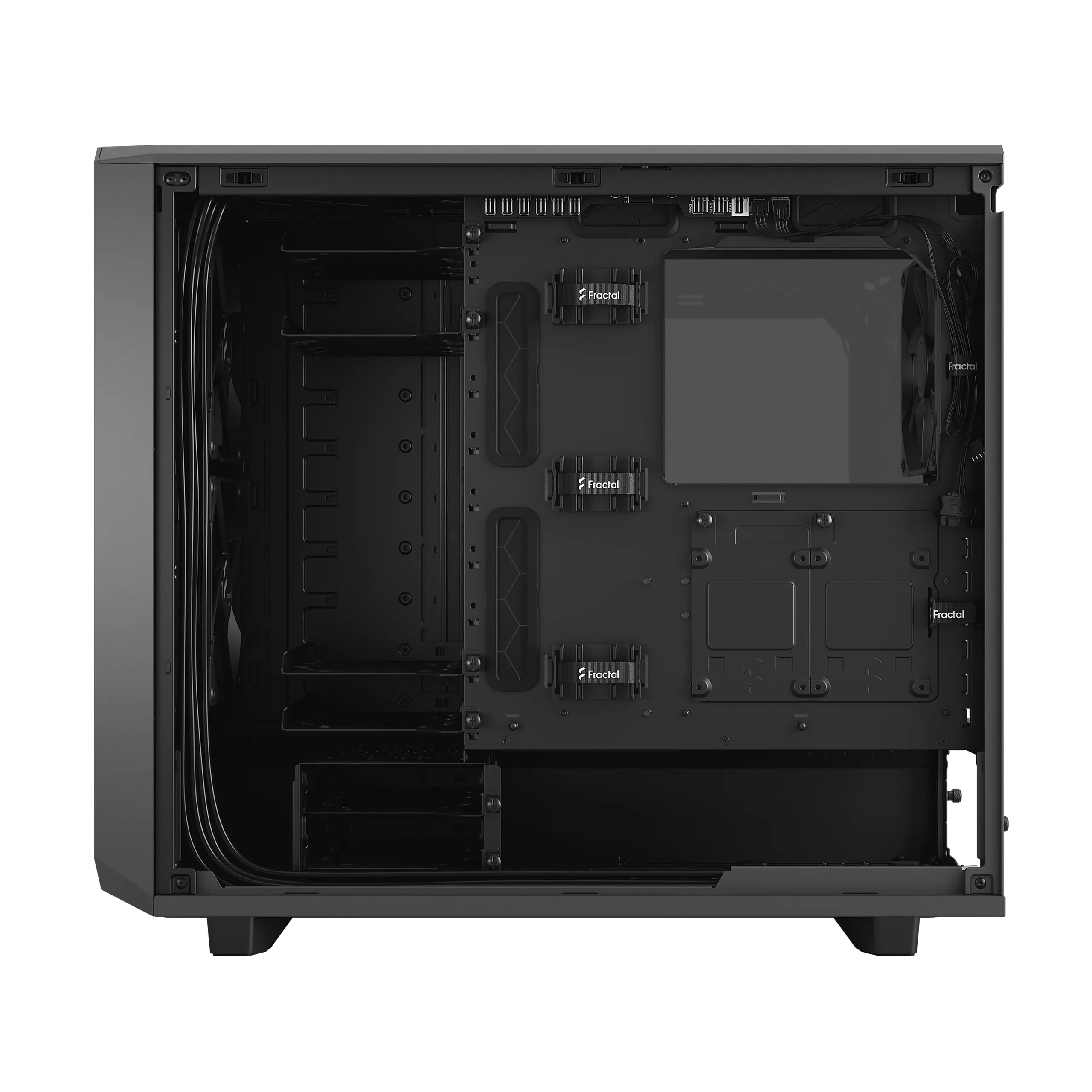

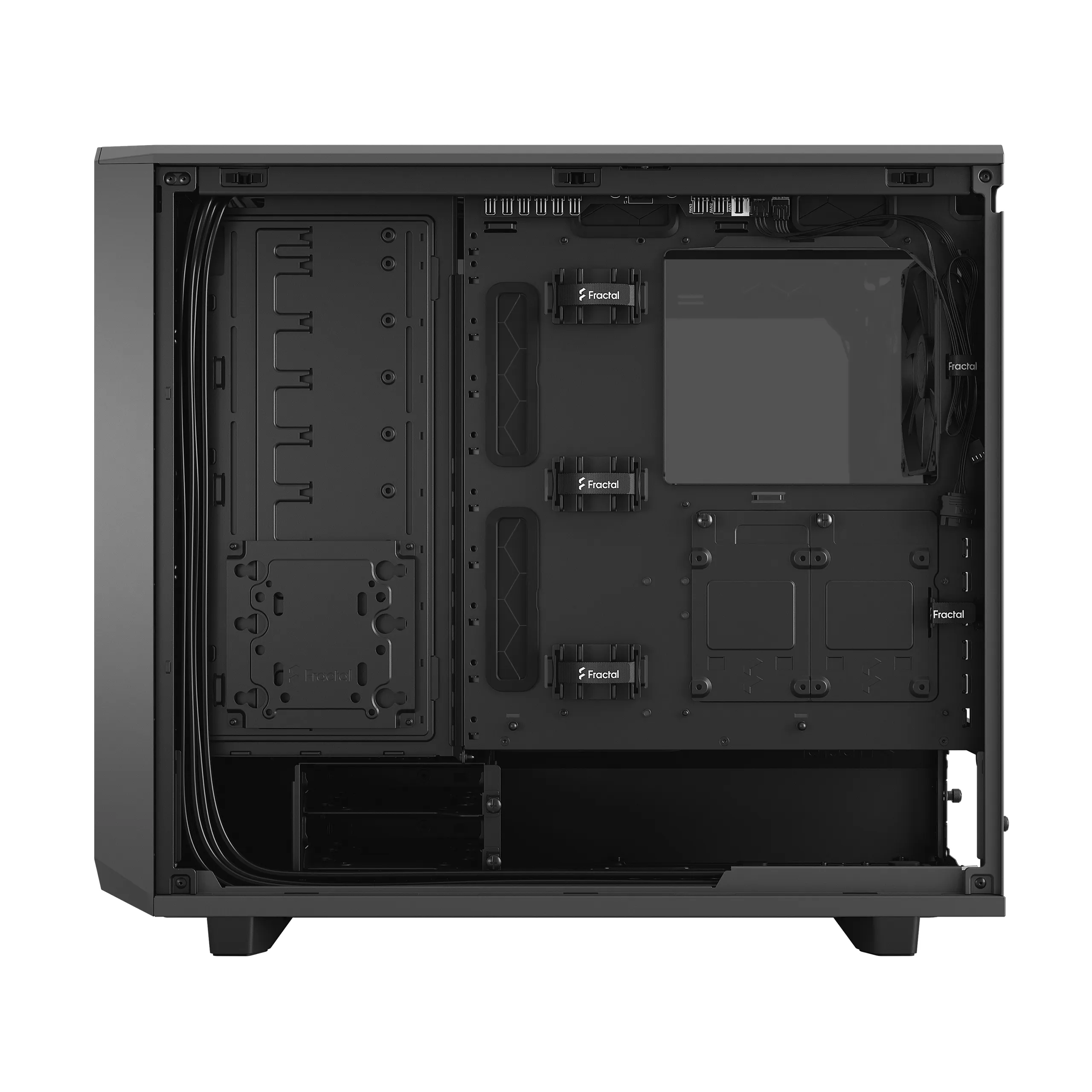

The chassis accommodates extensive cooling options for both air and liquid systems, with placements for up to nine fans. Radiator support is comprehensive, allowing for up to a 420 mm unit in the top and a 360 mm unit in the front. For storage, the case includes six 3.5-inch and two 2.5-inch drive mounts, with options for further expansion. Features such as integrated dust filters and dedicated cable management channels facilitate a clean and functional build process.
Key Features:- Supports E-ATX, ATX, Micro ATX, and Mini-ITX motherboards
- Constructed from steel with a tempered glass side panel

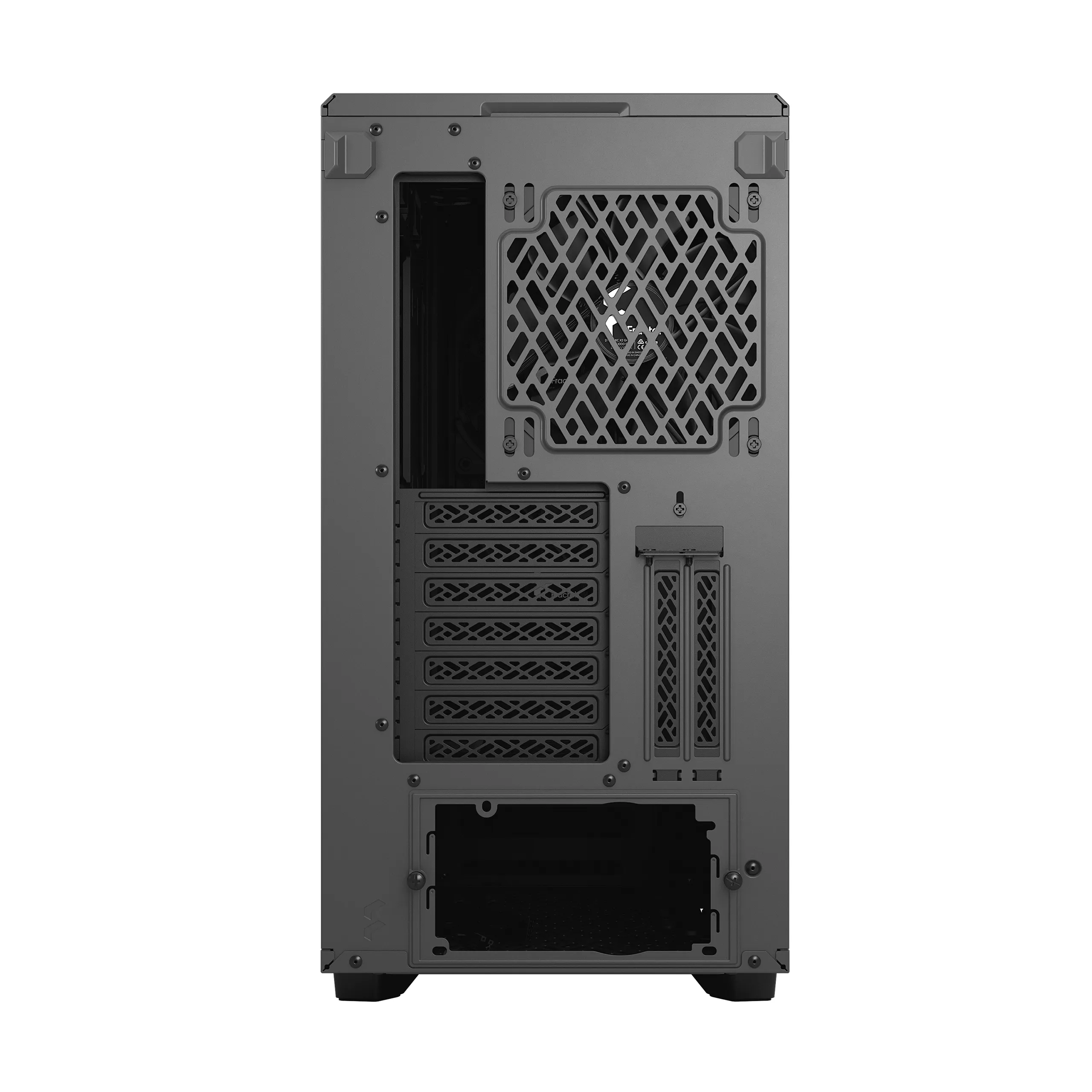

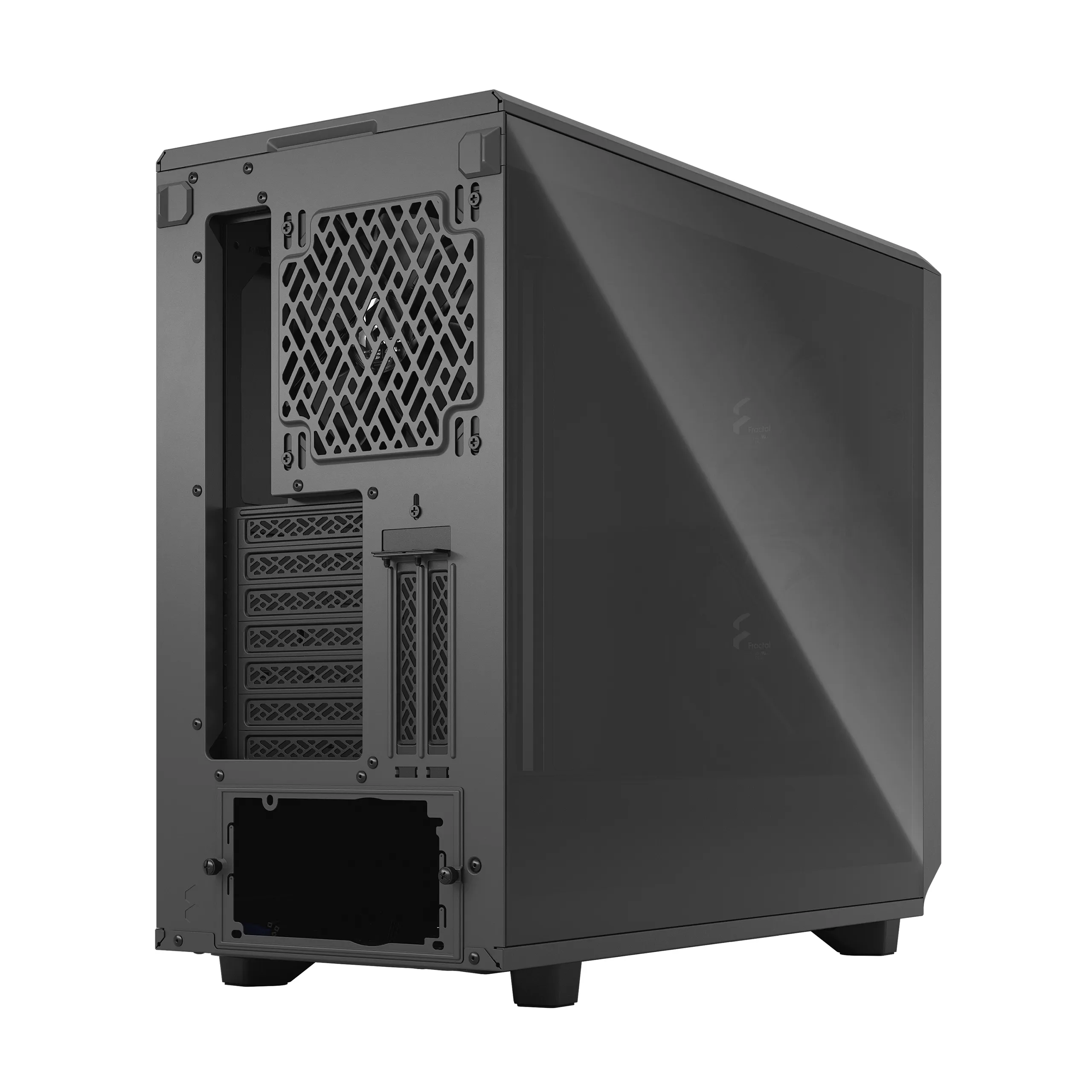

- Provides seven horizontal and two vertical expansion slots

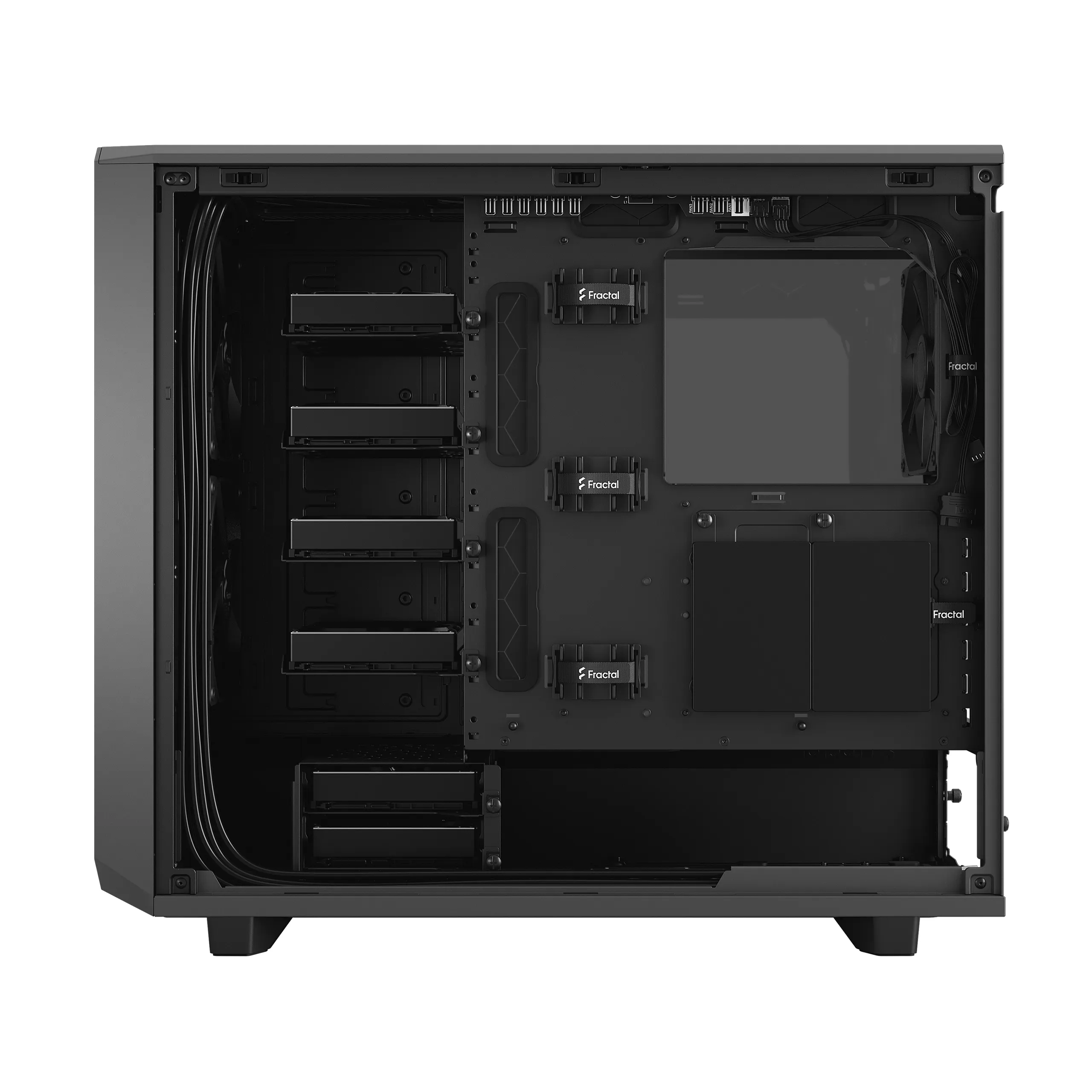

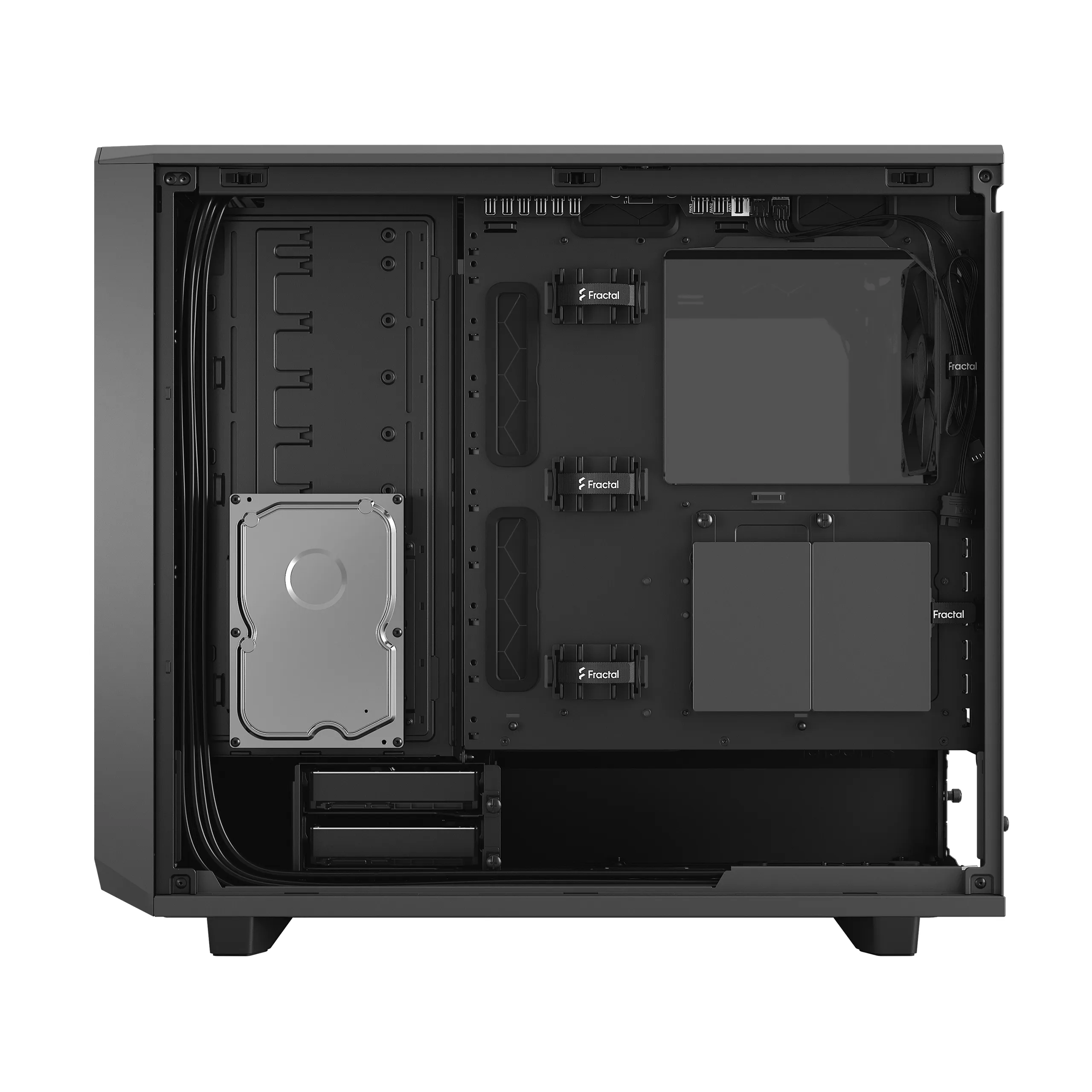

- Includes six 3.5-inch and two 2.5-inch dedicated drive mounts
- Accommodates CPU coolers up to 185 mm in height
- Fits ATX power supplies up to 250 mm in length

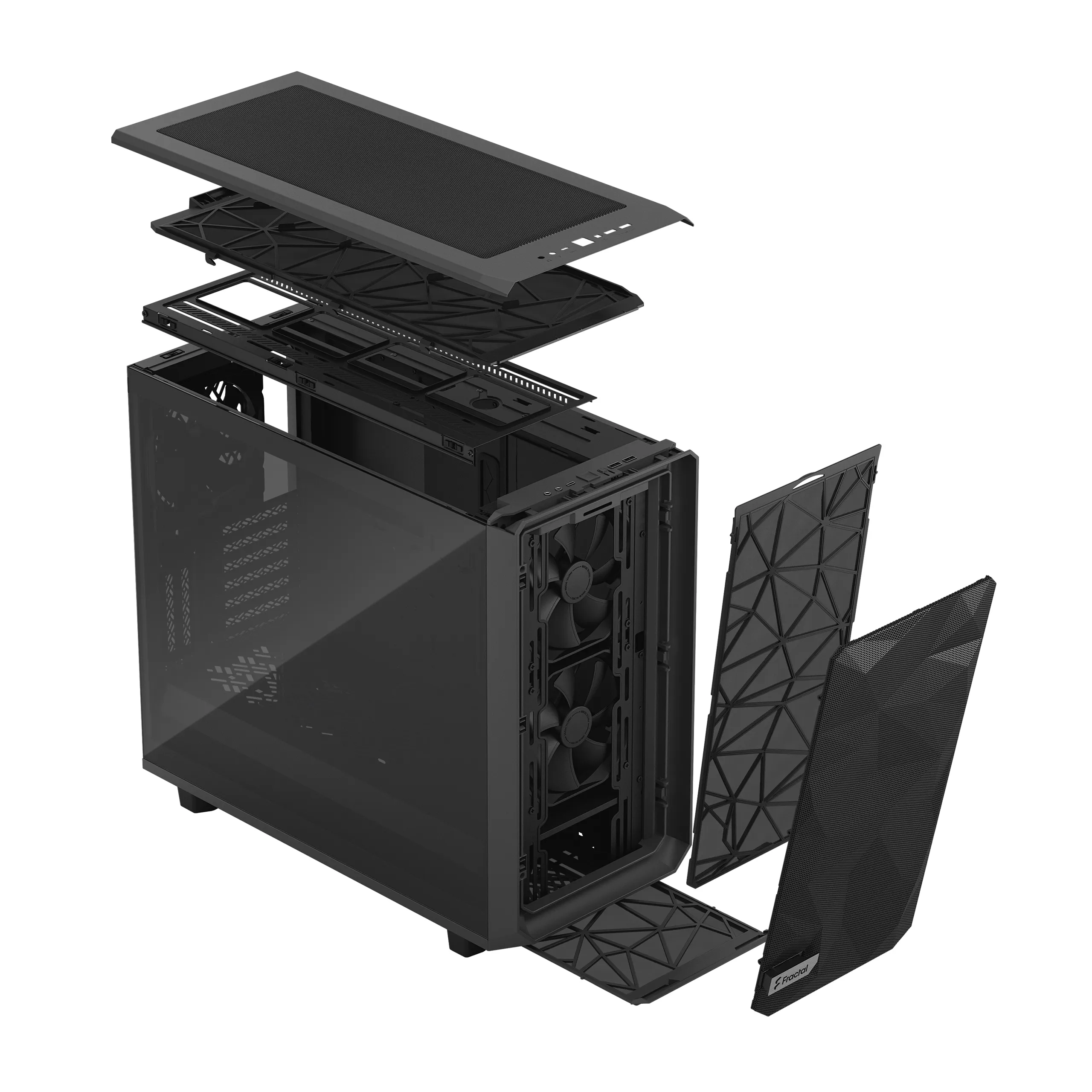

- Features removable dust filters for the front, top, and bottom intakes

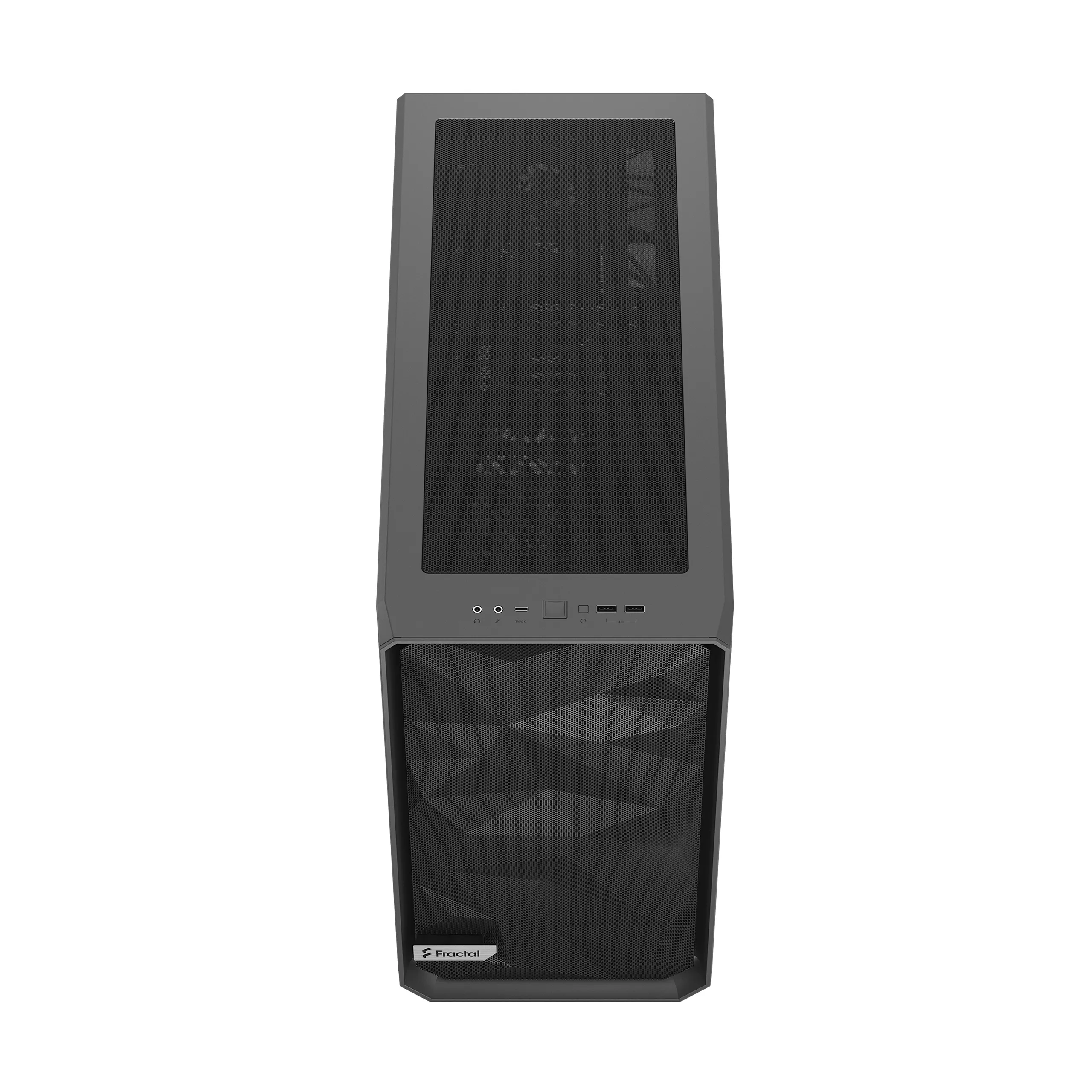

- Front I/O panel includes two USB 3.2 Type-A ports and one USB-C port
