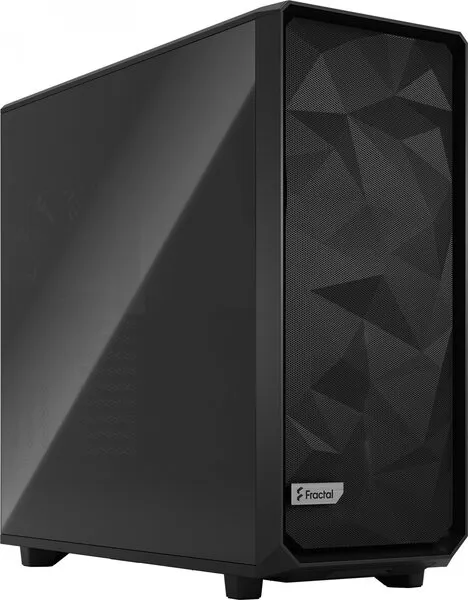

Fractal Design Meshify 2 XL Full-Tower Case with dark tinted window, Black
Key Specifications
Choose one or multiple features to search for items that have the same specifications.| Ports & interfaces | |
| Audio input | Yes |
| Audio output | Yes |
| Headphone outputs | 1 |
| Microphone in | ![]() |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 2 |
| Combo headphone/mic port | ![]() |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Type-C ports quantity | 1 |
| Weight & dimensions | |
| Weight | 14.1 kg |
| Height | 566 mm |
| Width | 240 mm |
| Depth | 600 mm |
| Storage | |
| Card reader integrated | ![]() |
| Number of HDDs supported | 18 |
| Number of storage drives supported | 18 |
| Supported storage drive types | HDD, SSD |
| HDD/SSD combo cage | ![]() |
| SSD form factor | 2.5" |
| Packaging data | |
| Package weight | 16.4 kg |
| Package depth | 651 mm |
| Package height | 684 mm |
| Package width | 330 mm |
| LED controller | ![]() |
| Cooling | |
| Cooling | ![]() |
| Front fans installed | 2x 140 mm |
| Number of front fans supported (max) | 4 |
| Front fans diameters supported | 120,140 mm |
| Rear fans diameters supported | 120,140 mm |
| Top fans diameters supported | 120,140 mm |
| Bottom fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Number of top fans supported (max) | 4 |
| Number of bottom fans supported (max) | 2 |
| Rear fans installed | 1x 140 mm |
| Liquid cooling capability | ![]() |
| Rear radiator sizes supported | 120 mm |
| Front radiator sizes supported | 420,480 mm |
| Rear radiator installed | ![]() |
| Front radiator installed | ![]() |
| Top radiator installed | ![]() |
| Top radiator sizes supported | 420,480 mm |
| Fan speed control | ![]() |
| Other features | |
| Power LED | ![]() |
| On/off switch | ![]() |
| Screws included | ![]() |
| Design | |
| Type | PC |
| Rack mounting | ![]() |
| Form factor | Tower |
| Material | Steel, Tempered glass |
| Cable lock slot | ![]() |
| Product colour | Black |
| Illumination | ![]() |
| Cable management | ![]() |
| Reset button | ![]() |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX, SSI CEB |
| Anti-dust filter | ![]() |
| Number of 3.5" bays | 6 |
| Suitable for | Gaming |
| Transport wheels | ![]() |
| Side window | ![]() |
| Number of internal 3.5" bays | 6 |
| Maximum CPU cooler height | 18.5 cm |
| Maximum graphics card length | 35.9 cm |
| Number of expansion slots | 12 |
| Maximum PSU length | 25 cm |
| Number of storage drives supported | 23 |
| Number of 2.5" bays | 2 |
| On/off button | ![]() |
| Tempered glass panel(s) | ![]() |
| RGB control button | ![]() |
| Power supply | |
| Number of power supply units | 1 |
| Power supply location | Bottom |
| Power supply included | ![]() |
| Supported power supply form factors | ATX |
| Features | |
| Product type | PC Case |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| EAN | 7340172702559 |
| Warranty | 2 years |
The Fractal Design Meshify 2 XL is a full-tower chassis engineered for high-airflow and large-scale component configurations. Its design incorporates a distinctive front mesh panel for optimized air intake and a dark-tinted tempered glass side panel to display internal components. The spacious, modular interior accommodates a wide range of motherboard form factors, including E-ATX and SSI EEB, making it suitable for complex workstation and enthusiast builds that require substantial space and hardware compatibility.
This case provides extensive cooling flexibility, supporting radiators up to 480 mm in both the front and top positions. It comes equipped with three 140 mm fans pre-installed to establish an effective airflow path from the factory. For storage, the chassis can be configured to hold up to 18 drives through a combination of dedicated and multi-purpose brackets. The front I/O panel includes USB 3.2 Gen 2 Type-C and Type-A ports for modern peripheral connectivity, while features such as removable dust filters and ample cable routing space contribute to a more organized building process.
Key Features:- Full Tower form factor supporting E-ATX, SSI EEB, ATX, and smaller motherboards
- Steel frame construction with a dark-tinted tempered glass side panel
- Front I/O panel with 1x USB 3.2 Gen 2 Type-C and 2x USB 3.2 Gen 1 Type-A ports
- Includes 6 dedicated 3.5-inch and 2 dedicated 2.5-inch drive bays
- Features a total of 12 expansion slots for multi-GPU or other card setups
- Equipped with two 140 mm front intake fans and one 140 mm rear exhaust fan
- Supports liquid cooling radiators up to 480 mm in the front or top positions
- Accommodates CPU coolers up to 185 mm in height
- Provides clearance for power supplies up to 250 mm in length
- Includes nylon dust filters for the front, top, and bottom air intakes
