Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
| Ports & interfaces | |
| ATX Power connector (24-pin) |  |
| Floppy disk drive connector | |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| CPU power connector (4+4 pin) | |
| PCI Express power connectors (6+2 pin) | 2 |
| Cabling type | Modular |
| SATA power cable length | 550,650,750 mm |
| CPU power cable length | 70 cm |
| Peripheral (Molex) power cable length | 550,650,750 mm |
| PCI Express power cable length | 85 cm |
| Weight & dimensions | |
| Height | 86 mm |
| Width | 150 mm |
| Depth | 150 mm |
| Energy management | |
| Nominal power | 550 W |
| Efficiency | 90% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |

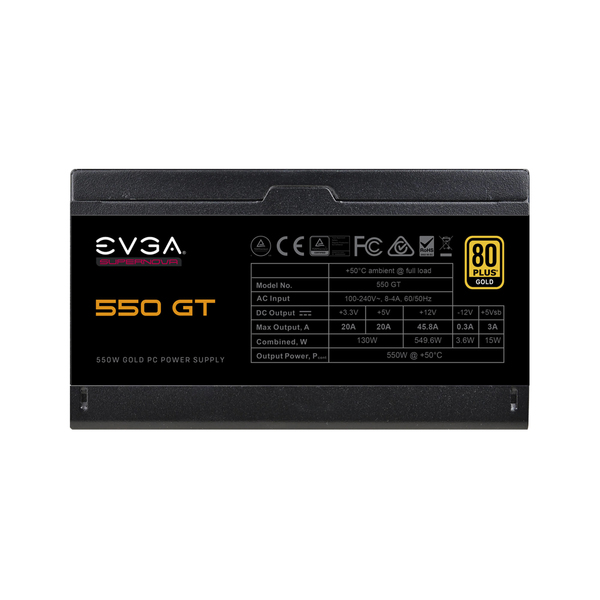

| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 549.6 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 45.8 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |

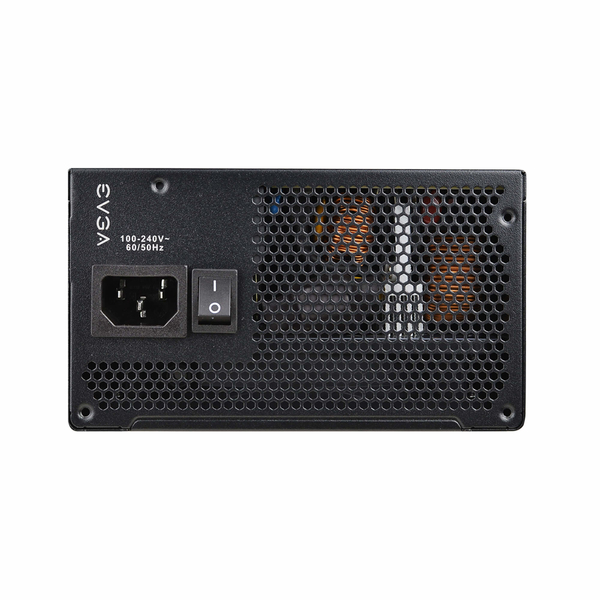

| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Total power | 550 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Packaging data | |
| Package type | Box |
| Packaging content | |
| Cables included | AC |
| Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Fan location | Top |
| Performance | |
| Certification | TUV, CB, FCC, RCM, cTUVus, CCC, WEEE |
| Purpose | PC |
| Bearing technology | Ball bearing |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | ATX |
| EAN | 4250812431943 |
| Warranty | 1 year |

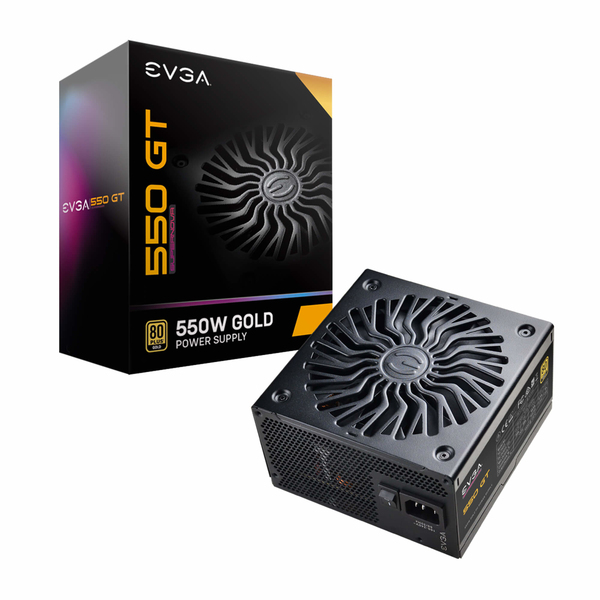

REFINEMENT IN PERFORMANCE AND DESIGN
Upgrade both aesthetics and electronic components with a unique radial design fan grill, compact 150mm length and width, and 100% Japanese capacitors.
80 PLUS GOLD EFFICIENCY
80 PLUS Gold Certified. Ensures that your power supply is 90% efficient or higher.
FLUID DYNAMIC BEARING
The EVGA SuperNOVA GT uses a long-life 135mm fan with a Fluid Dynamic Bearing (FDB) for silence, reliability, and a longer life expectancy.
SINGLE +12V OUTPUT
Provides a stable output for compatibility with the latest hardware.

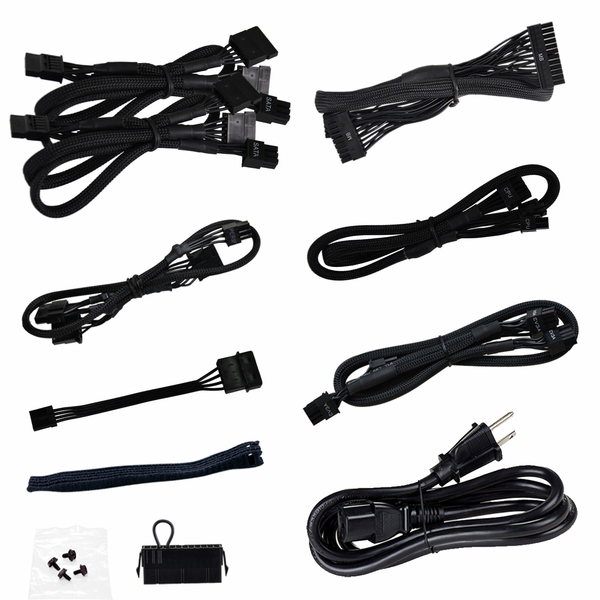

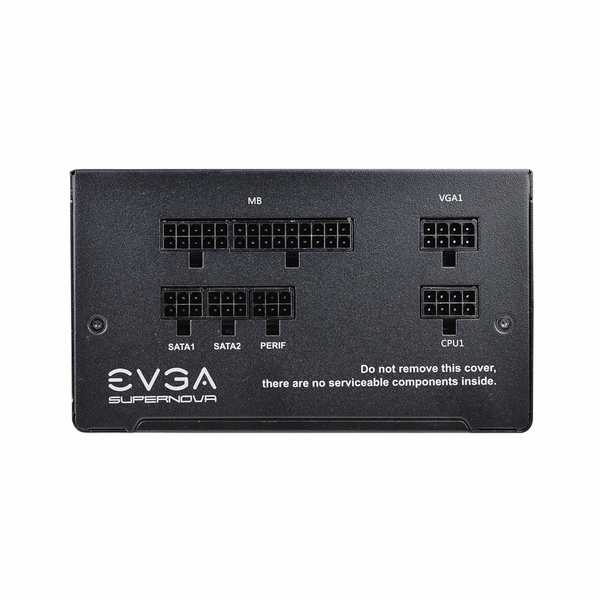

FULLY MODULAR DESIGN
Choose the cables you need to make cable management simple and clean.
AUTO ECO MODE
Fan RPM adapts to the PSU temperature. The fan will shut off in a low temperature/low load environment, resulting in reduced noise.
Full Protection
- OVP Over Voltage Protection
- OCP Over Current Protection
- OPP Over Power Protection
- SCP Short Circuit Protection
- UVP Under Voltage Protection
- Dual OTPOver Temperature Protection on the Primary and Secondary PCB
