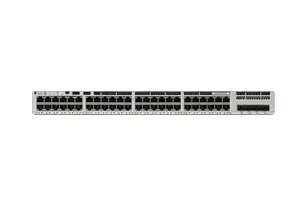

Cisco Catalyst 9200L 48PL-4G-A - Managed PoE switch

The Cisco Catalyst 9200L 48PL-4G-A is a fixed-configuration managed PoE switch designed to connect and power network endpoints. This model features 48 Gigabit Ethernet (10/100/1000) RJ-45 ports, all of which support Power over Ethernet (PoE). With a switching capacity of 104 Gbit/s, it maintains data flow in high-density local area networks. By transmitting data and power over a single cable, the switch eliminates the need for separate power supplies at each endpoint. It is suitable for environments that require centralized management of IP cameras, wireless access points, or VoIP phones.

The rack-mountable chassis measures 445 x 288 x 44 mm, fits standard networking cabinets, and uses a standard AC power source. Administrators can use integrated Quality of Service (QoS) protocols to prioritize critical traffic during periods of high usage. The switch employs Access Control Lists (ACLs) to enforce security policies and restrict unauthorized traffic. Network segmentation is managed through routing capabilities that support up to 4,096 active VLANs. While this model accommodates a high density of Gigabit connections, it does not include 10G uplink support, as it is designed for 1G access layer operations.

• 600 W total PoE budget distributed across 48 ports.
• 16,000-entry MAC address table for tracking endpoints.
• 2,048 MB of RAM and 4,000 MB of flash storage for routing tables and firmware.
• Jumbo frame support for payloads up to 9,198 bytes, reducing packet processing overhead.
• Native multicast support for efficient bandwidth management in media and conferencing streams.
