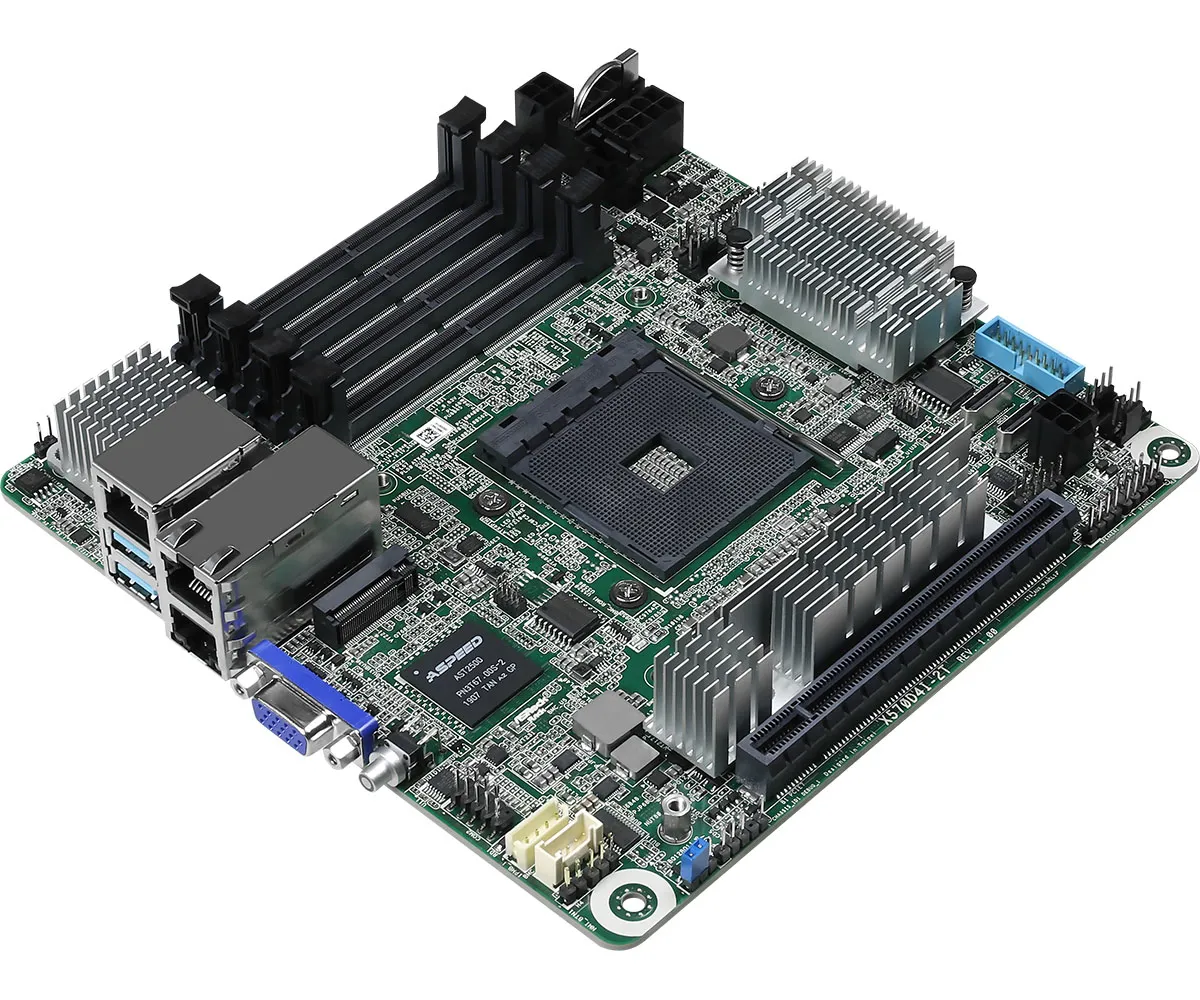

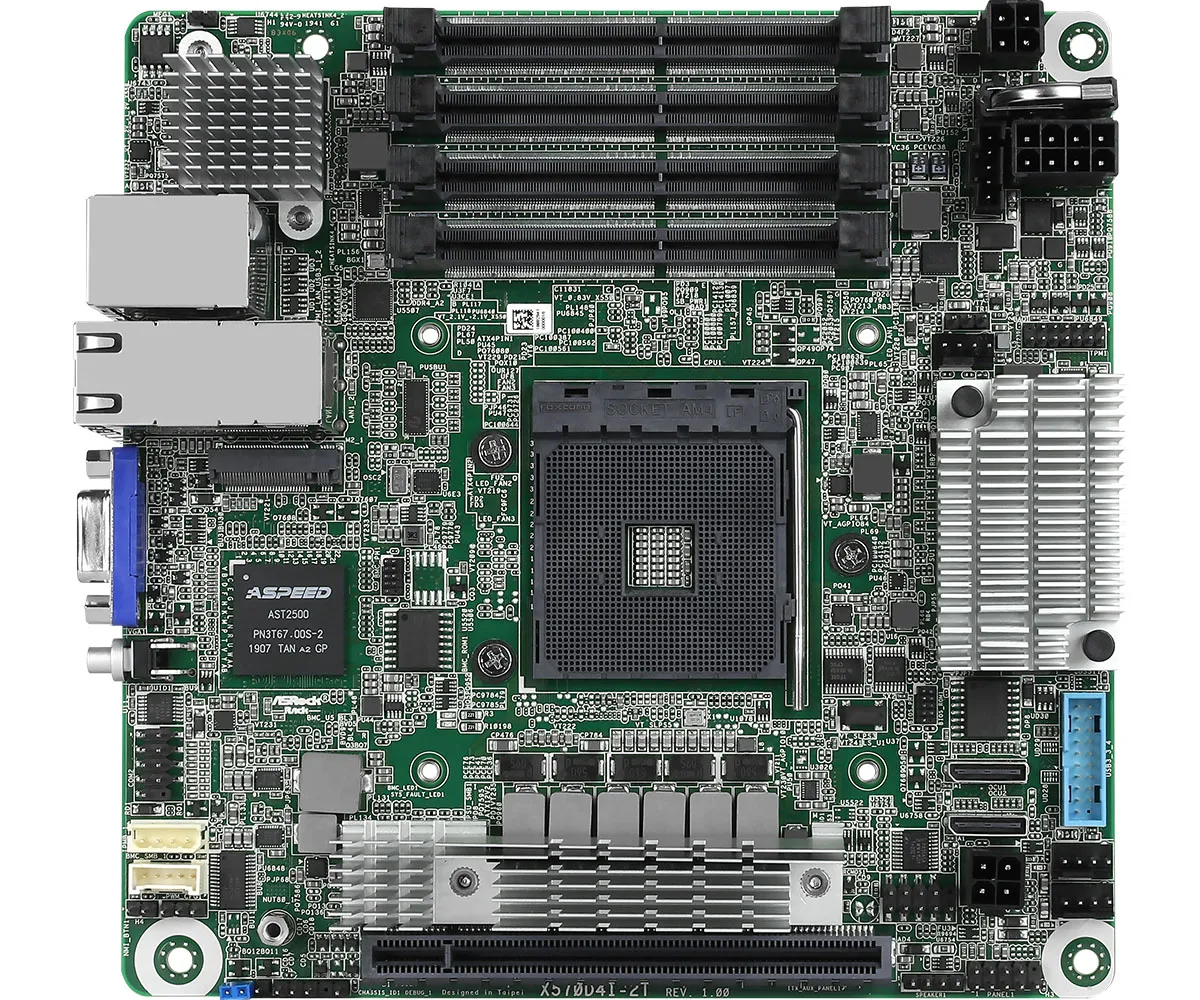

ASRock Rack X570D4I-2T AM4 Mini-ITX Motherboard

The ASRock Rack X570D4I-2T is a server-grade motherboard engineered for compact systems, utilizing the Mini-ITX form factor and the AMD X570 chipset. It supports AMD Ryzen 5000, 4000, and 3000 G-Series processors through its AM4 socket, providing a high-performance platform for server applications. The board features four SO-DIMM slots, accommodating up to 128 GB of DDR4 memory with a maximum speed of 2933 MHz. It also offers flexibility with support for both ECC and non-ECC memory modules, contingent on the processor used.

This motherboard is equipped with an Intel X550-AT2 controller that provides dual 10GbE LAN ports for high-speed networking. For comprehensive remote administration, it integrates an ASPEED AST2500 baseboard management controller with a dedicated IPMI LAN port. Storage is extensive for its size, offering nine SATA 6Gb/s ports, an OCuLink connector that can support four additional SATA drives, and one M.2 slot for PCIe 4.0 storage devices. Expansion is handled by a single PCIe 4.0 x16 slot, suitable for a graphics card or other high-bandwidth components.

• Supports RAID 0, 1, and 10 configurations

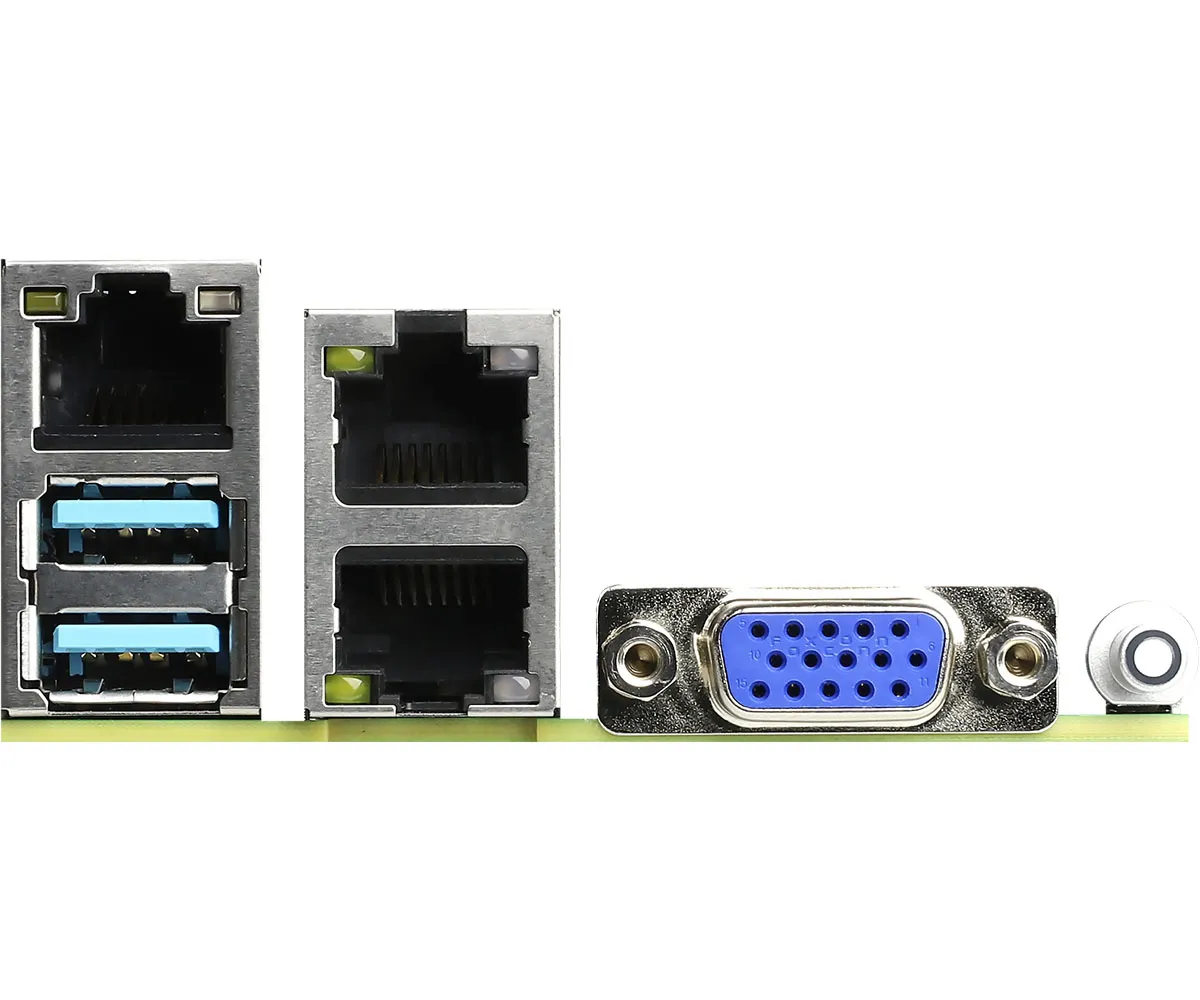

• Includes two rear USB 3.2 Gen 2 Type-A ports
• Equipped with one internal USB 3.2 Gen 1 header
• Provides three 4-pin chassis fan connectors
• Features a TPM header for security modules
• Powered by a single 8-pin EPS connector
• Includes a front panel audio connector
