| Weight & dimensions | |
| Weight | 259 kg |
| Package weight | 290 kg |
| Operational conditions | |
| Operating altitude | 0 - 999.9 m |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Non-operating altitude | 0 - 15000 m |
| Other features | |
| Dimensions (WxDxH) | 523 x 838 x 1491 mm |
| Package dimensions (WxDxH) | 650 x 1062 x 1643 mm |
| Nominal output voltage | 400 V |
| Output voltage note | +/-1%, +/- 5% |
| Output connections | 1 x 4-wire (3PH + G) 1 x 5-wire (3PH + N + G) 1 x Screw Terminals |
| Input connection type | 5-wire (3PH + N + G) |
| Design | |
| Certification | CE, EN 50091-2,EN/IEC 62040-3,EN/IEC 62040-1-1,IEC 61000-3-2,IEC 61000-3-3,ISO 14001,ISO 9001,VFI-SS-111 |
| Product colour | Black |
| Features | |
| Emergency Power Off (EPO) |  |
| Output power capacity | 20 kVA |
| Noise level | 51.3 dB |
| Input frequency | 40/70 Hz |
| Maximum current | 27 A |
| Output power | 16000 W |
| EAN | 0731304272281 |
| Warranty | 1 year |
| Source: Icecat.biz | |

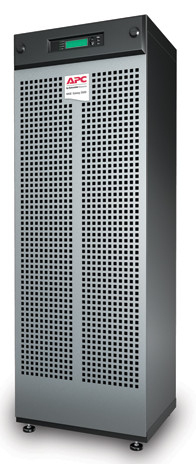

APC MGE Galaxy 3500, 16 kW / 20 kVA,Input 400V 3PH / Output 400V 3PH.
Includes: Bolt down brackets, CD with software, Installation guide, Network Management Card, Power modules ship installed, Smart UPS signalling RS-232 cable, Start-Up Service, User Manua.
- Parallel capability
Multiple units can be placed in parallel to meet power capacity and redundancy requirements
- Dual mains input
Increases availability by allowing the UPS to be connected to two separate power sources.
- Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.
Availability
- Dual mains input
Increases availability by allowing the UPS to be connected to two separate power sources.
- Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Parallel-capacity capable
Increases total power capacity by using multiple UPSs simultaneously.
- Advanced electrical features
Excellent power conditioning, very low harmonic distortion through IGBT rectifier, input power factor correction, and high efficiency
- Frequency and voltage regulation
Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
- Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS overload condition or fault.
- Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.
Manageability
- Built-in Web/SNMP management
Full-featured management via a Web browser as well as comprehensive management from a Network Management System.
- Environmental Monitoring
Prevent equipment failure from a full range of threatening environmental conditions.
- LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.
- Audible alarms
Provides notification of changing utility power and UPS conditions.
Includes: Bolt down brackets, CD with software, Installation guide, Network Management Card, Power modules ship installed, Smart UPS signalling RS-232 cable, Start-Up Service, User Manua.
- Parallel capability
Multiple units can be placed in parallel to meet power capacity and redundancy requirements
- Dual mains input
Increases availability by allowing the UPS to be connected to two separate power sources.
- Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.
Availability
- Dual mains input
Increases availability by allowing the UPS to be connected to two separate power sources.
- Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Parallel-capacity capable
Increases total power capacity by using multiple UPSs simultaneously.
- Advanced electrical features
Excellent power conditioning, very low harmonic distortion through IGBT rectifier, input power factor correction, and high efficiency
- Frequency and voltage regulation
Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
- Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS overload condition or fault.
- Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.
Manageability
- Built-in Web/SNMP management
Full-featured management via a Web browser as well as comprehensive management from a Network Management System.
- Environmental Monitoring
Prevent equipment failure from a full range of threatening environmental conditions.
- LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.
- Audible alarms
Provides notification of changing utility power and UPS conditions.
