Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
| Ports & interfaces | |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| HDMI ports quantity | 1 |
| HDCP |  |
| HDCP version | 1.4/2.3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB Type-C DisplayPort Alternate Mode | |
| |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |

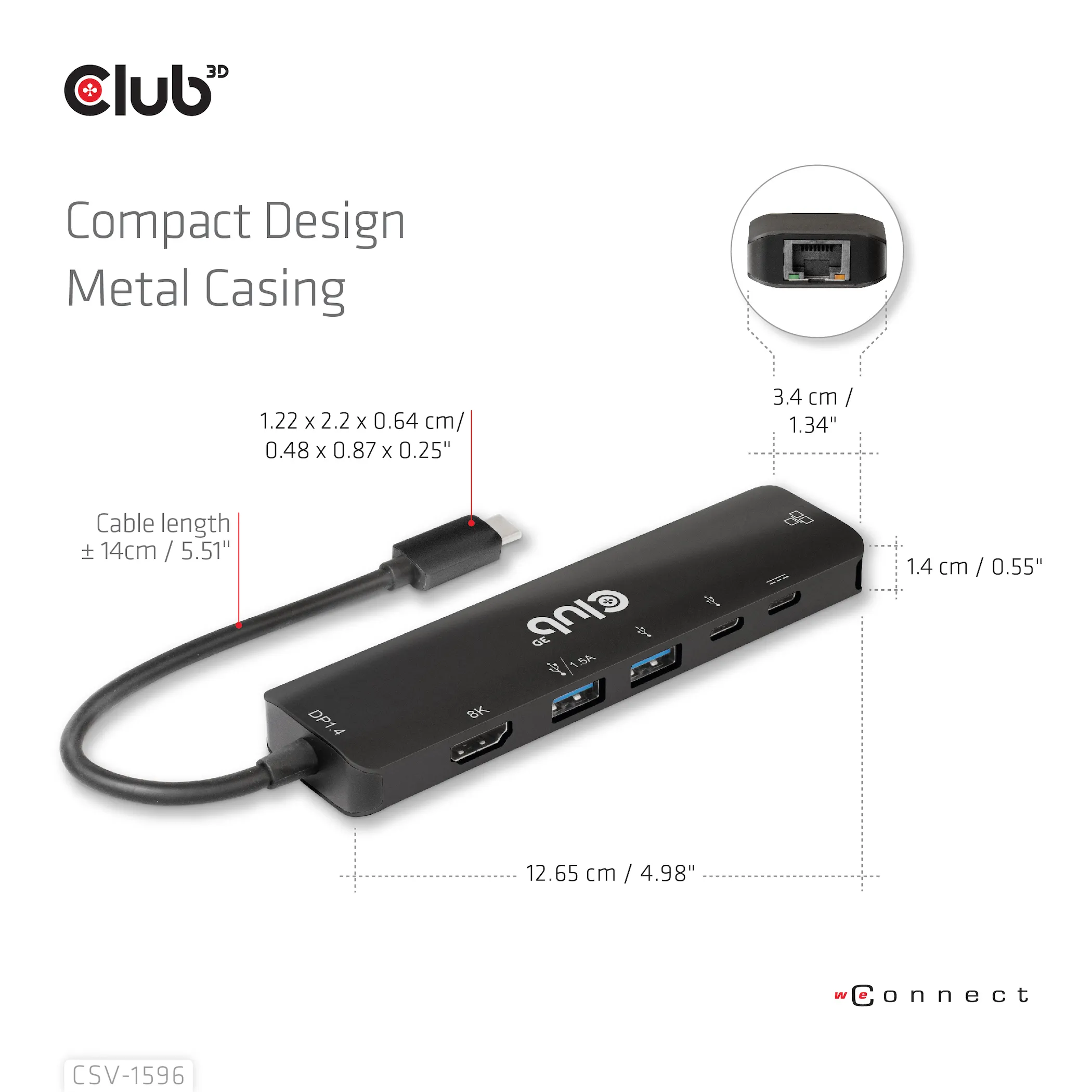

| Weight & dimensions | |
| Weight | 89 g |
| Height | 35 mm |
| Width | 126 mm |
| Depth | 32 mm |
| Energy management | |
| Output voltage | 5 V |
| Output current | 1.5 A |
| Power consumption (max) | 7.5 W |
| Networking | |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Packaging data | |
| Package weight | 136 g |
| Package depth | 35 mm |
| Package height | 320 mm |
| Package width | 70 mm |
| Quantity per pack | 1 pc(s) |
| Operating system/software | |
| Windows operating systems supported | |
| Mac operating systems supported | |
| Other features | |

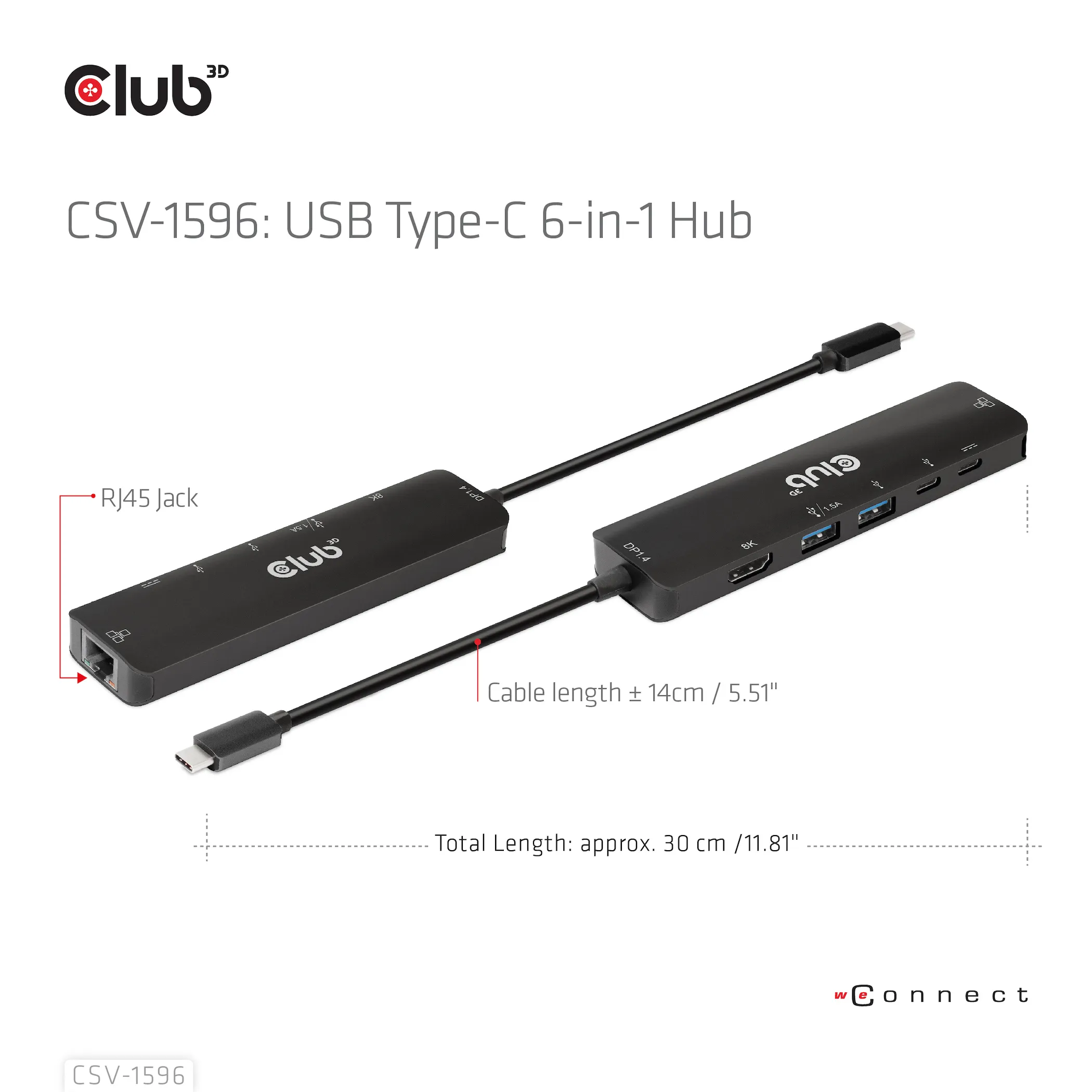

| Cable length | 0.3 m |
| Cable type | Round cable |
| Performance | |
| Certification | ROHS, FCC, CE EMI |
| Plug and Play | |
| Product colour | Black |
| Maximum refresh rate | 120 Hz |
| Hub interfaces | HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Number of displays supported | 1 |
| HD type | 8K Ultra HD |
| High Dynamic Range (HDR) supported | |
| Logistics data | |
| Harmonized System (HS) code | 84719000 |
| EAN | 8719214472344 |
| Warranty | 2 years |
| Source: Icecat.biz | |

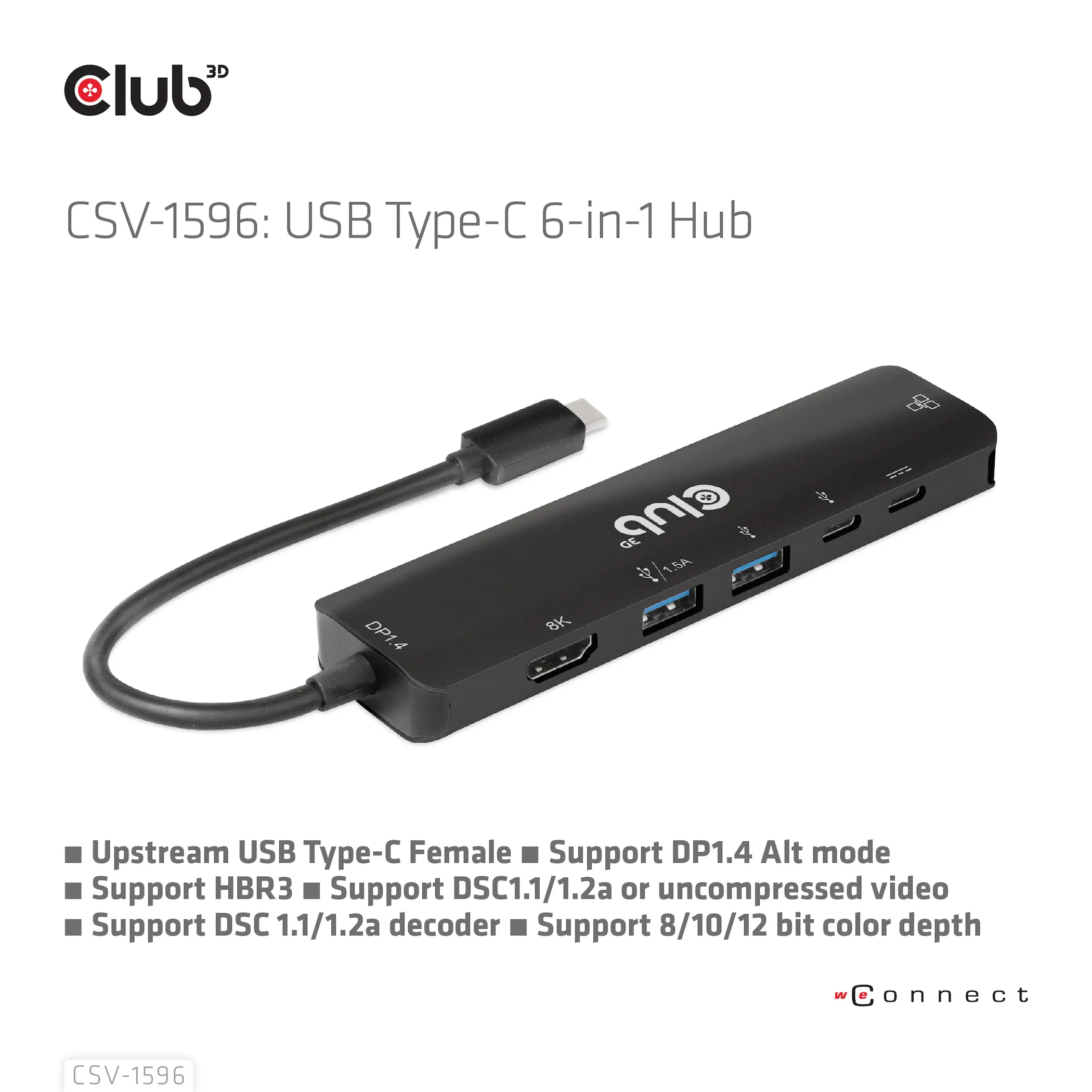

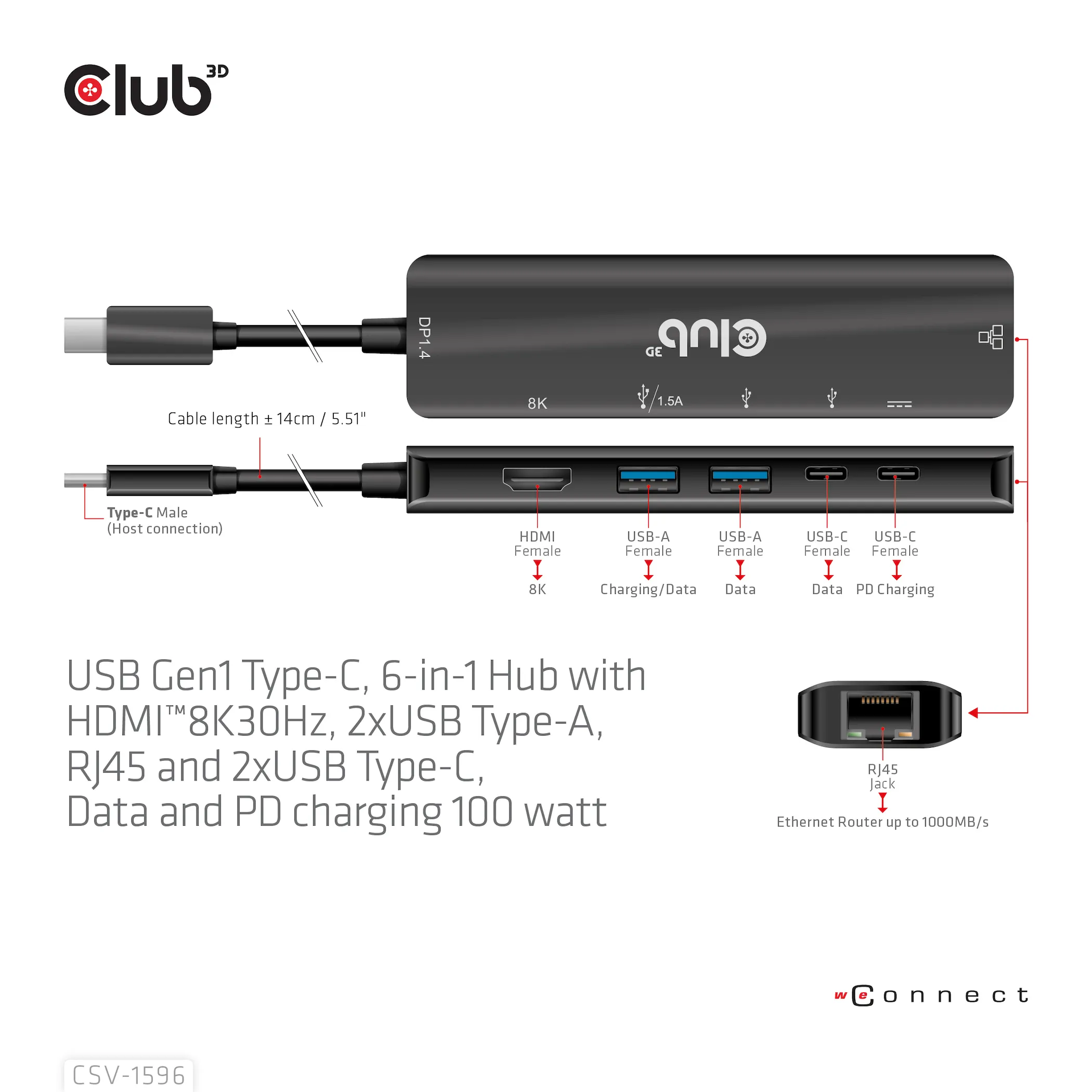

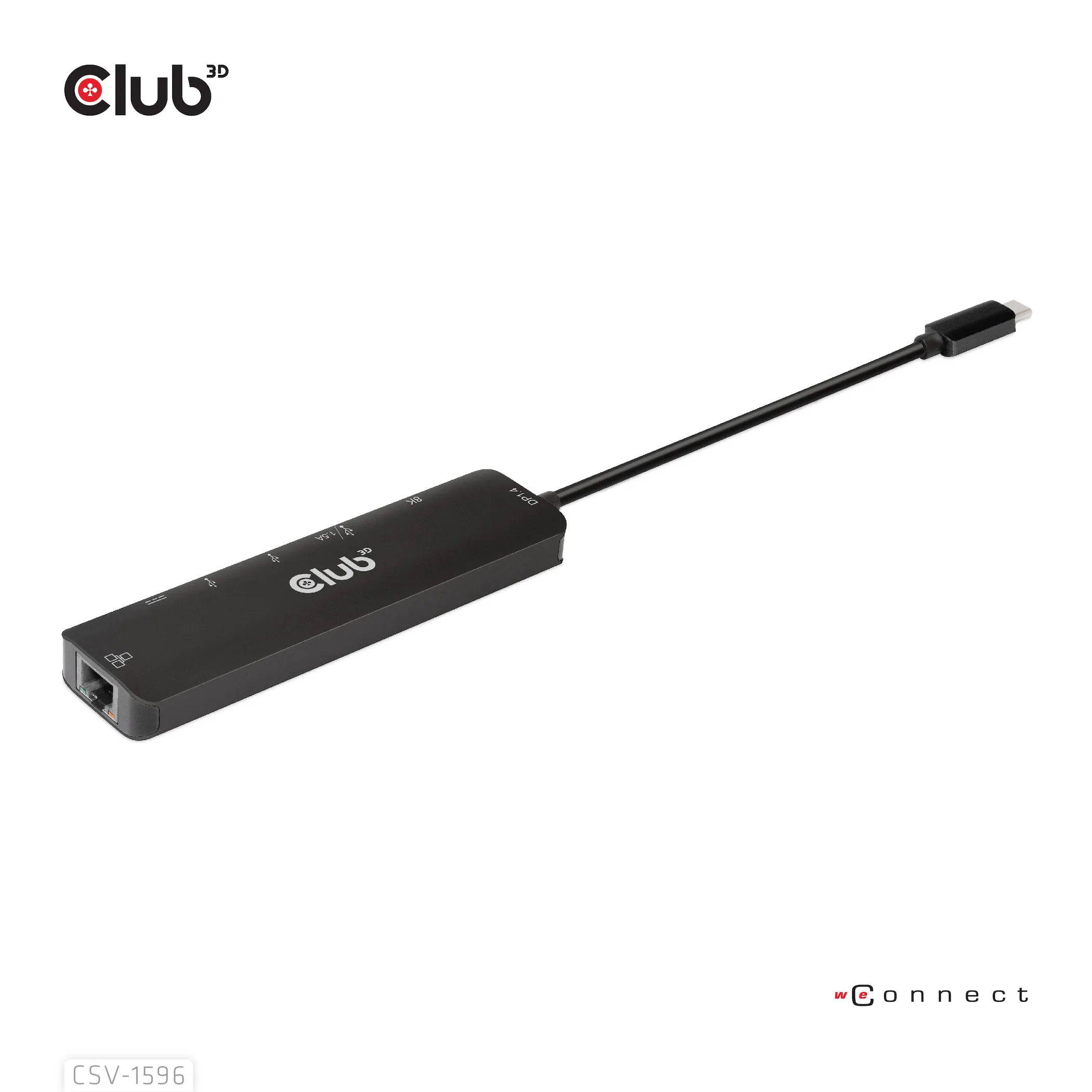

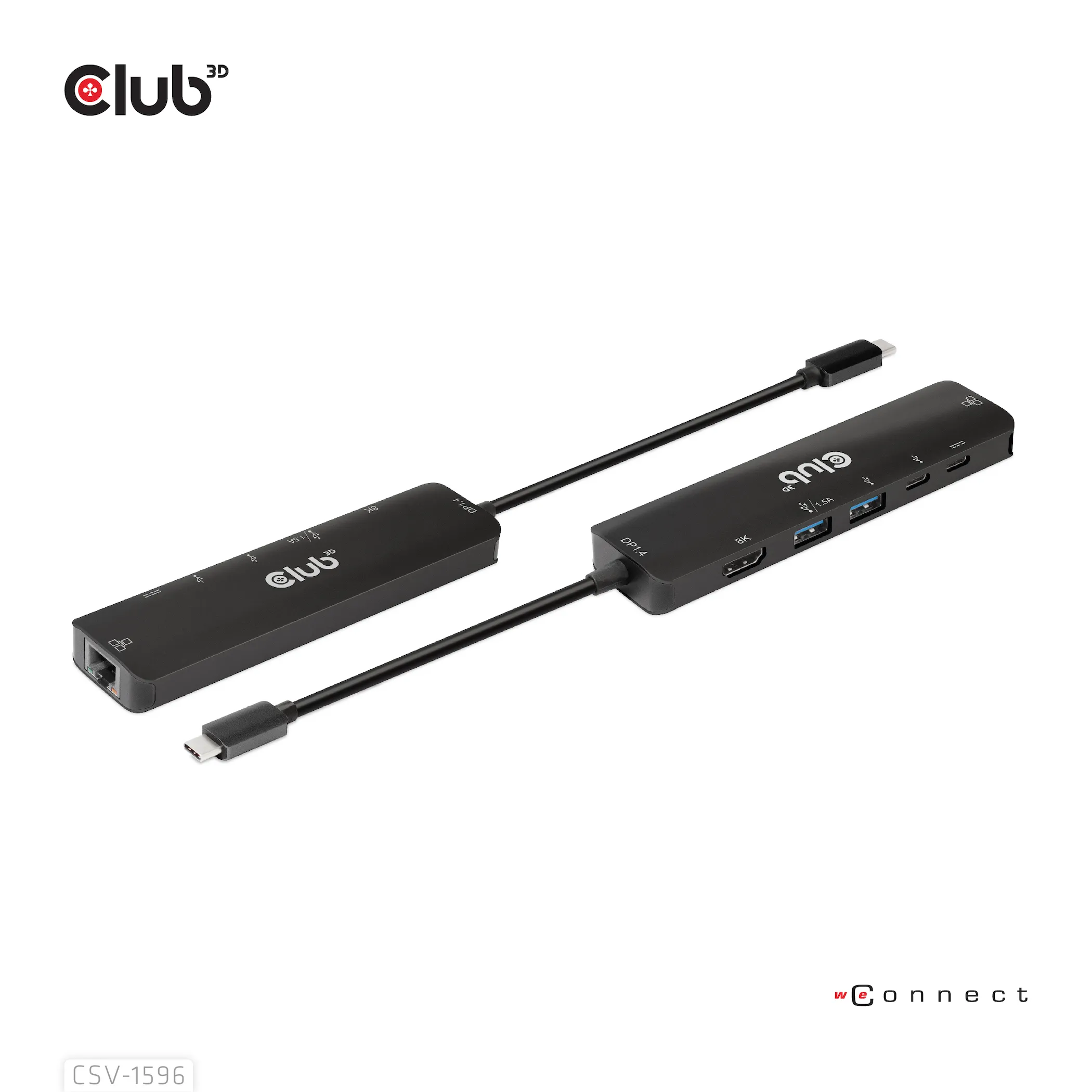

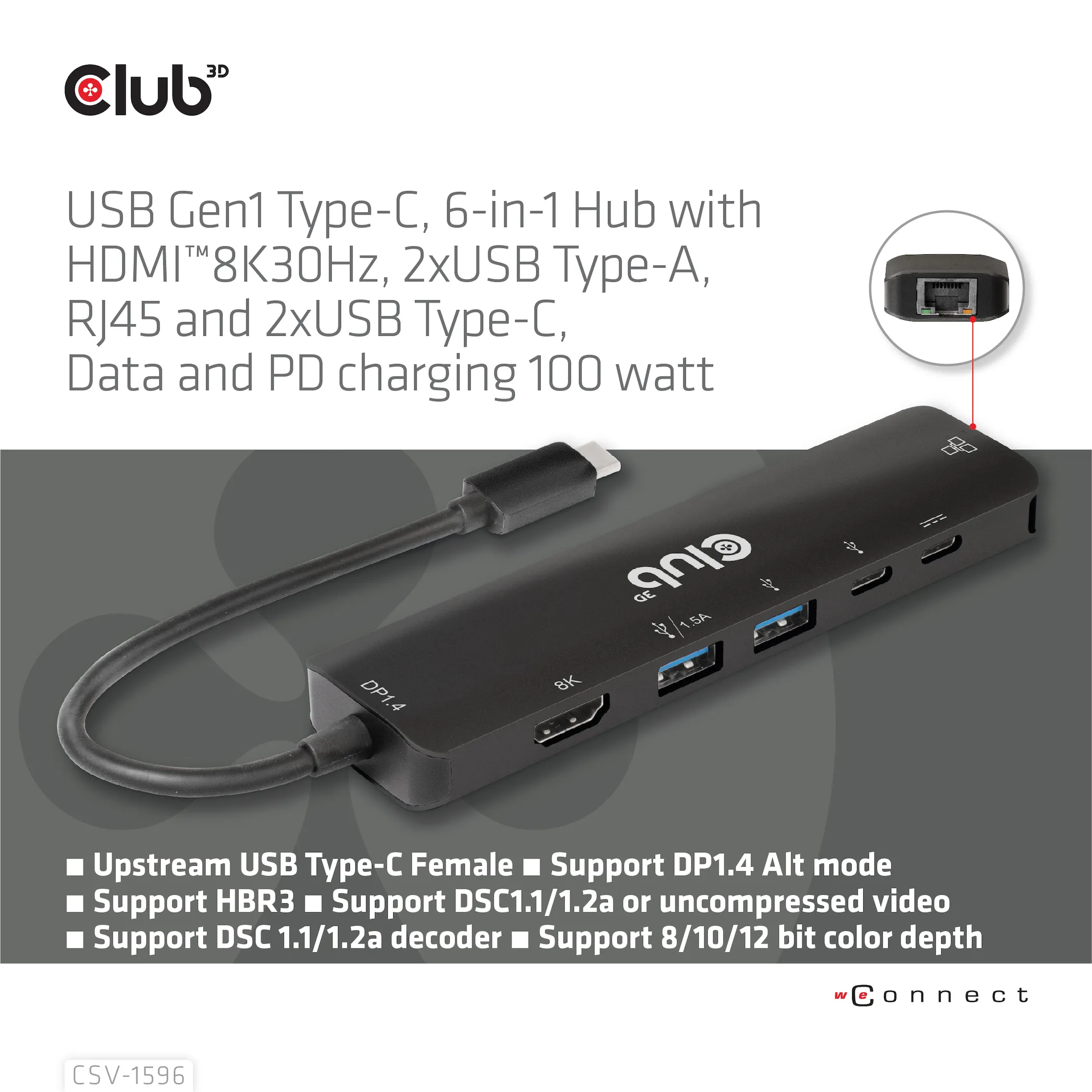

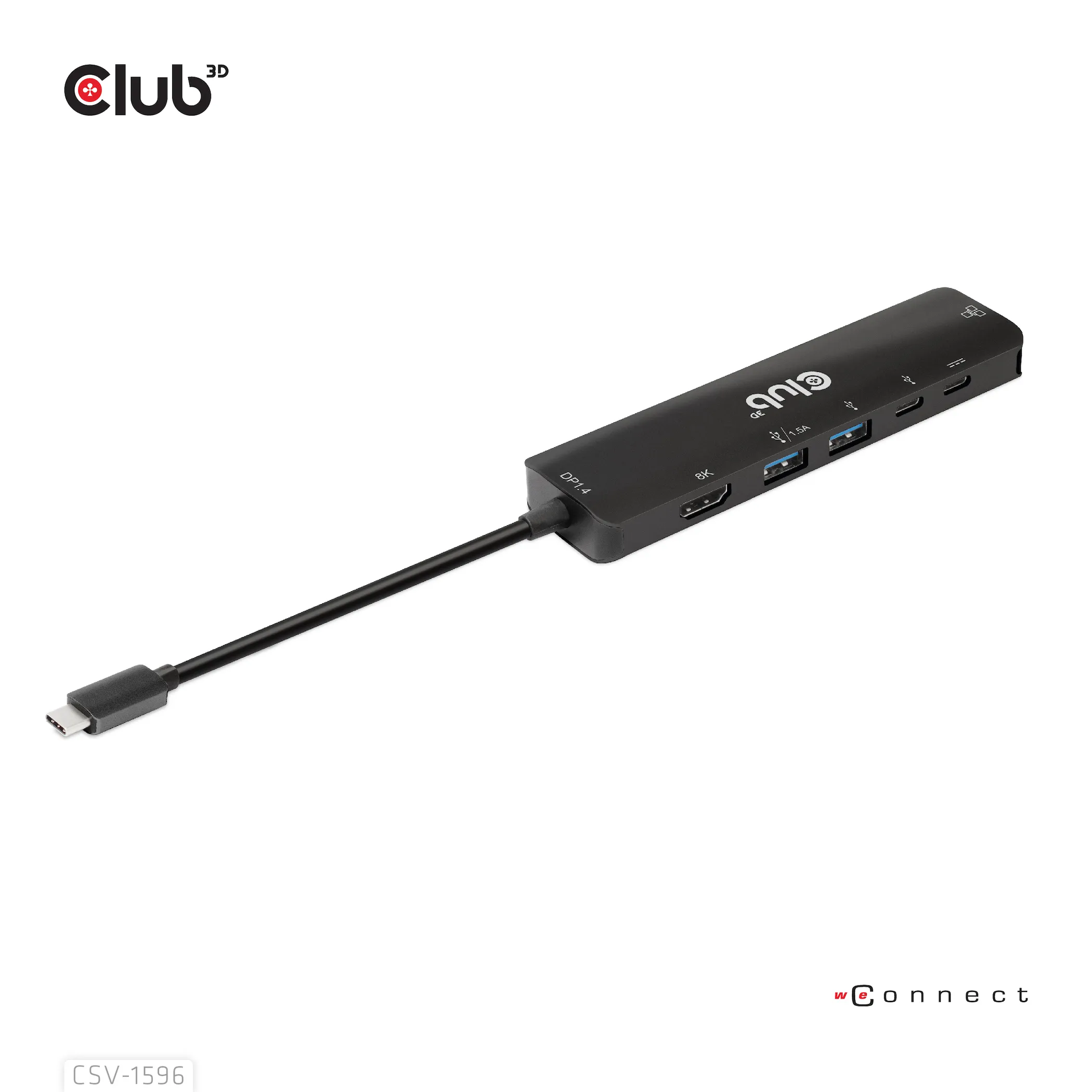

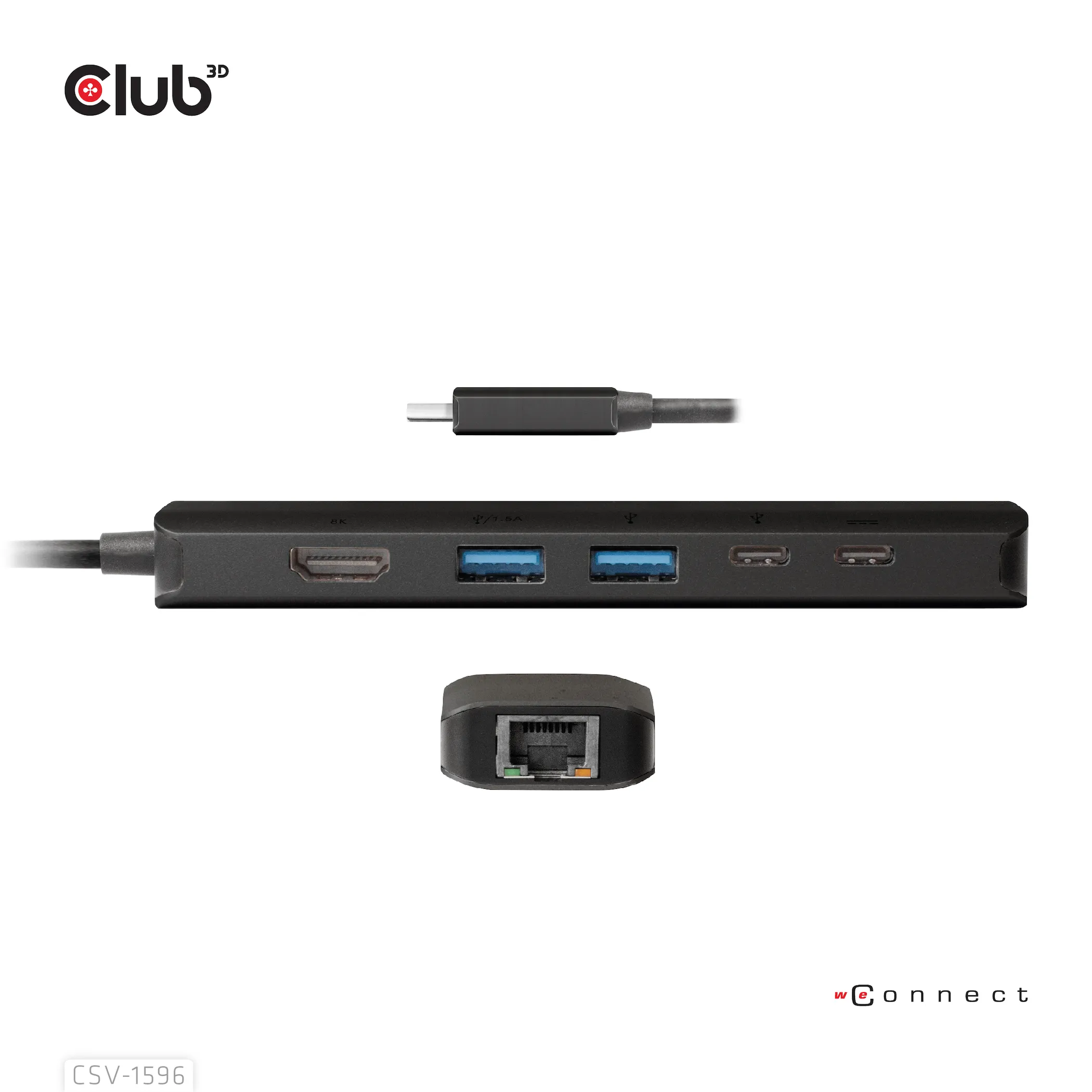

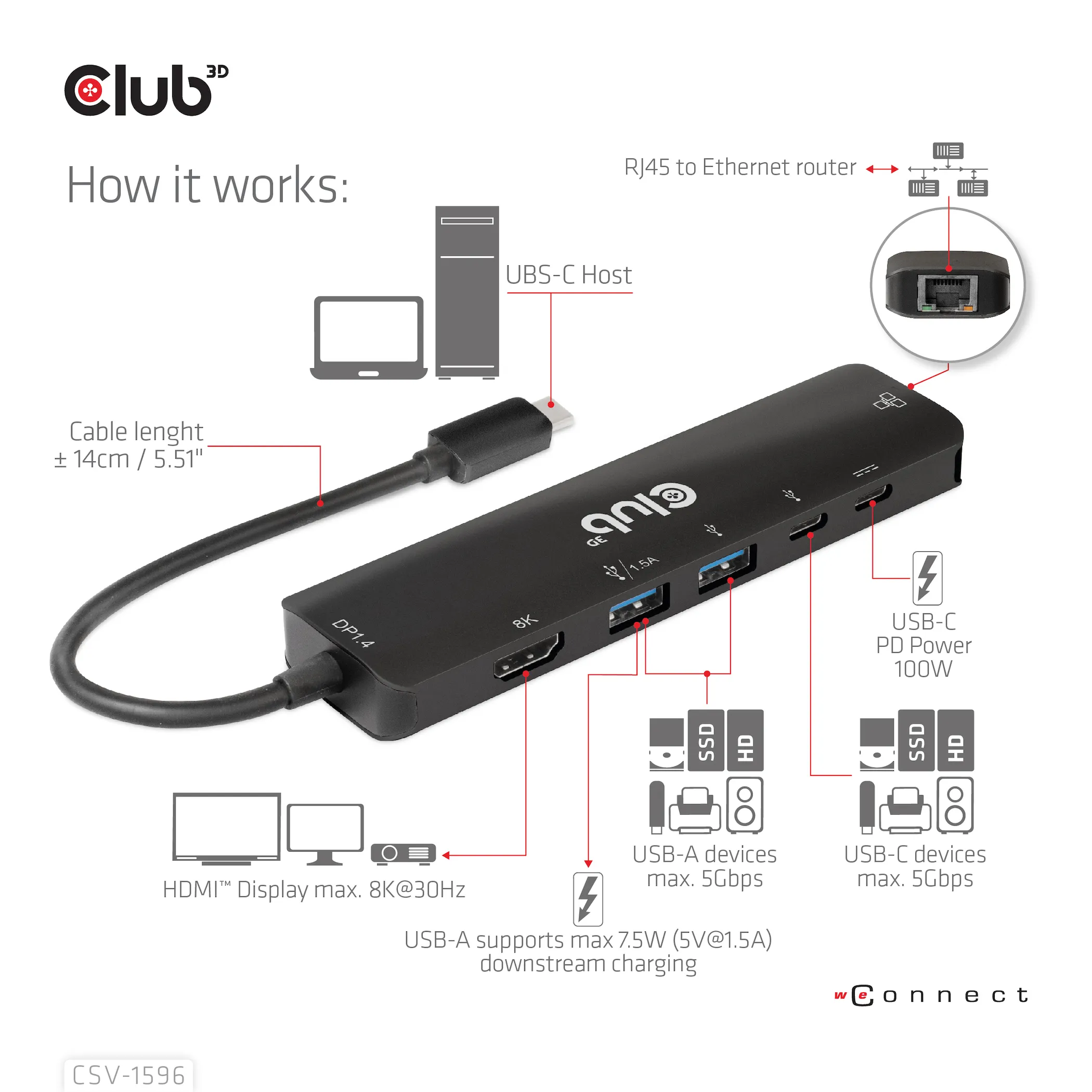

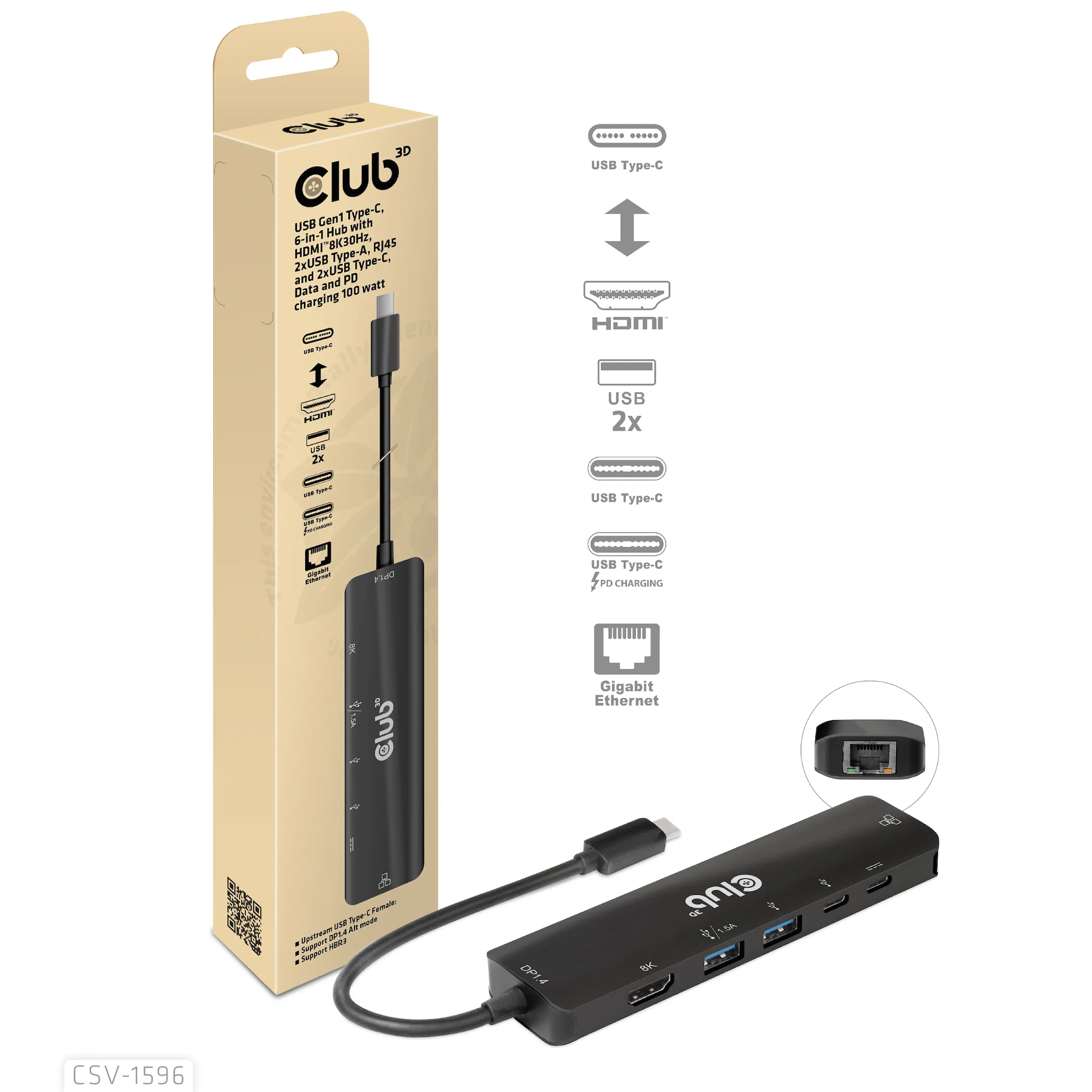

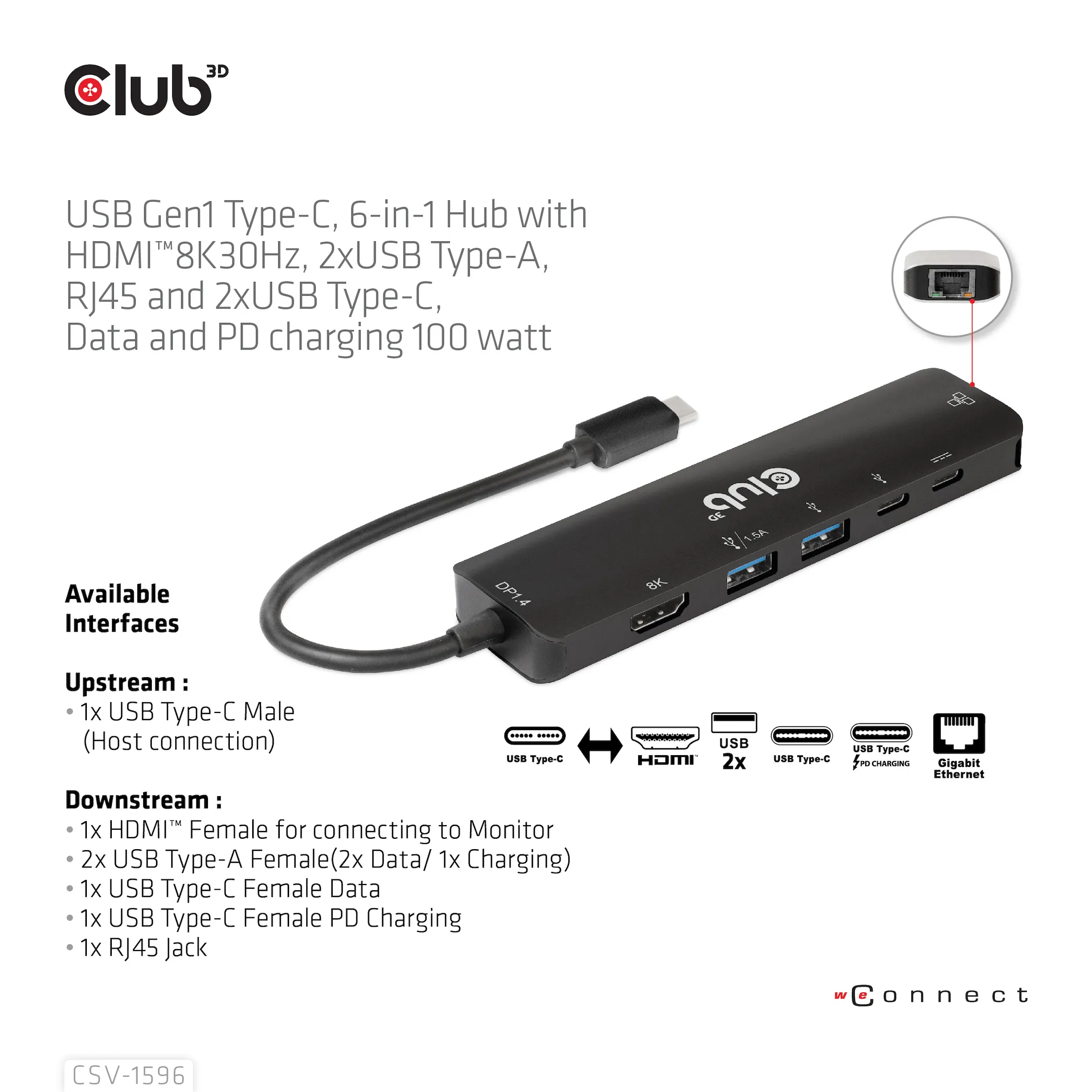

The Club 3D CSV-1596 is a USB Gen1 Type-C, 6-in-1 Hub with HDMI™8K30Hz-4K120Hz, 2xUSB Type-A, RJ45 and 2xUSB Type-C, Data and PD charging 100 watt, providing an ideal solution for extending the port of Type-C/Thunderbolt host (PC/Laptop/Mobile phone,etc.), especially for those host with a single Type-C port. This hub adopts the latest DP1.4 Alt mode supported IC, enabling to output HDMI™ video with max. 8K30Hz-4K120Hz and at the meanwhile transfer USB 3.1 data with max 5Gbps. The USB Type-A and Type-C data ports allow you to connect 4 USB devices simultaneously. 1 Gigabit Ethernet for super fast Ethernet. Besides, the Type-C female supports PD 3.0 PD Charging 100W (15W is dedicated to the functioning of this product, the rest power(max 85W) will be passed to charge for the host. This 6-in-1 Hub will work on all DP Alt mode supported Type-C hosts.
