ATEN HDMI-switch, 4st enheter till 1st skärm, 1080i/1080p/1920x1200
Manufacturer: ATEN
ID: VS481A-AT-G
Product unavailable
This product is end of life or currently not available.
This product is end of life or currently not available.
Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development

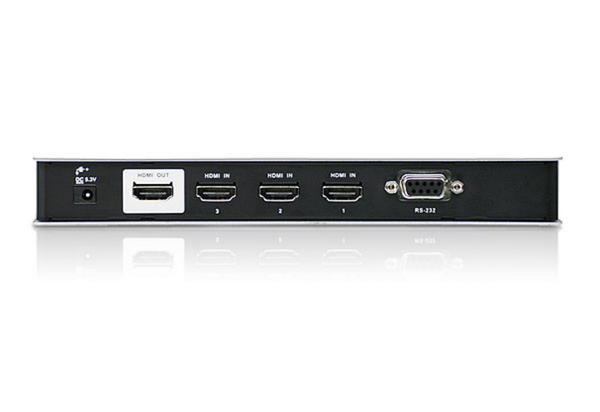

| Ports & interfaces | |
| DC-in jack |  |
| Video port type | HDMI |
| RS-232 ports | 1 |
| HDMI ports quantity | 5 |
| HDMI in | 4 |
| Number of HDMI outputs | 1 |
| Weight & dimensions | |
| Weight | 670 g |
| Height | 25 mm |
| Width | 82.7 mm |
| Depth | 200 mm |
| Energy management | |
| Power consumption (typical) | 1.87 W |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 0 - 80% |
| Packaging data | |
| Package weight | 835 g |
| Package depth | 283 mm |
| Package height | 173 mm |
| Package width | 62 mm |
| Packaging content | |
| AC adapter included | |
| Remote control included | |
| Cables included | HDMI |
| User guide | |
| Quantity per pack | 1 pc(s) |
| Features | |
| Plug and Play | |
| Material | Metal |
| Cable length | 1.8 m |
| LED indicators | |
| Maximum resolution | 1920 x 1080 pixels |
| Product colour | Silver |
| Maximum operating distance | 15 m |
| Bandwidth | 6.75 Gbit/s |
| Input impedance | 100 Ω |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA) |
| Supported video modes | 480p, 720p, 1080i, 1080p |
| HDCP | |
| Output impedance | 100 Ω |
| Maximum refresh rate | 60 Hz |
| 3D | |
| Dolby technologies | DTS-HD Master Audio, Dolby TrueHD |
| HD type | Full HD |
| Consumer Electronics Control (CEC) support | |
| Logistics data | |
| Master (outer) case height | 178 mm |
| Master (outer) case width | 315 mm |
| Master (outer) case gross weight | 8.9 kg |
| Master (outer) case length | 490 mm |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case net weight | 6.7 kg |
| EAN | 4710423775190 |
| Warranty | 2 years |
| Source: Icecat.biz | |

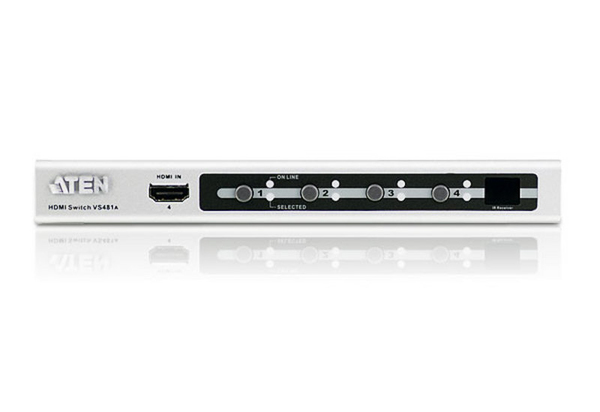

The VS481A 4 Port HDMI Switch allows you to quickly and easily share your HDMI display device with 4 HDMI input sources. The VS481A allows convenient switching between digital devices such as DVD players, Satelite receivers, Digital Camcorder. The VS481A allows you to select the desired input source via a remote control unit and pushbuttons located on the switch.
