Product unavailable
This product is end of life or currently not available.
This product is end of life or currently not available.
Specifications
Description
Store availability
Delivery
Price development
Manuals
| Weight & dimensions | |
| Weight | 14 kg |
| Package weight | 15.8 kg |
| Package depth | 420 mm |
| Package height | 495 mm |
| Package width | 260 mm |
| Energy management | |
| Power | 500 W |
| AC input frequency | 50 Hz |
| AC input voltage | 230 - 240 V |
| Ergonomics | |
| Drill table tilting | -45 - 45° |
| Design | |
| Product colour | Black, Red |
| Chuck type | Key |
| Product type | Bench drill press |
| Chuck mount | B16 |
| Performance | |
| Number of speeds | 9 |
| Throat depth | 11.5 cm |
| Variable speed | ![]() |
| Rotational speed (max) | 2410 RPM |
| Rotational speed (min) | 300 RPM |
| Drill bit diameter (min) | 1.5 mm |
| Drill bit diameter (max) | 1.3 cm |
![]() | |
| EAN | 4006825649925 |
| Source: Icecat.biz | |
Article description

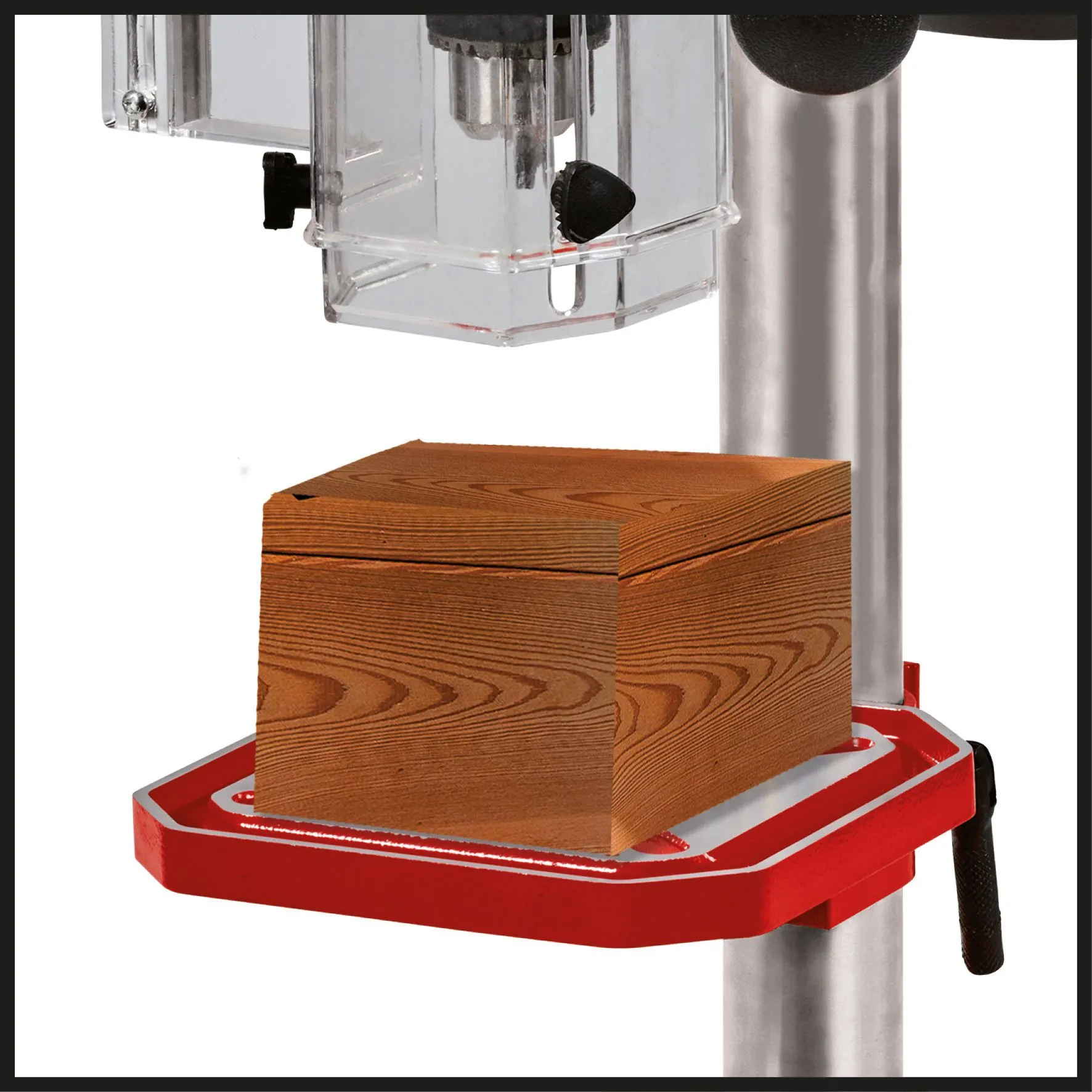

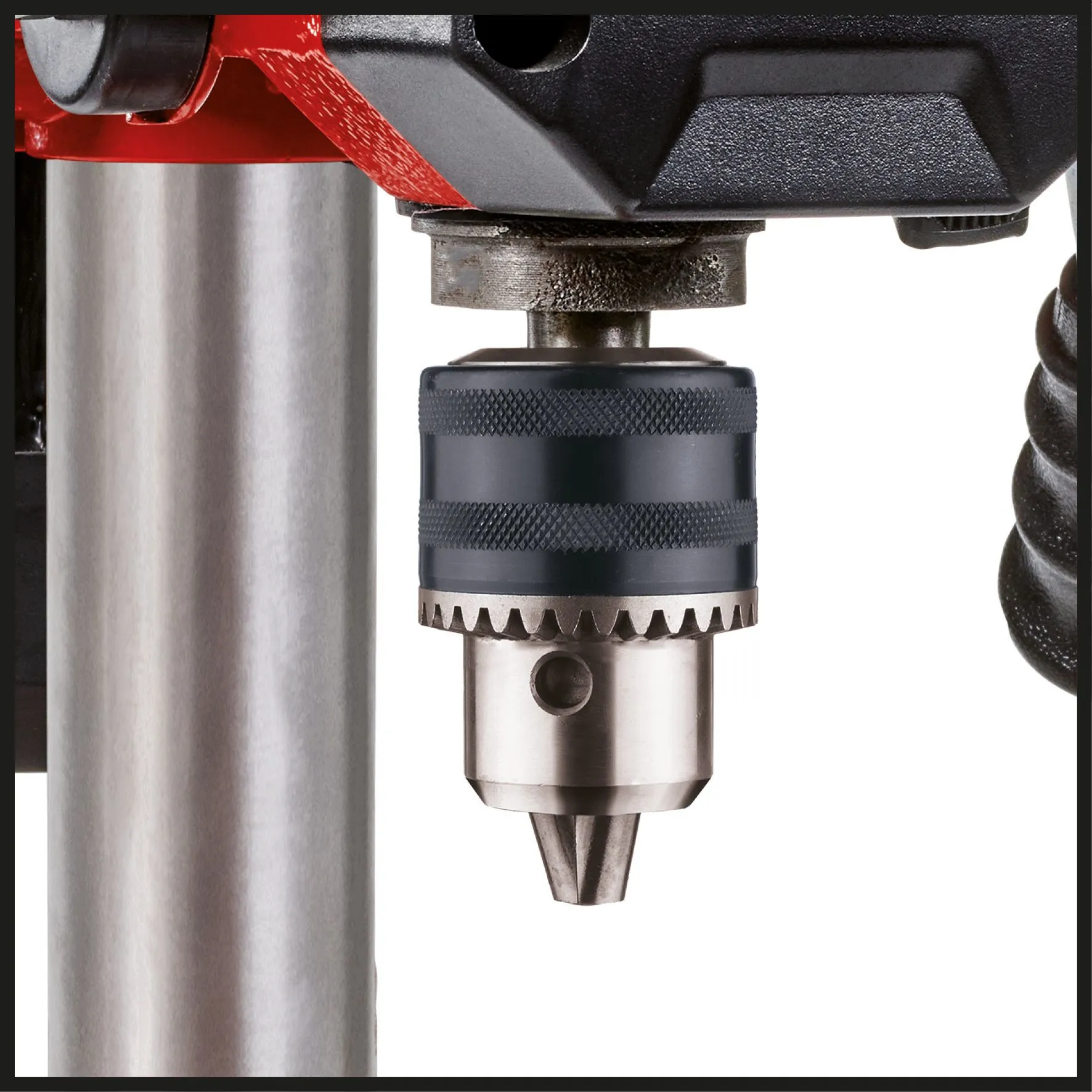

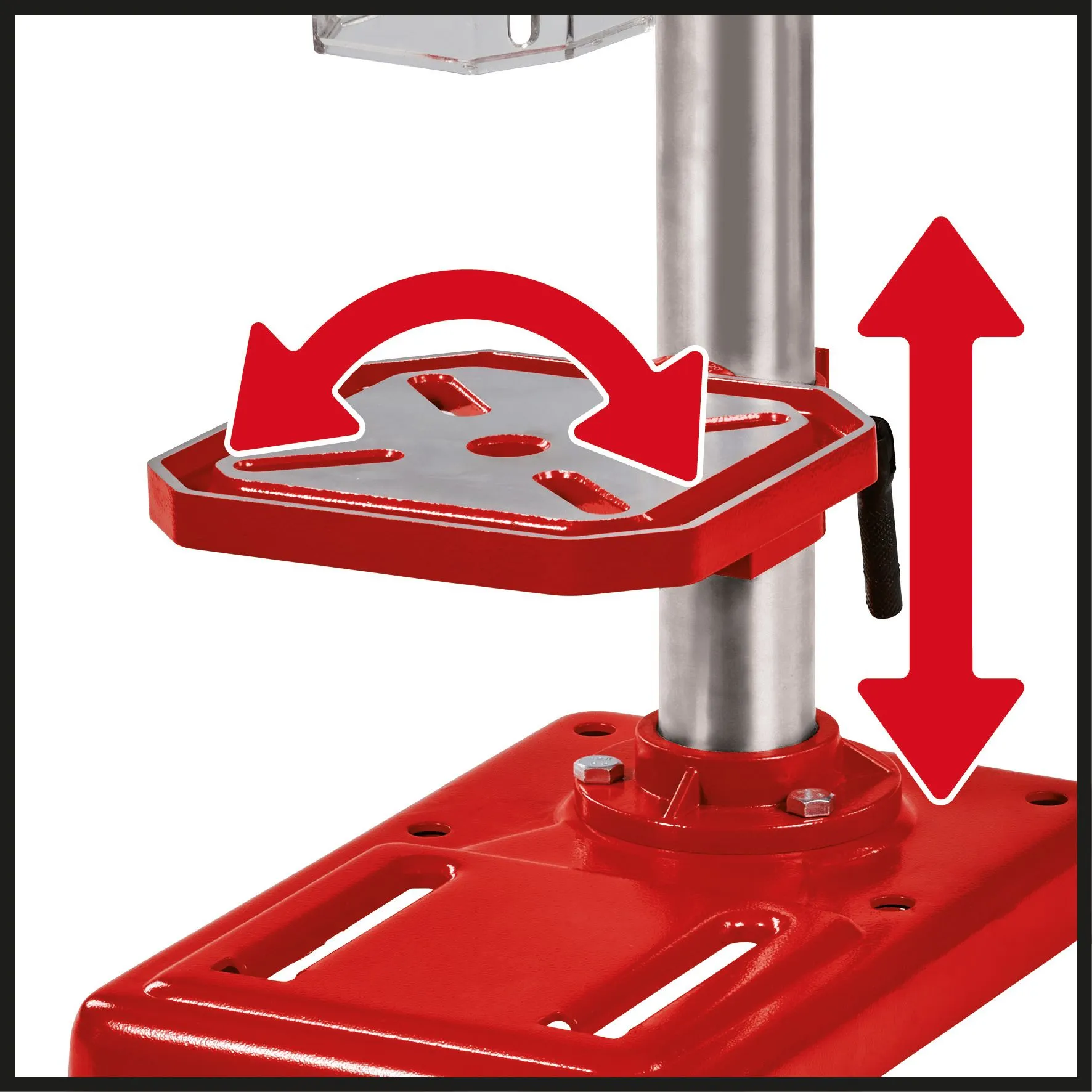

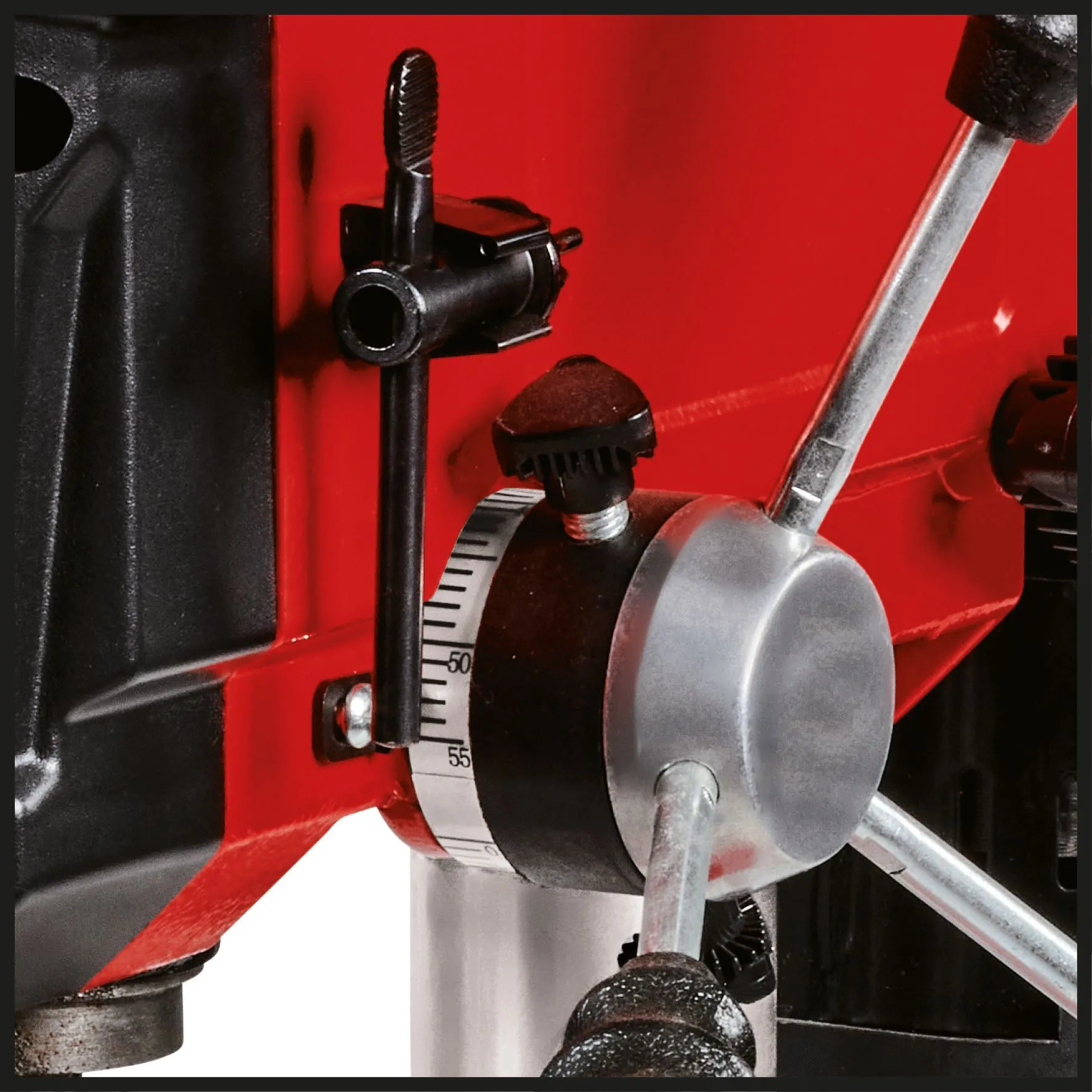

The Einhell TC-BD 500 pillar drill is a precision tool for special demands: A pillar drill enables holes to be drilled in workpieces made of wood or metal with pin-point accuracy. An output of 500 W and 9 speed settings to suit all materials form the basis for precision drilling jobs. For fast and exact results there is an adjustable depth stop. The maximum drilling depth is 50 mm. This pillar drill features a robust ring gear chuck that can take the most common drill bit sizes. The drill spindle with ball bearings results in long-lasting and easy use. For variability this pillar drill comes with an infinitely height-adjustable drill table . It is also possible to rotate and tilt the drill table. A welcome feature for applying pressure exactly is the rubberized, three-arm capstan. For safety during use there is a folding chip guard, and the On/Off switch with zero-voltage release function prevents the machine from starting up again unintentionally after a power failure.
The Einhell TC-BD 500 pillar drill is a precision tool for special demands: A pillar drill enables holes to be drilled in workpieces made of wood or metal with pin-point accuracy. An output of 500 W and 9 speed settings to suit all materials form the basis for precision drilling jobs. For fast and exact results there is an adjustable depth stop. The maximum drilling depth is 50 mm. This pillar drill features a robust ring gear chuck that can take the most common drill bit sizes. The drill spindle with ball bearings results in long-lasting and easy use. For variability this pillar drill comes with an infinitely height-adjustable drill table . It is also possible to rotate and tilt the drill table. A welcome feature for applying pressure exactly is the rubberized, three-arm capstan. For safety during use there is a folding chip guard, and the On/Off switch with zero-voltage release function prevents the machine from starting up again unintentionally after a power failure.
