Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
| Technical details | |
| Warranty period | 2 year(s) |
| Weight & dimensions | |
| Weight | 1.95 kg |
| Height | 525 mm |
| Width | 130 mm |
| Depth | 44 mm |
| Radiator width | 13 cm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Cooling agent | liquid |
| Design | |
| Number of fans | 4 fan(s) |
| Performance | |
| Radiator |  |
| Features | |
| Product colour | Black |
| Fan diameter | 12 cm |
| Connecting thread | G1/4 " |
| EAN | 3831109838457 |

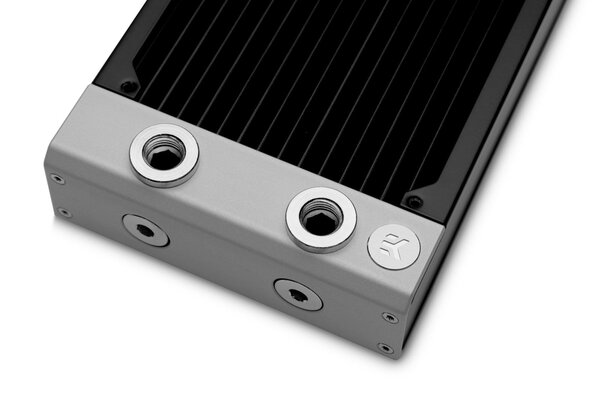

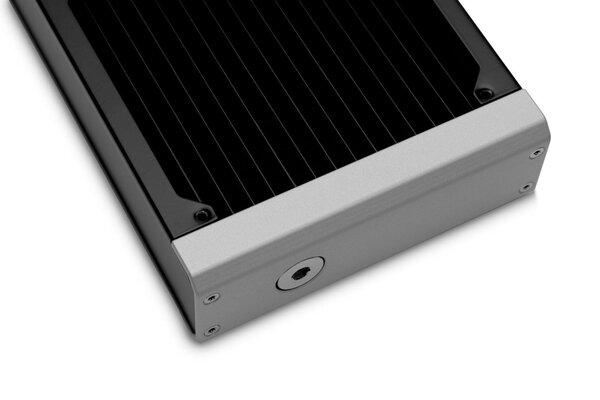

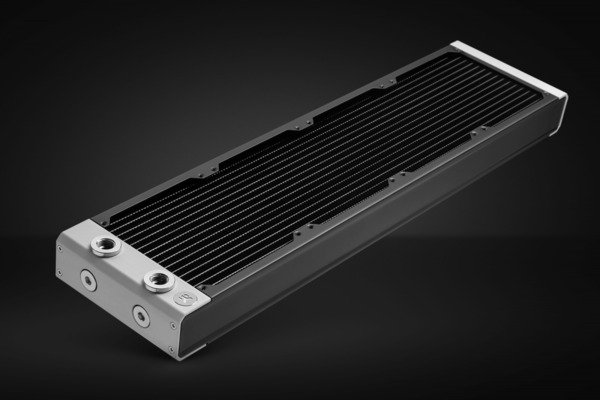

The EKWB EK-Quantum Surface P480M (Black) is a radiator designed for custom PC liquid cooling loops. It is constructed with 99.9% copper fins and H90 copper tubing to transfer heat from the coolant, with H62 brass end tanks and stainless steel side plates providing structural support. The 18 fins per inch density balances surface area with airflow resistance, while the medium-depth profile adds thermal mass for heat dissipation.
The P480M requires a chassis with space for a 480 mm radiator. It supports four 120 mm fans for cooling the fin stack. Five G1/4 ports allow for flexible tube routing, and the unit is compatible with the EK-Matrix7 system for alignment with Reflection² distro plates and other standard components. Each unit is pressure-tested at 1 bar to ensure the integrity of the coolant paths.
Key Features:- 16 copper tubes, 2 mm wide, circulate coolant through the core
- Dimensions: 130 x 44 x 525 mm
- Weight: 1950 g
- Extruded aluminium end caps
