DeepCool CH360 Midi-Tower Case with window and RGB lighting, Black Multicolor
Key Specifications
Choose one or multiple features to search for items that have the same specifications.| Ports & interfaces | |
| Audio input | Yes |
| Audio output | Yes |
| USB 2.0 ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in |  |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 1 |
| Combo headphone/mic port |  |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB Type-C ports quantity | 1 |
| Weight & dimensions | |
| Weight | 6 kg |
| Height | 431 mm |
| Width | 215 mm |
| Depth | 428 mm |
| Storage | |
| Card reader integrated |  |
| Number of HDDs supported | 2 |
| Supported HDD sizes | 2.5,3.5" |
| Number of storage drives supported | 5 |
| Supported storage drive types | HDD, SSD |
| HDD/SSD combo cage |  |
| SSD form factor | 2.5" |
| Packaging data | |
| LED controller |  |
| Cooling | |
| Cooling |  |
| Front fans installed | 2x 140 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Rear fans diameters supported | 120 mm |
| Top fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Number of top fans supported (max) | 2 |
| Rear fans installed | 1x 120 mm |
| Liquid cooling capability |  |
| Rear radiator sizes supported | 120 mm |
| Front radiator sizes supported | 120,140,240,280,360 mm |
| Rear radiator installed |  |
| Front radiator installed |  |
| Top radiator installed |  |
| Top radiator sizes supported | 120,140,240 mm |
| Fan speed control |  |
| Other features | |
| Power LED |  |
| On/off switch |  |
| Screws included |  |
| Design | |
| Type | PC |
| Rack mounting |  |
| Material | ABS, SPCC |
| Cable lock slot |  |
| Product colour | Black |
| Illumination |  |
| Cable management |  |
| Reset button |  |
| Supported motherboard form factors | micro ATX, Mini-ITX |
| Anti-dust filter |  |
| Number of 5.25" bays | 0 |
| Number of 3.5" bays | 2 |
| Illumination colour | Multi |
| Transport wheels |  |
| Side window |  |
| Number of internal 3.5" bays | 2 |
| Maximum CPU cooler height | 16.5 cm |
| Maximum graphics card length | 32 cm |
| Number of expansion slots | 4 |
| Maximum PSU length | 16 cm |
| Illumination location | Case fans |
| Number of 2.5" bays | 3 |
| On/off button |  |
| Tempered glass panel(s) |  |
| RGB control button |  |
| Power supply | |
| Number of power supply units | 1 |
| Power supply location | Bottom |
| Power supply included |  |
| Supported power supply form factors | ATX, PS2 |
| EAN | 6933412774716 |
The DeepCool CH360 is a semi-tower ATX chassis constructed from SPCC steel, ABS plastic, and a tempered glass side panel. Its design prioritizes airflow, featuring a high-permeability front panel to facilitate effective cooling for internal components. The case accommodates multiple motherboard form factors, including ATX, Micro-ATX, and Mini-ITX, providing a flexible foundation for various system builds. Measuring 215mm wide and 431mm high, its dimensions are optimized for performance-oriented configurations within a compact footprint.
For thermal management, the CH360 comes equipped with three pre-installed ARGB fans: two 140mm units at the front and one 120mm unit at the rear. The chassis supports extensive liquid cooling solutions with radiator mounting locations for up to 360mm in the front, 240mm on top, and 120mm at the rear. Component clearances accommodate CPU coolers up to 165mm in height and standard ATX PS2 power supplies up to 160mm in length. The internal layout provides dedicated mounts for two 3.5-inch drives and three 2.5-inch drives, along with integrated cable management features.
Key Features:- Supports ATX, Micro-ATX, and Mini-ITX motherboards
- Constructed with a steel frame, ABS panels, and a tempered glass side window

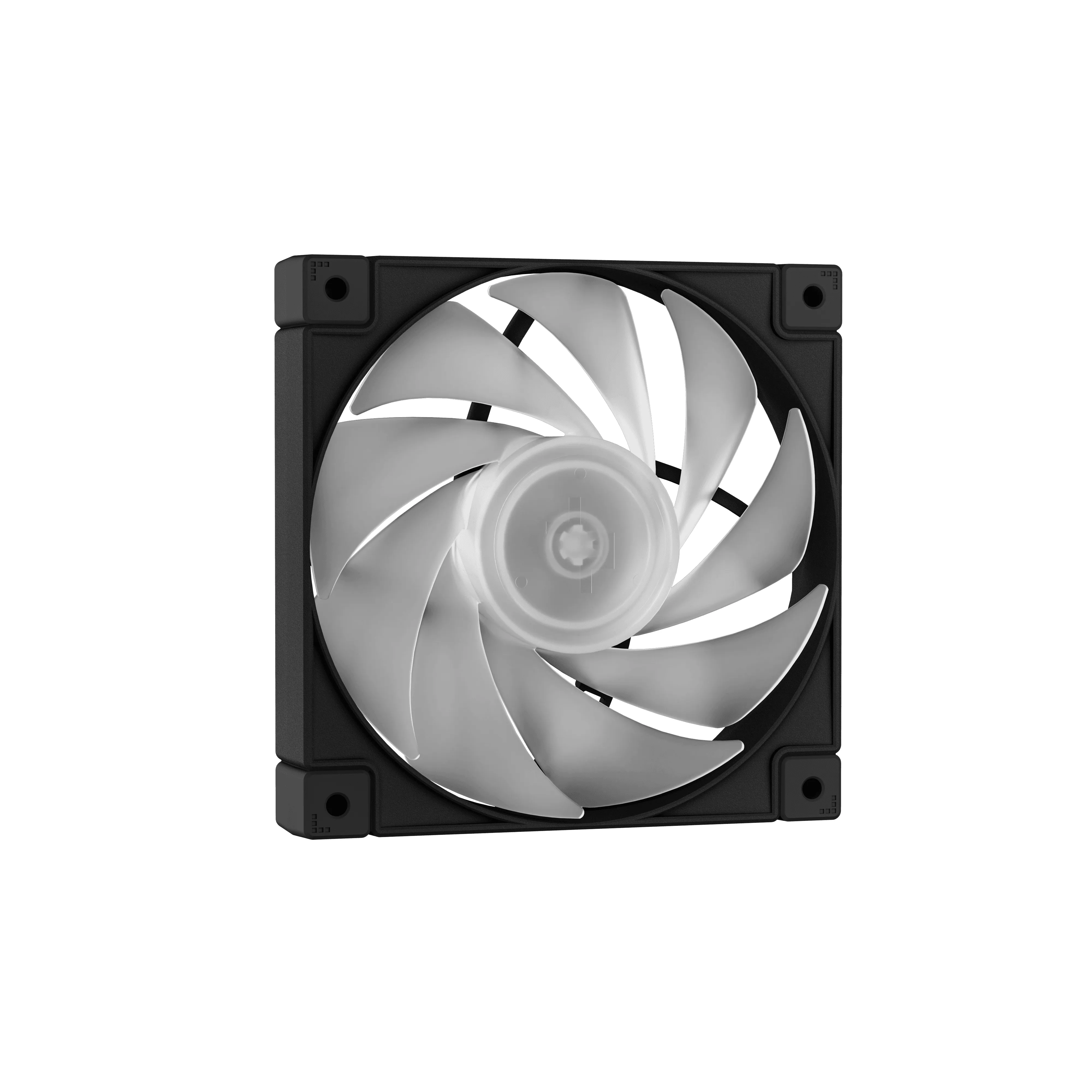

- Includes two 140mm front ARGB fans and one 120mm rear ARGB fan
- Accommodates radiators up to 360mm (front), 240mm (top), and 120mm (rear)
- Provides clearance for CPU coolers up to 165mm in height
- Offers bays for two 3.5-inch HDDs and three 2.5-inch SSDs

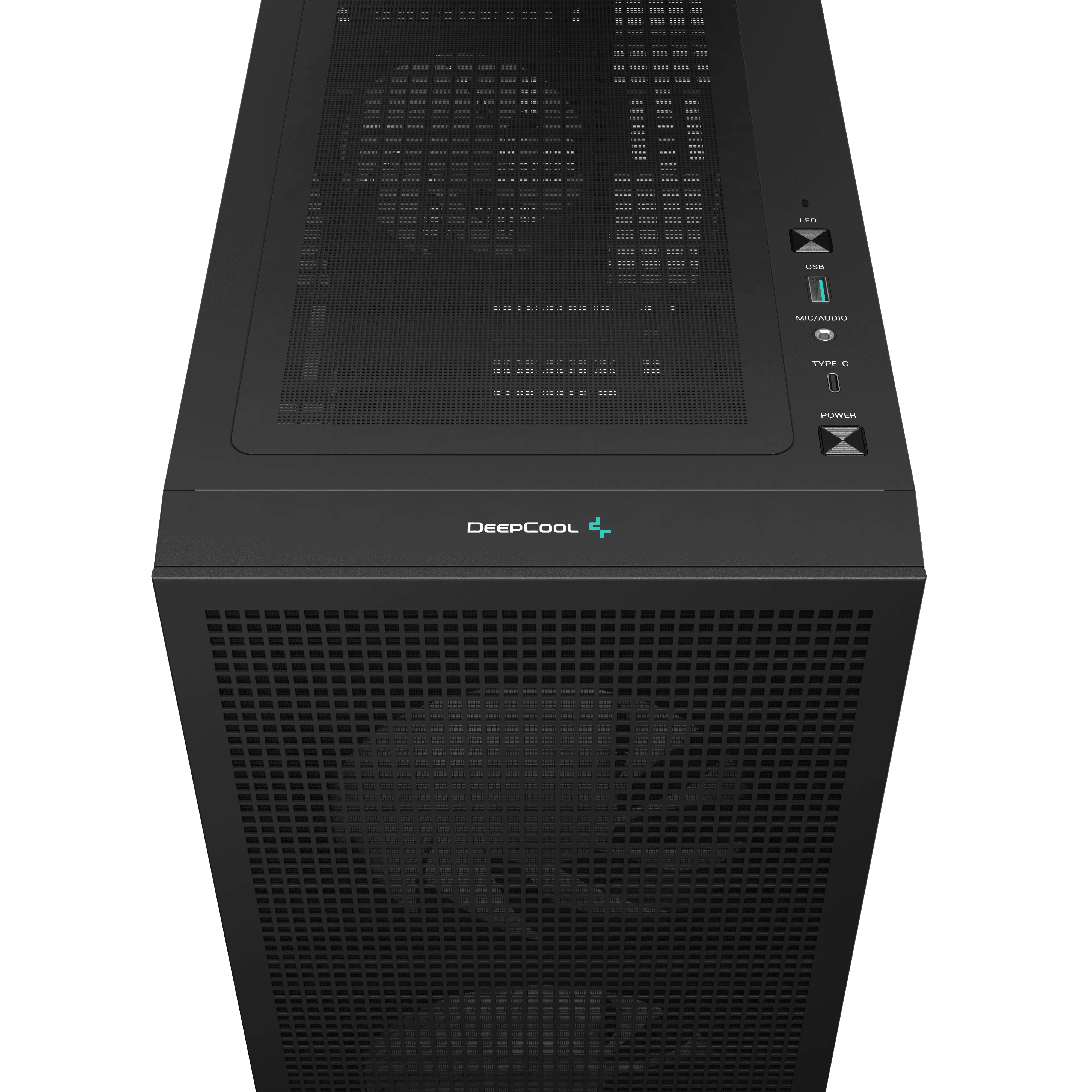

- Front I/O with one USB-C, two USB-A, and a combo audio jack
- Equipped with a dust filter for simplified maintenance
