Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
Manuals
| Processor | |
| Processor model | D-1541 |
| Processor manufacturer | Intel |
| Processor family | Intel Xeon |
| Processor cores | 8 |
| Number of processors supported | 1 |
| Processor boost frequency | 2.7 GHz |
| CPU configuration (max) | 1 |
| Processor frequency | 2.1 GHz |
| Conflict-Free processor |  |
| Memory | |
| Internal memory type | DDR4 |
| Memory slots | 4 |
| ECC | |
| Memory form factor | RDIMM |
| Maximum RAM supported | 128 GB |
| Internal memory | 16 GB |
| Ports & interfaces | |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 7 |
| PCI Express x8 (Gen 3.x) slots | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB port | |
| Weight & dimensions | |
| Weight | 14.5 kg |
| Height | 88 mm |
| Width | 482 mm |
| Depth | 724 mm |
| Energy management | |
| Power consumption (typical) | 136.15 W |
| Number of power supply units | 1 |
| Redundant power supply (RPS) support |  |
| AC input frequency | 50 / 60 Hz |
| AC input voltage | 100 - 240 V |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 550 W |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Networking | |
| Supported network protocols | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV |
| Ethernet LAN | |
| Wake-on-LAN ready | |
| Wi-Fi | |
| Link aggregation | |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| iSCSI support | |
| Copper ethernet cabling technology | 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| Storage | |
| RAID levels | 0, 1, 5, 6, 10, F1, JBOD |
| Supported file systems | BTRFS, Fat, HFS+, NTFS, exFAT, ext3, ext4 |
| RAID support | |
| Storage drive interface | Serial ATA, Serial Attached SCSI (SAS) |
| Number of storage drives supported | 12 |
| Storage drive sizes supported | 2.5,3.5" |
| Storage drives installed | |
| Installed storage drive type | |
| Supported storage drive types | HDD & SSD |
| Hot-swap drive bays | |
| Supported storage drive interfaces | Serial ATA, Serial Attached SCSI (SAS) |
| Online RAID migration | |
| Online RAID expansion | |
| Operating system/software | |
| Operating system installed | DiskStation Manager |
| Packaging content | |
| Cables included | AC |
| Power cables quantity | 1 |
| Other features | |
| Certification | FCC CE BSMI VCCI RCM UKCA EAC CCC KC UL |
| Compliance certificates | CE, RoHS |
| Design | |
| Chassis type | Rack (2U) |
| LED indicators | |
| Product colour | Black, Grey |
| Built-in speaker(s) | |
| Number of fans | 4 fan(s) |
| Cooling type | Active |
| Fan diameter | 8 cm |
| Built-in display | |
| Processor special features | |
| Enhanced Intel SpeedStep Technology | |
| Execute Disable Bit | |
| Idle States | |
| Intel Trusted Execution Technology | |
| Intel Enhanced Halt State | |
| Intel VT-x with Extended Page Tables (EPT) | |
| Embedded options available | |
| Intel TSX-NI | |
| Intel 64 | |
| Intel Virtualization Technology for Directed I/O (VT-d) | |
| Intel Secure Key Technology version | 1.00 |
| Intel Virtualization Technology (VT-x) | |
| Intel TSX-NI version | 1.00 |
| Performance | |
| Type | NAS |
| Security algorithms | AES |
| Management protocols | SNMP |
| Browser supported | Google Chrome Firefox Microsoft Edge Safari |
| Noise level | 49.8 dB |
| Buzzer | |
| Snapshot | |
| Card reader integrated | |
| Web-based management | |
| Access Control List (ACL) | |
| Reset button | |
| Multilingual support | |
| On/off switch | |
| Device class | Small & Medium Business |
| Backup function | |
| Backup features | Cloud, iSCSI LUN |
| Built-in UPnP AV media server | |
| Built-in FTP server | |
| System log | |
| Sustainability | |
| Sustainability compliance | |
| EAN | 4711174725021 |
| Warranty | 5 years |

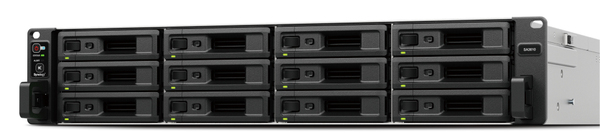

The Synology SA3410 2U 12-bay rackmount NAS is designed for centralized data management in business environments. It is powered by an 8-core 2.1 GHz Intel Xeon D-1541 processor and includes 16 GB of DDR4 ECC RAM. The 12 drive bays accommodate 2.5-inch and 3.5-inch SATA or SAS drives. The system is sold diskless, allowing users to select drives based on their storage requirements, and supports a maximum of 128 GB of RAM across four slots.
Networking capabilities include seven Ethernet ports, with support for speeds up to 10 Gbps, enabling link aggregation and iSCSI connections for virtualization. The chassis is cooled by four 80 mm fans and is powered by a 550 W power supply, with a typical power draw of 136.15 W. Two PCIe Gen 3 x8 slots allow for hardware expansion, such as the addition of network cards. The system runs DiskStation Manager and supports the Btrfs, NTFS, and ext4 file systems.
Key Features:- Twelve hot-swappable drive bays supporting SATA and SAS interfaces.
- Seven Ethernet ports, including 10GbE support for high-bandwidth connectivity.
- RAID F1 support, designed to prevent simultaneous flash storage failure.
- ECC RDIMM memory architecture to reduce the risk of data corruption.
- Snapshot support for point-in-time recovery and protection against accidental deletion.
- Two PCIe Gen 3 x8 expansion slots for hardware upgrades.
- Standard 482 mm width for professional server rack installation.
