BenQ LU960UST Ultra Short Throw DLP WUXGA 5200 ANSI lm Laser Projector, Black
Key Specifications
Choose one or multiple features to search for items that have the same specifications.| Display | |
| Built-in display | ![]() |
| Ports & interfaces | |
| Serial interface type | RS-232 |
| USB 2.0 ports quantity | 1 |
| Headphone outputs | 1 |
| DC-in jack | ![]() |
| DVI port | ![]() |
| VGA (D-Sub) ports quantity | 2 |
| Composite video in | 0 |
| PC Audio in | ![]() |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Component video (YPbPr/YCbCr) in | 0 |
| AC (power) in | ![]() |
| HDMI ports quantity | 3 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| 12V trigger | ![]() |
| Mini-USB 2.0 ports quantity | 1 |
| HDMI connector type | Full-size |
| USB 2.0 Type-A ports quantity | 1 |
| HDBaseT port | ![]() |
| 3D sync port | ![]() |
| IR input ports quantity | 1 |
| Lens system | |
| Zoom capability | ![]() |
| Focus | Manual |
| Offset | 122% |
| Throw ratio | 0.25 |
| Weight & dimensions | |
| Weight | 12 kg |
| Height | 157.4 mm |
| Width | 480 mm |
| Depth | 473 mm |
| Energy management | |
| Power consumption (typical) | 450 W |
| Power source | AC |
| Power consumption (standby) | 0.5 W |
| Auto power off | ![]() |
| Power consumption (economy mode) | 339 W |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 500 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Networking | |
| Ethernet LAN | ![]() |
| Bluetooth | ![]() |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | ![]() |
| Smart TV | ![]() |
| Projector | |
| Contrast ratio (typical) | 3000000:1 |
| Horizontal scan range | 15 - 135 kHz |
| Vertical scan range | 23 - 120 Hz |
| Projection distance | 3.81 - 5.08 m |
| Projection technology | DLP |
| Projector brightness | 5200 ANSI lumens |
| Screen size compatibility | 3810 - 5080 mm (150 - 200") |
| Keystone correction, vertical | -30 - 30° |
| Keystone correction, horizontal | -30 - 30° |
| Native aspect ratio | 16:10 |
| Projector native resolution | WUXGA (1920x1200) |
| Number of colours | 1.07 billion colours |
| Smart projector | ![]() |
| Video | |
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | ![]() |
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1200 (WUXGA) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| 3D | ![]() |
| Storage | |
| Card reader integrated | ![]() |
| Lamps | |
| Service life of lamp (economic mode) | 30000 h |
| Packaging content | |
| AC adapter included | ![]() |
| Remote control included | ![]() |
| Cables included | AC |
| Carrying case | ![]() |
| Manual | ![]() |
| Batteries included | ![]() |
| Mounting brackets included | ![]() |
| Other features | |
| Maximum digital resolution | 1920 x 1200 pixels |
| Design | |
| Cable lock slot | ![]() |
| Product colour | Black |
| Ceiling mounting supported | ![]() |
| Market positioning | Business |
| Product type | Ultra short throw projector |
| Cable lock slot type | Kensington |
| Features | |
| Noise level | 37 dB |
| On Screen Display (OSD) | ![]() |
| On Screen Display (OSD) languages | Arabic, Bulgarian, Simplified Chinese, Traditional Chinese, Croatian, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Swedish, Thai, Turkish |
| HDCP | ![]() |
| Number of OSD languages | 28 |
| Noise level (economic mode) | 35 dB |
| Interactive | ![]() |
| High Dynamic Range (HDR) supported | ![]() |
| Multimedia | |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
| Built-in speaker(s) | ![]() |
| Light source | |
| Light source type | Laser |
| Service life of light source (economic mode) | 38000 h |
| Service life of light source | 30000 h |
| Service life of light source (portrait mode) | 70000 h |
| EAN | 4718755092770 |
| Warranty | 3 years |
The BenQ LU960UST is an installation projector that utilizes DLP technology to display a native WUXGA resolution of 1920 x 1200 pixels. It is equipped with a laser light source that provides 5200 ANSI lumens of brightness and a typical contrast ratio of 3,000,000:1. The light source is rated for up to 30,000 hours of operation in standard mode, reducing long-term maintenance needs. This model supports multiple video modes, including 1080p, and is compatible with HDR content for an expanded range of color and contrast.
Designed for versatile placement in professional environments, this projector features an ultra-short throw ratio of 0.25, enabling it to produce large images from a very short distance. It is compatible with screen sizes ranging from 3810 mm to 5080 mm. The unit supports both 360-degree and portrait projection, allowing for installation on ceilings, walls, or floors. Image geometry can be adjusted using manual focus and keystone correction of ±30 degrees on both the vertical and horizontal axes.

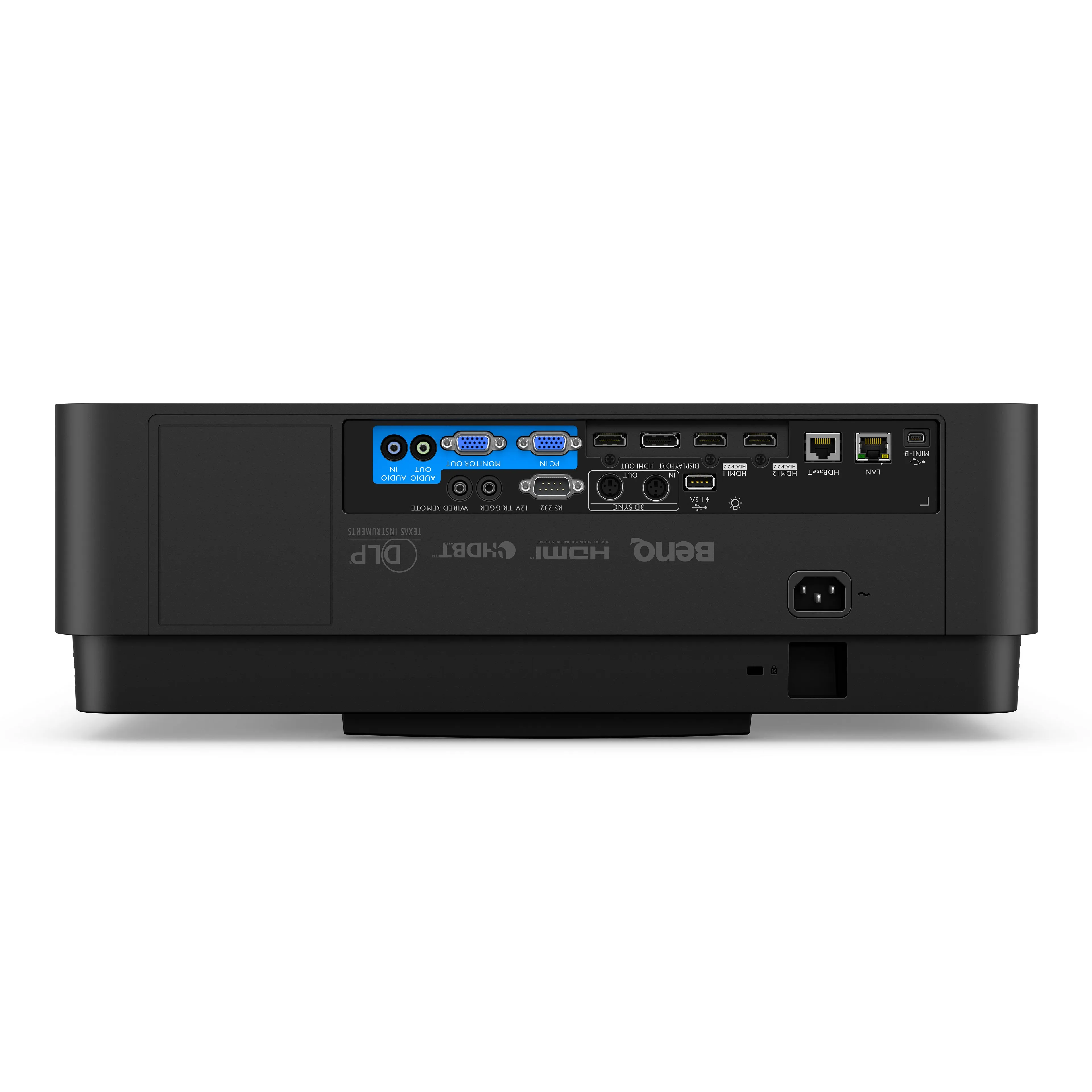

For connectivity, the LU960UST includes three HDMI 2.0 ports, one DisplayPort, and two VGA (D-Sub) ports for video input. It is also equipped with an Ethernet LAN port for network integration and a USB 2.0 port. Audio capabilities include an integrated 10W speaker and a 3.5 mm headphone output. The package contains a remote control and an AC power cable for immediate setup.
Key Features:- DLP projection technology
- 5200 ANSI lumens brightness
- WUXGA (1920 x 1200) native resolution
- Laser light source with a 30000-hour service life
- 0.25 ultra-short throw ratio
- 3,000,000:1 typical contrast ratio
- Three HDMI 2.0 ports and one DisplayPort
- Supports 360-degree and portrait installation
- Features an integrated 10W speaker
- Includes a remote control for operation
