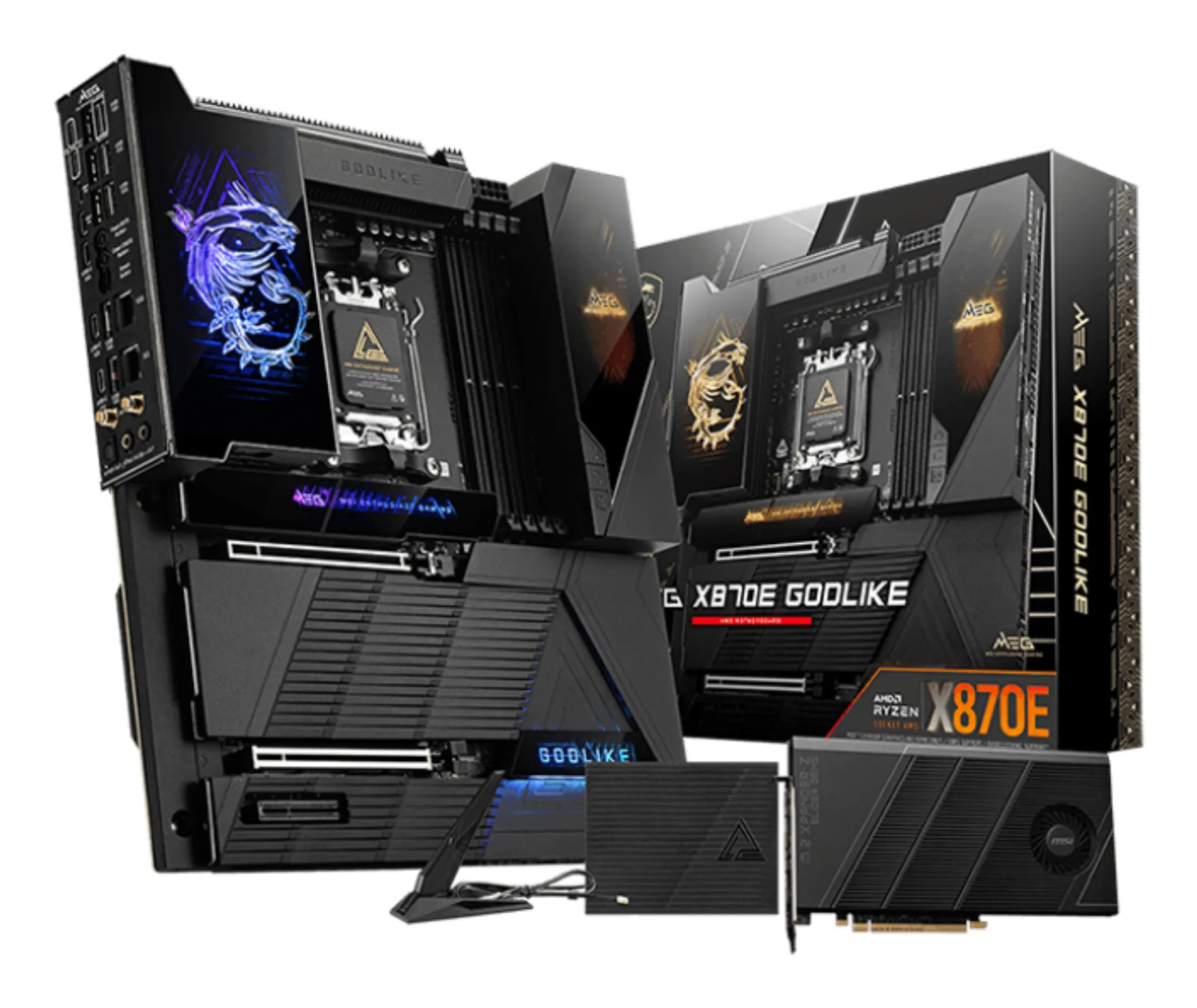

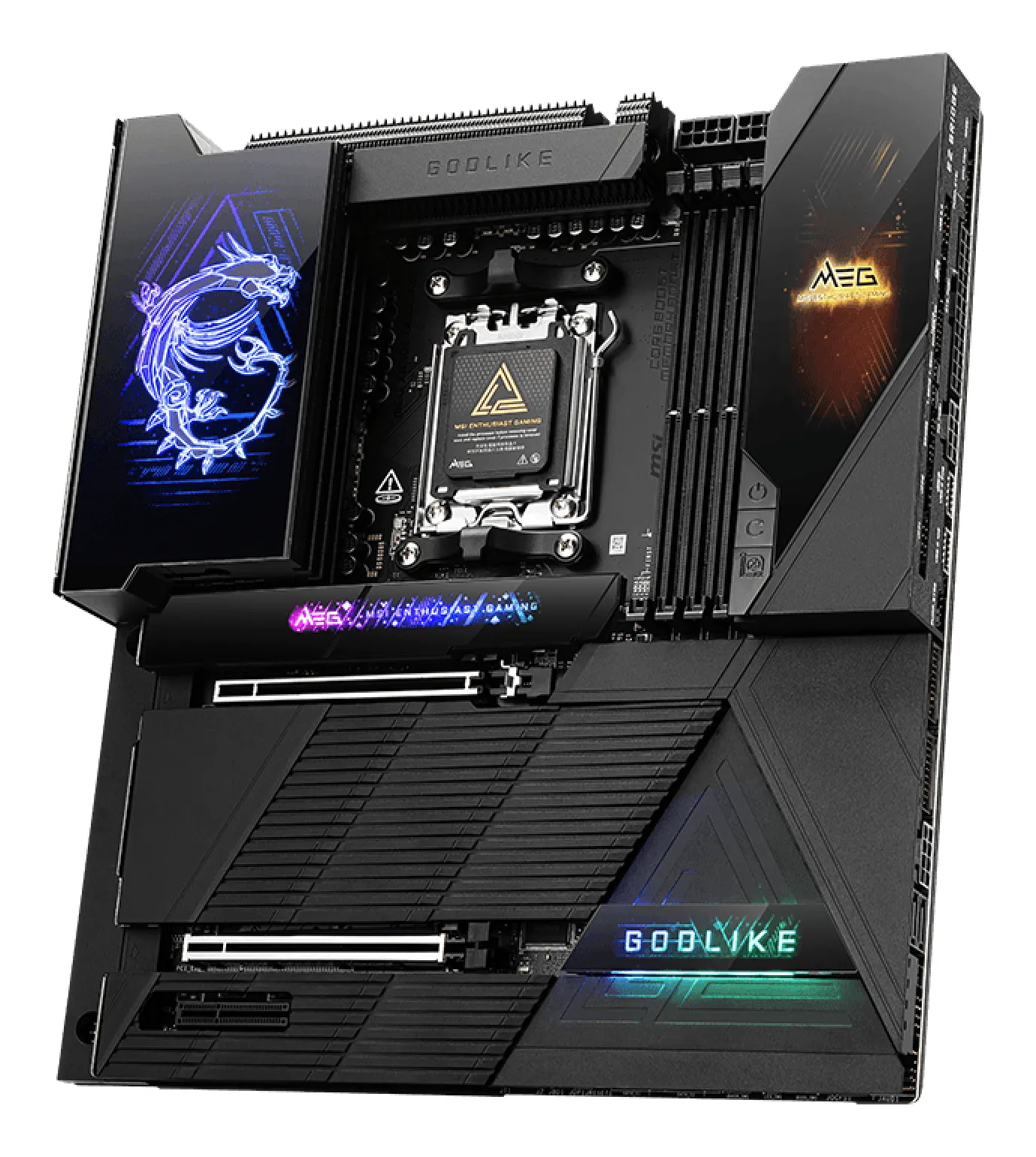

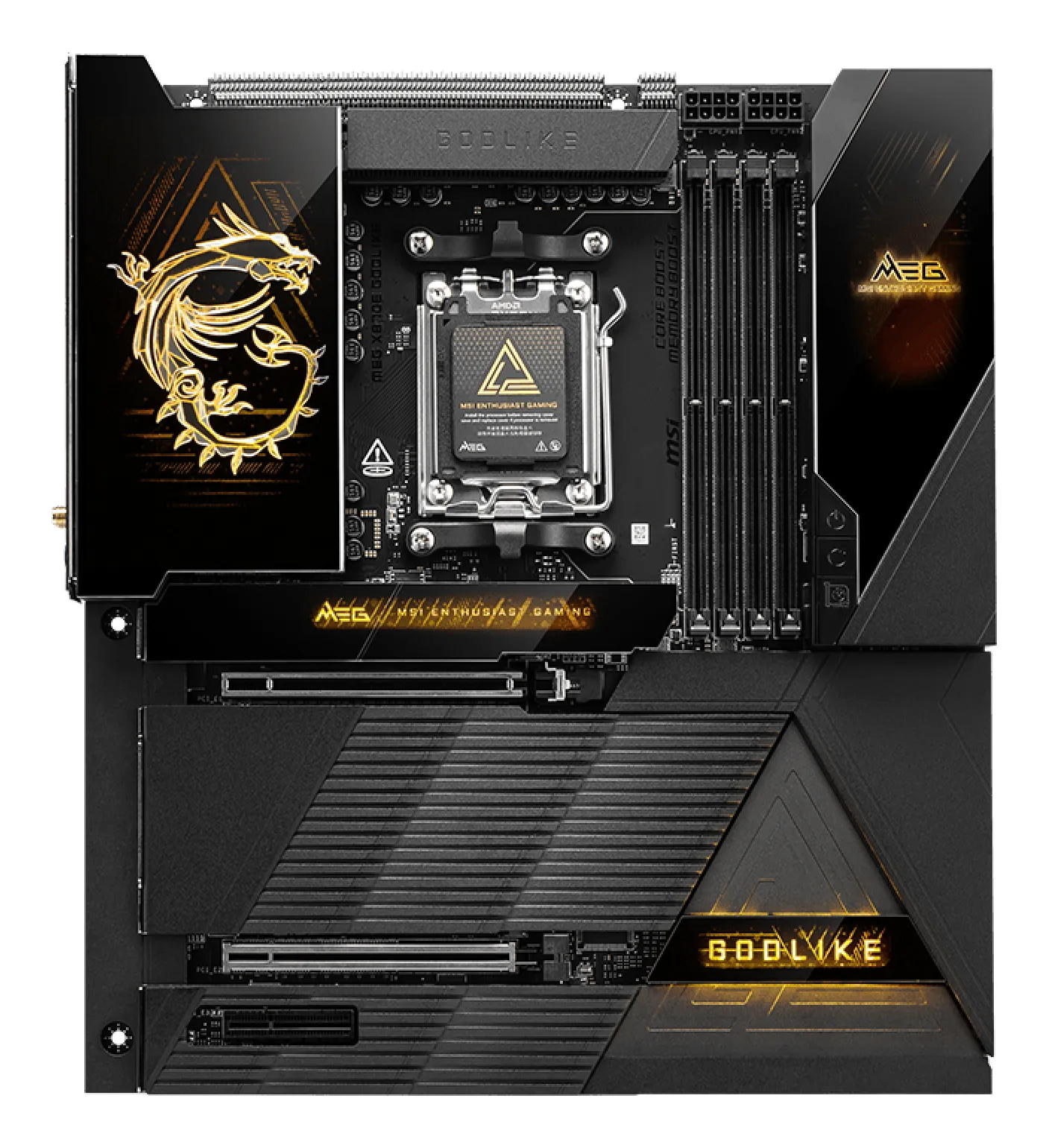

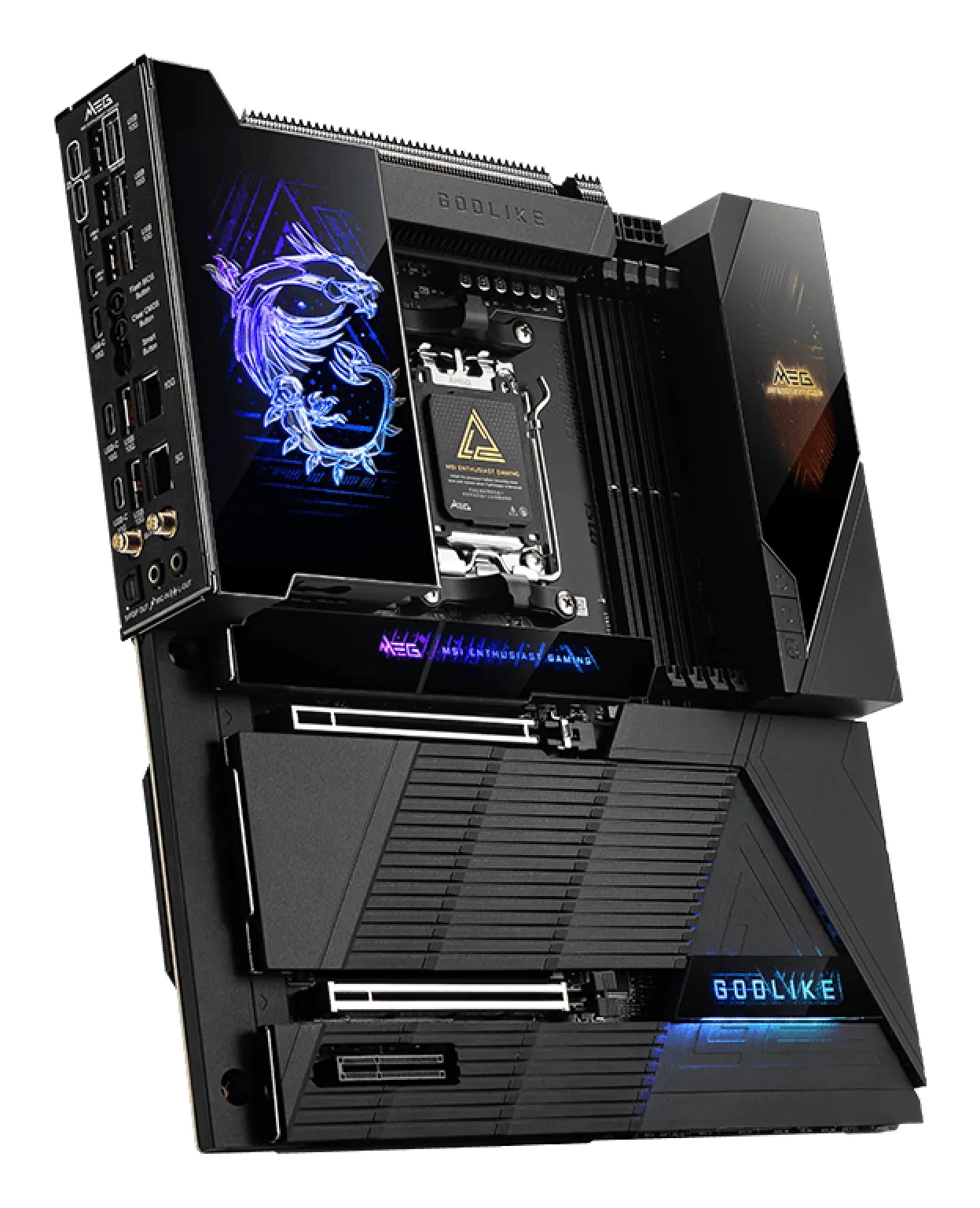

MSI MEG X870E GODLIKE Wi-Fi 7 AM5 E-ATX Motherboard

The MSI MEG X870E GODLIKE is an E-ATX motherboard designed for AMD Ryzen 9000, 8000, and 7000 series desktop processors via the AM5 socket. It is built on the AMD X870E chipset and features a robust power delivery system to ensure stable operation for high-core-count CPUs. The design incorporates substantial heatsinks to manage thermal output from the VRM and chipset during demanding workloads and overclocking scenarios.

This board accommodates up to 256GB of dual-channel DDR5 memory, supporting overclocked speeds of over 9000 MT/s. Its storage configuration is extensive, offering seven M.2 slots with PCIe 5.0 support for high-speed SSDs and four additional SATA III ports. For expansion, the motherboard provides two steel-reinforced PCIe 5.0 x16 slots suitable for high-performance graphics cards or other peripherals.

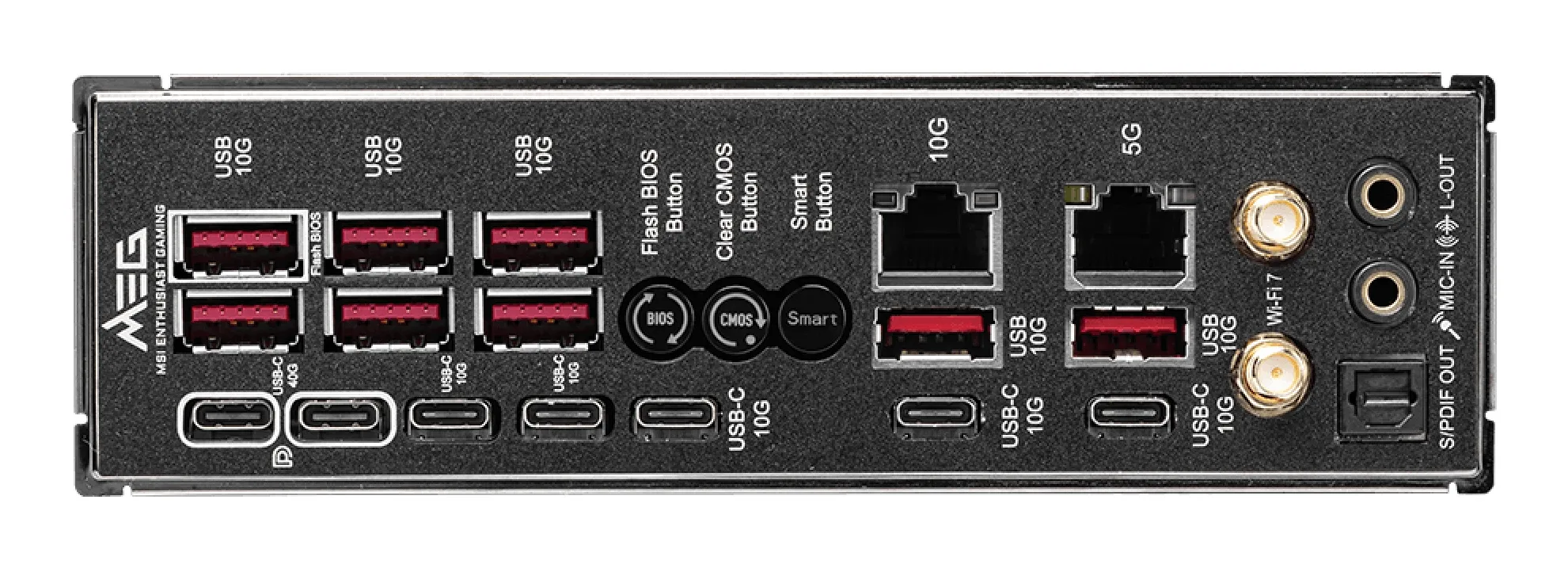

Connectivity options include integrated Wi-Fi 7, Bluetooth 5.4, and dual LAN ports operating at 10Gbps and 5Gbps. The rear I/O provides a comprehensive selection of USB 3.2 Gen 2 Type-A and Type-C ports. Audio processing is handled by a Realtek ALC4082 codec paired with an ESS9219Q Combo DAC/HPA for high-fidelity sound output.

• Supports AMD Ryzen 9000/8000/7000 Series processors
• AMD X870E chipset with AM5 socket
• E-ATX form factor for large chassis
• 4x DDR5 DIMM slots with 256GB maximum capacity
• Supports memory overclocking speeds up to 9000+ MT/s
• 2x PCIe 5.0 x16 slots for graphics and expansion
• 7x M.2 slots and 4x SATA III ports for storage
• Integrated Wi-Fi 7 and Bluetooth 5.4 connectivity
• Dual LAN with 10Gbps and 5Gbps Ethernet ports
• High-fidelity audio with Realtek ALC4082 and ESS DAC
