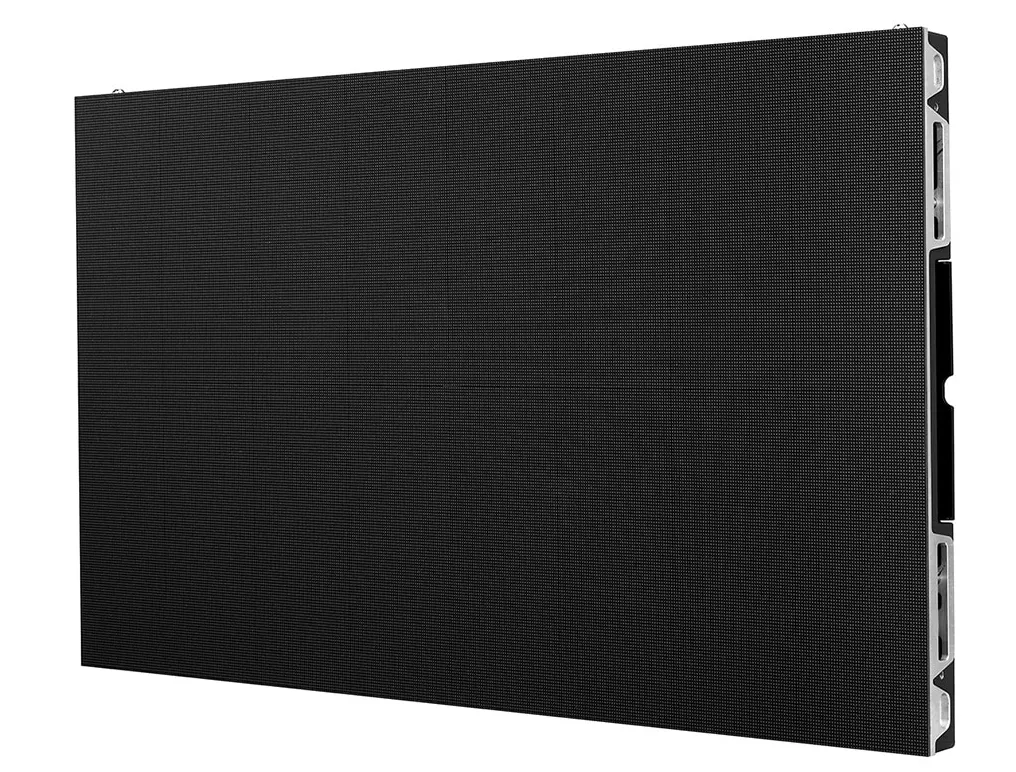

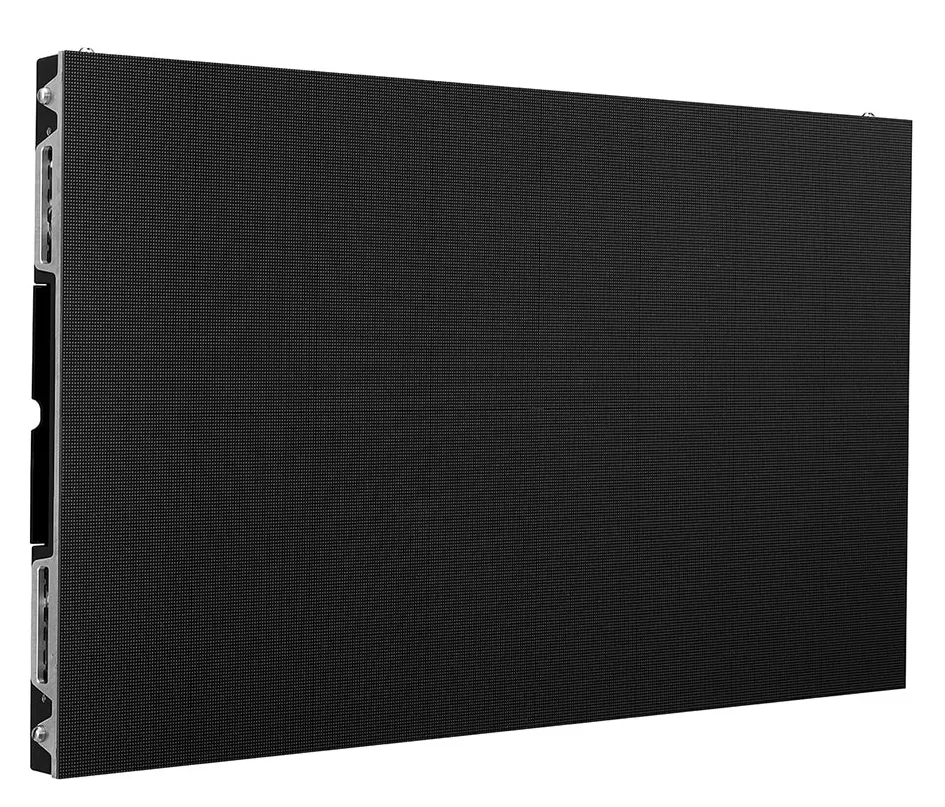

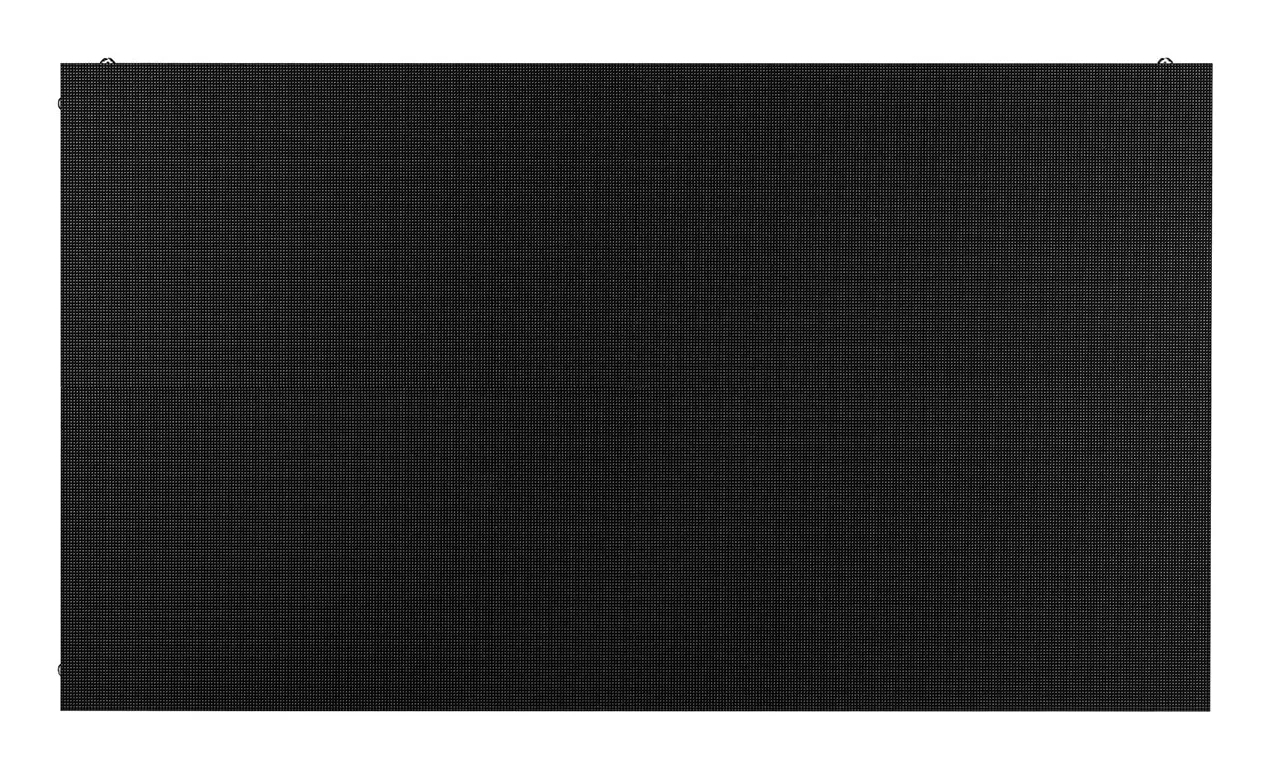

LG LSCC025-GZ LED Signage P2.5mm Indoor 240x135 pixels 800cd/m2 Front Service EMC Class A Fire Protection
Manufacturer: LG
ID: LSCC025-GZ
66090€
Show VAT 0%
Show VAT 25,5%
Multitronic Vaasa
Multitronic Pietarsaari
Multitronic Jyväskylä
Multitronic Lappeenranta
Multitronic Mariehamn
Specifications
Description
Store availability
Delivery
Price development
Technical details | |
Compliance certificates | CE, ETL, Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), REACH, RoHS |
Display | |
Pixel pitch | 2.5 x 2.5 mm |
Contrast ratio (typical) | 5000:1 |
Viewing angle, horizontal | 160° |
Viewing angle, vertical | 160° |
Display brightness | 800 cd/m² |
Display resolution | 240 x 135 pixels |
Display technology | LED |
Rated lifetime | 100000 h |
Native refresh rate | 3840 Hz |
High Dynamic Range (HDR) supported | ![]() |
High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10), High Dynamic Range 10 Pro (HDR10 Pro) |
Weight & dimensions | |
Display depth | 33.6 mm |
Display height | 337.5 mm |
Display width | 600 mm |
Energy management | |
Power consumption (typical) | 84 W |
AC input frequency | 50 / 60 Hz |
AC input voltage | 100 - 240 V |
Power consumption (max) | 415 W |
Operational conditions | |
Operating relative humidity (H-H) | 0 - 80% |
Operating temperature (T-T) | -10 - 45 °C |
Design | |
Product colour | Black |
Purpose | Commercial |
Placement supported | Indoor/outdoor |
Product design | Digital signage flat panel |
International Protection (IP) code | IP30 |
Performance | |
Purpose | Commercial |
International Protection (IP) code | IP30 |
Features | |
Base material | Aluminium |
EAN | 8806096382820 |
Warranty | 3 years |
Source: Icecat.biz |

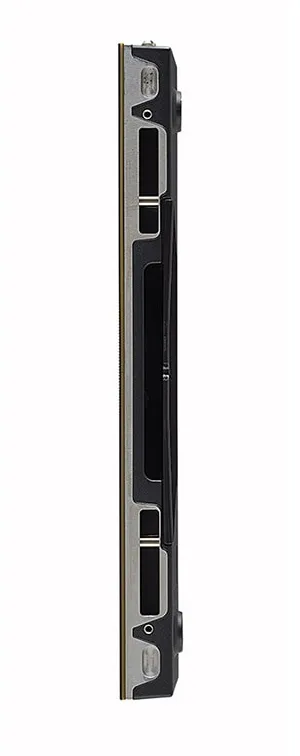

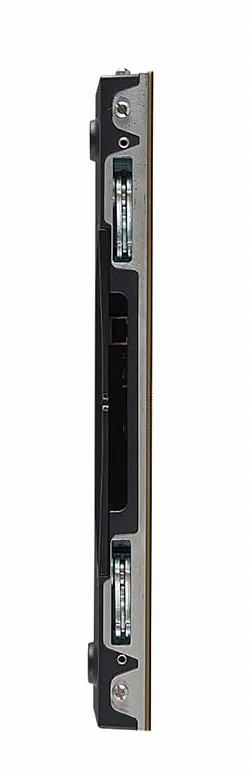

Ultra Slim Depth and Lightweight
The ultra slim design, with a cabinet thickness of just 33.6 mm and a weight of only 5.0 kg, is the standout feature of this product. This sleek and lightweight design allows the LSCC series to be seamlessly installed in a variety of venues, harmonizing effortlessly with its surroundings.
Stunning Picture Quality with 4K HDR
All models of the LSCC series deliver 4K HDR while maintaining 800 nits of brightness. Not only do they offer a great contrast ratio and wide viewing angle, but the 4K HDR feature also ensures stunning picture quality.
Superior Energy Efficiency
The LSCC series improves power consumption by 16% to 25%, depending on pitch models, delivering both energy efficiency and lower operating costs. Consequently, the LSCC series stands as the second most energy-efficient model in LG’s indoor PKG lineup as of Aug 2024.

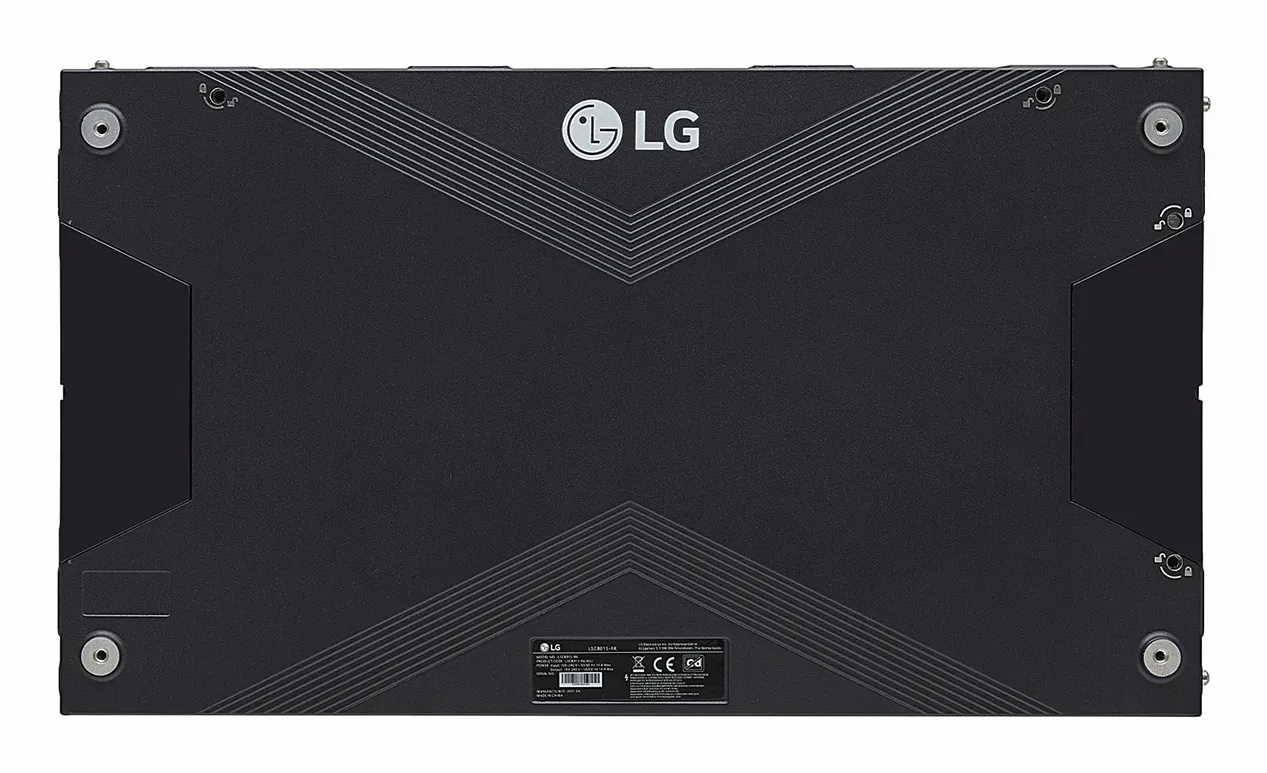

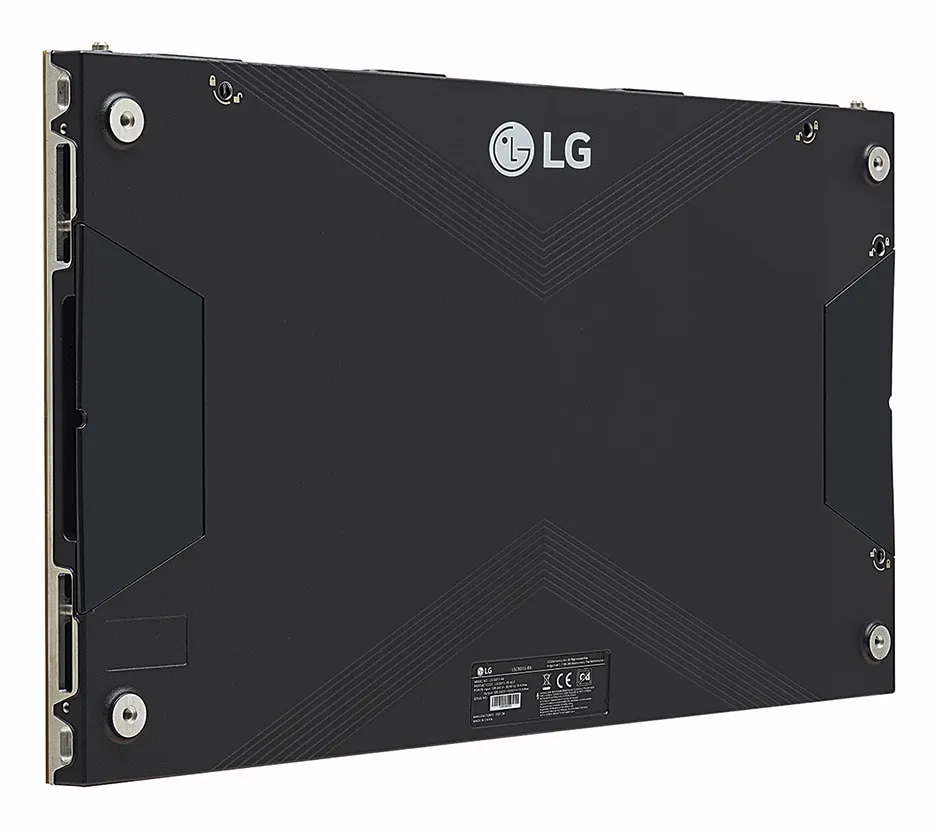

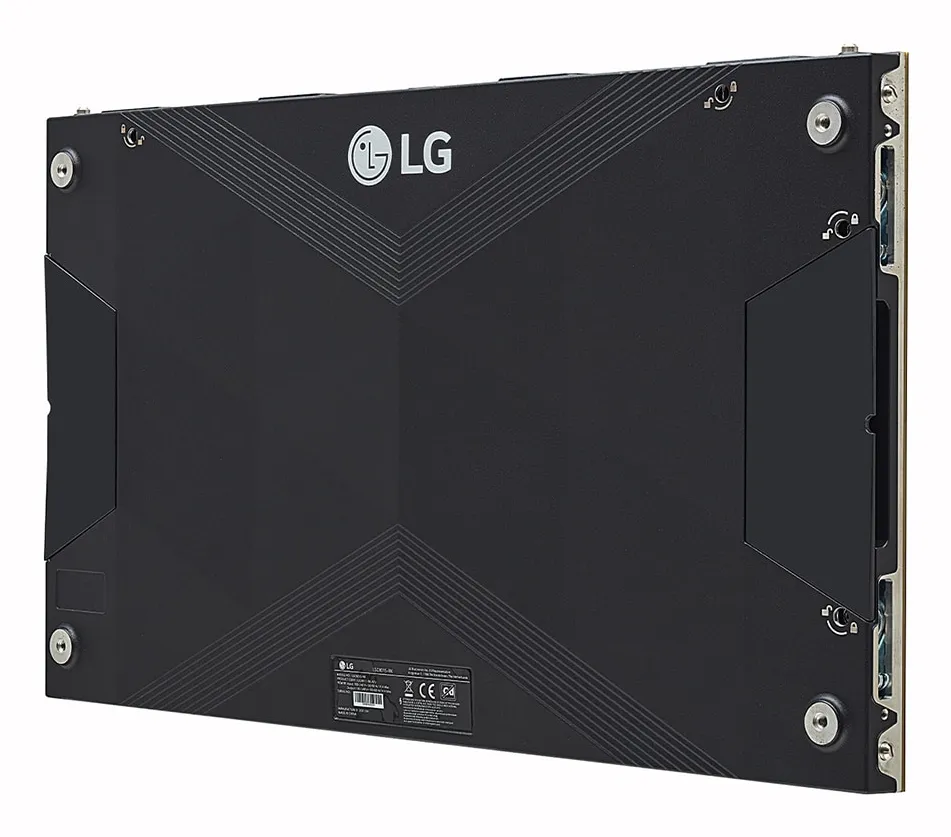

Attachable Wire Hooks for Modules
All modules come with wire holders attached to the back, allowing wires to be secured for installation on ceilings, walls, or other surfaces as needed. Simply attach a safety wire to prevent the module from falling, providing safety
90° Corner Design Available
By adding the 90° corner option, the LSCC series seamlessly integrates into any space, delivering smooth content to customers. Additionally, elegantly curved LED screens can be implemented as an option.
Compatibility with LG Software Solutions
When connected with LG's CVCA system controller, the LSCC series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business deftly.
The ultra slim design, with a cabinet thickness of just 33.6 mm and a weight of only 5.0 kg, is the standout feature of this product. This sleek and lightweight design allows the LSCC series to be seamlessly installed in a variety of venues, harmonizing effortlessly with its surroundings.
Stunning Picture Quality with 4K HDR
All models of the LSCC series deliver 4K HDR while maintaining 800 nits of brightness. Not only do they offer a great contrast ratio and wide viewing angle, but the 4K HDR feature also ensures stunning picture quality.
Superior Energy Efficiency
The LSCC series improves power consumption by 16% to 25%, depending on pitch models, delivering both energy efficiency and lower operating costs. Consequently, the LSCC series stands as the second most energy-efficient model in LG’s indoor PKG lineup as of Aug 2024.
Attachable Wire Hooks for Modules
All modules come with wire holders attached to the back, allowing wires to be secured for installation on ceilings, walls, or other surfaces as needed. Simply attach a safety wire to prevent the module from falling, providing safety
90° Corner Design Available
By adding the 90° corner option, the LSCC series seamlessly integrates into any space, delivering smooth content to customers. Additionally, elegantly curved LED screens can be implemented as an option.
Compatibility with LG Software Solutions
When connected with LG's CVCA system controller, the LSCC series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business deftly.
