Lenovo ThinkSmart Core Gen 2 Intel Core Ultra 5 135H, 16GB, 256GB, Win 11 Mini PC, Black
Manufacturer: LENOVO
ID: 12WJ0008MT
420990€
Show VAT 0%
Show VAT 25,5%
Multitronic Vaasa
Multitronic Pietarsaari
Multitronic Jyväskylä
Multitronic Lappeenranta
Multitronic Mariehamn
Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
Manuals
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 5 |
| Processor cores | 14 |
| Processor boost frequency | 4.6 GHz |
| Processor cache | 18 MB |
| Processor frequency | 4.6 GHz |
| Hard drive | |
| Total storage capacity | 256 GB |
| Memory | |
| Internal memory | 16 GB |
| Internal memory type | DDR5 |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 5600 MHz |
| Total storage capacity | 256 GB |
| Storage media type | SSD |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory card slot(s) |  |
| Display | |
| Contrast ratio (typical) | 16:10 |
| Display diagonal | 25.6 cm (10.1") |
| Display brightness | 340 cd/m² |
| Display resolution | 1280 x 800 pixels |
| Touchscreen |  |
| Anti-glare screen | |
| Audio | |
| Built-in speaker(s) | |
| Frequency range | 80 - 20000 Hz |
| Number of speakers | 4 |
| Ports & interfaces | |
| USB connector type | USB Type-A, USB Type-C |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | |
| DC-in jack | |
| DVI port | |
| HDMI ports quantity | 3 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| 2 | |
| Weight & dimensions | |
| Weight | 860 g |
| Height | 38 mm |
| Width | 185 mm |
| Depth | 140 mm |
| Energy management | |
| Power supply | 170 W |
| Power source type | AC |
| Power consumption (max) | 170 W |
| Networking | |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Bluetooth version | 5.3 |
| Ethernet LAN | |
| Bluetooth | |
| Wi-Fi | |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Storage | |
| Drive capacity | 256 GB |
| Card reader integrated | |
| Number of SSDs installed | 1 |
| Storage media | SSD |
| Microphone | |
| Microphone frequency | 100 - 8000 Hz |
| Number of microphones | 8 |
| Camera | |
| Megapixel (approx.) | 13 MP |
| Camera type | Triple camera |
| Horizontal field of view | 180° |
| Vertical field of view | 54° |
| Packaging content | |
| Mouse included | |
| Packaging content | External Adapter Cage + Removable Cable Management Box + USB-C to USB-C 3M Active Optical Cable + VESA Mount Bracket |
| Keyboard included | |
| Design | |
| Chassis type | Mini PC |
| Product colour | Black |
| Graphics | |
| On-board graphics card model | Intel Arc Graphics |
| On-board graphics card | |
| Discrete graphics card | |
| Performance | |
| Bluetooth version | 5.3 |
| Product colour | Black |
| Bluetooth | |
| Features | |
| Trusted Platform Module (TPM) | |
| Trusted Platform Module (TPM) version | 2.0 |
| Computer system | |
| Operating system installed | Windows 11 IoT Enterprise GAC |
| Windows operating systems supported | |
| Computer system type | Mini PC |
| EAN | 0198155760341 |
| Warranty | 2 years |

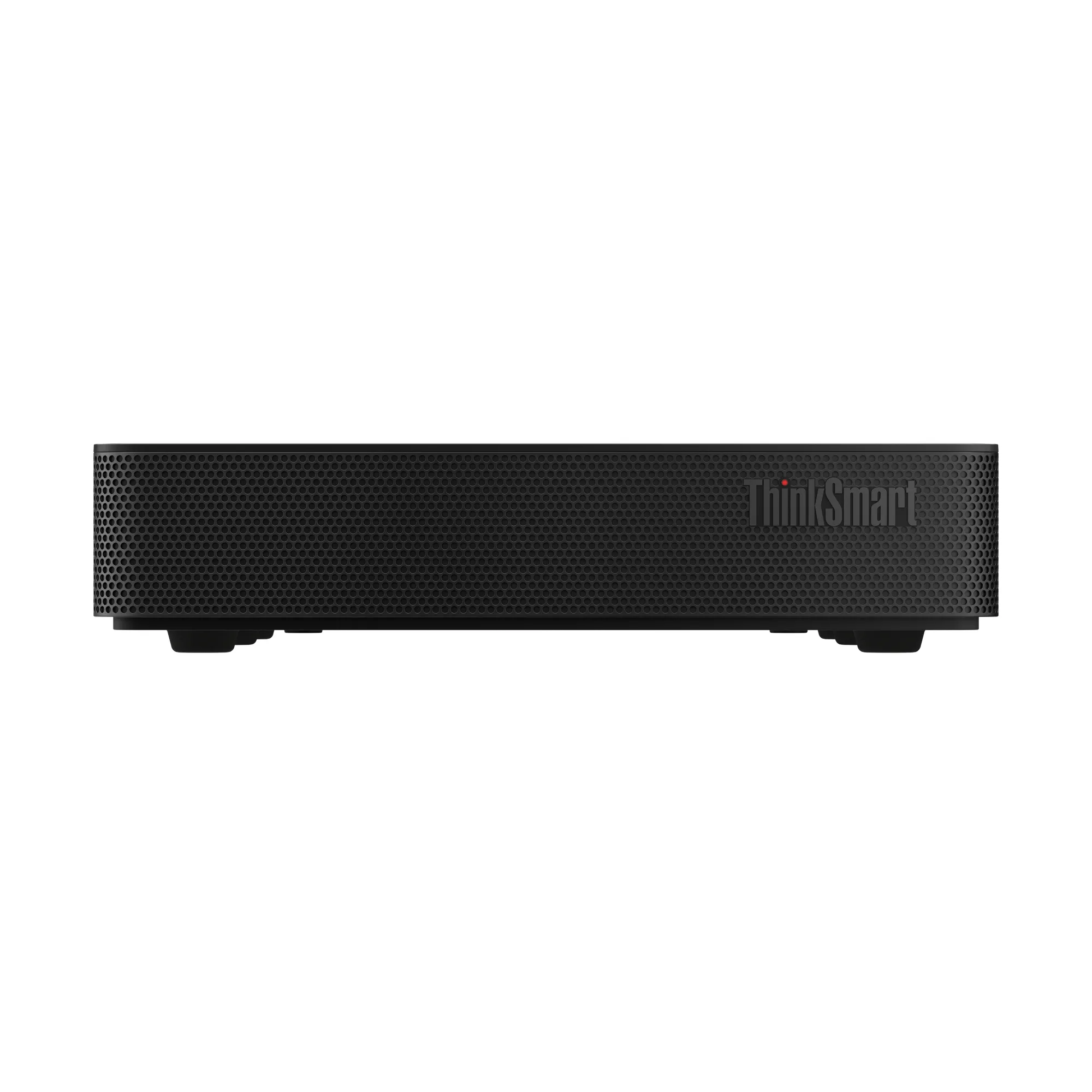

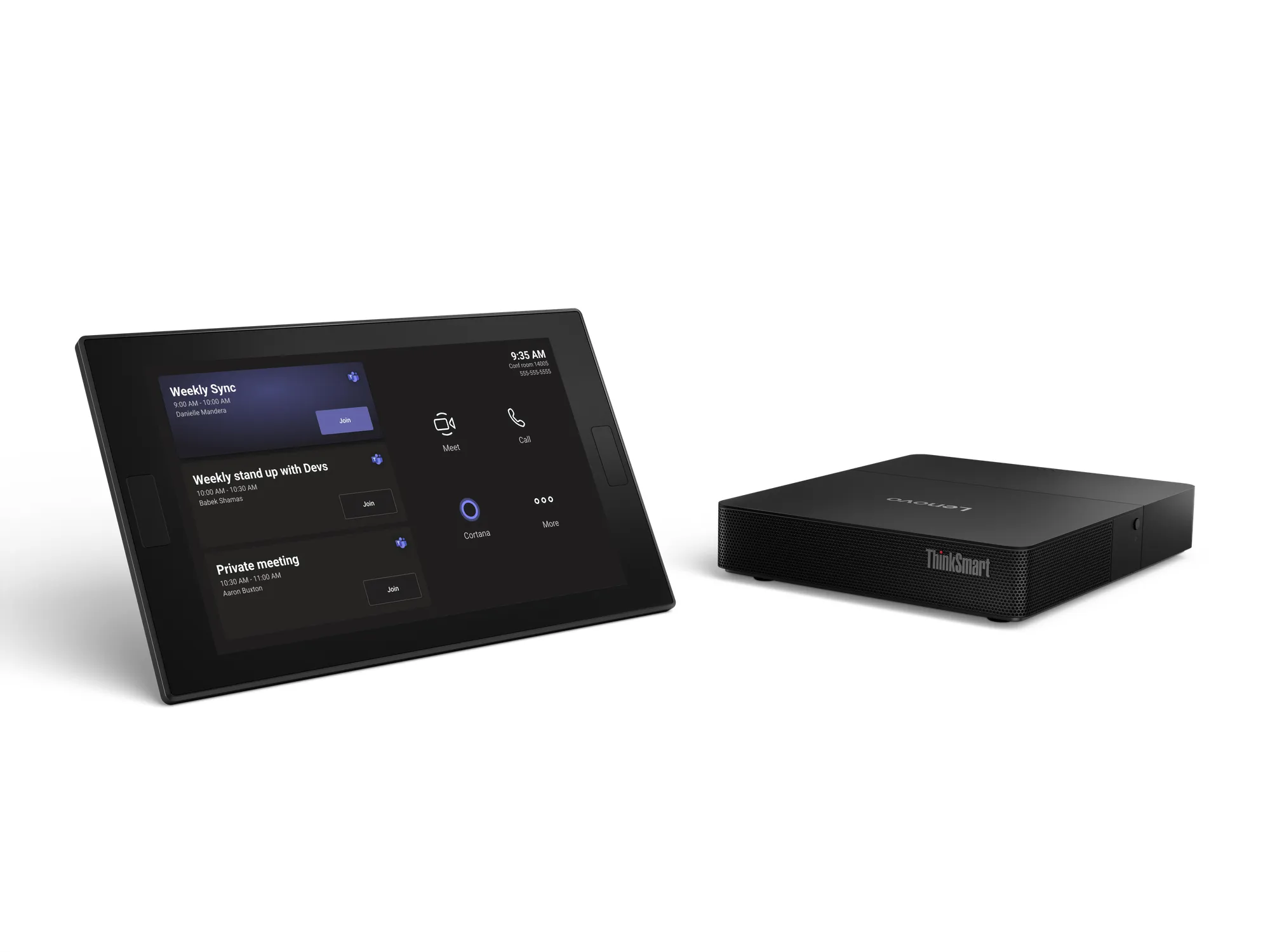

The Lenovo ThinkSmart Core Gen 2 is a compact computing device engineered for collaborative meeting spaces. It is optimized for Microsoft Teams Rooms, providing a stable platform for video conferencing and content sharing. The system's performance is driven by an Intel Core Ultra 5 processor and 16 GB of DDR5 memory. A 256 GB solid-state drive ensures quick system and application loading times for efficient meeting startups.
Internally, the Intel Core Ultra 5 135H processor features a 14-core architecture capable of reaching speeds up to 4.6 GHz. Visuals are managed by the integrated Intel Arc Graphics chipset, suitable for driving multiple displays in a conference room setting. The device runs on Windows 11 IoT Enterprise for Collaboration. Its compact Mini PC form factor provides comprehensive connectivity, including Wi-Fi 6E, Gigabit Ethernet, multiple USB ports, and a total of five video outputs via HDMI and DisplayPort.
Key Features:- Intel Core Ultra 5 135H processor with 14 cores and up to 4.6 GHz frequency
- 16 GB of DDR5 memory operating at 5600 MHz
- 256 GB solid-state drive for storage
- Integrated Intel Arc Graphics
- Pre-installed with Windows 11 IoT Enterprise for Collaboration
- Features Wi-Fi 6E, Gigabit Ethernet, and Bluetooth 5.3 connectivity
- Includes 4 USB-A ports, 3 HDMI outputs, and 2 DisplayPort outputs
- Mini PC chassis with dimensions of 185 x 38 x 38 mm
- Powered by a 170 W power supply
