Key Specifications
Choose one or multiple features to search for items that have the same specifications.Ports & interfaces | |
Installed SFP+ modules quantity | 0 |
Installed SFP modules quantity | 0 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Basic switching RJ-45 Ethernet ports quantity | 5 |
Power connector | DC-in jack |
Weight & dimensions | |
Height | 25.1 mm |
Width | 99.8 mm |
Depth | 98 mm |
Energy management | |
Power source | DC |
Input current | 0.6 A |
AC input frequency | 50/60 Hz |
AC input voltage | 220 V |
DC input voltage | 5 V |
Power consumption (max) | 3.614 W |
Power supply included | ![]() |
Operational conditions | |
Operating relative humidity (H-H) | 10 - 90% |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 0 - 40 °C |
Storage relative humidity (H-H) | 5 - 95% |
Heat dissipation | 12.331 BTU/h |
Networking | |
Full duplex | ![]() |
Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x |
Flow control support | ![]() |
Auto MDI/MDI-X | ![]() |
10G support | ![]() |
Auto-negotiation | ![]() |
MAC address auto-learning supported | ![]() |
MAC address auto-aging supported | ![]() |
Half duplex | ![]() |
Data transmission | |
MAC address table | 2000 entries |
Switching capacity | 10 Gbit/s |
Jumbo frames support | ![]() |
Store-and-forward | ![]() |
Packet buffer memory | 0.125 MB |
Jumbo frames | 9000 |
Certificates | |
Certification | CE, RoHS |
Management features | |
Switch type | Unmanaged |
Packaging content | |
Cables included | AC |
Quick start guide | ![]() |
Optical fiber | |
Transmission distance (max) | 0.1 km |
Design | |
Rack mounting | ![]() |
LED indicators | ![]() |
Wall mountable | ![]() |
Product colour | Black |
Stackable | ![]() |
Housing material | Metal |
Power over Ethernet (PoE) | |
Power over Ethernet (PoE) | ![]() |
Performance | |
Fanless | ![]() |
EAN | 6957939001315 |
Warranty | 3 years |
Source: Icecat.biz |

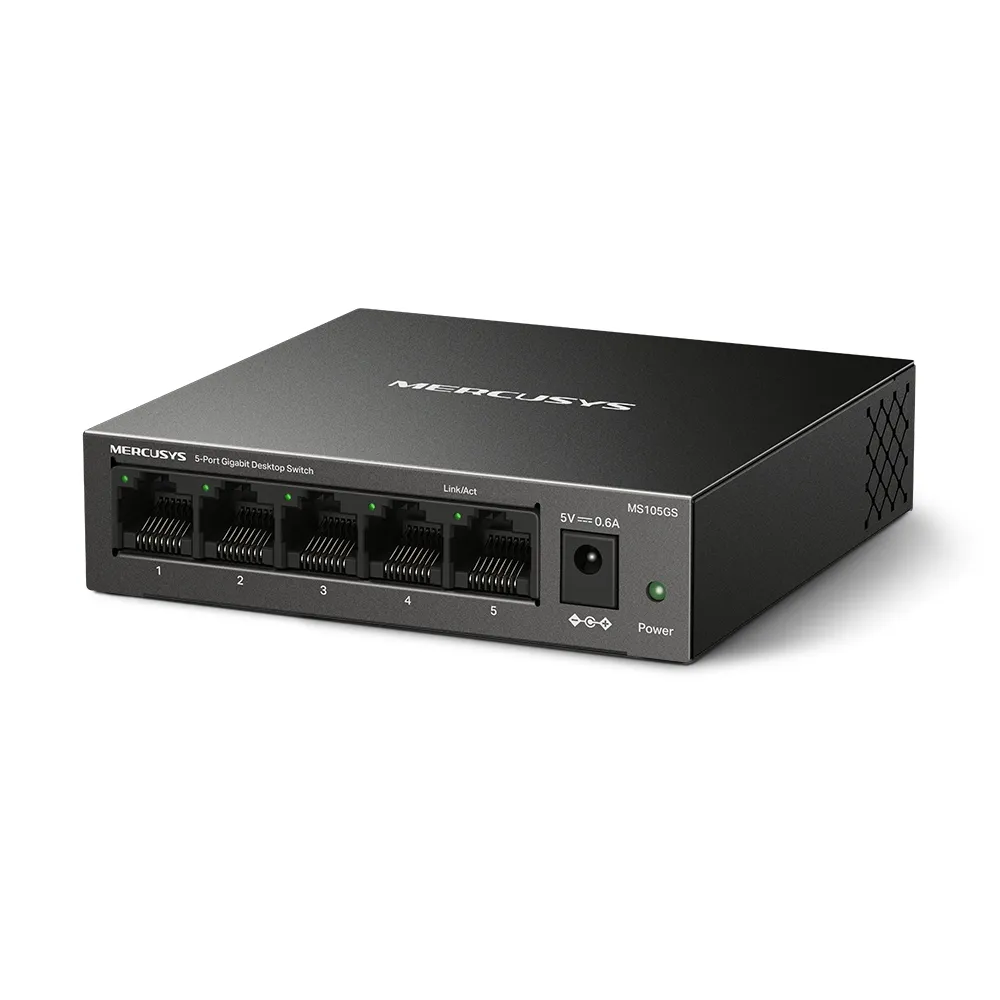

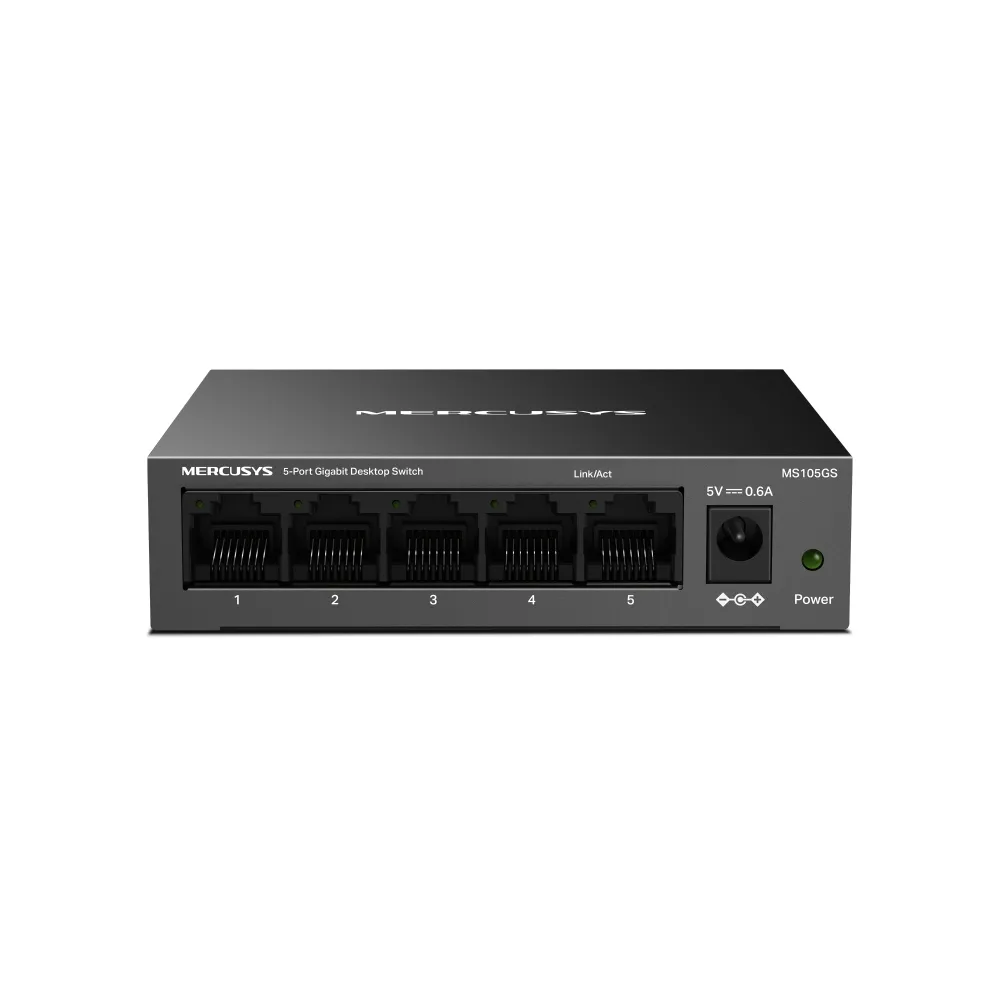

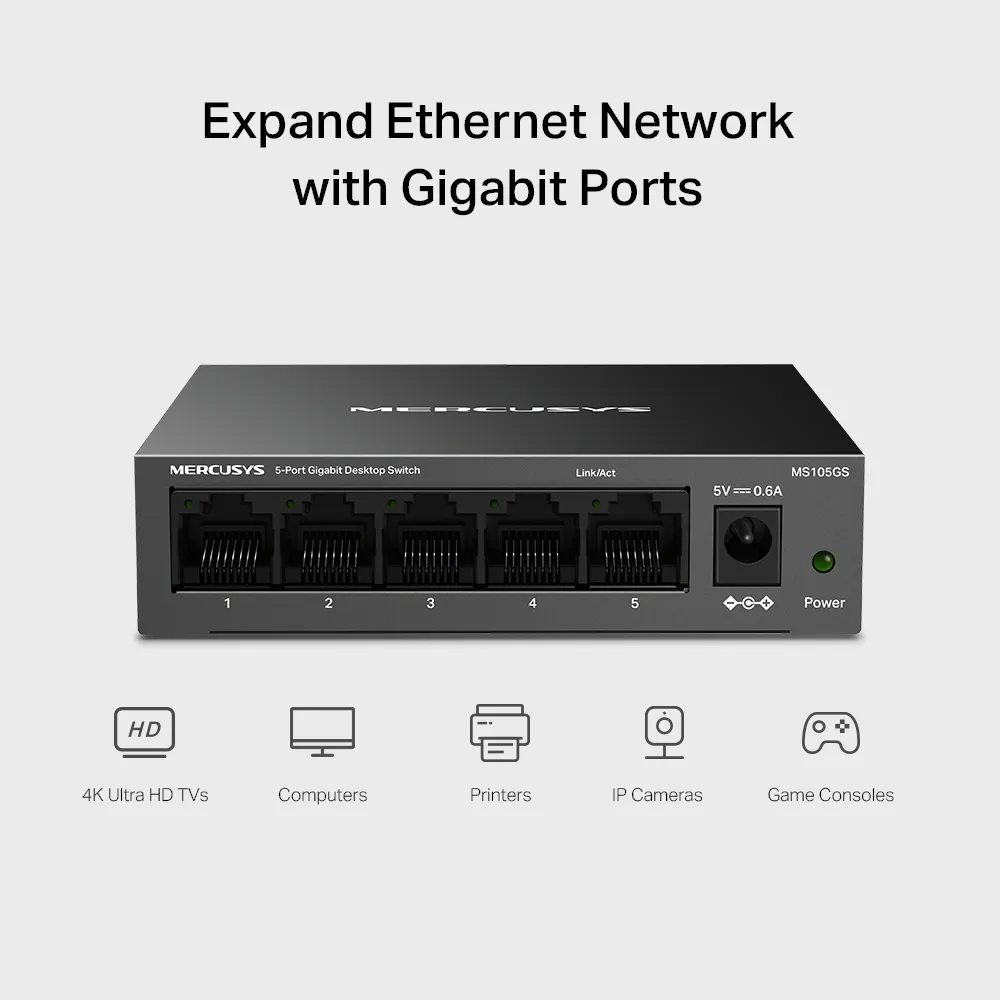

Expand Ethernet Network with Gigabit Ports
Quickly expand your wired network with five 10/100/1000 Mbps Ethernet ports—10 times faster than regular 10/100 Mbps Ethernet ports. MS105GS is flexible and fully compatible with 4K Ultra HD TVs, computers, printers, IP cameras, game consoles, and more. This makes it perfect for use in home, small office, and even dormitory environments.

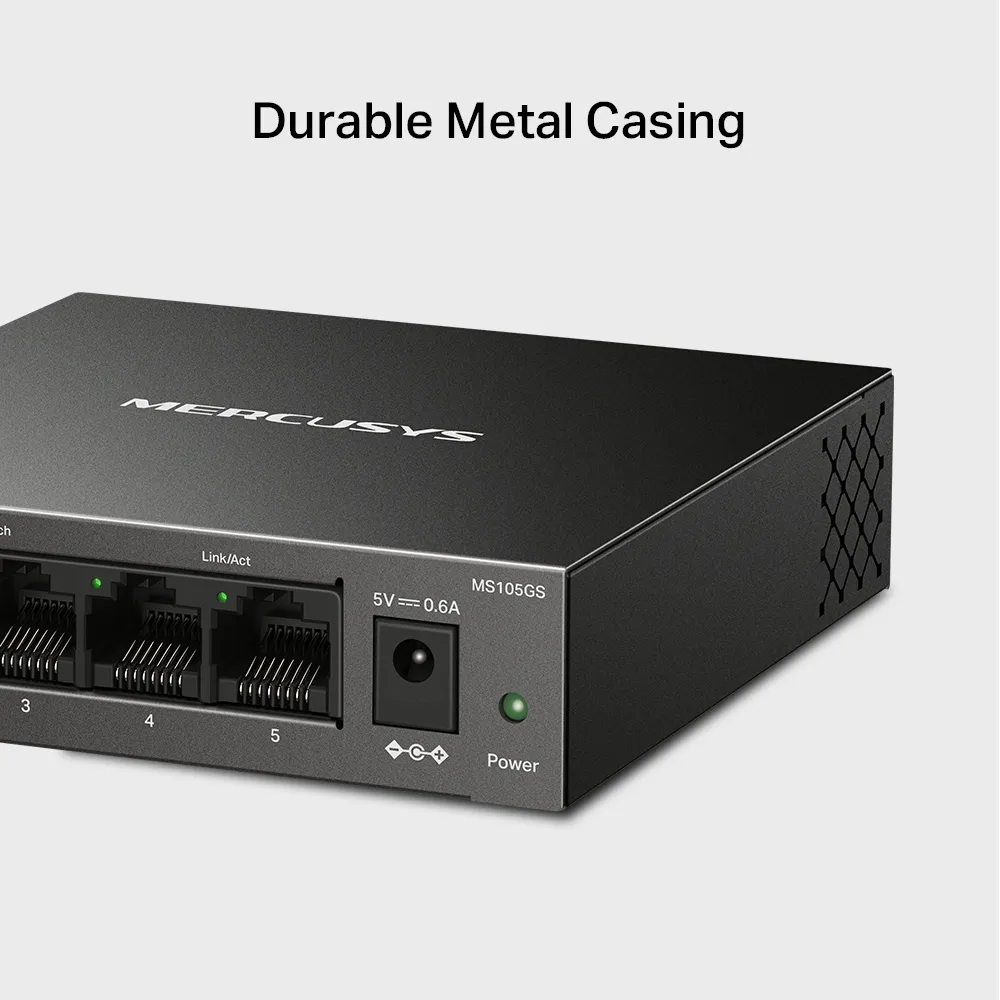

Durable, Silent, and Flexible
MS105GS‘s durable metal case allows for efficient heat dissipation, excellent signal interference prevention, reliable equipment stability, and a long network life. And you can put the switch on desk or wall mount to meet your demand.
Plug and Play
Forget about complicated installation. Just connect the switch to your TV or computer via an Ethernet cable to immediately expand your wired network. Absolutely no configuration is required.
Reliable Performance
With Half/Full Duplex and MAC Address Learning Technology, MS105GS provides up to 10 Gbps of stable switching bandwidth. Every unit undergoes extensive testing prior to shipment to ensure it will provide reliable, uninterrupted connections for years to come.
- Full Gigabit Ports: 5× 10/100/1000 Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
- Multiple Installation Operation: Steel housing, desktop or wall-mounting design
- Durable Metal Casing: Allows for efficient heat dissipation and long network life
- Plug and Play: Simple to use and saves time and effort
- Power Saving: Green Ethernet technology saves power
