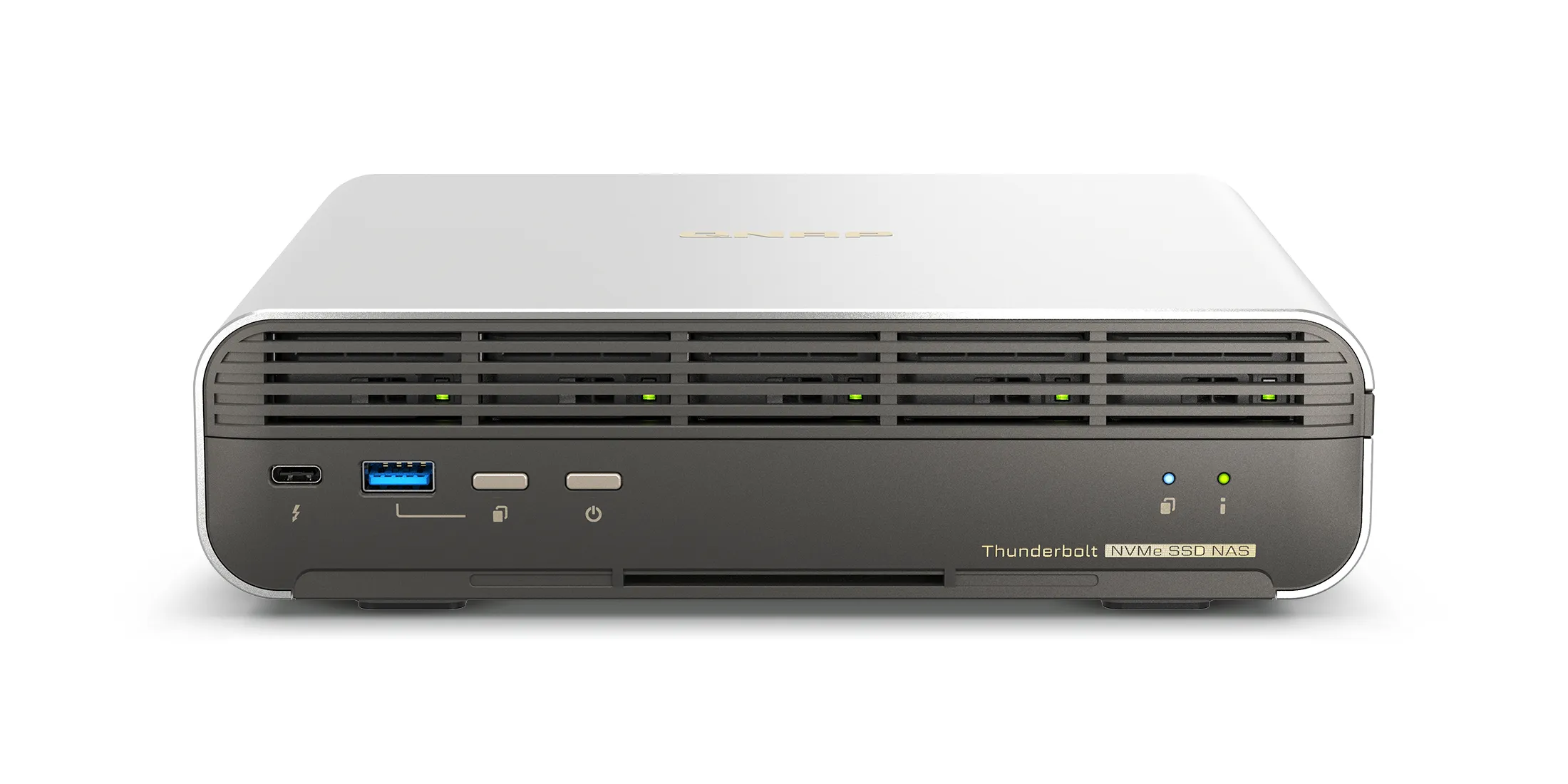

QNAP TBS-H574TX-I5-16G - 5-bay NAS, Metal-finish

The QNAP TBS-H574TX-I5-16G 5-Bay NASbook is a compact storage device designed for high-speed data access in professional media environments. It uses an Intel Core i5-1340PE processor—featuring 12 cores and 16 threads—to handle intensive file tasks and real-time transcoding. The unit includes 16 GB of DDR4 memory to support the QuTS hero operating system. Five hot-swappable drive bays accommodate E1.S or M.2 PCIe NVMe SSDs, focusing on solid-state performance. The ZFS-based system protects data through snapshots and self-healing features. Dual 10GbE RJ45 ports provide high-speed networking for small and medium-sized businesses.

The chassis measures 215 mm in width and 60 mm in height. Three internal fans manage heat during sustained workloads to maintain stability. Connectivity includes two USB 3.2 Gen 2 Type-A ports and one USB 2.0 port. Integrated Intel Iris Xe Graphics support video processing tasks via an HDMI 1.4b output for local monitoring. Storage can be configured in various RAID levels, including 0, 1, 5, 6, 10, 50, and 60. Status and USB LED indicators are located on the front panel, and the 120 W power supply supports a typical operating load of 46 W.

• Intel Core i5-1340PE 12-core processor: handles intensive tasks with a 4.5 GHz boost frequency.
• Five hot-swappable E1.S/M.2 NVMe slots: supports high-speed solid-state storage with easy drive replacement.
• Dual 10GbE connectivity: offers network speeds up to 10 Gbit/s for fast file transfers.
• QuTS hero operating system: uses a ZFS-based file system for data protection and snapshot management.
• Intel Iris Xe Graphics: provides onboard hardware acceleration for video tasks.
• Triple fan cooling system: maintains thermal stability for five NVMe SSDs during continuous operation.
• RAID compatibility: supports levels 0, 1, 5, 6, 10, 50, and 60 for various redundancy requirements.
