| Technical details | |
| Compliance certificates | RoHS, Trade Agreements Act (TAA) |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Linux operating systems supported |  |
| Server operating systems supported | Windows Server 2016, Windows Server 2019, Windows Server 2022 |
| Ports & interfaces | |
| Interface | Ethernet |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 2 |
| Host interface | PCI Express |
| Weight & dimensions | |
| Weight | 47 g |
| Height | 18 mm |
| Width | 61 mm |
| Depth | 75 mm |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage temperature (T-T) | 0 - 80 °C |
| Operating temperature (T-T) | 5 - 70 °C |
| Networking | |
| Maximum data transfer rate | 1000 Mbit/s |
| Ethernet LAN | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Wake-on-LAN ready | |
| LAN controller | Realtek RTL8111H |
| Wi-Fi |  |
| Jumbo frames support | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto MDIX IEEE | |
| VLAN support | |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| VLAN tagging | |
| Jumbo frames | 9000 |
| Packaging data | |
| Package weight | 111.2 g |
| Package depth | 170 mm |
| Package height | 30 mm |
| Package width | 142 mm |
| Packaging content | |
| Quick installation guide | |
| Mounting brackets included | |
| Other features | |
| Ports quantity | 2 |
| Design | |
| Internal | |
| Chipset | Realtek RTL8111H |
| Form factor | Internal |
| LED indicators | Activity, Link |
| Product colour | Black |
| Component for | PC/Server |
| Features | |
| Data transfer rate | 1 Gbit/s |
| Logistics data | |
| Master (outer) case height | 306 mm |
| Master (outer) case width | 685 mm |
| Master (outer) case length | 345 mm |
| Products per master (outer) case | 75 pc(s) |
| EAN | 0065030911047 |
| Warranty | 2 years |

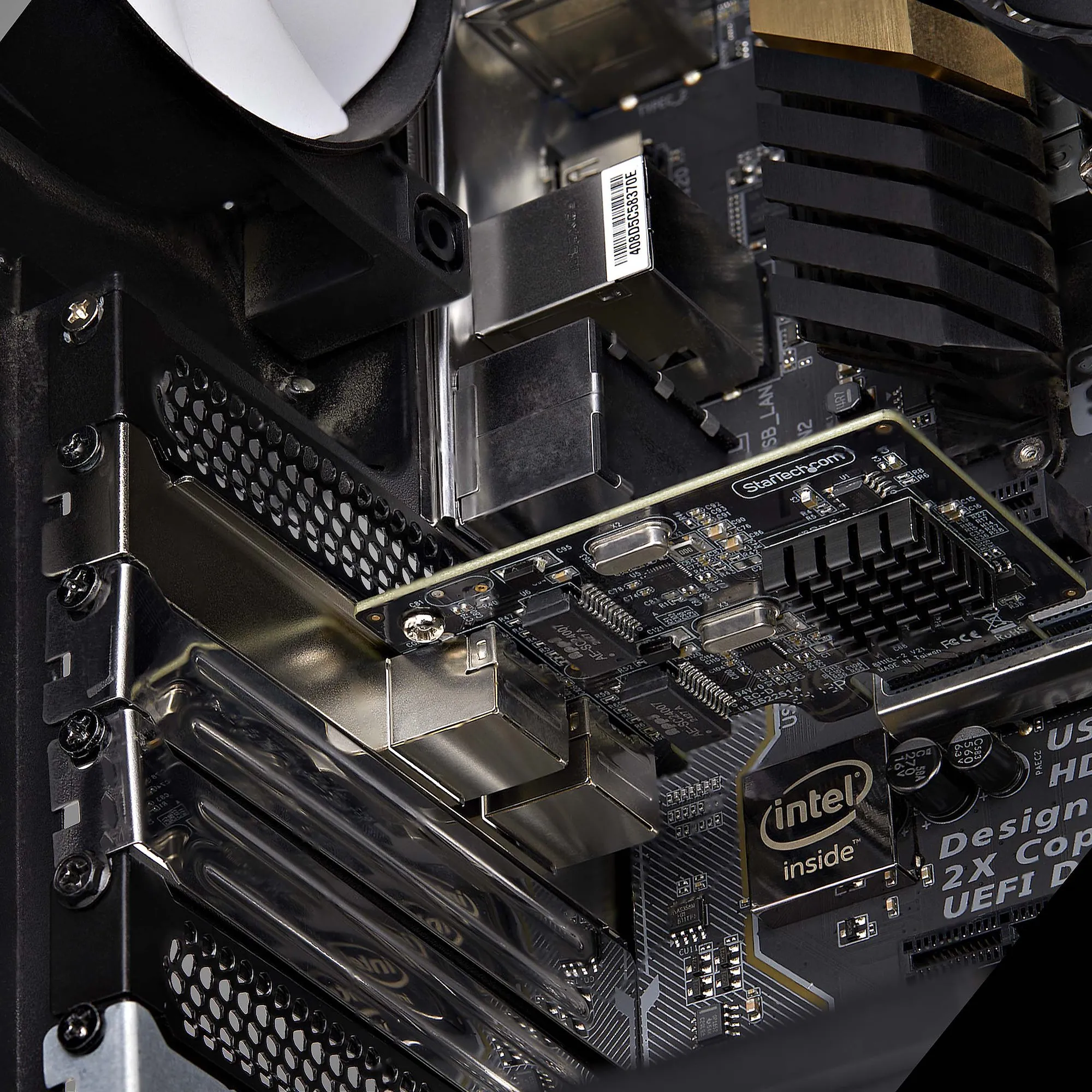

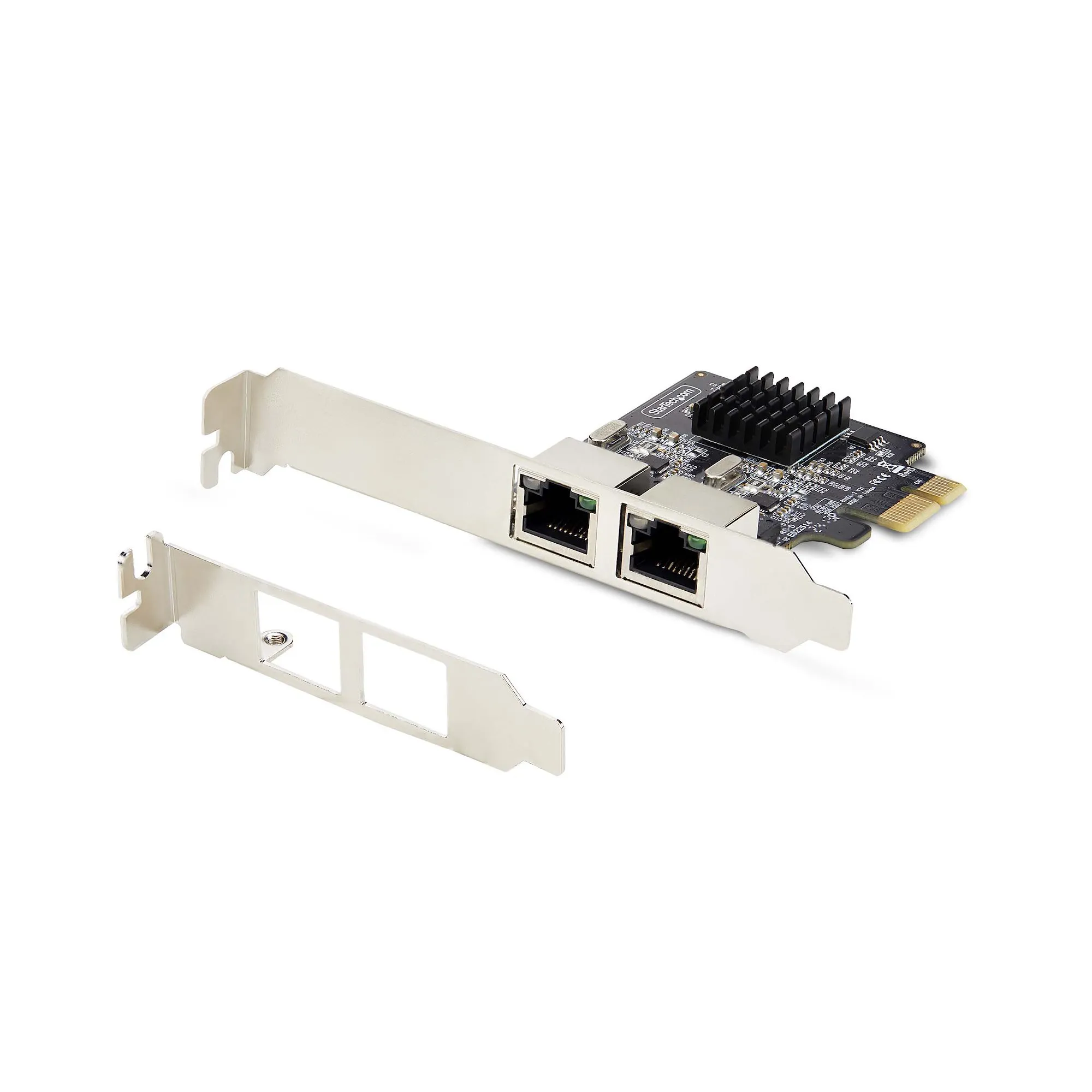

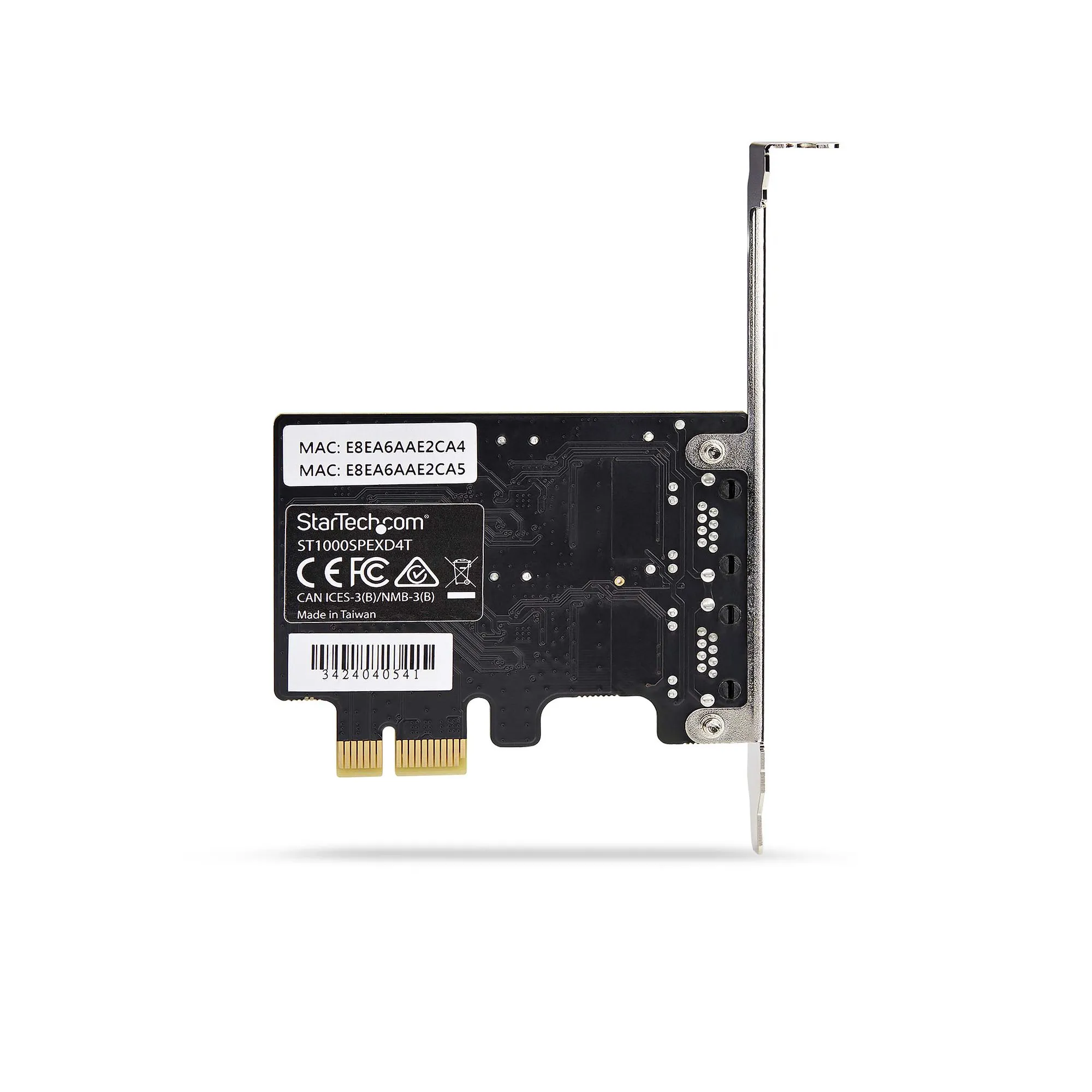

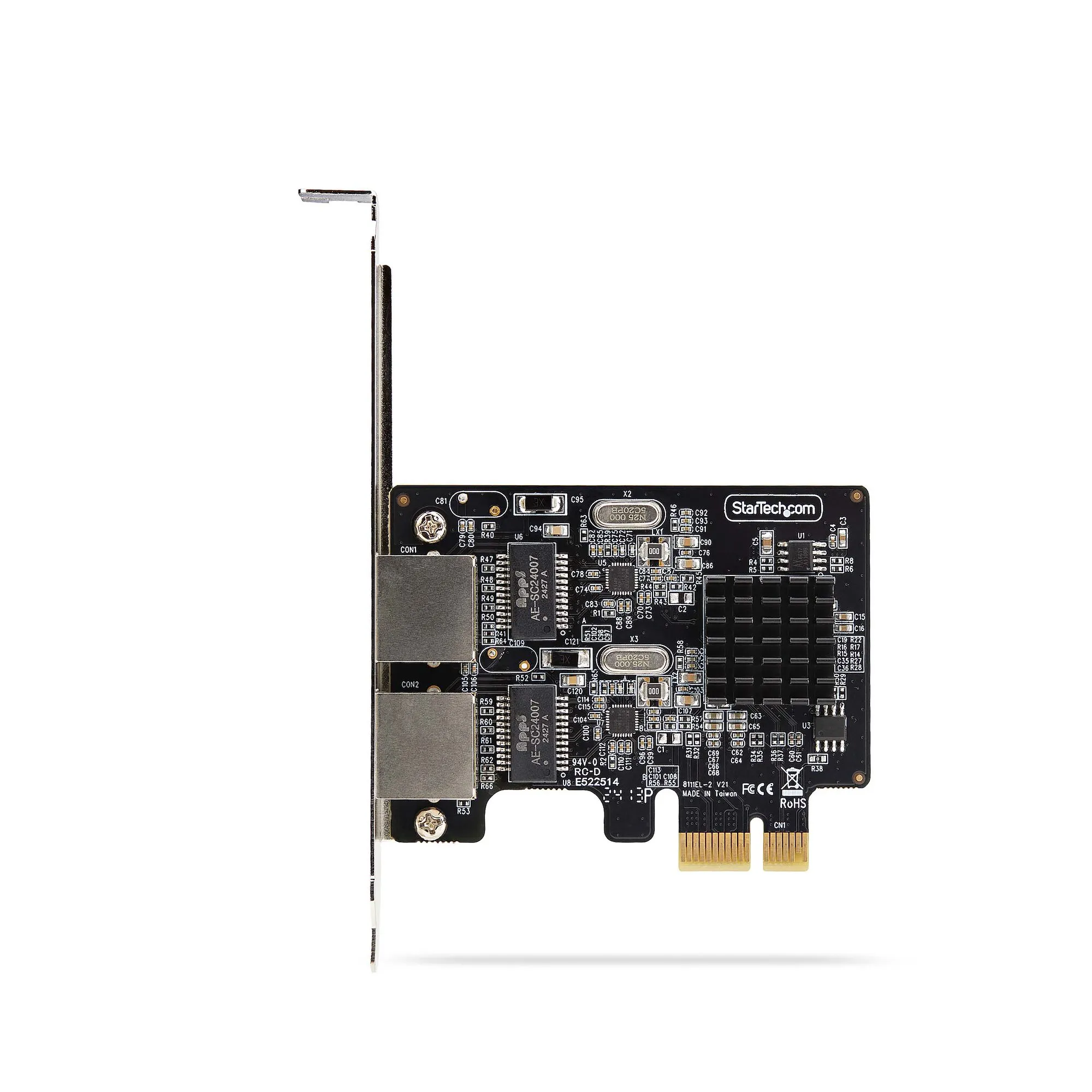

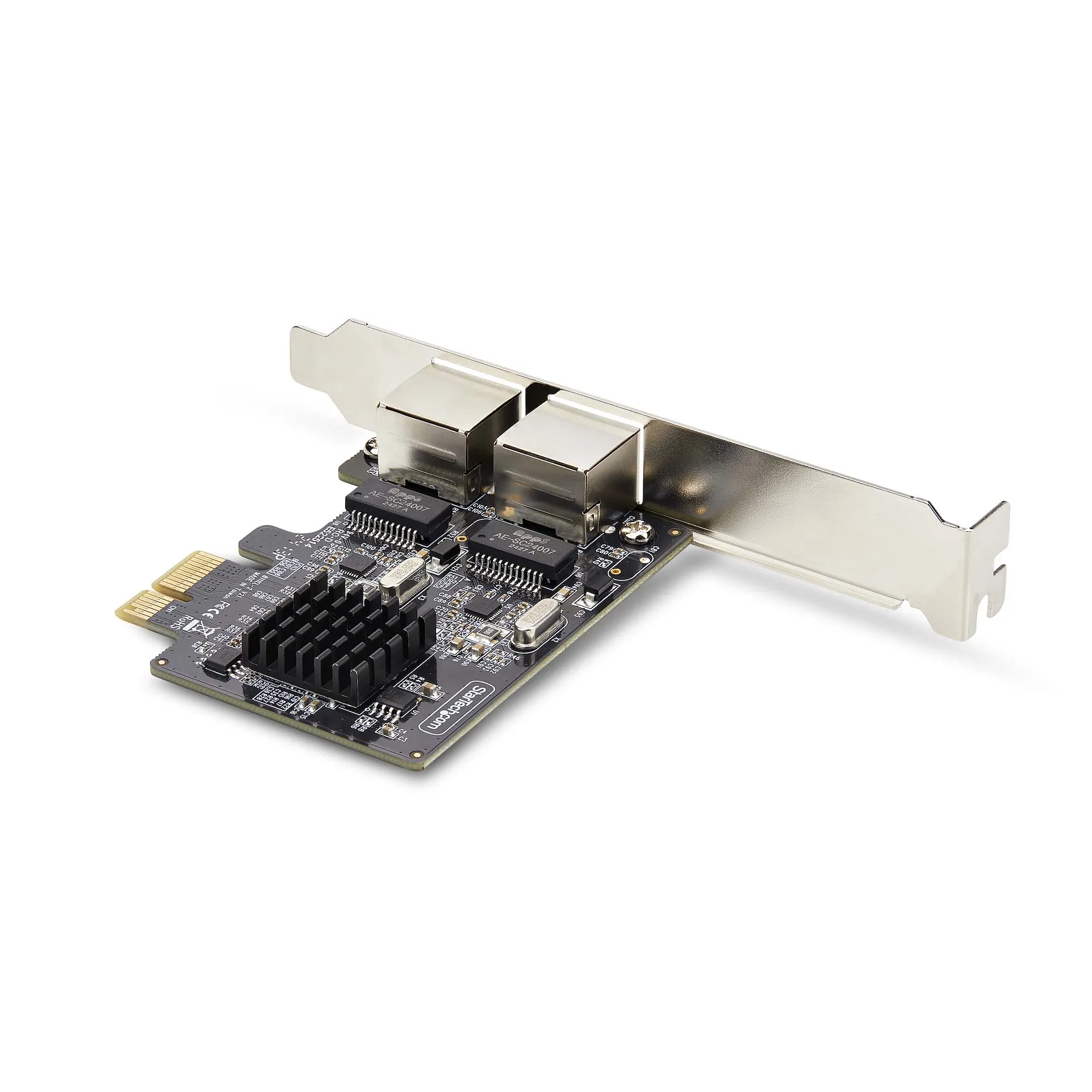

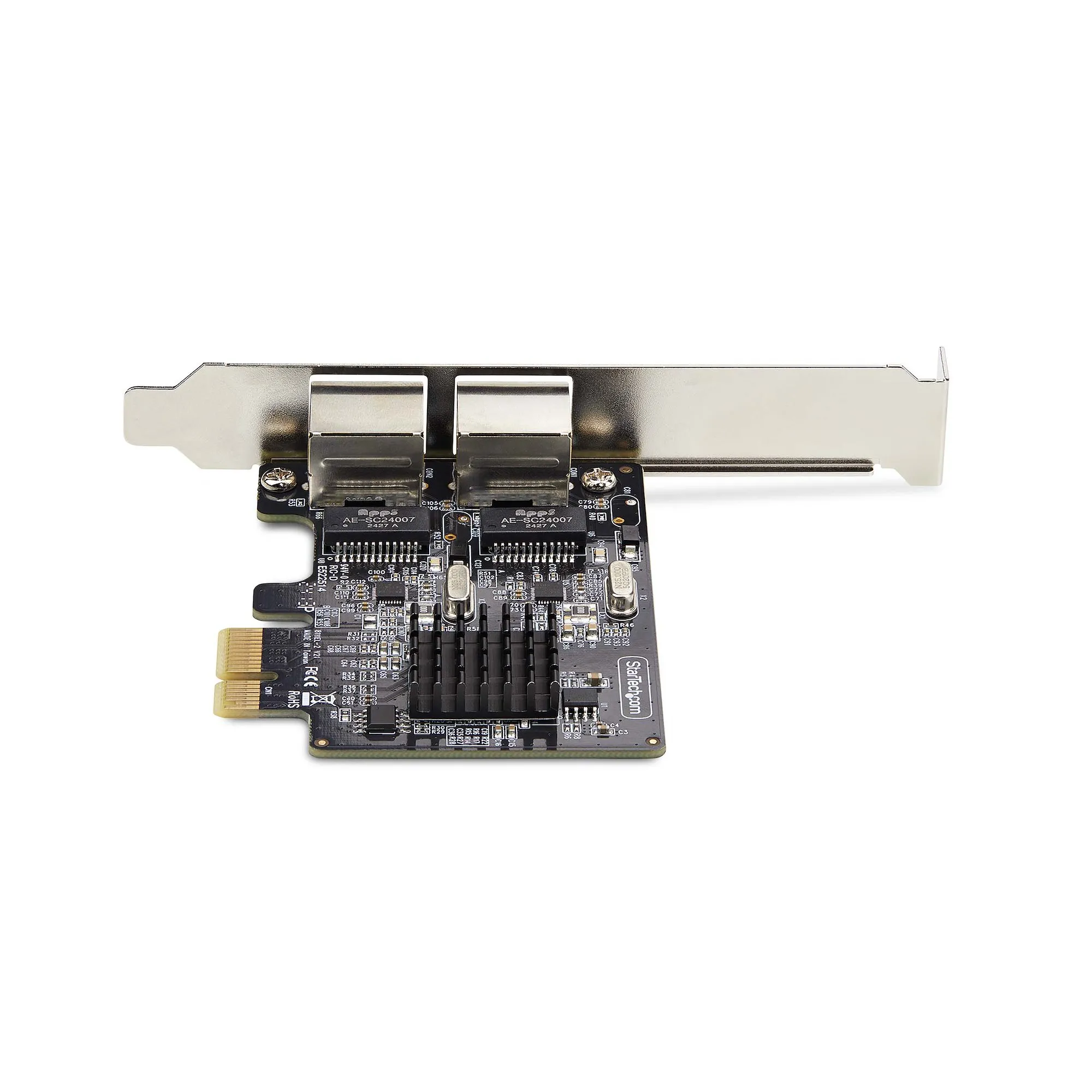

The StarTech ST1000SPEXD4T is a dual-port Gigabit PCI Express Ethernet adapter featuring two RJ45 ports and dual Realtek RTL8111H chipsets. It installs into a motherboard PCIe slot to provide wired network connectivity. The card supports data transfer rates of up to 1000 Mbit/s and serves as a replacement for failing onboard Ethernet ports. It is a strictly wired adapter and does not include wireless functionality.

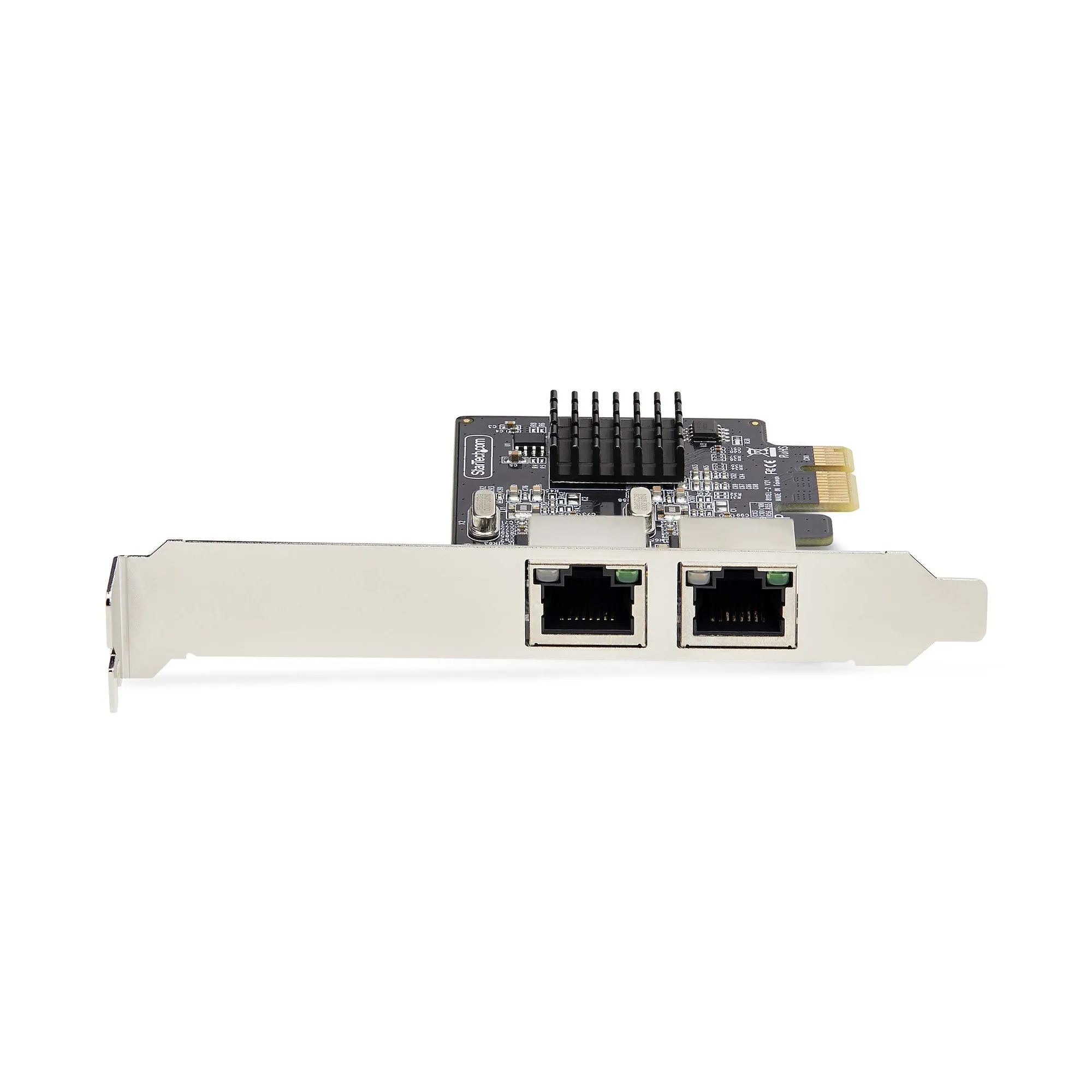

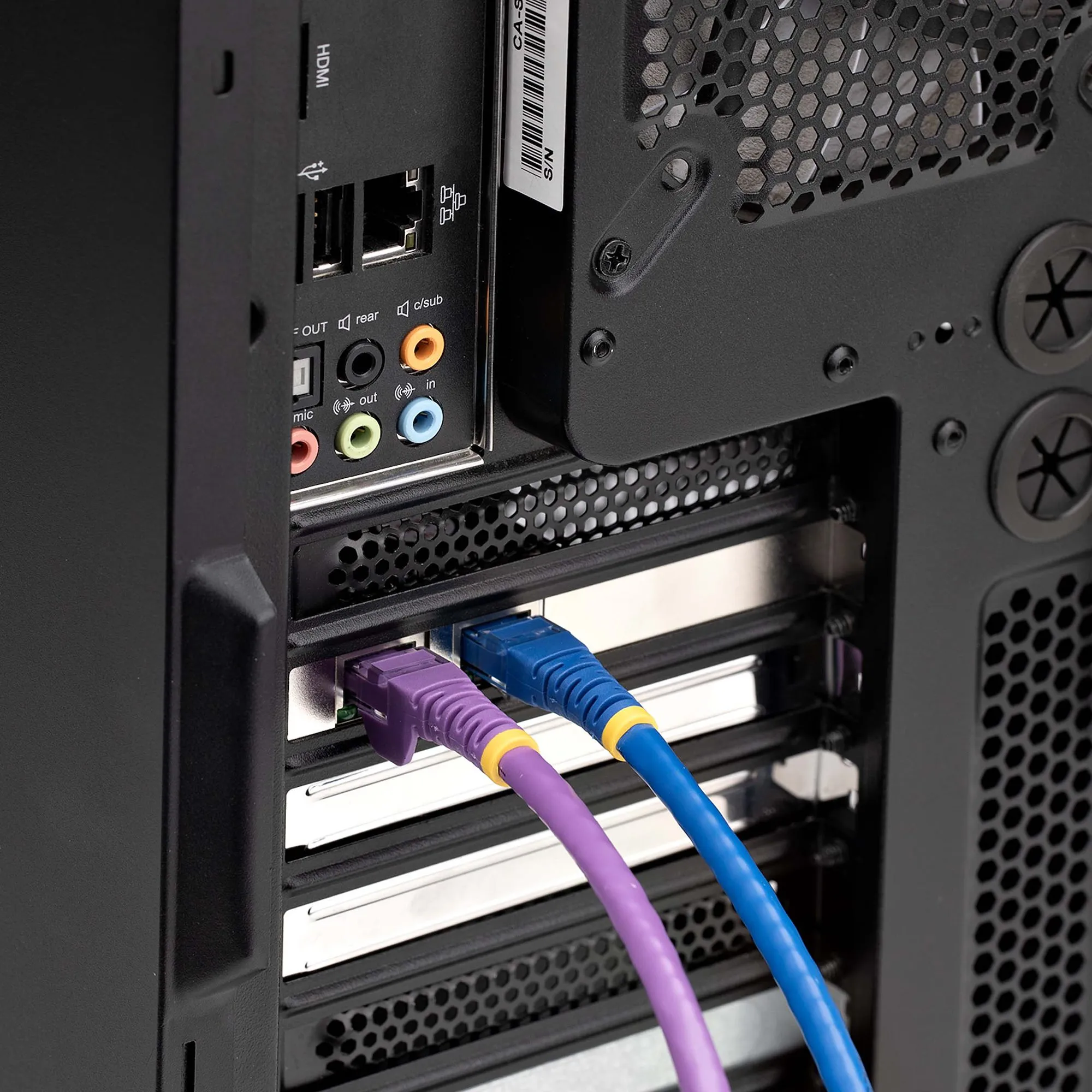

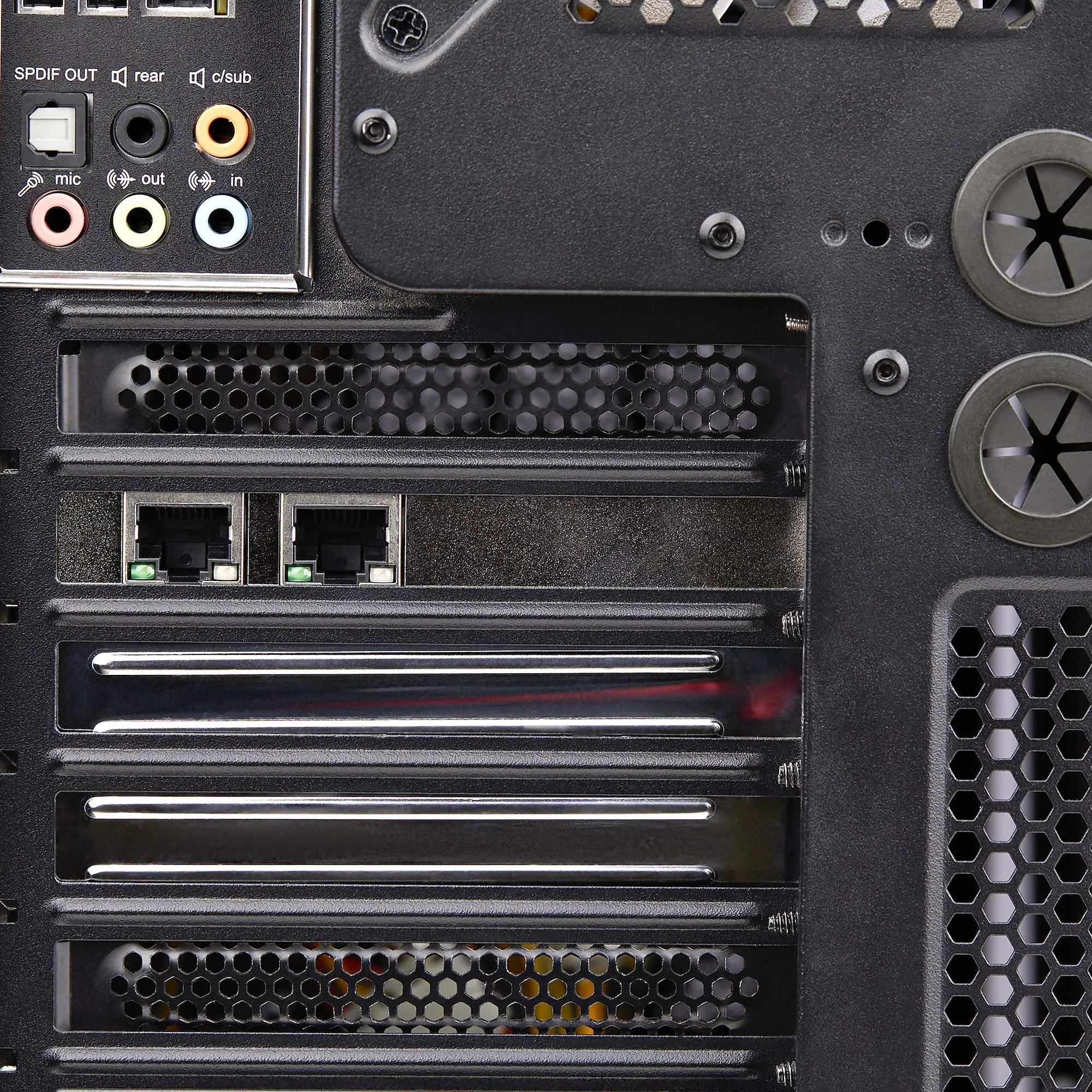

The two RJ45 ports allow for simultaneous connection to separate networks or the use of link aggregation. Data flow for both interfaces is managed by the Realtek RTL8111H chipsets. LED indicators on the bracket display link status and network activity. The card is compatible with Windows 8, 10, and 11, as well as Linux and Windows Server 2016, 2019, and 2022.
Key Features:- 9,000-byte jumbo frame support to reduce CPU overhead during large file transfers
- Wake-on-LAN (WoL) support for remote system power-on
- VLAN tagging for network traffic segmentation
- Auto-MDIX for automatic straight-through or crossover cable configuration
- Backward compatibility with 10/100 Mbit/s Ethernet for legacy networks
- TAA compliant for government and institutional use
