TP-LINK TL-POE2412G - PoE injector

The TP-LINK TL-POE2412G 24V Passive PoE Gigabit Adapter is an external injector that supplies power and network data over a single Ethernet cable. It is designed for equipment that requires passive Power over Ethernet, allowing hardware to be installed in locations without dedicated electrical outlets. The device acts as a bridge between a switch and a powered endpoint and does not support Wi-Fi. It is intended for passive hardware, such as outdoor customer premises equipment and specific access points, simplifying cabling by combining power and data into one line.

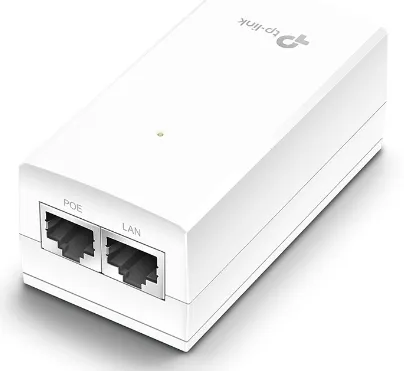

The adapter is plug-and-play and requires no software configuration. It features two RJ45 ports: one for the incoming network feed and one to transmit the combined signal. A power LED indicates when the unit is active. Measuring 85.8 mm by 43.9 mm by 35 mm, the compact housing fits easily alongside existing networking equipment. It is compatible with various enterprise and outdoor devices, including select TP-Link Omada access points.

• Provides 24 V output for endpoints that do not use active IEEE 802.3af/at negotiation
• Supports data transfer rates up to 1000 Mbit/s
• Complies with 10BASE-T, 100BASE-TX, and 1000BASE-T protocols (IEEE 802.3, 802.3u, and 802.3ab)
• Includes auto-negotiation and auto MDI/MDI-X to eliminate the need for crossover cables
• Typical power consumption: 12 W
