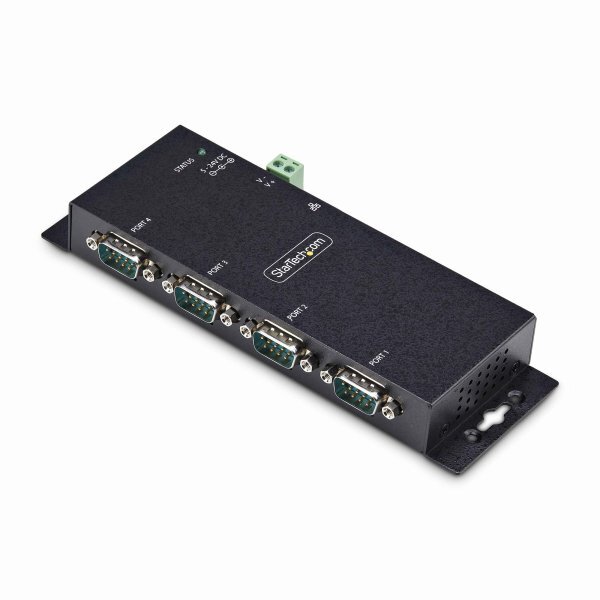

StarTech.com I43-SERIAL-ETHERNET - Serial Device Server, Metal
Manufacturer: STARTECH
ID: I43-SERIAL-ETHERNET
53090€
Show VAT 0%
Show VAT 25,5%
Multitronic Vaasa
Multitronic Pietarsaari
Multitronic Jyväskylä
Multitronic Lappeenranta
Multitronic Mariehamn
Specifications
Description
Store availability
Delivery
Price development
Manuals
| Technical details | |
| Serial ports quantity | 4 |
| Product colour | Black |
| Mounting | Wall/DIN |
| Host interface | RS-232 |
| Connector 1 | DB-9 |
| Connector 2 | RJ-45 |
| Output interface | RJ-45 |
| Baud rate | 921.6 Kbit/s |
| Data bits | 7, 8 |
| Stop bits | 1, 2 |
| Parity bit | Even, No, Odd, Space |
| Flow Control type | No, RTS/CTS, XON/XOFF |
| Electrostatic Discharge (ESD) protection (air) | 15 kV |
| Electrostatic Discharge (ESD) protection (contact) | 8 kV |
| Connector gender | Female/Female |
| Compliance certificates | Trade Agreements Act (TAA) |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack |  |
| Weight & dimensions | |
| Weight | 400 g |
| Package weight | 600 g |
| Height | 23 mm |
| Width | 179 mm |
| Depth | 60 mm |
| Package depth | 169 mm |
| Package height | 62 mm |
| Package width | 246 mm |
| Energy management | |
| Power consumption (typical) | 15 W |
| Input voltage | 100 - 240 V |
| Output voltage | 5 V |
| USB powered |  |
| Input current | 0.48 A |
| Output current | 3 A |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 75 °C |
| Operating temperature (T-T) | 0 - 60 °C |
| Networking | |
| Full duplex | |
| Ethernet LAN | |
| Networking standards | IEEE 802.3i, IEEE 802.3u |
| Bluetooth | |
| Wi-Fi | |
| Ethernet LAN data rates | 10/100 Mbit/s |
| Auto MDIX IEEE | |
| Auto MDI/MDI-X | |
| Ethernet interface type | Fast Ethernet |
| Auto-negotiation | |
| Packaging data | |
| Manual | |
| Illumination/Alarms | |
| LED indicators | |
| Operating system/software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Packaging content | |
| AC adapter included | |
| DIN rail included | |
| Number of screws included | 2 pc(s) |
| Material | |
| Housing material | Steel |
| Other features | |
| Ports quantity | 4 |
| Housing material | Metal |
| Design | |
| Internal | |
| Logistics data | |
| Master (outer) case height | 278 mm |
| Master (outer) case width | 441 mm |
| Master (outer) case length | 415 mm |
| Products per master (outer) case | 15 pc(s) |
| EAN | 0065030906012 |
| Warranty | 2 years |
The StarTech.com I43-SERIAL-ETHERNET 4-port RS-232 to Ethernet device server connects legacy serial equipment to modern IP networks. This adapter connects up to four DB-9 serial peripherals to a 10/100 Mbit/s Fast Ethernet LAN. Administrators can access industrial sensors, barcode scanners, or point-of-sale hardware remotely, removing the need for local serial connections. Data is routed via a standard RJ-45 interface. The unit is designed exclusively for wired networks and does not include Wi-Fi or Bluetooth.
The server features a metal housing and supports wall or DIN-rail mounting for installation in racks or industrial settings. It requires a direct DC power connection and is not USB-powered, with a typical power draw of 15 W. Front-facing LEDs indicate power status, network activity, and serial transmission. Configuration is managed via a web-based interface compatible with macOS and Linux; virtual COM port software is available for Windows 10 and 11 to facilitate system integration.
Key Features:- Supports auto-MDI/MDI-X and auto-negotiation, eliminating the need for crossover cables
- Full-duplex communication for simultaneous data transmission and reception
- Configurable for TCP Server, TCP Client, UDP, and Telnet RFC2217 operating modes
- Compact dimensions of 179 × 60 × 23 mm for low-profile installations
- TAA-compliant for restricted government procurement requirements
