StarTech.com AS445C-POE-INJECTOR - PoE injector, Black
Manufacturer: STARTECH
ID: AS445C-POE-INJECTOR
39890€
Show VAT 0%
Show VAT 25,5%
Multitronic Vaasa
Multitronic Pietarsaari
Multitronic Jyväskylä
Multitronic Lappeenranta
Multitronic Mariehamn
Specifications
Description
Store availability
Delivery
Price development
Manuals
| Ports & interfaces | |
| Interface | RJ45 |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 8 |
| DC-in jack |  |
| Host interface | Ethernet |
| RJ-45 input ports | 4 |
| RJ-45 output ports | 4 |
| Weight & dimensions | |
| Weight | 278 g |
| Height | 39 mm |
| Width | 70 mm |
| Depth | 94 mm |
| Energy management | |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 54 V |
| Input current | 2.5 A |
| Output current | 3.3 A |
| Total Power over Ethernet (PoE) budget | 160 W |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Networking | |
| Full duplex | |
| Chipset | Microsemi - PD69208T4, Microsemi - PD69200R |
| Maximum data transfer rate | 5000 Mbit/s |
| Ethernet LAN | |
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u |
| Power over Ethernet (PoE) | |
| Wi-Fi |  |
| Jumbo frames support | |
| Ethernet LAN data rates | 10,100,1000,2500,5000 Mbit/s |
| Auto MDIX IEEE | |
| Auto MDI/MDI-X | |
| Ethernet interface type | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Packaging data | |
| Package weight | 1.7 kg |
| Package depth | 178 mm |
| Package height | 93 mm |
| Package width | 310 mm |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), UKCA |

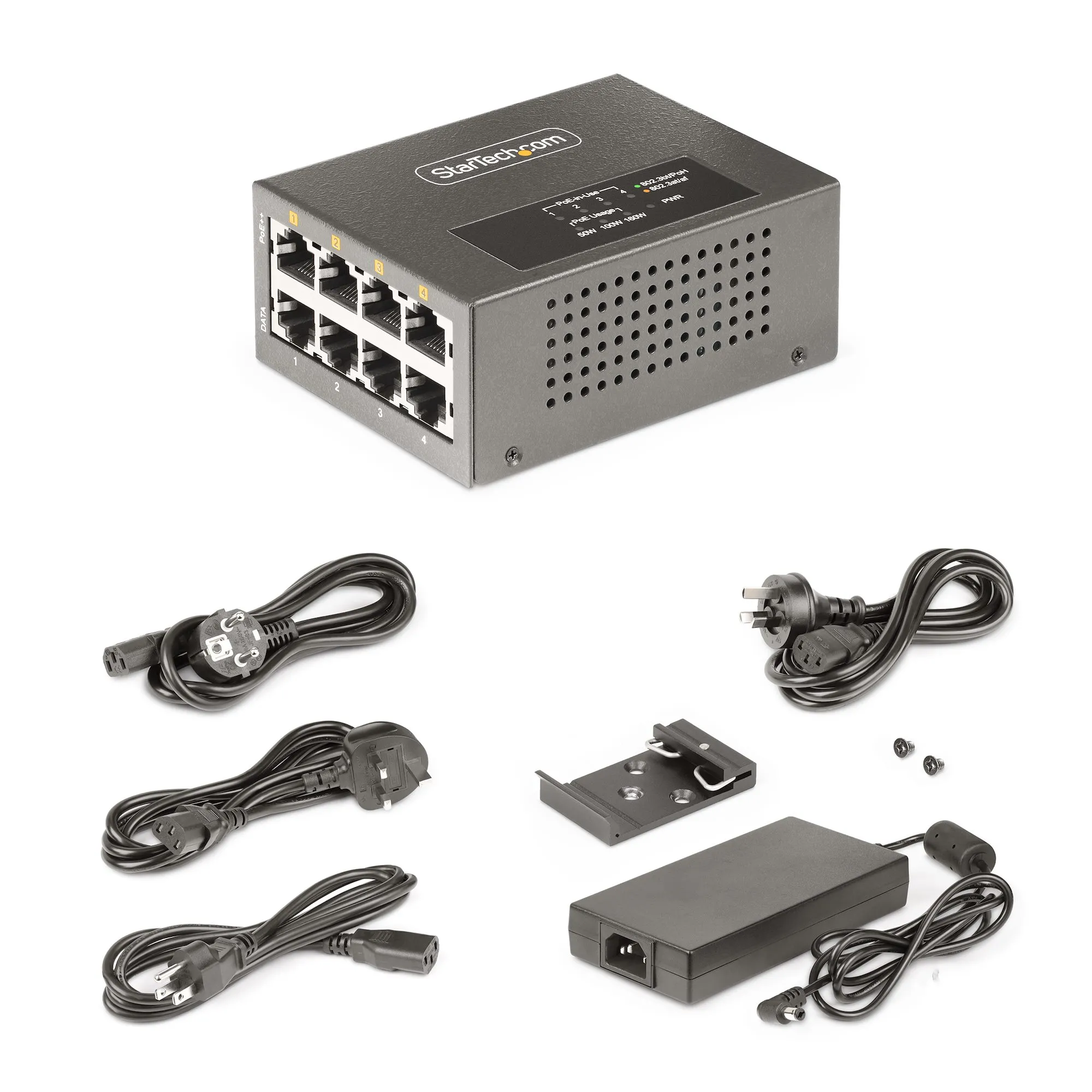

| Packaging content | |
| AC adapter included | |
| Quick installation guide | |
| Number of products included | 1 pc(s) |
| Other features | |
| Housing material | Metal |
| Product type | PoE injector |
| Design | |
| Internal | |
| Product colour | Black |
| Performance | |
| Interface type | RJ-45 |
| Maximum transfer distance | 100 m |
| Features | |
| LED indicators | Status |
| Data transfer rate | 5 Gbit/s |
| Wall mountable | |
| Maximum operating distance | 100 m |
| Jumbo frames | 9000 |
| Logistics data | |
| Master (outer) case height | 479 mm |
| Master (outer) case width | 376 mm |
| Master (outer) case length | 340 mm |
| Products per master (outer) case | 10 pc(s) |
| Sustainability | |
| Sustainability compliance | |
| EAN | 0065030900928 |
| Warranty | 2 years |

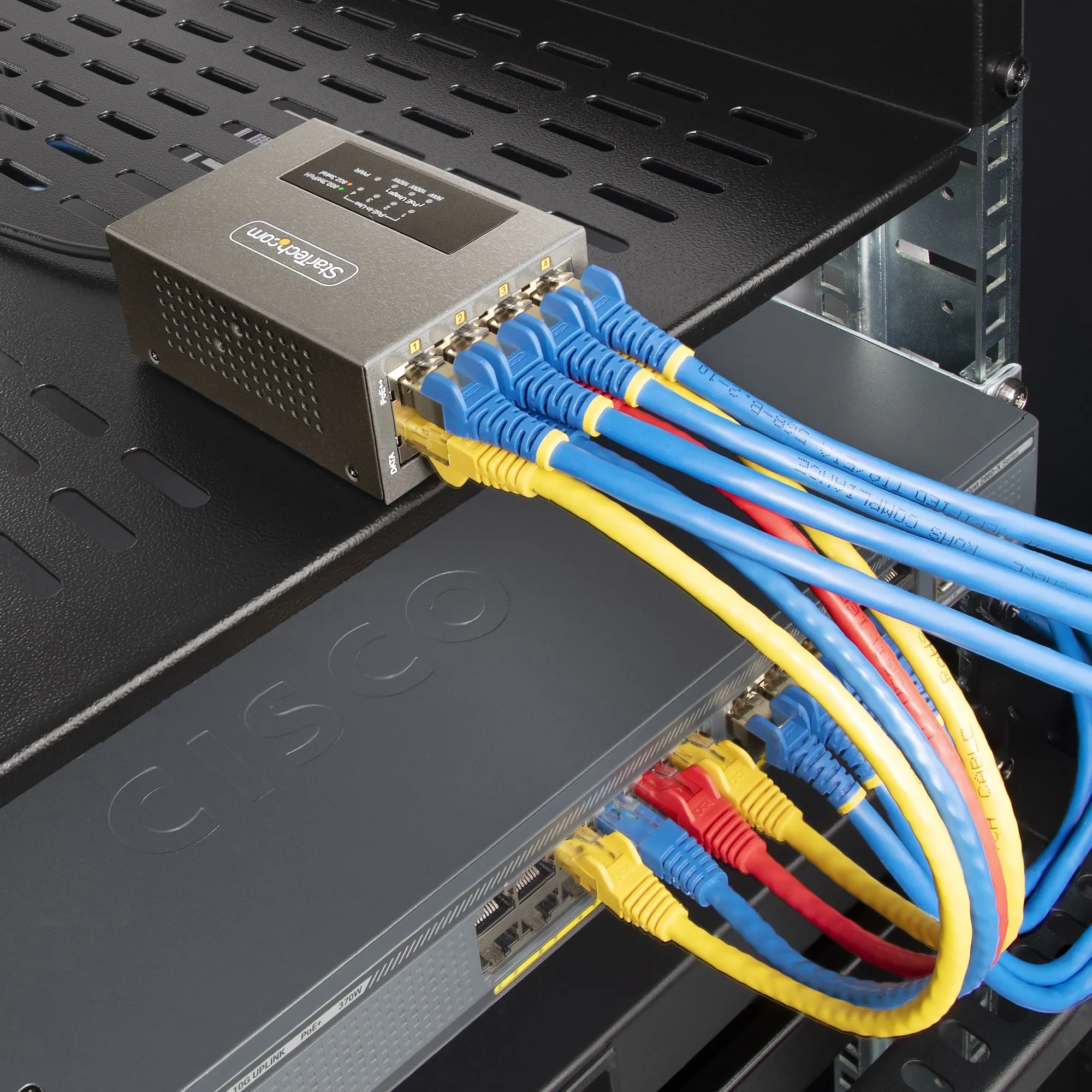

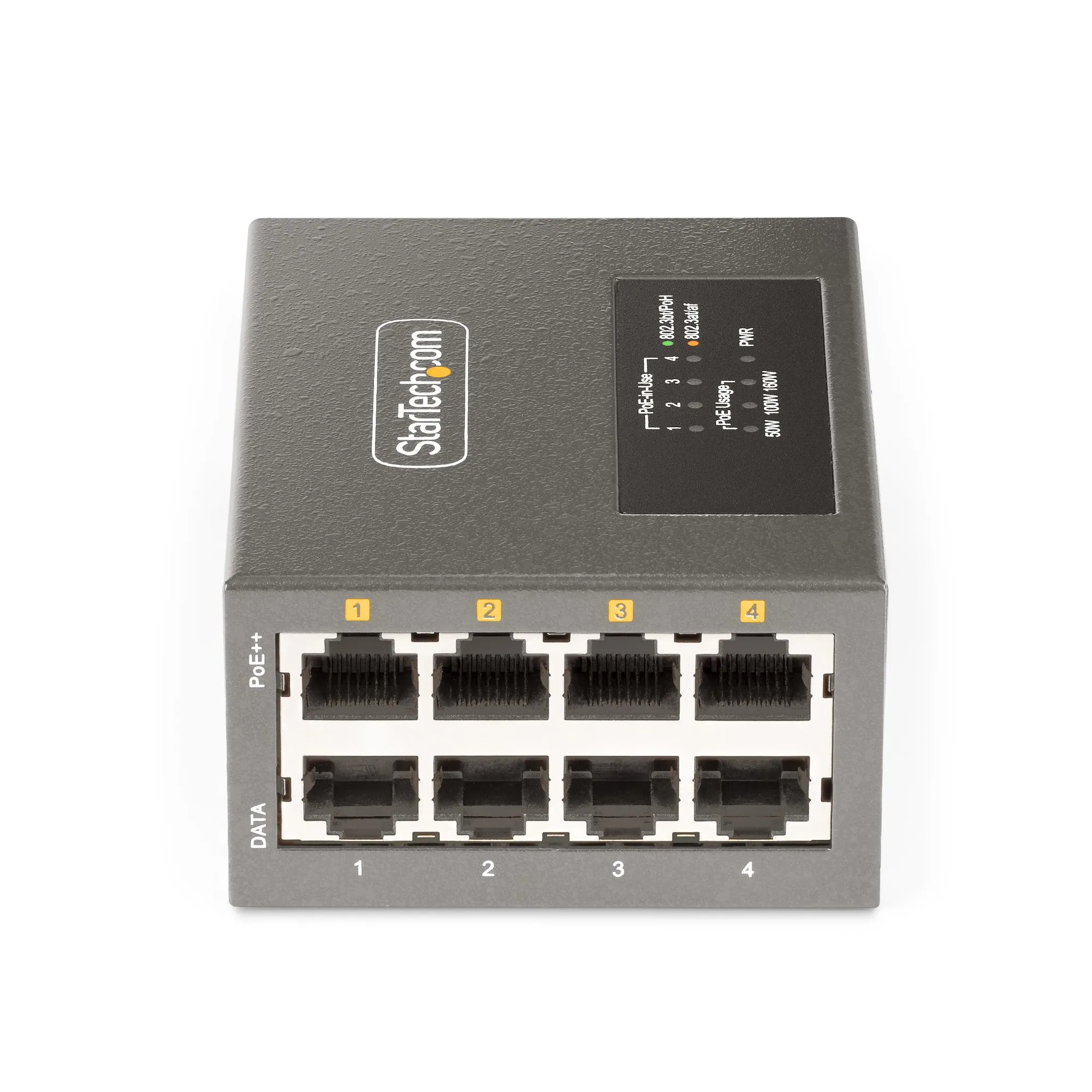

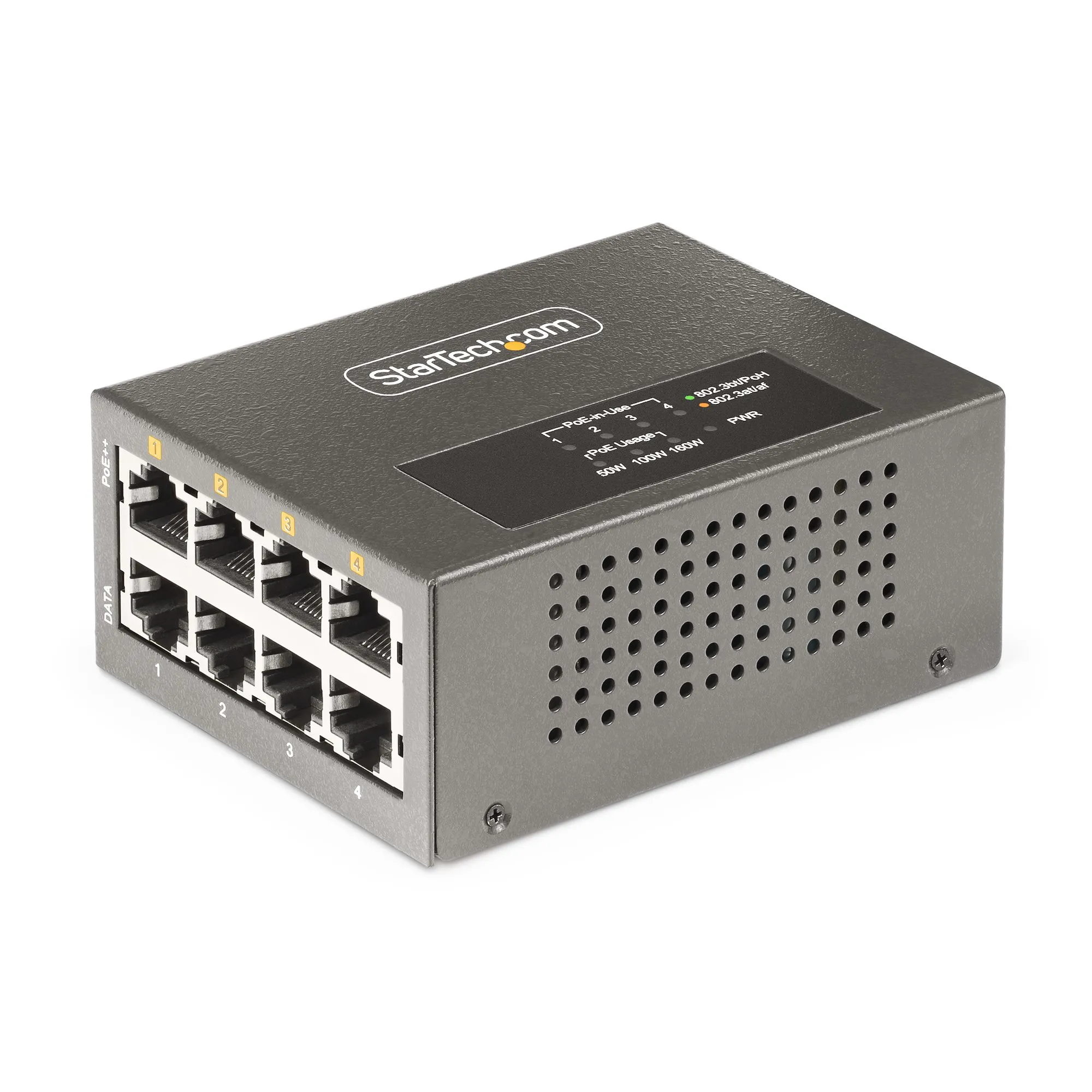

The StarTech AS445C-POE-INJECTOR 8-port multi-gigabit PoE++ injector (5/2.5G Ethernet, NBASE-T) adds power to wired Ethernet links. This adapter supplies power and data simultaneously to compatible networking equipment, such as IP cameras and wireless access points, using standard RJ45 connectors. The unit supports multi-gigabit speeds with a maximum data transfer rate of 5000 Mbit/s and is designed exclusively for wired networks.

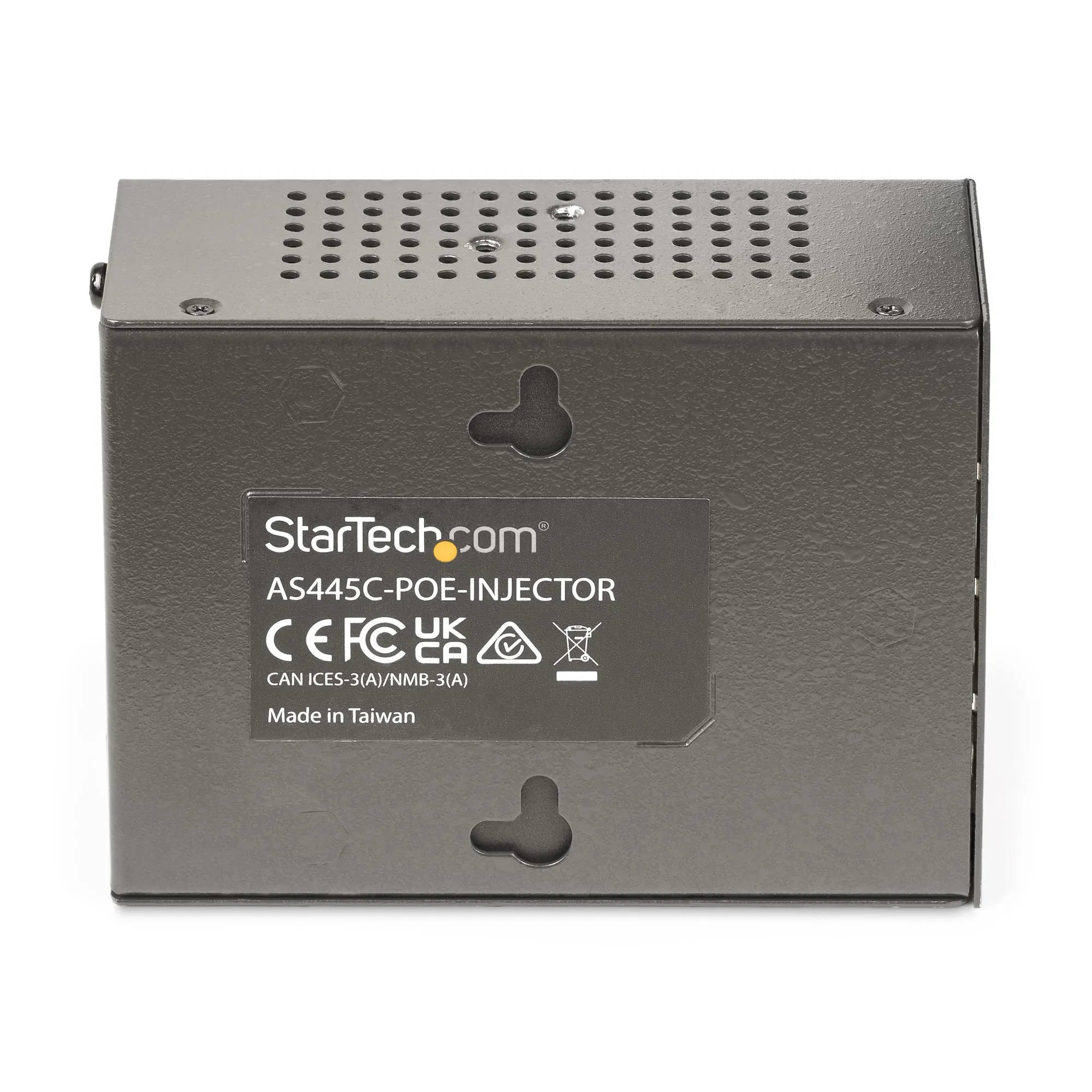

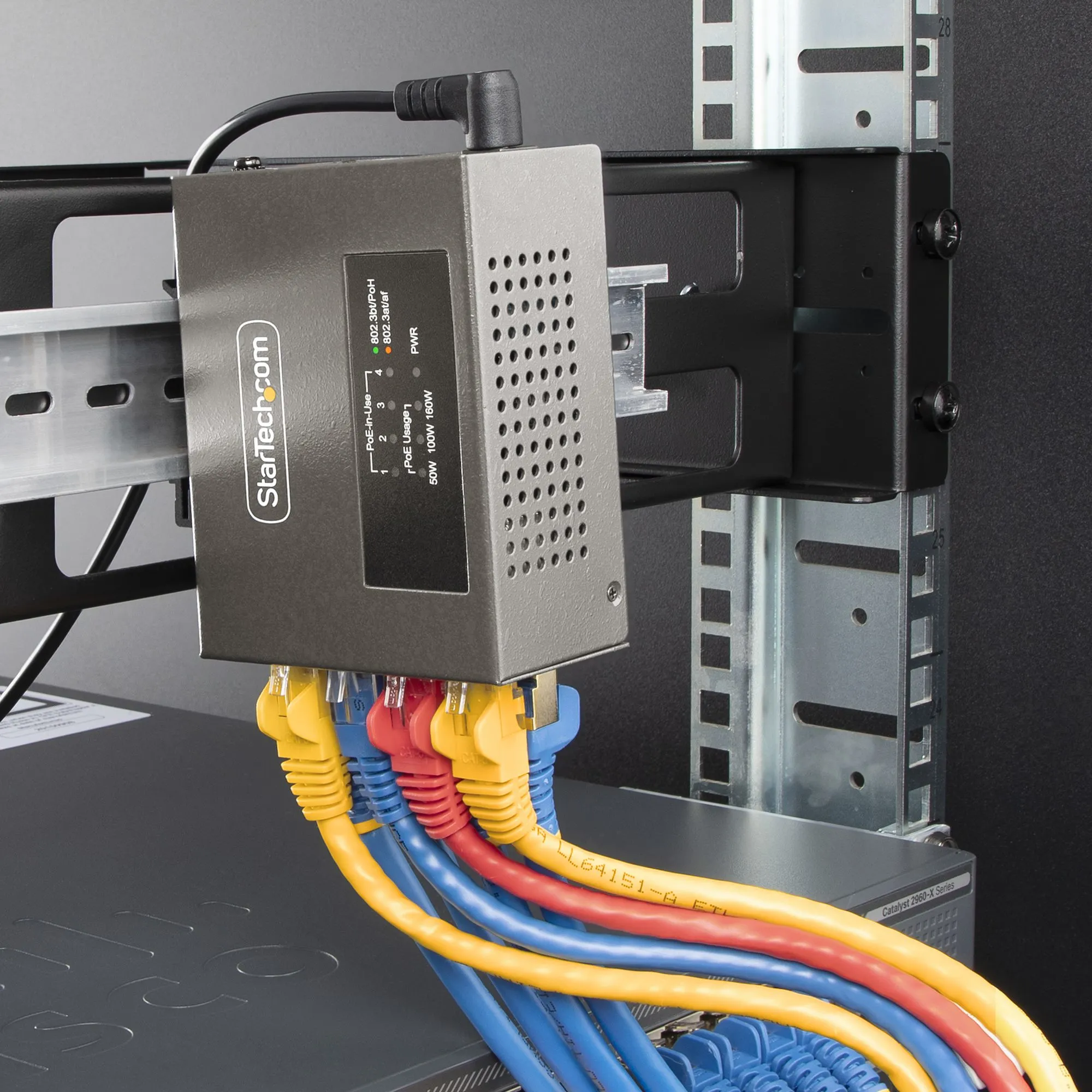

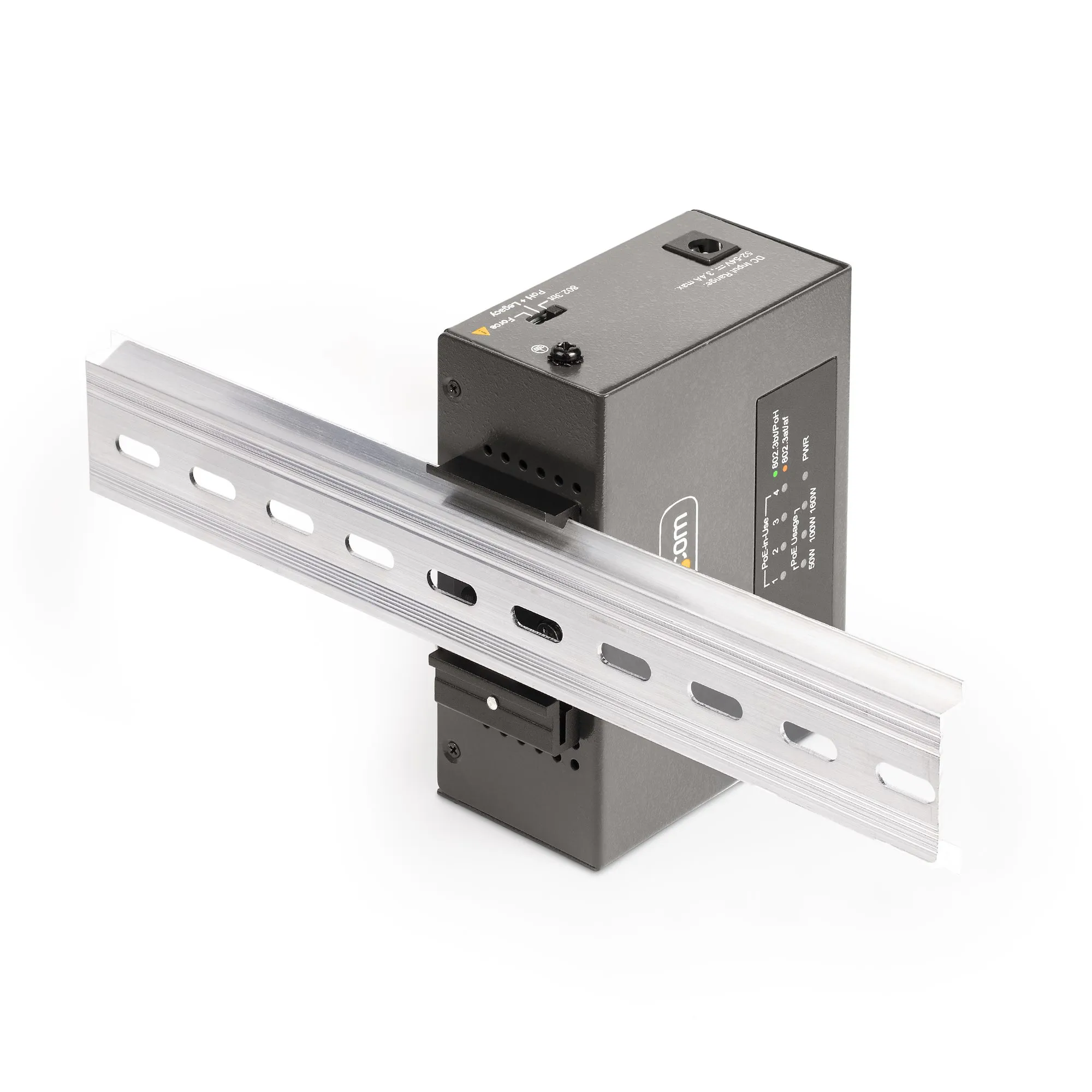

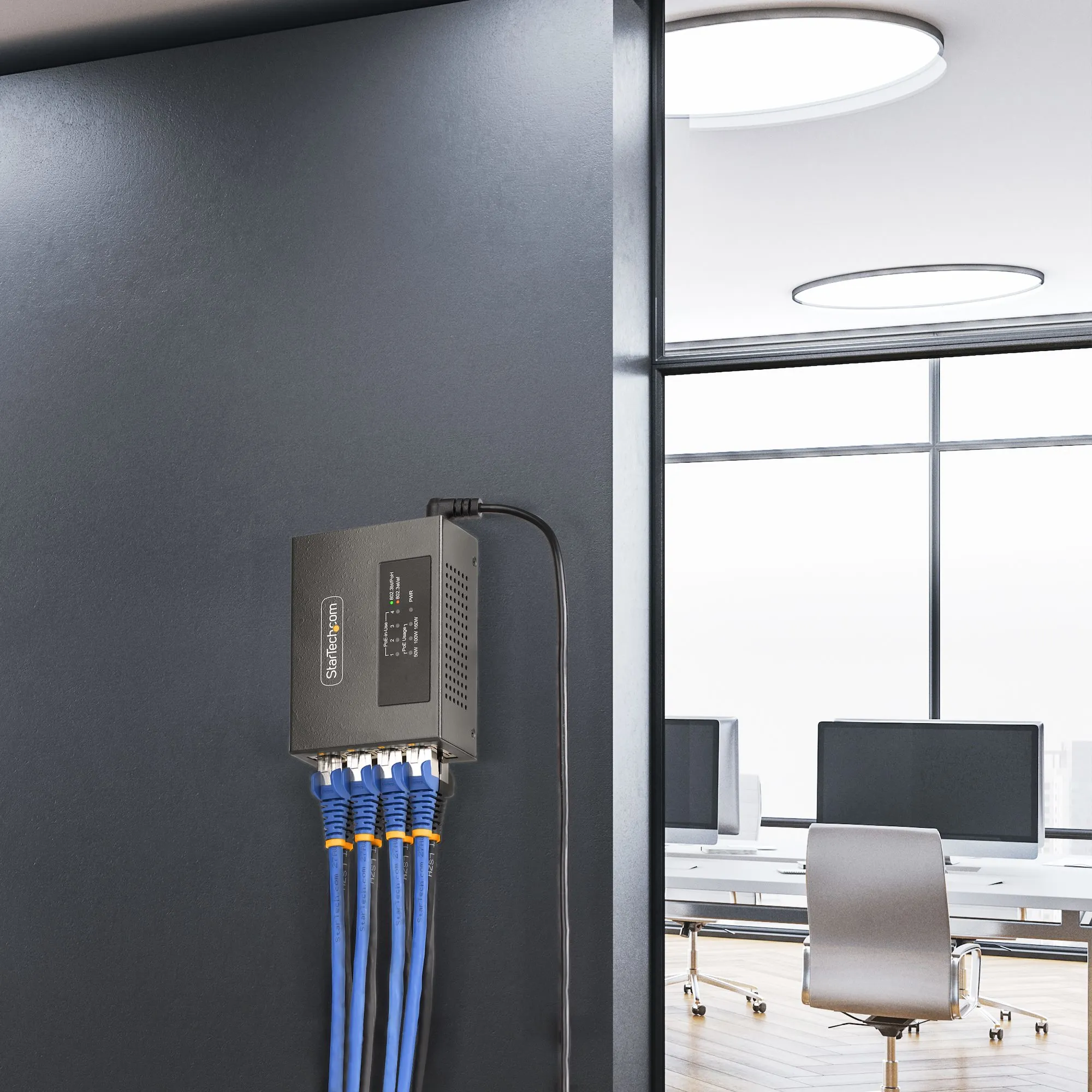

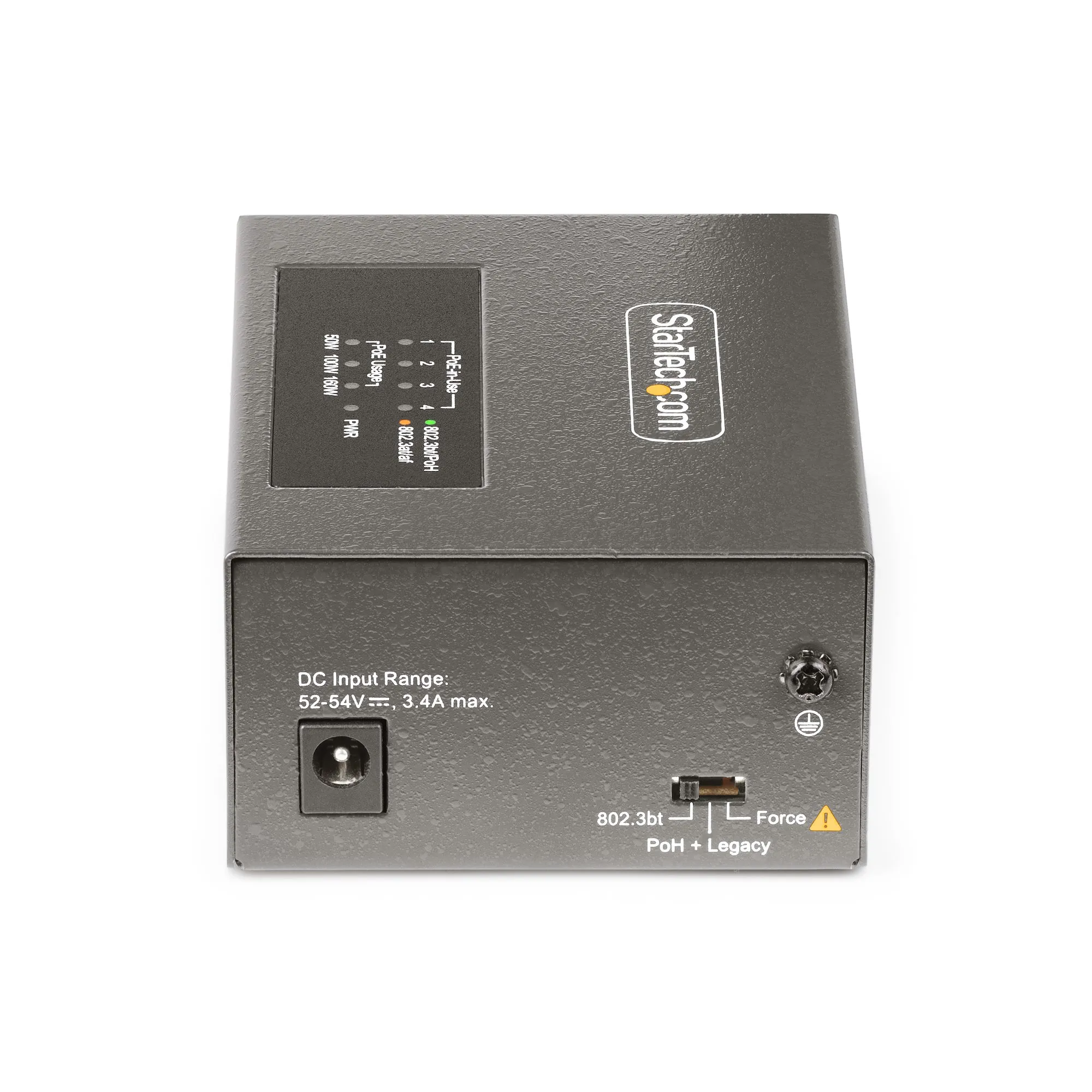

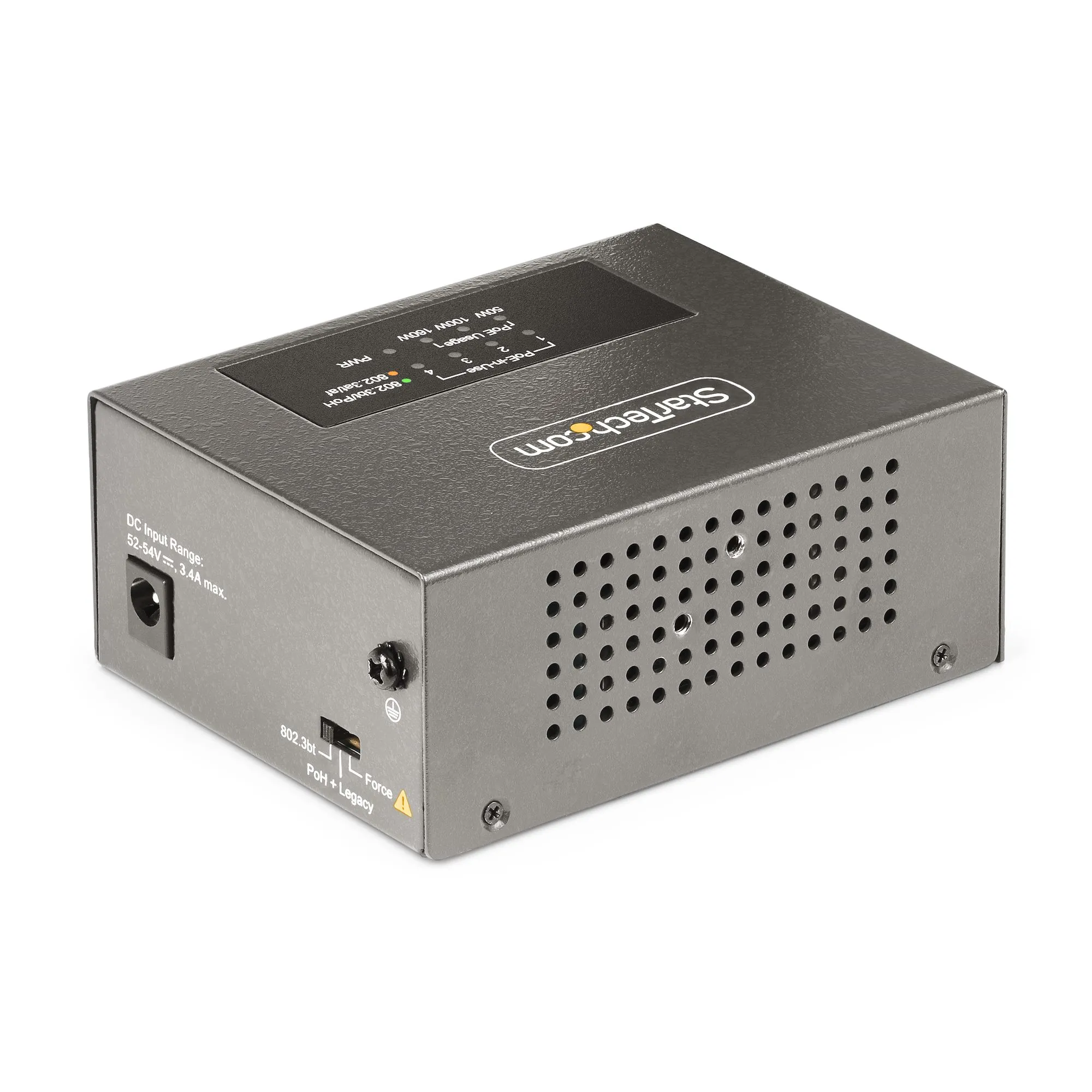

Housed in a black metal casing, the hardware is suitable for industrial or desktop environments. The 278g chassis can be wall-mounted or attached to a DIN rail for tidy cable management. A DC-in jack provides power, which is then distributed to connected devices. The adapter maintains stable signal integrity over cable runs of up to 100 metres. Automatic MDI/MDI-X configuration removes the need for crossover cables during setup.
Key Features:- Eight RJ45 Ethernet LAN ports for connecting multiple network endpoints
- Compatibility with IEEE 802.3af, 802.3at, and 802.3bt standards to support various PoE requirements
- Full-duplex operation for simultaneous two-way data transmission
- Jumbo frame support to reduce network overhead when processing large data packets
- Backward compatibility with legacy 10, 100, 1000, and 2500 Mbit/s Ethernet data rates
