MSI CUBI NUC 1MG-014BEU Core 3 100U Mini PC Barebone, Black
Manufacturer: MSI
ID: CUBI NUC 1MG-014BEU
36790€
Show VAT 0%
Show VAT 25,5%
Multitronic Vaasa
Multitronic Pietarsaari
Multitronic Jyväskylä
Multitronic Lappeenranta
Multitronic Mariehamn
Specifications
Description
Store availability
Delivery
Price development
Manuals
| Processor | |
| Processor model | 100U |
| Processor manufacturer | Intel |
| Processor family | Intel Core 3 |
| Processor cores | 6 |
| Processor threads | 8 |
| Built-in processor |  |
| Processor boost frequency | 4.7 GHz |
| Processor cache | 10 MB |
| Processor frequency | 1.2 GHz |
| Processor cache type | Smart Cache |
| Efficient cores | 4 |
| Performance cores | 2 |
| Efficient-core base frequency | 0.9 GHz |
| Performance-core base frequency | 1.2 GHz |
| Processor generation | Intel Core (Series 1) |
| Efficient-core Max Turbo Frequency | 3.3 GHz |
| Performance-core Max Turbo Frequency | 4.7 GHz |
| Memory | |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 5200 MHz |
| Supported memory types | DDR5 |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Display | |
| Touchscreen |  |
| Audio | |
| Built-in speaker(s) | |
| Ports & interfaces | |
| Parallel ports quantity | 0 |
| Serial ports quantity | 0 |
| PS/2 ports quantity | 0 |
| USB 2.0 ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| Headphone outputs | 0 |
| Microphone in | |
| S/PDIF out port | |
| DC-in jack | |
| DVI port | |
| CardBus PCMCIA slots quantity | 0 |
| CardBus PCMCIA slot type | |
| VGA (D-Sub) ports quantity | 0 |
| eSATA ports quantity | 0 |
| DVI-D ports quantity | 0 |
| COM ports quantity | 0 |
| TV-out | |
| HDMI ports quantity | 2 |
| HDMI version | 1.4b/2.1 |
| DisplayPorts quantity | 0 |
| Mini HDMI ports quantity | 0 |
| Mini DisplayPorts quantity | 0 |
| Thunderbolt ports quantity | 0 |
| Internal USB 2.0 ports quantity | 0 |
| Internal USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 0 |
| Combo headphone/mic port | |
| Serial port via internal header | |
| Consumer infrared headers | |
| USB charging | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| Thunderbolt 4 ports quantity | 2 |
| USB4 Gen 2x2 ports quantity | 0 |
| Weight & dimensions | |
| Weight | 630 g |
| Package weight | 1.38 kg |
| Height | 50.1 mm |
| Width | 132.5 mm |
| Depth | 135.6 mm |
| Package depth | 220 mm |
| Package height | 94 mm |
| Package width | 205 mm |
| Energy management | |
| Power supply type | External AC adapter |
| Number of power supply units | 1 |
| Power supply | 120 W |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage relative humidity (H-H) | 0 - 90% |
| Networking | |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Bluetooth version | 5.3 |
| Ethernet LAN | |
| Bluetooth | |
| LAN controller | Intel I226-V |
| Wi-Fi | |
| Copper ethernet cabling technology | 2.5GBASE-T |
| Near Field Communication (NFC) | |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Storage | |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | |
| Storage drive interface | M.2, Serial ATA, Serial ATA II, Serial ATA III |
| Number of storage drives supported | 3 |
| Storage drive sizes supported | 2.5,M.2 |
| Supported storage drive types | HDD & SSD |
| SSD form factor | M.2 |
| NVMe | |
| Certificates | |
| Certification | FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, RCM(C-Tick) |
| Operating system/software | |
| Operating system installed | |
| Windows operating systems supported | Windows 11, Windows 11 Enterprise, Windows 11 Home, Windows 11 Pro |
| Packaging content | |
| AC adapter included | |
| Display included | |
| Mouse included | |
| Quick start guide | |
| Power cord included | |
| Drivers included | |
| Keyboard included | |
| Expansion slots | |
| PCI slots | 0 |
| PCI Express x16 slots | 0 |
| PCI Express x8 slots | 0 |
| PCI Express x4 slots | 0 |
| PCI Express x1 slots | 0 |
| PCI-X slots | 0 |
| Mini PCI Express slots | 0 |
| PCI Express x4 (Gen 2.x) slots | 0 |
| Number of M.2 (M) slots | 2 |
| Mini PCI Express slot (half-length) | 0 |
| Mini PCI Express slot (full length) | 0 |
| Other features | |
| Country of origin | China |
| Introduction year | 2024 |
| Introduction month | July |
| Warranty period | 2 year(s) |
| Design | |
| Chassis type | Mini PC |
| Cable lock slot | |
| LED indicators | System |
| Product colour | Black |
| Panel mounting interface | 100 x 100 mm |
| Housing material | Plastic |
| On/off switch | |
| Cooling type | Active |
| Cable lock slot type | Kensington |
| VESA mounting | |
| Graphics | |
| Graphics card family | Intel |
| On-board graphics card model | Intel Graphics |
| On-board graphics card | |
| Number of displays supported | 4 |
| Discrete graphics card | |
| Performance | |
| Motherboard chipset | Intel SoC |
| Optical drive type | No |
| Motherboard form factor | NUC |
| Trusted Platform Module (TPM) | |
| Number of processors supported | 1 |
| Trusted Platform Module (TPM) version | 2.0 |
| Features | |
| Product type | Desktop |
| Sustainability | |
| Sustainability certificates | ENERGY STAR, Forest Stewardship Council (FSC), Post-Consumer Recycled Plastic |
| EAN | 4711377264402 |
| Warranty | 2 years |
The MSI CUBI NUC 1MG-014BEU is a barebone mini PC, providing a compact foundation for a custom-built system. It is equipped with an Intel Core 3 100U processor, designed to handle general computing tasks. As a barebone unit, it requires the user to install their own RAM, storage drive, and operating system. Its small footprint makes it a practical option for office use, digital signage, or any setup with limited space.

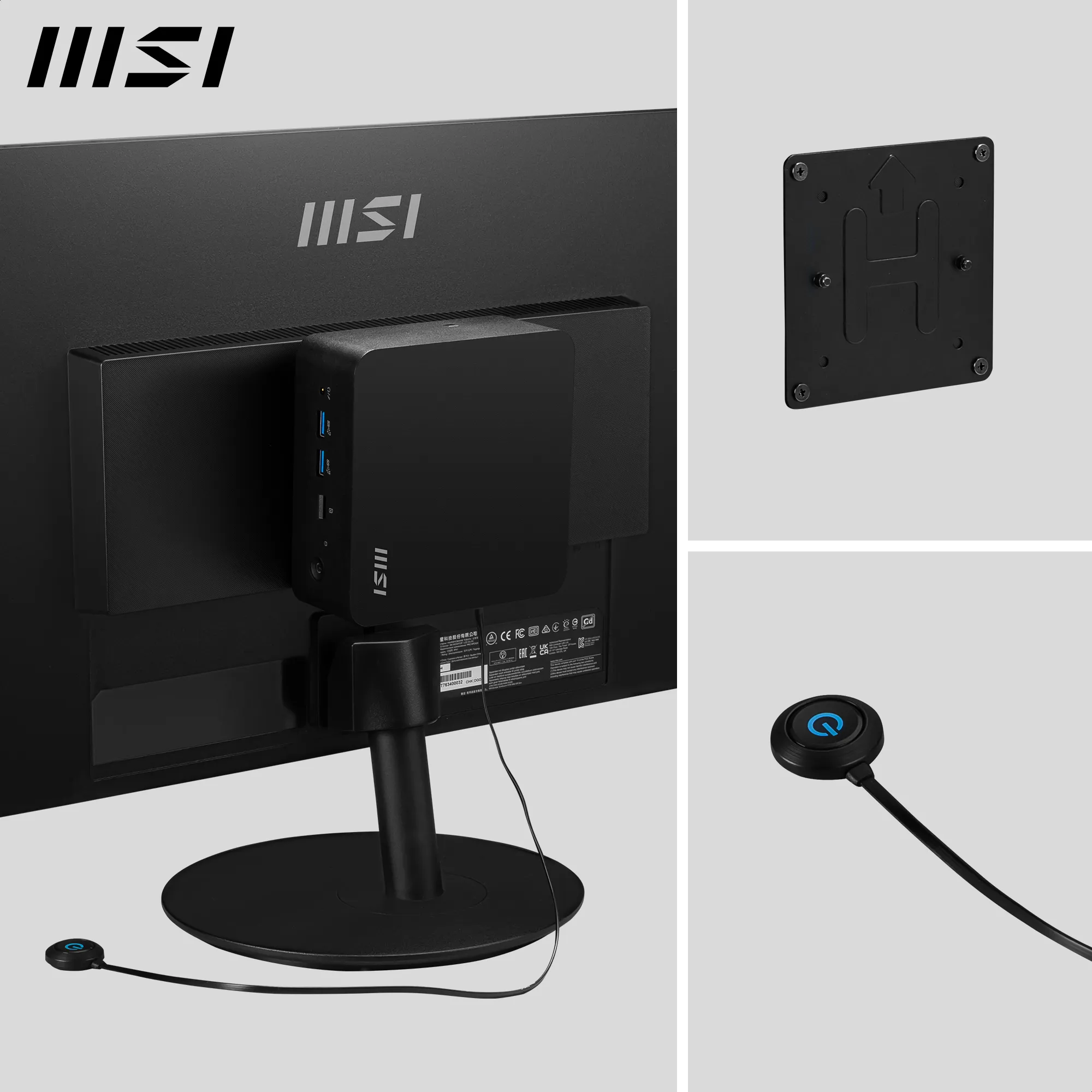

The system utilizes the processor's integrated Intel Graphics for video output. Connectivity options include four USB 3.2 Gen 1 ports and two HDMI ports, which support a dual-monitor setup. Network access is available through Wi-Fi 6E, Bluetooth 5.3, and two Ethernet ports, one of which supports speeds up to 2.5 Gbps. The black chassis comes with VESA-mount compatibility for placement behind a monitor or on a wall.
Key Features:- Processor: Intel Core 3 100U, 6 cores, 8 threads, up to 4.7 GHz

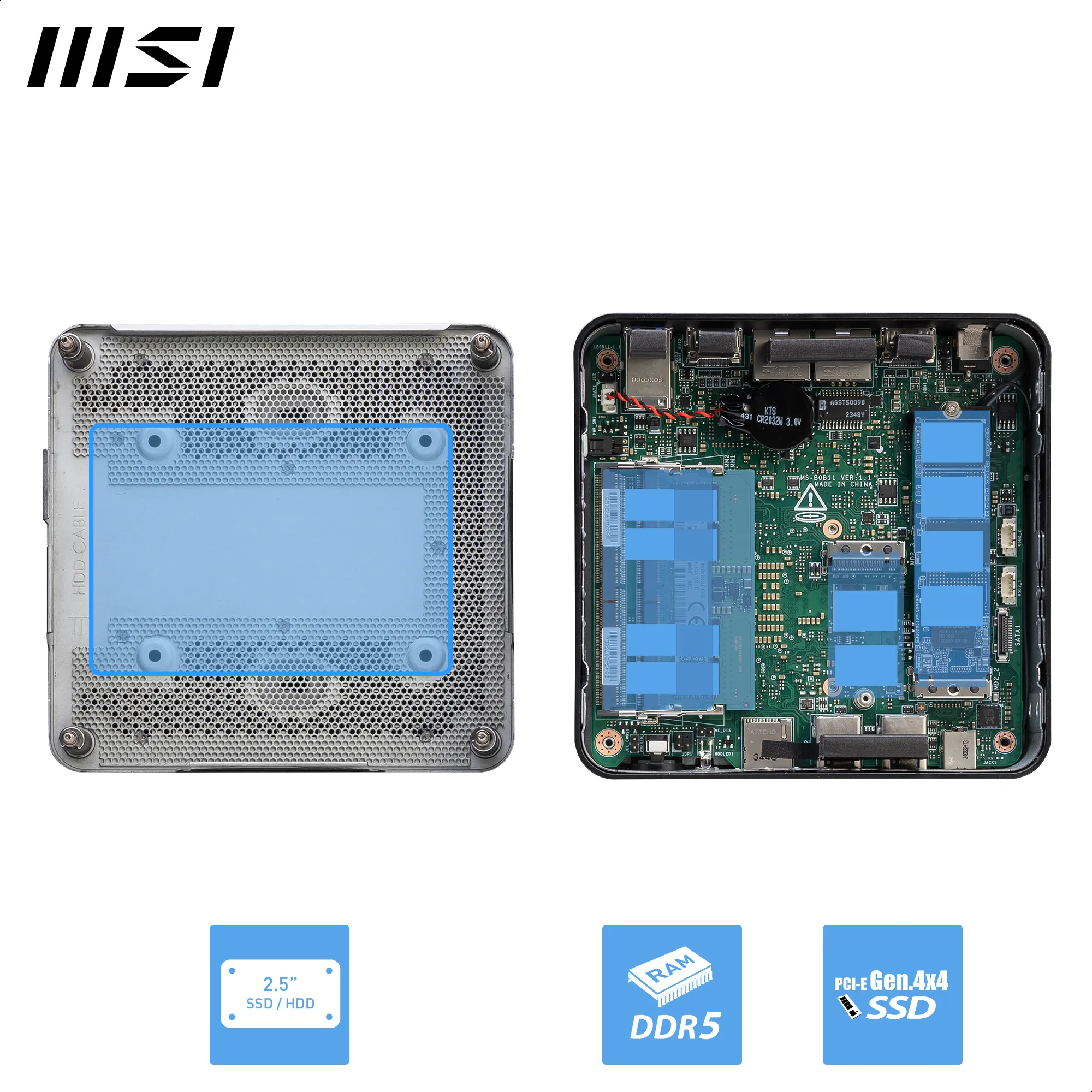

- Memory: User-installable DDR5 SDRAM (supports up to 64 GB)
- Storage: User-installable M.2 SSD or 2.5-inch drive
- Graphics: Integrated Intel Graphics
- Operating system installed: None

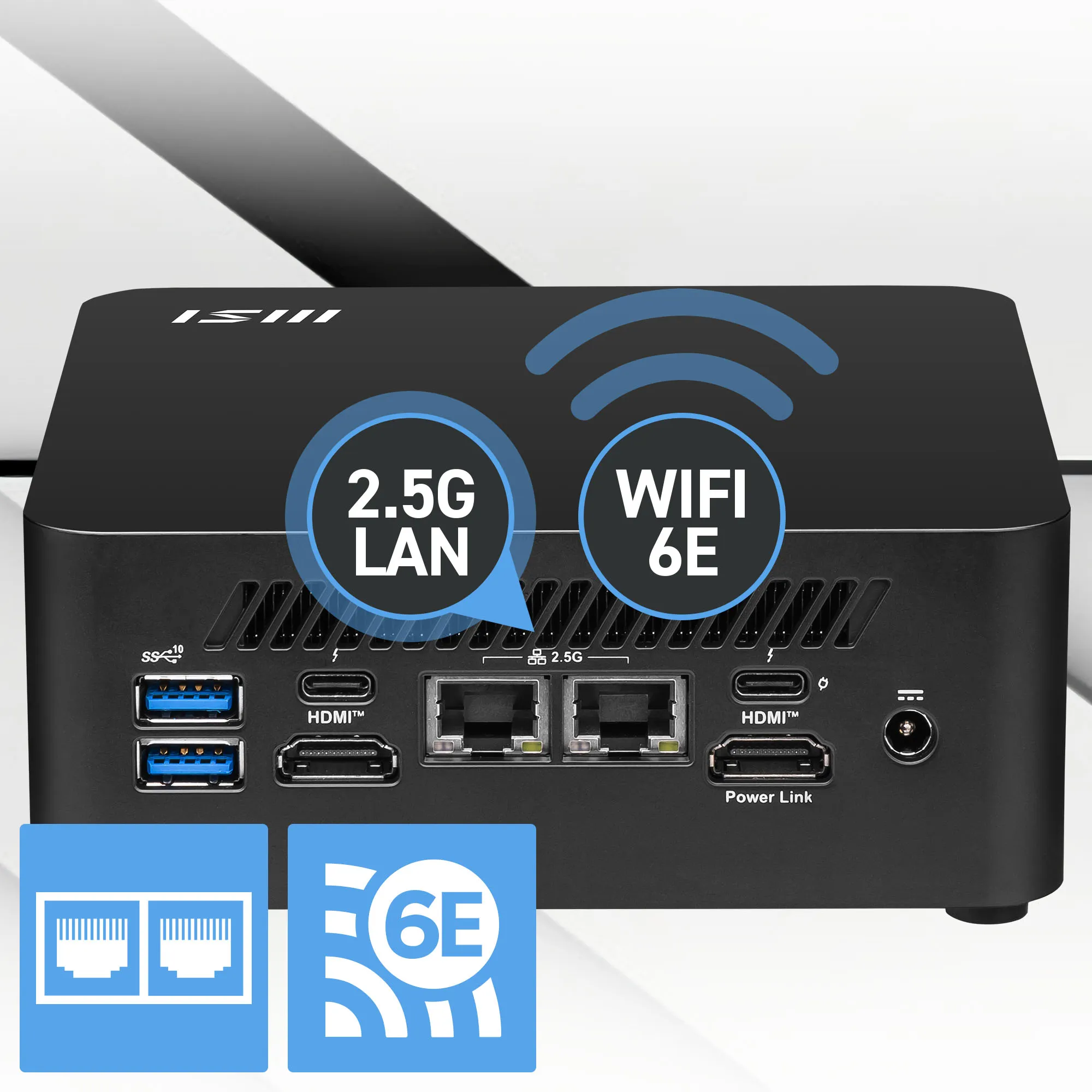

- Networking: Wi-Fi 6E, 2.5 Gbps Ethernet, Bluetooth 5.3

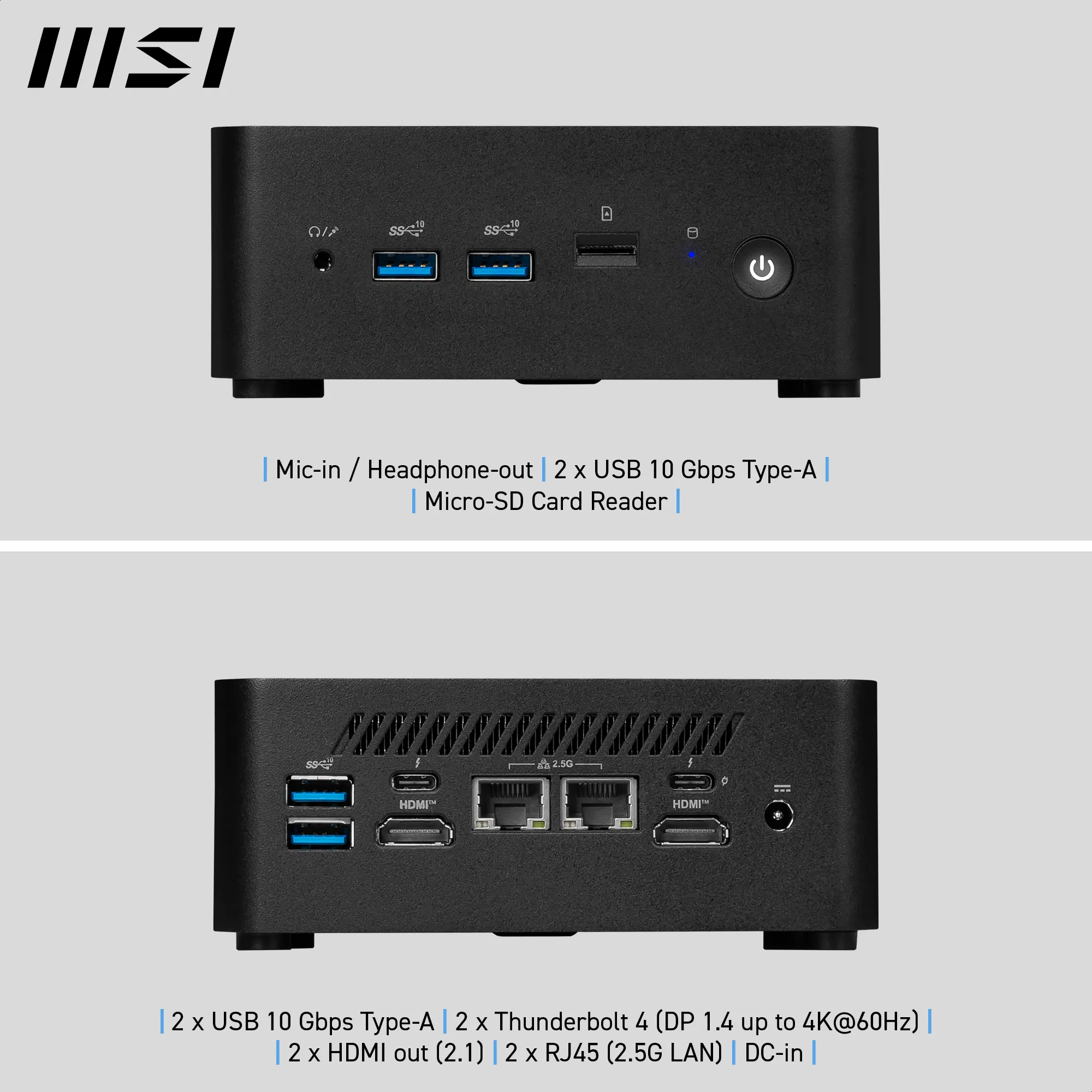

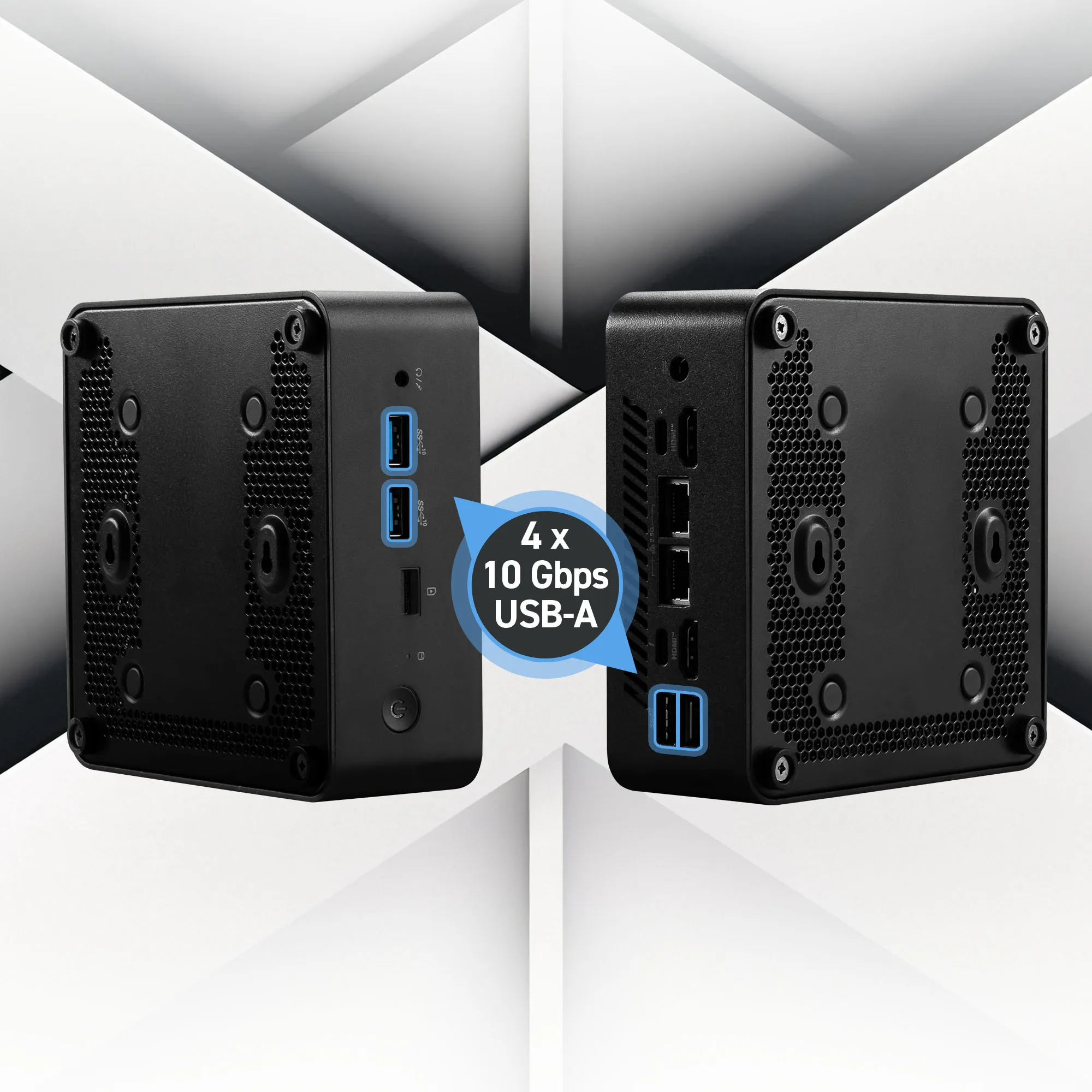

- Ports: 4 USB 3.2 Gen 1 Type-A, 2 HDMI, 2 Ethernet, Integrated card reader

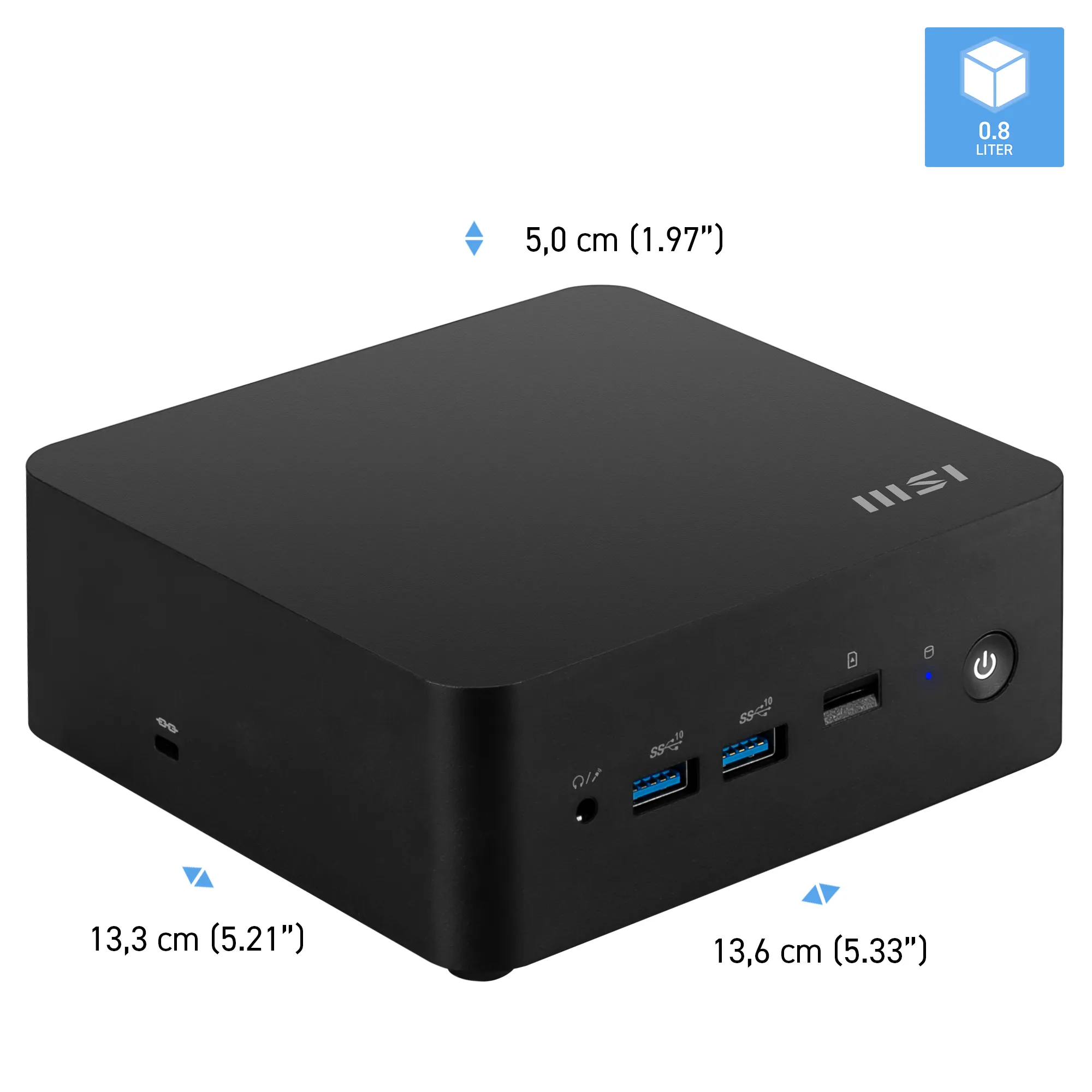

- Chassis & size: Mini PC, 132.5 × 135.6 × 50.1 mm
- Power supply wattage: 120W
