Key Specifications
Choose one or multiple features to search for items that have the same specifications.| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Weight & dimensions | |
| Height | 460 mm |
| Width | 210 mm |
| Depth | 371 mm |
| Storage | |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 4 |
| HDD/SSD combo cage | ![]() |
| Cooling | |
| Cooling | ![]() |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120, 140 mm |
| Rear fans diameters supported | 120 mm |
| Top fans diameters supported | 120, 140 mm |
| Number of rear fans supported (max) | 1 |
| Number of top fans supported (max) | 2 |
| Liquid cooling capability | ![]() |
| Rear radiator sizes supported | 120 mm |
| Rear radiator installed | ![]() |
| Front radiator installed | ![]() |
| Top radiator installed | ![]() |
| Top radiator sizes supported | 240 mm |
| Design | |
| Product colour | Black |
| Supported motherboard form factors | ATX, Micro-ATX, Mini-ITX |
| Anti-dust filter | ![]() |
| Number of 3.5" bays | 2 |
| Side window | ![]() |
| Number of internal 3.5" bays | 2 |
| Maximum CPU cooler height | 16.6 cm |
| Number of expansion slots | 8 |
| Maximum PSU length | 18 cm |
| Number of 2.5" bays | 2 |
| Product type | PC Case |
| Tempered glass panel(s) | ![]() |
| Power supply | |
| Power supply included | ![]() |
| EAN | 4711085937544 |

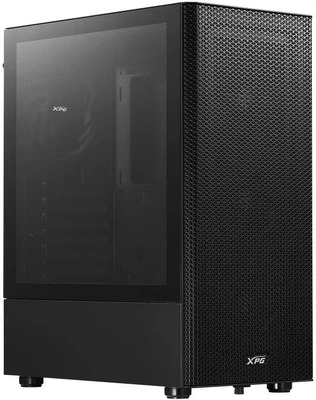

The ADATA XPG VALOR MESH mid-tower case is designed for custom desktop builds. Its mesh front panel promotes direct air intake and efficient airflow over the processor and graphics card. Internal mounts support various liquid or air cooling configurations, providing flexibility for thermal management. A tempered glass side panel provides a view of the internal components, and the chassis comes pre-configured for front-to-back airflow.
A dual-chamber design separates the power supply and cabling from the main chamber, ensuring that cables do not obstruct incoming air. Storage mounts are positioned to provide space for long expansion cards while maintaining drive capacity. Top-panel ports provide access for headsets and external drives. The case does not include a power supply, allowing users to select a unit that matches their hardware requirements. Dust filters cover the primary intake zones to reduce buildup.
Key Features:- Motherboard compatibility: Supports ATX, Micro-ATX, and Mini-ITX form factors
- Pre-installed active cooling: Includes three 120 mm front intake fans and one 120 mm rear exhaust fan
- Liquid cooling support: Accommodates radiators up to 360 mm at the front, 240 mm at the top, and 120 mm at the rear
- Expansion and clearances: Eight PCI expansion slots, supporting CPU coolers up to 166 mm tall and power supplies up to 180 mm long
- Storage capacity: Features an HDD/SSD combo cage supporting up to two 3.5-inch drives and two 2.5-inch drives
- Top I/O connectivity: Equipped with two USB 3.2 Gen 1 Type-A ports and a single combo audio jack
- Build materials: Constructed from steel with a 3 mm thick tempered glass side panel, totaling 35.8 liters in interior volume
