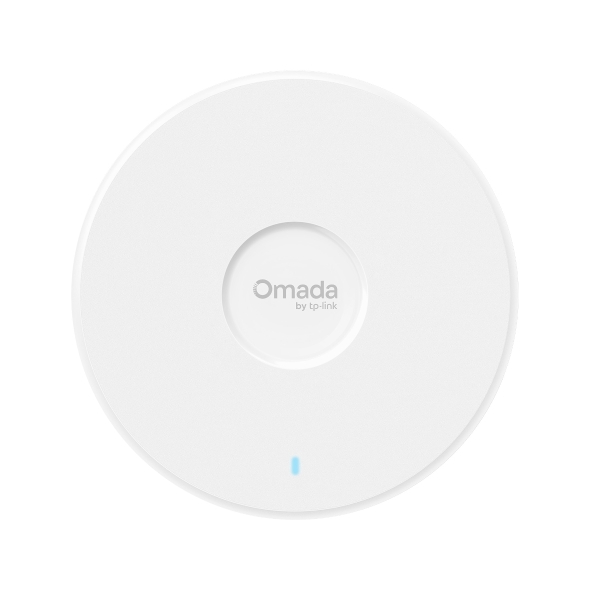

TP-Link Omada EAP787 BE15000 Wi-Fi 7 - Wireless access point

The TP-Link Omada EAP787 is a tri-band Wi-Fi 7 access point designed for high-density business environments. It provides a maximum combined wireless speed of 15,000 Mbit/s across the 2.4 GHz, 5 GHz, and 6 GHz bands. Individual frequency rates reach 688 Mbit/s on 2.4 GHz, 8,648 Mbit/s on 5 GHz, and 5,765 Mbit/s on 6 GHz. The device uses 320 MHz channels and 4K-QAM modulation to support high data throughput for compatible client devices.

Wired connectivity is provided by a 10 Gigabit Ethernet port for high-speed backhaul. The unit supports power via PoE or a 12V DC connection, allowing for ceiling or wall installation. Security features include WPA3-Enterprise and guest access with VLAN tagging for traffic isolation. Management options include the configuration of bandwidth control and IP address filtering. The device is equipped with eight internal antennas and a status LED. Features such as MU-MIMO and beamforming optimize wireless performance for multiple users.

• Maximum Coverage: 190 m²
• Device Capacity: 510 concurrent users
• Wi-Fi Standards: IEEE 802.11a/b/g/n/ac/ax/be
• Mesh Technology: Intelligent Mesh support
• Wired Interface: 1x 10 Gigabit Ethernet RJ-45 port
• Hardware Controls: Integrated reset button
• Management: Web-based control with DHCP client support
• Certifications: Wi-Fi 7 (R1), Wi-Fi 6E, and WPA3-R3
