No price development information for this product.
This product is end of life or currently not available.
Key Specifications
Choose one or multiple features to search for items that have the same specifications.Processor | |
Graphics processor | NVS 510 |
Maximum resolution | 3840 x 2160 pixels |
Maximum digital resolution | 3840 x 2160 pixels |
Maximum displays per videocard | 4 |
CUDA | |
CUDA cores | 192 |
Graphics processor family | NVIDIA |
FireStream | |
Memory | |
Graphics card memory type | GDDR3 |
Memory bus | 128 bit |
Memory bandwidth (max) | 28.5 GB/s |
Discrete graphics card memory | 2 GB |
System requirements | |
Windows operating systems supported | Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 |
Ports & interfaces | |
Interface type | PCI Express x16 |
Mini DisplayPorts quantity | 4 |
DisplayPort version | 1.2 |
Weight & dimensions | |
Height | 69 mm |
Width | 160 mm |
Energy management | |
Power consumption (typical) | 35 W |
Design | |
Number of slots | 1 |
Product colour | Black, Green |
Cooling type | Active |
Performance | |
TV tuner integrated | |
Full HD | |
DirectX version | 11 |
OpenGL version | 4.3 |
Shader model version | 5.0 |
Dual Link DVI | |
HDCP | |
PhysX | |
EAN | 3536403342838 |
Warranty | 1 year |
Source: Icecat.biz |

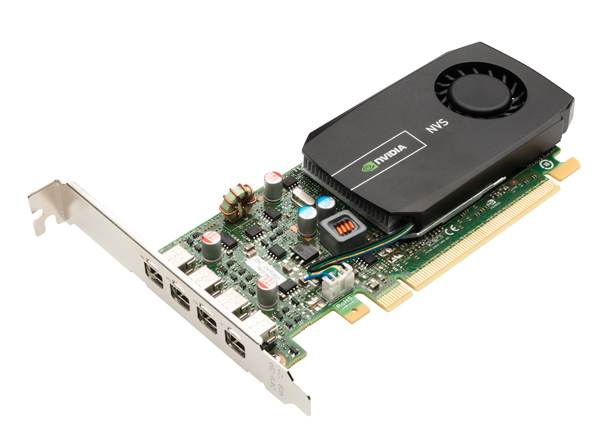

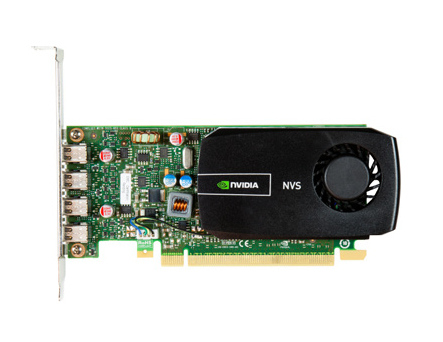

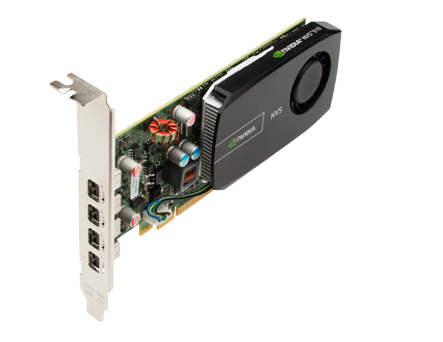

Reliably visualize any data across four displays with the energy‑efficient NVIDIA® NVS™ 510 business graphics solution.
The NVIDIA NVS 510 gives you the latest graphics and display technologies—plus industry-leading, multi-display management capabilities—in an energy-efficient, low-profile form factor. This makes it the ideal graphics solution for professionals who need to visualize and digest a great deal of information in the financial trading, command and control, and digital-signage markets.

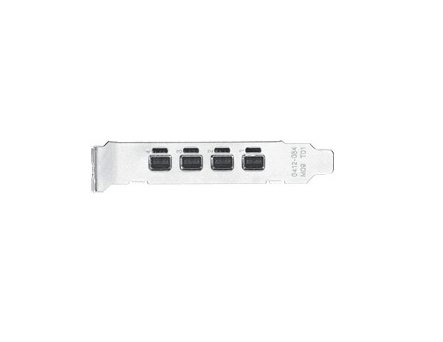

The NVIDIA NVS 510 features four compact mini DisplayPort connectors with a custom built-in retention mechanism, delivering ultra-high resolutions up to 3840x2160 @ 60 Hz1. It also supports advanced DisplayPort 1.2 features like Multi Stream Technology and Stream Cloning2, which enables efficient cable management, as well as cost-effective multi-display installations. The NVS 510 is based on the latest NVIDIA Kepler™ GPU technology and configured with 2 GB of dedicated high-performance graphics memory. This means you get more than 3x the performance of previous-generation NVS solutions, without increasing overall power consumption.
Along with NVIDIA’s Unified Driver Architecture (UDA) and suite of enterprise management tools, the NVS 510 offers a highly reliable solution for seamless wide-scale deployment and simplified resource management. Its ultra-quiet active-cooling technology and low-profile form factor give IT administrators the freedom to fit multiple NVS 510 cards into space- and powerconstrained systems or existing installations.
