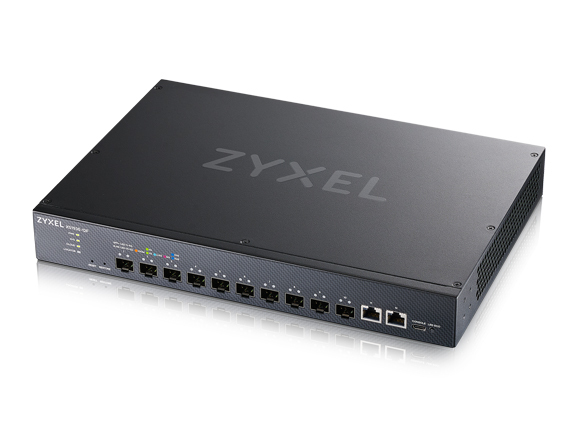

Zyxel XS1935-12F - Smart Managed Layer 3 Fiber Switch

The Zyxel XS1935-12F is a Layer 3 smart managed switch featuring ten 10G SFP+ fiber ports and two multi-Gigabit RJ-45 ports. It acts as an aggregation point for high-speed backbone connections and provides copper connectivity for diverse hardware. With a 240 Gbit/s switching capacity, the device manages heavy network traffic. Integrated IP routing and static route support allow the switch to handle inter-VLAN communication locally, reducing the load on core routers.

This non-PoE switch focuses on high-speed data transit and traffic management. Administrators can configure the unit through a local web interface or a cloud management platform. The 2.2 kg metal chassis is 330 mm wide and rack-mountable. Front-facing, five-colour LED indicators display the connection speed for each port. The switch has a peak power consumption of 24.9 W.

• Forwarding rate of 178.5 Mpps.
• Multi-Gigabit RJ-45 ports supporting 100, 1000, 2500, 5000, and 10000 Mbit/s.
• MAC address table capacity of 16,000 entries.
• Mean time between failures (MTBF) of 443,496 hours.
• Chassis dimensions of 230 mm (depth) and 44 mm (height) for a standard 1U rack footprint.
