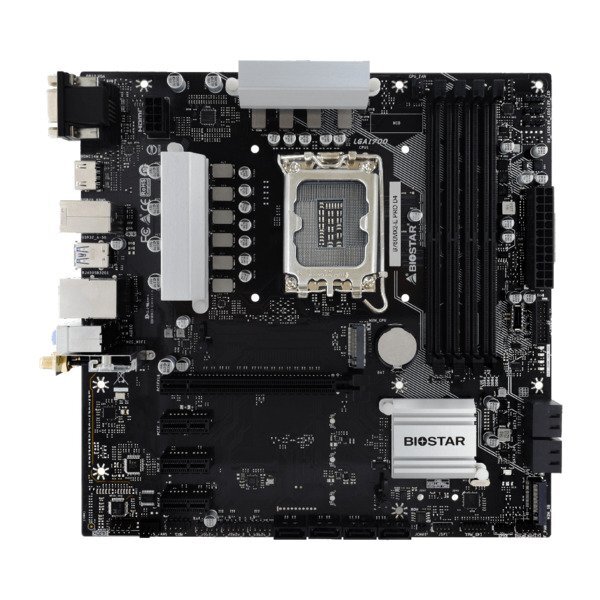

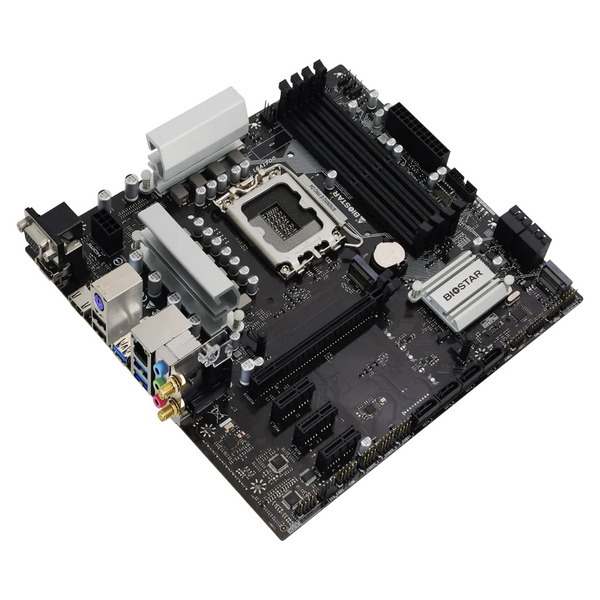

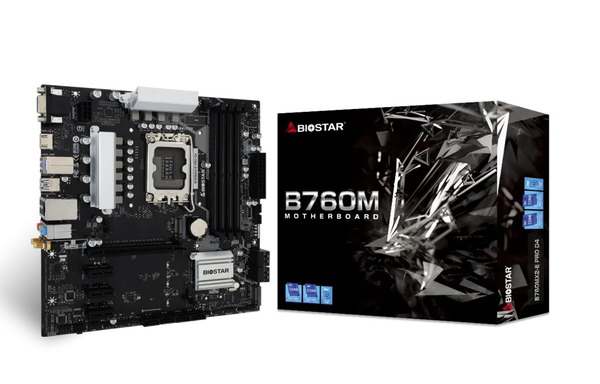

Biostar B760MX2-E PRO D4 DDR4 LGA1700 mATX Motherboard

This Micro ATX motherboard, built around the Intel B760 Express chipset, is designed for compact desktop PCs. It features an LGA1700 socket for compatible Intel Core processors. The layout balances a compact form factor with essential expansion options. A primary PCIe 4.0 x16 slot supports discrete graphics cards, while a secondary PCIe x1 slot allows for additional expansion cards, such as capture or sound cards. For integrated CPU graphics, the rear panel includes one DisplayPort and one HDMI 1.4 port for monitor connectivity.

The board supports up to 128 GB of memory across four unbuffered DDR4 DIMM slots. Dual-channel configurations can reach clock speeds of up to 4600 MHz, depending on the processor. Despite its compact footprint, the board includes two M.2 NVMe slots for fast storage, alongside eight SATA III connectors operating at 6 Gb/s for larger data arrays. Onboard audio is provided by the Realtek ALC897 codec, which supports standard front and rear outputs. Network connectivity is handled by a single RJ-45 Gigabit Ethernet port.

• Three rear USB 3.2 Gen 1 Type-A ports and two USB 2.0 ports provide connectivity for external drives and peripherals.
• One internal USB 3.2 Gen 1 header and three USB 2.0 headers enable front-panel connectivity.
• Hardware RAID support (levels 0, 1, 5, and 10) allows for advanced storage configurations and data redundancy.
• Standard 24-pin ATX and 8-pin EPS 12V power connectors handle system power requirements.
• Two onboard fan headers provide power and control for one CPU cooler and one chassis fan.
• Dedicated headers for TPM and RGB LED lighting allow for the installation of security modules and custom lighting setups.
