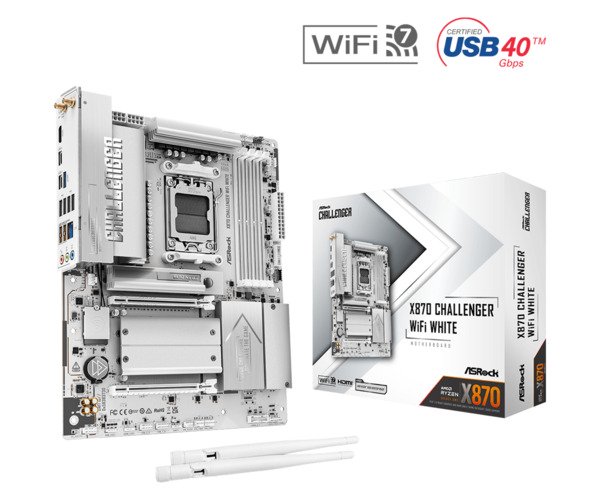

ASRock X870 Challenger WiFi White AM5 ATX Motherboard

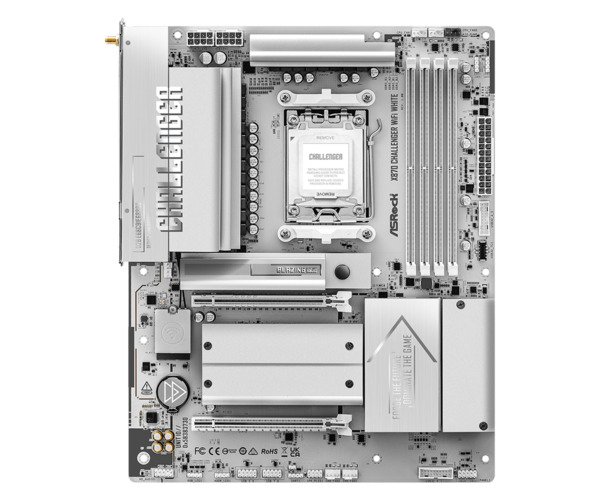

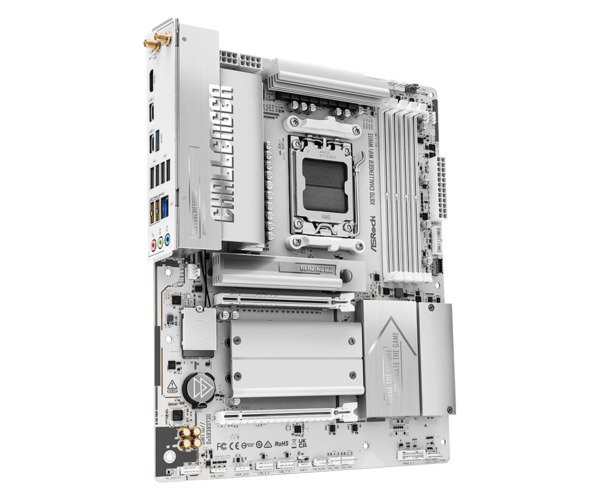

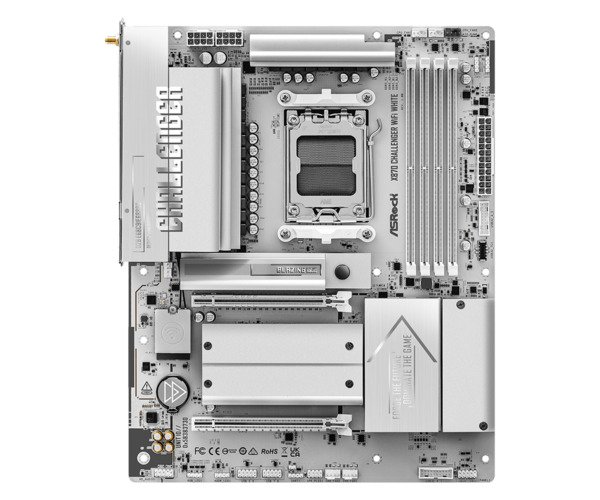

Built on the AMD X870 chipset, the ASRock X870 Challenger WiFi White AM5 ATX motherboard supports AMD Ryzen 9000, 8000, and 7000 Series processors via the AM5 socket. The board features four DDR5 DIMM slots in a dual-channel configuration, supporting both unbuffered ECC and non-ECC modules. Two x16 expansion slots are available, with the primary slot providing PCIe Gen 5 bandwidth for graphics cards. Storage is handled by four M.2 NVMe slots compatible with 2230 and 2280 form factor solid-state drives.

Connectivity includes a 2.5 Gigabit Ethernet port, integrated Wi-Fi 7, and Bluetooth 5.4 for wireless peripherals. Audio processing is provided by a Realtek ALC897 chip with standard front-panel connections. The board features one dedicated CPU fan header, three chassis fan headers, and a clear CMOS button. An HDMI 2.1 port on the rear I/O panel supports processors with integrated graphics. The package includes two SATA cables and Wi-Fi antennas.

• Maximum memory capacity of 256 GB
• Memory clock support up to 8000 MHz
• Two SATA III connectors with support for RAID 0, 1, and 10

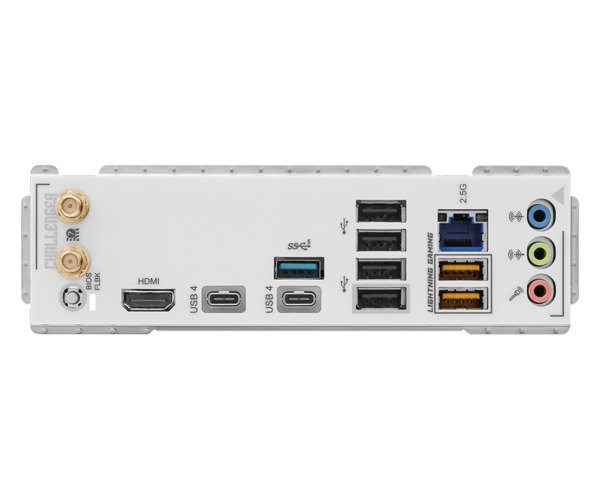

• Nine rear USB ports, including USB 3.2 Gen 2 Type-A and Type-C
• Internal connectivity includes two USB 2.0 headers, two USB 3.2 Gen 1 headers, and one RGB LED header
• Standard power delivery via 24-pin ATX, 8-pin EPS, and 12V connectors
• Integrated TPM connector for hardware security module installation
