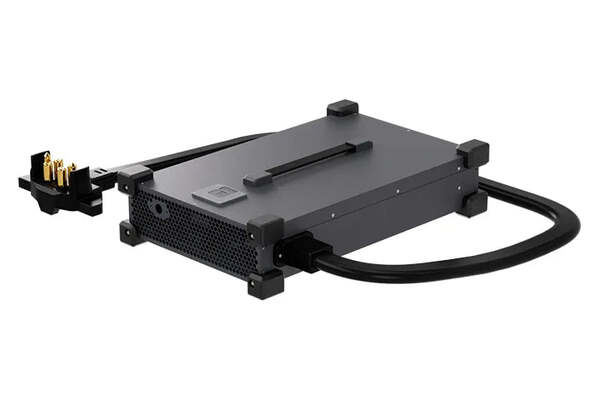

DJI C12000 Intelligent Power Supply (EMC)

The DJI C12000 Intelligent Power Supply (EMC) is a mains-powered charging unit for professional DJI Agras agricultural drone operations. It supports Agras T100 and T70P systems, specifically the DB1580 and DB2160 Intelligent Flight Batteries. Its primary role is rapid charging and power management during repeated agricultural drone field work. Maximum output is rated at 12,000 W, making it suitable for demanding battery turnaround schedules. The unit is intended for integration into charging stations rather than onboard use.

The unit weighs 13.13 kg and measures 291 mm wide, 107 mm high and 456 mm deep. Three-phase input accepts 175–520 V, covering a broad supply range at supported sites. Single-phase operation is also supported from 200–264 V. This dual mains arrangement provides two documented input options when planning electrical infrastructure. The charging system is specified for 62 V battery operation. Ambient operating temperature is rated from 0 °C to 40 °C, which should be checked against field conditions.

• Over-temperature protection: monitors excessive operating heat
• Over-voltage and under-voltage protection: addresses irregular supply conditions
• Short-circuit protection: safeguards the charging system against electrical faults
• Fan-stall protection: detects interruption to active cooling
• Over-charge protection: manages charging limits for connected batteries
• One power supply per pack
