Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor cores | 10 |
| Processor threads | 12 |
| PCI Express slots version | 4.0 |
| Number of processors supported | 1 |
| Processor boost frequency | 4.7 GHz |
| Processor cache | 12 MB |
| Processor frequency | 4.7 GHz |
| Memory | |
| Internal memory type | DDR5 |
| Memory slots | 2 |
| ECC |  |
| Memory form factor | SO-DIMM |
| Maximum RAM supported | 64 GB |
| Internal memory | 16 GB |
| Ports & interfaces | |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Concurrent connections | 512 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB port |  |
| Weight & dimensions | |
| Weight | 7.9 kg |
| Package weight | 10 kg |
| Height | 334 mm |
| Width | 163 mm |
| Depth | 295 mm |
| Package depth | 370 mm |
| Package height | 437 mm |
| Package width | 235 mm |
| Energy management | |
| Power consumption (typical) | 115 W |
| Number of power supply units | 1 |
| Redundant power supply (RPS) support | |
| AC input frequency | 50 / 60 Hz |
| AC input voltage | 100-240 V |
| Power consumption (max) | 115 W |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 500 W |
| Power consumption (HDD standby) | 34 W |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 5 - 40 °C |
| Networking | |
| Supported network protocols | CIFS/SAMBA, NFS, FTP, TFTP, HTTPS, SSH, iSCSI, SNMP, SMTP |
| Ethernet LAN | |
| Wake-on-LAN ready | |
| Wi-Fi | |
| Link aggregation | |
| Ethernet LAN data rates | 10000 Mbit/s |
| iSCSI support | |
| Dynamic DNS (DDNS) | |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| Storage | |
| RAID levels | 0, 1, 6, 10, JBOD |
| Supported file systems | BTRFS, FAT32, HFS+, NTFS, ext3, ext4 |
| RAID support | |
| Storage drive interface | Serial ATA |
| Number of storage drives supported | 12 |
| Storage drive sizes supported | 2.5,3.5" |
| Storage drives installed | |
| Maximum supported storage capacity | 264 TB |
| Number of storage drives installed | 0 |
| Installed storage drive type | |
| Supported storage drive types | HDD & SSD |
| Hot-swap drive bays | |
| Storage drive capacity | 0 GB |
| Supported storage drive interfaces | Serial ATA |
| Online RAID migration | |
| Number of M.2 (M & B) slots | 2 |
| Total installed storage capacity | 0 TB |
| Operating system/software | |
| Mac compatibility | |
| Windows operating systems supported | |
| Mac operating systems supported | |
| Linux operating systems supported | |
| Packaging content | |
| Cables included | AC, LAN (RJ-45) |
| External power adapter | |
| Other features | |
| Warranty period | 3 year(s) |
| Compliance certificates | CE, China Compulsory Certification (CCC), Federal Communications Commission (FCC), KC, RoHS, WEEE |
| Design | |
| Chassis type | Mini Tower |
| LED indicators | HDD, LAN, Power |
| Product colour | Grey |
| Number of fans | 3 fan(s) |
| Cooling type | Active |
| Fan diameter | 9.2 cm |
| Built-in display | |
| Fan diameter 2 | 9.2 cm |
| Performance | |
| Type | NAS |
| Security algorithms | AES, HTTPS, SNMP, SSH |
| Management protocols | SNMP |
| Browser supported | Google Chrome, Mozilla Firefox, Apple Safari, Microsoft Edge |
| Number of users | 2048 user(s) |
| Noise level | 24.5 dB |
| Snapshot | |
| Web-based management | |
| Access Control List (ACL) | |
| Multilingual support | |
| On/off switch | |
| S.M.A.R.T. support | |
| Universal Plug and Play (UPnP) | |
| Device class | Home & Home Office |
| Backup function | |
| Backup features | Cloud, USB drive |
| Built-in FTP server | |
| System log | |
| Hot spare | |
| Disk scan | |
| Share folder | 512 |
| Share folder access right management | |
| EAN | 6939236145329 |

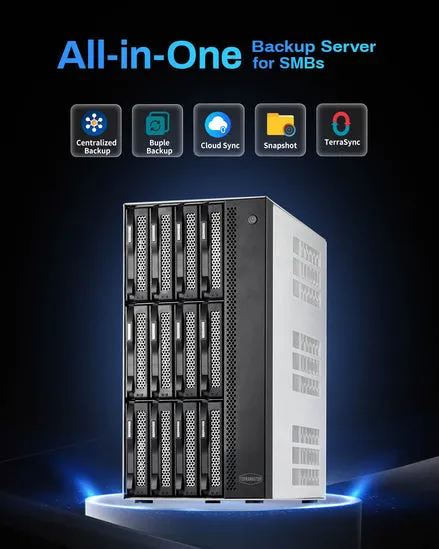

The TERRAMASTER T12-500 Pro 12-Bay NAS File Server, Intel Core i7, 16GB DDR5 is a desktop network storage enclosure designed for centralised file management in small office environments. It ships without drives, allowing configuration with 2.5-inch or 3.5-inch SATA HDDs and SSDs across its 12 hot-swappable bays. A 10-core Intel Core i7 processor with a 4.7 GHz boost frequency handles workloads, paired with 16 GB of DDR5 memory in a two-slot configuration. This hardware allows the system to manage up to 2,048 user accounts and 512 concurrent connections. Administrators can configure the array using RAID 0, 1, 6, 10, or JBOD, with support for online RAID migration to protect data integrity.
Built into a mini tower chassis, the enclosure relies on active cooling via three 92 mm fans that maintain a stated noise level of 24.5 dB. Two M.2 slots are available for SSD caching to accelerate storage performance, while a 500 W built-in power supply draws approximately 115 W during typical operation. The rear panel includes three USB 3.2 Gen 1 Type-A ports for external drives and an HDMI 2.0 port for direct display output. TerraMaster's TOS operating system provides browser-based administration accessible through standard web browsers. The system supports iSCSI, SMB/CIFS, and NFS protocols, ensuring compatibility with Windows, macOS, and Linux clients. Backup features include cloud synchronisation, USB-drive backups, and snapshot management for data recovery.
Key Features:- 264 TB maximum storage capacity: supports extensive data retention across all drive bays.
- Two 10GbE Ethernet ports: enables high-speed network access and link aggregation for increased throughput.
- 12 MB processor cache: reduces latency for frequently accessed data processing.
- Hot-spare functionality: automatically rebuilds data arrays using designated backup drives when a failure occurs.
- Btrfs, FAT32, HFS+, NTFS, ext3, and ext4 support: ensures cross-platform formatting flexibility.
- Wake-on-LAN readiness: allows remote power activation of the device over the network.
