Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor cores | 10 |
| Processor threads | 12 |
| Number of processors supported | 1 |
| Processor boost frequency | 4.7 GHz |
| On-board graphics card model | Intel Iris Xe Graphics |
| Processor cache | 12 MB |
| Processor frequency | 2.4 GHz |
| Processor cache type | Smart Cache |
| Maximum internal memory supported by processor | 64 GB |
| Memory | |
| Internal memory type | DDR5 |
| Memory slots | 2 |
| ECC |  |
| Memory form factor | SO-DIMM |
| Maximum RAM supported | 64 GB |
| Internal memory | 16 GB |
| Ports & interfaces | |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 3 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Fiber ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB port |  |
| Weight & dimensions | |
| Weight | 6.5 kg |
| Package weight | 8.6 kg |
| Height | 334 mm |
| Width | 135 mm |
| Depth | 295 mm |
| Package depth | 370 mm |
| Package height | 437 mm |
| Package width | 235 mm |
| Energy management | |
| Power consumption (typical) | 31 W |
| Number of power supply units | 1 |
| Output voltage | 12 V |
| Redundant power supply (RPS) support | |
| AC input frequency | 50 / 60 Hz |
| AC input voltage | 100-240 V |
| Power consumption (max) | 100 W |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 250 W |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 5 - 40 °C |
| Networking | |
| Supported network protocols | CIFS/SAMBA, NFS, FTP, TFTP, HTTPS, SSH, iSCSI, SNMP, SMTP |
| Ethernet LAN | |
| Wake-on-LAN ready | |
| Wi-Fi | |
| Link aggregation | |
| Jumbo frames support | |
| DHCP client | |
| DHCP server | |
| Ethernet LAN data rates | 1000 Mbit/s |
| iSCSI support | |
| Dynamic DNS (DDNS) | |
| Storage | |
| RAID levels | 0, 1, 6, 10, JBOD |
| Supported file systems | BTRFS, FAT32, HFS+, NTFS, ext3, ext4 |
| RAID support | |
| Storage drive interface | Serial ATA |
| Number of storage drives supported | 9 |
| Storage drive sizes supported | 2.5,3.5" |
| Storage drives installed | |
| Maximum supported storage capacity | 216 TB |
| Number of storage drives installed | 0 |
| Installed storage drive type | |
| Supported storage drive types | HDD & SSD |
| Hot-swap drive bays | |
| Storage drive capacity | 0 GB |
| Supported storage drive interfaces | Serial ATA |
| Online RAID migration | |
| Bad block scan | |
| Number of M.2 (M & B) slots | 2 |
| RAID rebuild | |
| Total installed storage capacity | 0 TB |
| Certificates | |
| Digital Living Network Alliance (DLNA) certified | |
| Operating system/software | |
| Mac compatibility | |
| Windows operating systems supported | |
| Mac operating systems supported | |
| Linux operating systems supported | |
| Packaging content | |
| Cables included | AC, LAN (RJ-45) |
| External power adapter | |
| Other features | |
| Power management | |
| Compliance certificates | CE, China Compulsory Certification (CCC), Federal Communications Commission (FCC), KC, RoHS, WEEE |
| Design | |
| Chassis type | Desktop |
| Cable lock slot | |
| LED indicators | HDD, LAN, Power |
| Product colour | Grey |
| Number of fans | 3 fan(s) |
| Cooling type | Active |
| Fan diameter | 9.2 cm |
| Built-in display | |
| Graphics | |
| On-board graphics card dynamic frequency (max) | 1250 MHz |
| Performance | |
| Type | NAS |
| Security algorithms | AES, HTTPS, SNMP, SSH |
| Management protocols | SNMP |
| Browser supported | Google Chrome, Mozilla Firefox, Apple Safari, Microsoft Edge |
| Number of users | 2048 user(s) |
| Noise level | 22.5 dB |
| Buzzer | |
| Snapshot | |
| Web-based management | |
| Access Control List (ACL) | |
| Reset button | |
| Multilingual support | |
| On/off switch | |
| S.M.A.R.T. support | |
| Universal Plug and Play (UPnP) | |
| Device class | Home & Home Office |
| Backup function | |
| Backup features | Cloud, USB drive |
| Built-in FTP server | |
| System log | |
| Hot spare | |
| Password authentication | |
| Disk scan | |
| Share folder | 512 |
| Share folder access right management | |
| Third-party support | |
| EAN | 6939236145275 |

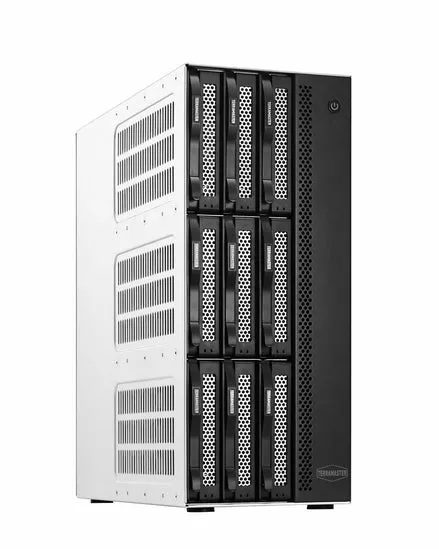

The TERRAMASTER T9-500 Pro is a 9-bay desktop NAS designed for centralised file storage and backup in home-office and small-business settings. It ships without storage drives, allowing configuration with compatible 2.5-inch or 3.5-inch SATA HDDs or SSDs up to a maximum capacity of 216 TB. A 10-core Intel Core i7 processor boosting up to 4.7 GHz and 16 GB of DDR5 SO-DIMM memory power the enclosure. The memory is expandable up to 64 GB across two slots. Storage configurations include RAID 0, 1, 6, 10, and JBOD, with support for hot-swappable drive bays and online RAID migration. Three Gigabit Ethernet ports are available, supporting link aggregation for improved network throughput.

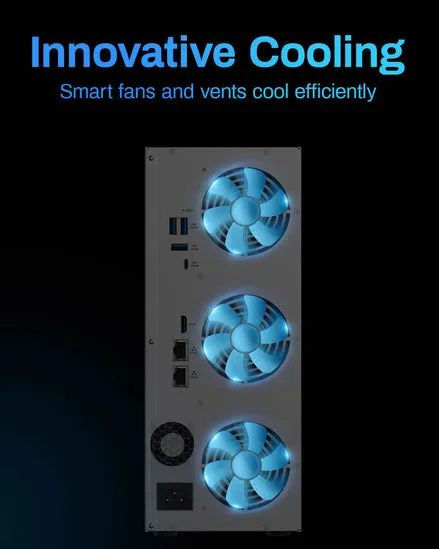

Active cooling relies on three 92 mm fans, keeping noise levels at 22.5 dB during typical operation. A built-in 250 W power supply provides electricity, with typical consumption around 31 W. Connectivity includes three USB 3.2 Gen 1 Type-A ports and an HDMI 2.0 output for direct display attachment. The NAS supports a range of network protocols including CIFS/SMB, NFS, FTP, and iSCSI, ensuring compatibility with Windows, macOS, and Linux clients. The installed TOS operating system provides web-based management, access control lists, and S.M.A.R.T. monitoring. Up to 2,048 concurrent user connections and 512 shared folders handle collaborative access.
Key Features:- Base processor frequency: 2.4 GHz for standard computing loads
- Integrated graphics: Intel Iris Xe Graphics with dynamic frequency up to 1250 MHz
- M.2 slots: 2 slots available for NVMe SSD installation
- Security: AES, HTTPS, SNMP, and SSH encryption algorithms
- Dynamic DNS: Built-in DDNS support for remote domain routing
- Wake-on-LAN: Ready for remote network activation
