Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
| Ports & interfaces | |
| Motherboard power connector | 20+4 pin ATX |
| Floppy drive power connector | 1 |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| EPS power connector (8-pin) |  |
| PCI Express power connectors (6+2 pin) | 4 |
| Cabling type | Semi-Modular |
| Weight & dimensions | |
| Height | 87 mm |
| Width | 160 mm |
| Depth | 150 mm |
| Energy management | |
| Nominal power | 750 W |
| Power protection features | Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage |
| Power factor | 0.9 |
| Frequency tolerance | 90% |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 744 W |
| Combined power (+5V) | 120 W |
| Combined power (+5Vsb) | 2.5 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 220 - 240 V |
| Max output current (+12V1) | 62 A |
| Cooling | |
| Number of fans | 1 |
| Fan diameter | 14 cm |
| Fan location | Top |
| Design | |
| Product colour | Black |
| Performance | |
| Form factor | PS2 |
| Purpose | PC |
| ATX version | 2.3 |
| EAN | 4710713230842 |
| Warranty | 1 year |

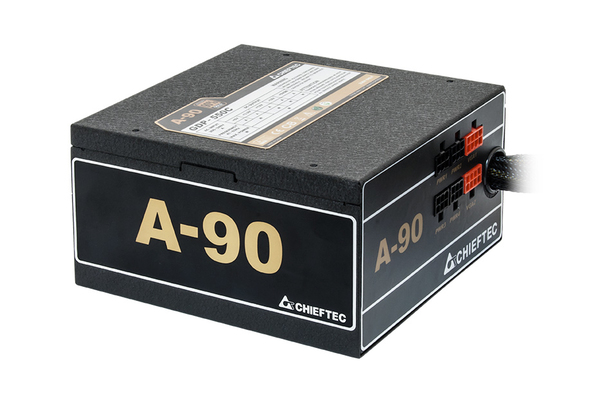

Efficiency at low cost, that’s the reason, why the new A-90 series from CHIEFTEC has been invented. The three high performance PSU’s cover with their nominal power output of 550 watts – 750 watts all kinds of usage possibilities. With a fixed output voltage of 230 V, this power supply series is especially made for cost-aware computer consumers. The PSU’s have an efficiency of >90% and thus meet the 80plus gold requirements.
