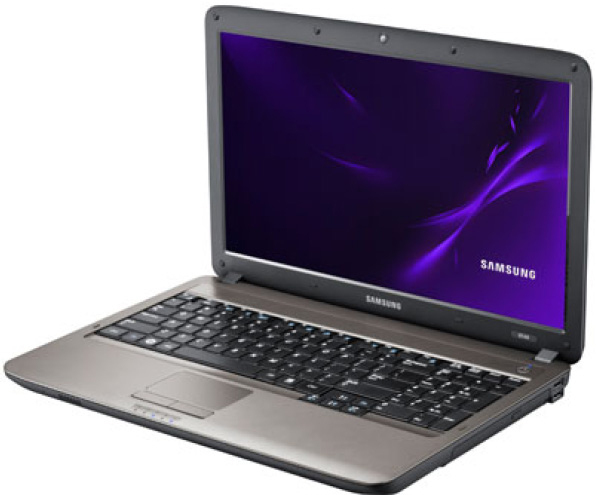

R540 15.6"/P6100/4/320/CAM/W7HP

Manufacturer: SAMSUNG
ID: NP-R540-JA03SE
Product unavailable
This product is end of life or currently not available.
Specifications
Description
Store availability
Delivery
Price development
Processor
Processor modelP6100
Processor lithography32 nm
Processor familyIntel Pentium
Processor socketPGA988
SteppingK0
Processor cores2
CPU multiplier (bus/core ratio)15
System bus rate2.5 GT/s
Processor threads2
PCI Express slots version2.0
Processor operating modes32-bit, 64-bit
Processor cache3 MB
Number of Processing Die Transistors382 M
Tjunction90 °C
FSB Paritycross
Processing Die size81 mm²
Bus typeDMI
PCI Express configurations1x16
Processor frequency2 GHz
Thermal Design Power (TDP)35 W
Processor codenameArrandale
Maximum number of PCI Express lanes1
Processor cache typeSmart Cache, L3
Processor seriesIntel Pentium P6000 series for Mobile
Maximum internal memory supported by processor8 GB
Memory types supported by processorDDR3-SDRAM
Memory clock speeds supported by processor800,1066 MHz
Memory bandwidth supported by processor (max)17.1 GB/s
Memory channels supported by processorDual
ECC supported by processorcross
Conflict-Free processorcross
Memory
Internal memory typeDDR3-SDRAM
Memory slots2x SO-DIMM
Internal memory4 GB
Optical drive
Optical drive typeDVD-RW
Display
Aspect ratio16:9
Display diagonal39.6 cm (15.6")
Display resolution1366 x 768 pixels
LED backlightcheckmark
Display surfaceGloss
Audio
Speaker power1.5 W
Number of built-in speakers2
Ports & interfaces
USB 2.0 ports quantity3
Ethernet LAN (RJ-45) ports1
Headphone outputs1
Microphone incheckmark
S/PDIF out portcross
DC-in jackcheckmark
TV out portcross
DVI portcross
CardBus PCMCIA slot typecross
SmartCard slotcross
VGA (D-Sub) ports quantity1
ExpressCard slotcross
HDMI ports quantity1
Docking connectorcross
Weight & dimensions
Weight2.4 kg
Width38 cm
Depth25.6 cm
Height (front)3.24 cm
Height (rear)3.83 cm
Energy management
AC adapter power60 W
Networking
Networking featuresFast Ethernet
Bluetoothcross
Wi-Ficheckmark
3Gcross
Storage
HDD speed5400 RPM
Compatible memory cardsMMC, SD, SDHC
HDD interfaceSATA
Total storage capacity320 GB
Card reader integratedcheckmark
Packaging data
AC adapter includedcheckmark
Security
Cable lock slotKensington
Operating system/software
Bundled softwareAdobe Acrobat Reader
Easy Battery Manager
Easy Display Manger
Easy Network Manager
Easy SpeedUp Manager
Samsung Support Center
Samsung Update Plus
Operating system installedWindows 7
Battery
Battery capacity4000 mAh
Number of battery cells6
Other features
Internal modemcross
TypePC
Infrared data portcross
TV-in portcross
Design
Product colourBlack
Graphics
On-board graphics card modelIntel HD Graphics
On-board graphics card base frequency500 MHz
On-board graphics card dynamic frequency (max)667 MHz
Number of displays supported (on-board graphics)2
Processor special features
Processor codeSLBUR
Intel® My WiFi Technology (Intel® MWT)cross
Intel® Anti-Theft Technology (Intel® AT)cross
Intel® vPro™ Technologycross
Intel® Hyper Threading Technology (Intel® HT Technology)cross
Intel® Turbo Boost Technologycross
Intel® Quick Sync Video Technologycross
Intel® InTru™ 3D Technologycross
Intel® Wireless Display (Intel® WiDi)cross
Intel FDI Technologycheckmark
Intel® Clear Video HD Technology (Intel® CVT HD)checkmark
Intel Dual Display Capable Technologycheckmark
Intel® Insider™cross
Intel Fast Memory Accesscheckmark
Intel Flex Memory Accesscheckmark
Intel® AES New Instructions (Intel® AES-NI)cross
Enhanced Intel SpeedStep Technologycheckmark
Execute Disable Bitcheckmark
Idle Statescheckmark
Thermal Monitoring Technologiescheckmark
Intel Trusted Execution Technologycross
CPU configuration (max)1
Intel Enhanced Halt Statecheckmark
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)checkmark
Intel VT-x with Extended Page Tables (EPT)cross
Embedded options availablecross
Intel Demand Based Switchingcross
Intel Rapid Storage Technologycross
Graphics & IMC lithography45 nm
Intel 64checkmark
Intel Virtualization Technology for Directed I/O (VT-d)cross
Intel Clear Video Technologycheckmark
Physical Address Extension (PAE)36 bit
Processor package size37.5
Performance
TV tuner integratedcross
EAN8806071130071
Warranty2 years
Something as powerful, fashionable and reliable as the Samsung R540 shouldn’t be so affordable. But it is. Designed to enhance your unique sense of style with optional patterns and colors to choose as well as comfortably fit your on-the-go lifestyle with its ergonomic engineering and durable casing, this mobile computer is truly a great all-around value. And the casing, engineered to reduce the risk of scratches and fingerprints, ensures that it keeps its cool, smooth looks. Factor in its outstanding graphic performance and you’ll see exactly how valuable an experience owning the R540 can be.

Designed for great value
The R540 offers all the high-end style you’re looking for, without the high price tag. It’s available in elegant hairline or small diamond patterns. Worried about reliability? Relax, the majority of its components are manufactured by Samsung so you know you’re getting nothing but the best. And its long battery life keeps you up and running for hours on end. The R540 delivers more style, makes sure you have less to carry and is completely budget-friendly.

Crafted for style and safety
Because a life on the go can often trip you up, the Samsung R540 was crafted to not let you down. In fact, its high quality craftsmanship extends as much to its exterior as to its high performance inner workings. Built to withstand bumps and knocks, the R540 comes with a robust, durable casing designed to keep its contents safe and sound as well as reduce the risk of scratches and fingerprints. And its ergonomic, stylish design makes it as coolly eye-catching as it is reliable.

A picture that’s close to perfection
The R540’s 16:9 aspect ratio immerses you in games and movies with an accurate representation — so you don’t have annoying black bands crowding your picture. You’ll watch movies the way they were meant to be seen. And see images that are fine-tuned with the sharpest details and boldest colors on a 15.6" HD LED display. An added bonus? It uses less power, so you can be entertained longer. Get more out of your on-the-go entertainment and enjoy a bigger, better picture.
