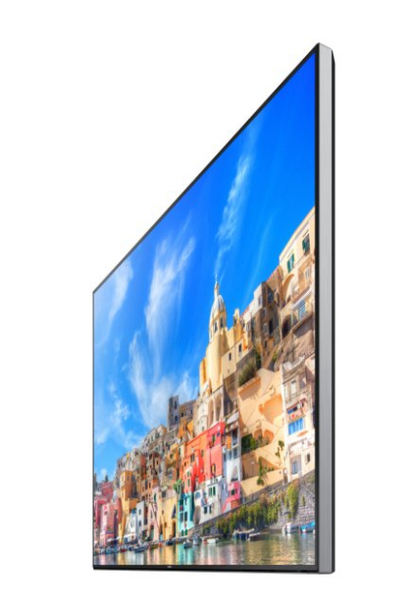

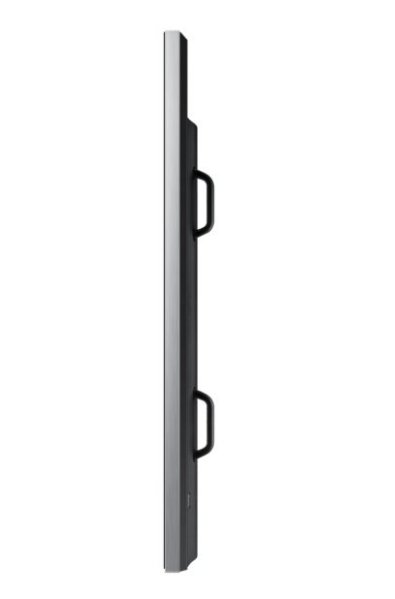

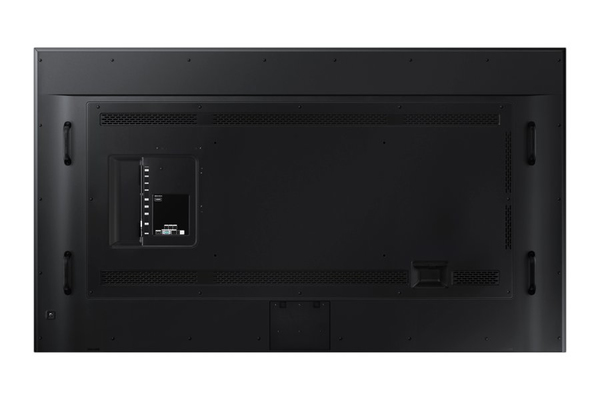

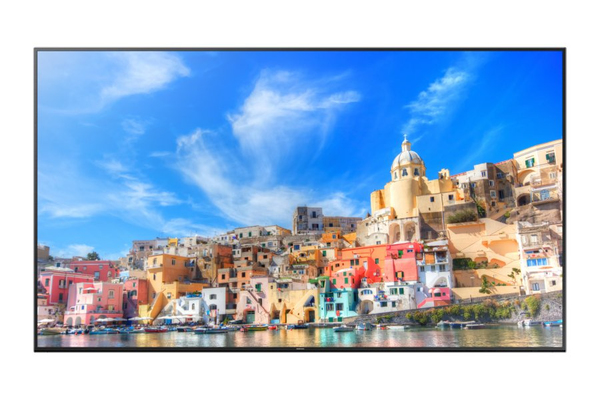

SAMSUNG 85" QM85D UHD VGA/DVI/2XDP/HDMI

Manufacturer: SAMSUNG
ID: LH85QMDPLGC/EN
Product unavailable
This product is end of life or currently not available.

Key Specifications

Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
Display
Pixel pitch0.1625 x 0.1625 mm
Contrast ratio (typical)5000:1
Viewing angle, horizontal178°
Viewing angle, vertical178°
Display diagonal2.16 m (85")
Display brightness450 cd/m²
Response time6 ms
Display resolution4K 3840 x 2160 pixels
Touchscreencross
LED backlighting typeDirect-LED BLU
Display typeLED
Native aspect ratio16:9
HD type4K Ultra HD
Colour gamut72%
Active display area (W x H)1053 x 1872 mm
Display number of colours16.78 million colours
Audio
RMS rated power30 W
Built-in speaker(s)checkmark
Number of speakers2
Ports & interfaces
Ethernet LANcross
DVI portcheckmark
DVI-D ports quantity1
Audio (L/R) in1
Audio (L/R) out1
HDMI ports quantity3
DisplayPorts quantity2
HDMI in3
VGA (D-Sub) input ports1
USB portcross
Weight & dimensions
Weight55.5 kg
Height905 mm
Width1903.4 mm
Depth105.1 mm
Energy management
Power consumption (typical)375 W
Energy Star certifiedcheckmark
Power consumption (off)0.5 W
Power consumption (standby)0.5 W
Energy efficiency classC
Power consumption (sleep)0.5 W
AC input frequency50/60
AC input voltage100 - 240
Operational conditions
Operating relative humidity (H-H)10 - 80%
Operating temperature (T-T)0 - 40 °C
Packaging data
Package weight71.4 kg
Remote control includedcheckmark
Cables includedAC, DisplayPort
Package depth472 mm
Package height1265 mm
Package width2050 mm
Quick start guidecheckmark
Warranty cardcheckmark
Batteries includedcheckmark
Other features
Annual energy consumption409 kWh
Power consumption (max)495 W
DisplayPort version1.2
Peak luminance ratio81%
Bezel width1.32 cm
Design
CertificationClass A
Product colourBlack
Panel mounting interface600 x 400 mm
Product designDigital signage flat panel
Bezel width (bottom)1.93 cm
VESA mountingcheckmark
Performance
Plug and Playcheckmark
Operating hours (hours/days)16/7
Computer system
Computer systemcross
EAN8806086288675
Warranty1 year
Source: Icecat.biz

Display content with ultra-realistic detail in vibrant colors
QMD Series SMART Signage delivers four times the FHD resolution on the same screen area, resulting in the most accurate recreation of details possible. Even small text is super-crisp without blurring due to its high pixel density. Samsung's upscaling technology adjusts lower resolution content to optimally display on the UHD resolution QMD Series screens. Plus, the QMD Series supports DisplayPort® (DP) 1.2 connectivity, which is capable of streaming UHD video at a refresh rate of 60 Hz. This higher refresh rate ensures seamless video playback without choppiness, which is often observed on conventional displays with a lower 30 Hz refresh rate, for a true UHD viewing experience. The QMD Series also provides more vivid images thanks to its high-gloss screens and Samsung’s advanced display technology.

Enhance efficiency by displaying content from four FHD screens on a single UHD display
With the QMD Series you can deliver more information using a smaller number of units by displaying the equivalent of four FHD content screens on a single UHD screen. This feature includes the ability to display content from four separate input devices on the same screen without the need to first merge the content on a separate PC for simplified content management. And no special third-party components are required. Various Picture-in-Picture (PIP) and split-screen scenarios are possible for more dynamic and efficient display usage, such as displaying a videoconference on a large part of the screen along with reference documents from a different device on another part of the screen. Or retailers can display a large product image next to a specifications list right on the same screen. By using a single screen in place of multiple ones, the complexity of installation is eliminated for enhanced efficiency. In addition, QMD Series SMART Signage is equipped with three DPs (1.2*2, 1.1*1), three High-Definition Multimedia Interface® (HDMI) ports, DVI ports and one D-sub port for added flexibility.

Increase usability with flexible configurations and 16/7 operation

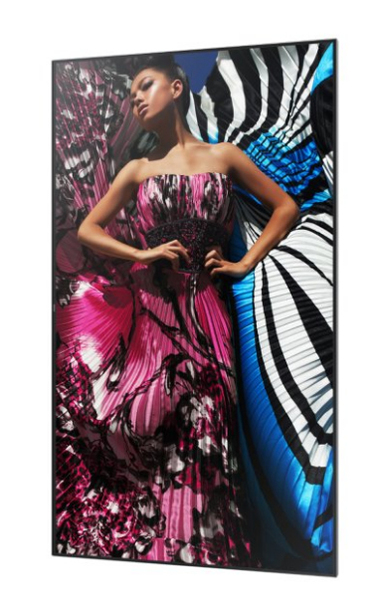

The QMD Series has been engineered to meet the demands of traditional commercial environments with 16/7 reliability and flexible features for enhanced viewing. Features include the pivot mode, which enables you to install the displays in a landscape or portrait orientation to suit your environment while still delivering the impactful qualities of digital signage. And the sleek, modern design of the displays fits into virtually any business environment, enhancing the ambiance.

Create a streamlined display area with Samsung’s detachable SBB option
Because UHD is relatively new to the commercial market, few media players currently support UHD streaming. To meet this demand, Samsung plans to introduce an optional UHD-capable set-back box (SBB) in the late third quarter of 2014. The small-sized SBB is designed to attach to the back of the QMD Series displays, simplifying installation and eliminating unnecessary wire clutter and the need for a separate media player housing. This high-performance SBB features an embedded Haswell 4th Generation Intel® Core™ i5 CPU with a 4 GB DDR3 memory and comes with Samsung MagicInfo® software for easy content management.
