Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
| Processor | |
| Maximum number of SMP processors | 1 |
| Compatible processor series | Celeron, Core i3, Core i5, Core i7, Pentium |
| Processor family | Intel |
| Processor socket | LGA 1150 |
| Memory | |
| Maximum internal memory | 16 GB |
| Memory voltage | 1.5 V |
| Supported memory clock speeds | 1333,1600 MHz |
| Supported memory types | DDR3 |
| Memory channels | Dual |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Weight & dimensions | |
| Width | 170 mm |
| Depth | 170 mm |
| Networking | |
| Ethernet LAN |  |
| Ethernet interface type | Gigabit Ethernet |
| Internal I/O | |
| Number of SATA connectors | 1 |
| USB 2.0 connectors | 5 |
| CPU fan connector | |
| Front panel audio connector | |
| Number of SATA III connectors | 4 |
| Serial port headers | 1 |
| mSATA ports quantity | 1 |
| Supported storage drive interfaces | Serial ATA III |
| Back panel I/O ports | |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | |
| HDMI ports quantity | 1 |
| HDMI version | 1.4a |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Expansion slots | |
| PCI Express x4 slots | 1 |
| Mini PCI Express slots | 1 |
| BIOS | |
| BIOS type | EFI AMI |
| ACPI version | 2.0a |
| Clear CMOS jumper | |
| Graphics | |
| Maximum resolution | 4096 x 2160 pixels |
| Performance | |
| Motherboard chipset | Intel H87 |
| Audio system | High Definition Audio |
| Motherboard form factor | Mini ITX |
| Audio output channels | 7.1 |
| PC health monitoring | CPU |
| Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Motherboard chipset family | Intel |
| Component for | PC |
| EAN | 4719331835262 |
| Warranty | 1 year |

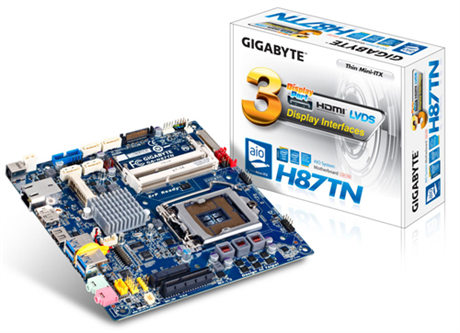

GIGABYTE Thin Mini-ITX Motherboards
GIGABYTE Thin-Mini-ITX motherboards are the ideal platform for today’s All-in-One, small form factor and slim profile PCs. Offering a full featured PC experience in a minimal device footprint, GIGABYTE Thin Mini-ITX motherboards are 43% thinner than traditional Mini-ITX designs. Complying with the latest Thin Mini-ITX guidelines, GIGABYTE Thin Mini-ITX motherboards offer additional flexibility making them suited to broad range of innovative PC designs.
Selectable Panel Power Driver
GIGABYTE Thin Mini-ITX motherboards feature a selectable power driver allowing for both 3.3v and 5v configurations. This brings additional flexibility for LVDS panels that require both 3.3v and 5v drivers. Voltage settings are configured via an onboard jumper.
Selectable Back Light Power Module
GIGABYTE Thin Mini-ITX motherboards offer flexible backlight power delivery with both 12v and 19v options available via onboard jumpers. This enhances compatibility with the wide range of backlit displays available today.
Wide Range Voltage Input
Offering additional flexibility for system DC voltage input, GIGABYTE Thin Mini-ITX motherboards offer a broad voltage range of 12v to 19v, eliminating compatibility issues with many traditional IPC designs.
GIGABYTE Thin-Mini-ITX motherboards are the ideal platform for today’s All-in-One, small form factor and slim profile PCs. Offering a full featured PC experience in a minimal device footprint, GIGABYTE Thin Mini-ITX motherboards are 43% thinner than traditional Mini-ITX designs. Complying with the latest Thin Mini-ITX guidelines, GIGABYTE Thin Mini-ITX motherboards offer additional flexibility making them suited to broad range of innovative PC designs.
Selectable Panel Power Driver
GIGABYTE Thin Mini-ITX motherboards feature a selectable power driver allowing for both 3.3v and 5v configurations. This brings additional flexibility for LVDS panels that require both 3.3v and 5v drivers. Voltage settings are configured via an onboard jumper.
Selectable Back Light Power Module
GIGABYTE Thin Mini-ITX motherboards offer flexible backlight power delivery with both 12v and 19v options available via onboard jumpers. This enhances compatibility with the wide range of backlit displays available today.
Wide Range Voltage Input
Offering additional flexibility for system DC voltage input, GIGABYTE Thin Mini-ITX motherboards offer a broad voltage range of 12v to 19v, eliminating compatibility issues with many traditional IPC designs.
