Specifications
Description
Store availability
Delivery
Price development
| Processor | |
| Processor manufacturer | Dual/single |
| Processor family | PowerPC |
| Processor cores | 2 |
| Display | |
| Colour |  |
| Ports & interfaces | |
| Expansion slots | 7 x Full-height, Full-length expansion slot 7 x PCI-e |
| USB 2.0 ports quantity | 2 |
| Weight & dimensions | |
| Weight | 25.4 kg |
| Height | 178 mm |
| Width | 437 mm |
| Depth | 647 mm |
| Energy management | |
| Power consumption (typical) | 865 W |
| Power requirements | 100 - 240V, 50-60Hz |
| Redundant power supply (RPS) support |  |
| Operational conditions | |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 50 - 95 °F |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage | |
| HDD interface | SATA |
| HDD size | 3.5" |
| Number of HDDs installed | 8 |
| Hot-swap | |
| Supported HDD sizes | 3.5" |
| Packaging data | |
| Package weight | 25.4 kg |
| Package depth | 759 mm |
| Package height | 356 mm |
| Package width | 625 mm |
| Certificates | |
| Certification | UL/FCC/CUL/TUV/CE Mark/N 60950/IEC 60950/CB |
| Cooling | |
| Noise level (low speed) | 28 dB |
| Other features | |
| Dimensions (WxDxH) | 437 x 648 x 178 mm |
| I/O ports | 2x 5.25" Peripheral Drive Bay 1x 5.25" Drive Bay For 3.5" 1.44MB Floppy Drive |
| Non-operating relative humidity (non-condensing) | 5 - 95% |
| Technical features | Power Switch, Reset Switch & 6x LED Indicators 4x 6-pin Power Connectors 90-degree rotatable module 2x Super Quiet Chassis Fans 1x Super Quiet Rear Fan |
| Compatible products | X9DAL-3 , X9DAL-i, X9SRi , X9SRi-3F, X9SRE , X9SRE-3F, X9SRA , X9SAE, X9SAE-V , X9SRL-F, X9SRi-F , X9SRE-F, H8SGL, H8SGL-F, H8SCM , H8SCM-F, X8DTH-6 , X8DTH-6F, X8DTH-i , X8DTH-iF, X8DT6, X8DT6-F, X8DTE, X8DTE-F, X8DT3 , X8DT3-F, X8DTi , X8DTi-F, X8DTi-LN4F , X8DT3-LN4F, X8DTL-3, X8DTL-3F, X8DTL-I, X8DTL-IF, X8DTL-6, X8DTL-6F, X8DTL-6L, X8DTL-L, X8DA3, X8DAi, X8DAL-3, X8DAL-i, X9SCI-LN4 , X8SIL, X8SIL-F, X8SIE, X8SIE-F, C7B75, X10SLM+-LN4F , X10SLM+-F, X10SLH-F , X10SLM-F, X10SLL-F , X10SLL-SF, X10SLA-F , X10SAE, C7Z87 , C7Z87-OCE, X10DAL-i , C7H170-M |
| Backplanes support | |
| Design | |
| Type | Server |
| Certification | UL/FCC/CUL/TUV/CE Mark/N 60950/IEC 60950/CB |
| Rack mounting | |
| Chassis type | Rack (4U) |
| Form factor | Tower |
| Material | Metal |
| LED indicators | Activity,HDD,LAN,Power fail |
| Product colour | Black |
| Rack capacity | 4U |
| Reset button | |
| Supported motherboard form factors | ATX,EATX |
| Number of 5.25" bays | 3 |
| Number of 3.5" bays | 8 |
| Side window | |
| Number of expansion slots | 7 |
| Number of external 5.25" bays | 3 |
| Power supply | |
| Power supply | 865 W |
| Redundant power supply (RPS) support | |
| ATX power connector (20+4 pin) | |
| 80 PLUS certification | 80 PLUS |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power supply location | Rear |
| Power supply included | |
| EAN | 672042024551 |
| Warranty | 1 year |
| Source: Icecat.biz | |

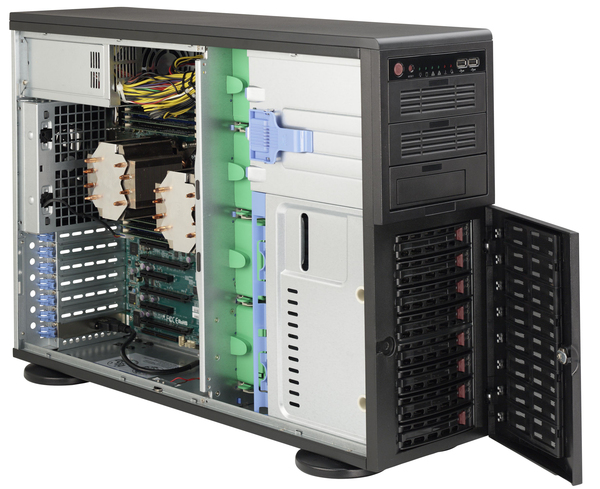

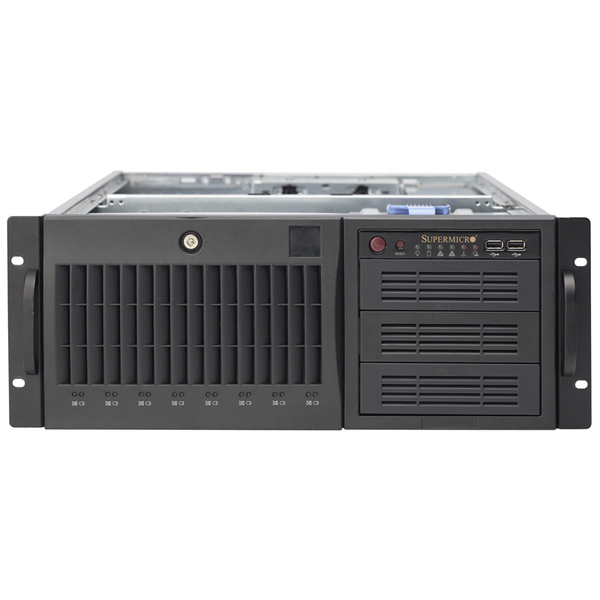

Supermicro's SC743 chassis series is engineered for the latest Intel Xeon processor and is also compatible with previous generation Intel and AMD single/dual processor-based motherboards. Utilizing high-efficiency power supply and eight hot-swap 3.5" drive bays, this chassis offers reliable performance with problem-free maintenance. Designed with 100% cooling redundancy using a combination of high-performance hot-swappable fans, the chassis minimizes the probability of system downtime or performance degradation from thermal-related issues. Optionally, this tower can be converted to mount in a standard rack.
