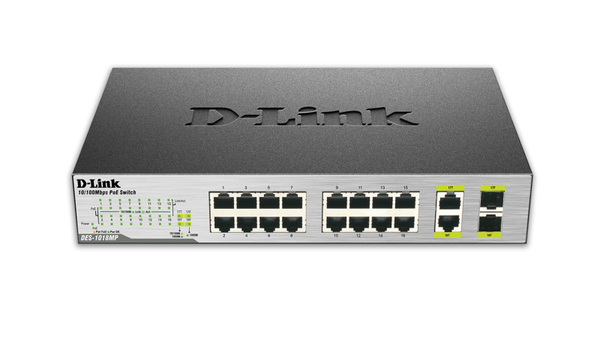

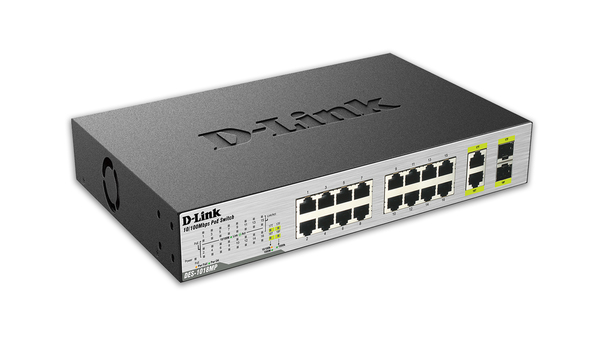

D-Link DES-1018MP switch, 16x10/100Mbps (PoE) + 2x1000Base-T/SFP, svar

Valmistaja: D-LINK
ID: DES-1018MP
Tuote ei ole saatavilla
Tätä tuotetta ei valmisteta enää tai sitä ei ole tällä hetkellä saatavilla.

Tärkeimmät tekniset tiedot

Valitse yksi tai useampi ominaisuus etsiäksesi tuotteita, joilla on samat tekniset tiedot.
Tuotetiedot
Kuvaus
Myymäläsaatavuus
Toimitus
Hinnan muutokset
Tekniset tiedot
Kuormalavan leveys120 cm
Kuormalavan pituus110 cm
Toimituspakkauksen leveys32,8 cm
Toimituspakkauksen pituus37,4 cm
Toimituspakkauksen korkeus35,6 cm
Määrä toimituspakkauksessa3 kpl
Toimituspakkauksen kokonaispaino10,5 kg
Liitettävyys
Peruskytkentä RJ-45 Ethernet-porttien tyyppiFast Ethernet (10/100)
Basic kytkentä RJ-45 Ethernet-porttien määrä16
SFP -moduulipaikkojen määrä2
Paino ja mitat
Paino2,15 kg
Tuotteen korkeus44 mm
Tuotteen leveys280 mm
Tuotteen syvyys210 mm
Virranhallinta
Virrankulutus301,6 W
AC-syöttötaajuus50 - 60 Hz
AC-syöttöjännite100 - 240 V
Ympäristöolosuhteet
Käytön suhteellinen kosteus (H-H)0 - 95%
Varastointilämpötila-40 - 70 °C
Käyttölämpötila (T-T)0 - 40 °C
Säilytysympäristön kosteus0 - 95%
Lämmön poisohjaus1029,5 BTU/h
Verkko
VerkkostandarditIEEE 802.3,IEEE 802.3af,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Datasiirto
MAC-osoitetaulukko8000 entries
Pakkaustiedot
Pakkauksen paino3,19 kg
Pakkauksen syvyys358 mm
Pakkauksen korkeus102 mm
Pakkauksen leveys329 mm
Hallintaominaisuudet
Kytkin tyyppiHallitsematon
Suunnittelu
SertifiointiFCC Class A, CE, CCC, RoHS, VCCI, BSMI, C-Tick
Telineasennuscheckmark
TurvallisuusCB, cUL, LVD, CCC, BSMI
LED-merkkivalotToiminta/Seikkailu, Linkki, Teho, Virtakatkos
Tuotteen väriMusta
Tuulettimien määrä1 tuuletin(ta)
Power over Ethernet (PoE)
Power over Ethernet -tukicheckmark
Suorituskyky
Puskurin koko384 KB
EAN0790069406744
Takuu2 vuotta
Source: Icecat.biz
Overview
The D-Link DES-1018MP 18-Port 10/100 Unmanaged Desktop or Rackmount PoE Switch Including 2 1000BASE-T/SFP Combo Ports enables users to easily connect and supply power to PoE-capable devices such as wireless Access Points (APs), IP cameras, and IP phones. The DES-1018MP can also connect other Ethernet devices like computers, printers, and Network Attached Storage (NAS) to fit into any type of network application.

Power Over Ethernet IEEE 802.3af
The DES-1018MP features 16 ports that support the IEEE 802.3af PoE standard. Each of the PoE ports can supply up to 15.4 watts, with a total PoE budget of 246.4 watts, allowing users to attach any IEEE 802.3af-compliant device to the DES-1018MP without requiring additional power. PoE is especially suitable for devices that are far from power outlets or when users want to minimize the clutter of extra cables as power is supplied via the Ethernet cables themselves.

Expand Your Network
The addition of two Gigabit combo uplink ports means businesses can increase their network bandwidth via wired speed while offering redundancy so voice and surveillance data are transferred reliably. The combo design can increase bandwidth by offering two Gigabit copper or fiber connections, giving administrators more options for expansion.

Cut Your Energy Costs
To help small businesses save on operating costs, the DES-1018MP supports IEEE 802.3az Energy Efficient Ethernet (EEE). This feature senses network traffic to automatically put ports that are not being used to sleep and also powers them on as required. The DES-1018MP also features a smart fan that automatically adjusts itself to reduce power consumption and noise whenever possible to conserve energy, so users can reinvest the cost savings back into their business.

Hassle-Free Setup
The DES-1018MP is a Plug-and-Play device that requires no configuration, so setup is simple and hassle-free. Simply connect the switch to a network and then connect multiple computers, share files, and make Voice-over-IP calls across the network. Support for Auto MDI/MDI-X on all ports eliminates the need for crossover cables when connecting to another switch or hub. Auto-Negotiation on each port senses the link speed of a network device (either 10 or 100) and intelligently adjusts for compatibility and optimal performance. Combining the convenience of PoE, fast performance, reliability, and ease of use, the 18-Port Unmanaged Desktop PoE Switch is the ideal choice for adding PoE devices to a network.
