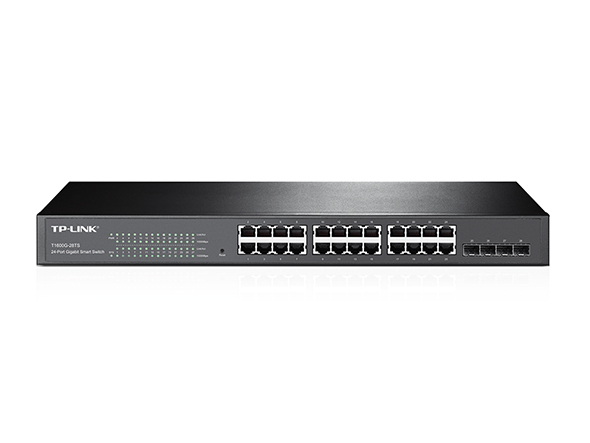

TP-LINK JetStream T1600G-28TS - Kytkin - Hallinnoitu - 24 x 10/100/1000 + 4 x combo Gigabit SFP - räkkiin asennettava
Tätä tuotetta ei valmisteta enää tai sitä ei ole tällä hetkellä saatavilla.
Liitettävyys | |
Gigabit Ethernet -portteja | 24 |
Peruskytkentä RJ-45 Ethernet-porttien tyyppi | Gigabit Ethernet (10/100/1000) |
Basic kytkentä RJ-45 Ethernet-porttien määrä | 24 |
SFP -moduulipaikkojen määrä | 4 |
Virtaliitin | DC-tulo jakkiliitin |
Paino ja mitat | |
Tuotteen korkeus | 44 mm |
Tuotteen leveys | 440 mm |
Tuotteen syvyys | 180 mm |
Virranhallinta | |
AC-syöttötaajuus | 50 - 60 Hz |
AC-syöttöjännite | 100 - 240 V |
Tehonkulutus (maks.) | 23,2 W |
Virtalähde mukana | |
Ympäristöolosuhteet | |
Käytön suhteellinen kosteus (H-H) | 10 - 90% |
Varastointilämpötila | -40 - 70 °C |
Käyttölämpötila (T-T) | 0 - 40 °C |
Säilytysympäristön kosteus | 5 - 90% |
Protokollat | |
Hallintaprotokolla | SNMP, RMON, SNMP, SSH, SSL, ICMP, TFTP |
Verkko | |
Verkkostandardit | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
Virranhallinnan tuki | |
Porttien peilaus | |
Linkkien yhdistäminen | |
Broadcast Storm Control | |
Nopeuden rajoitus | |
IP-reititys | |
Auto MDI/MDI-X | |
VLAN:ien määrä | 4000 |
STP-Protokolla | |
VLAN-tuki | |
10G-tuki | |
Datasiirto | |
MAC-osoitetaulukko | 16000 entries |
Kytkentäkapasiteetti | 56 Gbit/s |
Jumbo Frames -tuki | |
Forwarding rate | 41,7 Mpps |
Laitteen puskurimuistiin | 12 MB |
Suoritusteho | 41,7 Mpps |
Jumbo frames | 9000 |
Pakkaustiedot | |
Pakkauksen paino | 2,9 kg |
Sisältää johdot | AC |
Pakkauksen syvyys | 250 mm |
Pakkauksen korkeus | 80 mm |
Pakkauksen leveys | 528 mm |
Käyttöopas | |
Suojaus | |
Tietoturva-algoritmit | SSH, SSL/TLS |
SSH/SSL-tuki | |
IGMP snooping | |
Todennuksen laji | AAA, RADIUS |
BPDU suodatus/suojaus | |
Todennustapa | Vieras VLAN, MAC-pohjainen tunnistautuminen, Porttiperusteinen tunnistatuminen |
Hallintaominaisuudet | |
MIB-tuki | Y |
Kytkinkerros | L2/L2+ |
Quality of Service -tuki | |
Verkkosivupohjainen hallinta | |
Järjestelmän tapahtumien loki | |
Kytkin tyyppi | Hallittu |
ARP-tarkastus | |
Suunnittelu | |
Sertifiointi | CE, FCC, RoHS |
Telineasennus | |
Kotelo | 1U |
LED-merkkivalot | |
Tuotteen väri | Musta |
Power over Ethernet (PoE) | |
Power over Ethernet -tuki | |
Suorituskyky | |
Yhteensopivat käyttöjärjestelmät | Microsoft Windows XP, Vista or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux. |
Telnet | |
Multicast-tuki | |
EAN | 6935364091972 |
Takuu | 5 vuotta |
Source: Icecat.biz |
- Gigabit Ethernet connections on all ports provide full speed of data transferring
- L2+ Feature tatic Routing, helps route internal traffic for more efficient use of network resources
- Integrated security strategy including 802.1Q VLAN, Port Security and Storm control help protect LAN area investment
- L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
- IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery
- WEB/CLI managed modes, SNMP, RMON and Dual Image bring abundant management features
What This Product Does
TP-LINK JetStream Gigabit Smart Switch T1600G-28TS is a cost-effective product solution for small and medium-sized business which provides high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS and useful security strategies. Equipped with 24 gigabit RJ45 ports and 4 SFP slots, T1600G-28TS supports multiple useful features. Static Routing helps route internal traffic for more efficient use of network resources. The Storm Control feature protects against Broadcast, Multicast and Unknown unicast Storm. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Moreover, the easy-to-use web management interfaces, along with SNMP, RMON and Dual Image, mean faster setup and configuration with less downtime. For workgroup and departments requiring cost-sensitive L2/L2+ switch and gigabit capability, TP-LINK JetStream Gigabit Smart Switch T1600G-28TS provides you the ideal access-edge solution.
Advanced QoS Features
To integrate voice, data and video service on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter free. In conjunction with the Voice VLAN the switch supports, the voice applications will operate with much smoother performance.
Abundant Layer 2 Features
For more application of L2 switches, T1600G-28TS supports a complete lineup of L2 features, including 802.1Q tag VLAN, Port Isolation, IP-MAC-Port Binding, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Group and 802.3x Flow Control function. Besides, the switch provides advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Moreover, T1600G-28TS supports L2+ feature—static routing, which is a simple way to provide segmentation of the network with internal routing through the switch and helps network traffic for more efficient use.
IPv6 Support
T1600G-28TS supports various IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discovery.
Enterprise Level Management Features
T1600G-28TS is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface(GUI) or industry-standard Command Line Interface(CLI), SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events. And it also supports Dual Image,which provides reduced down-time for the switches, when the image is being upgraded / downgraded.
