Tätä tuotetta ei valmisteta enää tai sitä ei ole tällä hetkellä saatavilla.
Liitettävyys | |
SFP/SFP+ portteja | 2 |
Combo SFP-porttien määrä | 2 |
Basic kytkentä RJ-45 Ethernet-porttien määrä | 24 |
Virtaliitin | DC-tulo jakkiliitin |
Paino ja mitat | |
Paino | 3,7 kg |
Virranhallinta | |
Virrankulutus | 45 W |
Ympäristöolosuhteet | |
Käytön suhteellinen kosteus (H-H) | 10 - 85% |
Varastointilämpötila | -25 - 70 °C |
Käyttölämpötila (T-T) | 0 - 45 °C |
Protokollat | |
Tietoyhteysprotokollat | Ethernet, Fast Ethernet |
Hallintaprotokolla | RMON, SNMPv3 |
Verkko | |
Täysin kaksipuolinen | |
Verkkostandardit | IEEE 802.1p,IEEE 802.1Q,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
Virranhallinnan tuki | |
Broadcast Storm Control | |
Auto MDI/MDI-X | |
VLAN:ien määrä | 32 |
STP-Protokolla | |
10G-tuki | |
Datasiirto | |
MAC-osoitetaulukko | 8000 entries |
Tuettu tiedonsiirtonopeus | 10/100/1000 Mbps |
Kytkentäkapasiteetti | 8,8 Gbit/s |
Suurin tiedonsiirtonopeus | 0,1 Gbit/s |
Tallenna ja lähetä edelleen | |
Suojaus | |
SSH/SSL-tuki | |
Hallintaominaisuudet | |
MIB-tuki | Y |
Kytkinkerros | L2 |
Quality of Service -tuki | |
Verkkosivupohjainen hallinta | |
Kytkin tyyppi | Hallittu |
Muut ominaisuudet | |
Mitat (LxSxK) | 444,5 x 251,5 x 439 mm |
Äänenpainetaso | 40 dB |
Tehovaatimukset | 1.3-0.8A |
Yhteysteknologia | Langallinen |
Tiedonsiirtonopeus | 100 Mbit/s |
Paketin siirtonopeus | 6.6 Mpps |
Tekniset ominaisuudet | 8000 MAC |
Syötteen taajuus | 50/50 Hz |
Yhdistettävyyden ledit | Y |
Suunnittelu | |
Sertifiointi | FCC 15 A, EN 55022 A (CISPR22), EN 55024 (CISPR24),VCCI A, AS/NZS CISPR22 A, MIC, China EMC, GOST |
Telineasennus | |
Turvallisuus | UL, CUL, TUV/GS, CB, NOM, CE |
Tuotteen väri | Harmaa |
Pinottava | |
Power over Ethernet (PoE) | |
Power over Ethernet -tuki | |
Suorituskyky | |
Sisäinen muisti | 32 MB |
Keskimääräinen vikaantumisaika | 282705 h |
Flash-muisti | 16 MB |
EAN | |
Source: Icecat.biz |

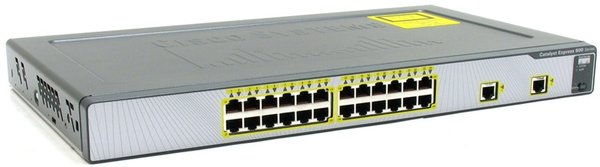

Cisco® Catalyst® Express 500 Series switches deliver Cisco class networking tailored for businesses with up to 250 employees. Powered by Cisco Systems® technology, this family of Layer 2-managed Fast Ethernet and Gigabit Ethernet switches offers nonblocking, wire-speed performance that provides a secure network foundation optimized for data, wireless, and voice. Built-in advanced security features help ensure that your devices and network are protected.
The intuitive GUI simplifies setting up, running, and troubleshooting a network. Embedded Cisco Smartports with preset Cisco recommended network configurations, quality of service (QoS), security, and multicast settings allow for transparent integration of data, video, IP Communications, and wireless LAN applications. With Cisco Smartports technology, mission-critical traffic is prioritized; voice conversations are clear; bandwidth-intensive video traffic does not impact other applications on the network-and your wireless network is secure. Integrated intelligence within the switch helps you detect device and network problems before they impact your business.
